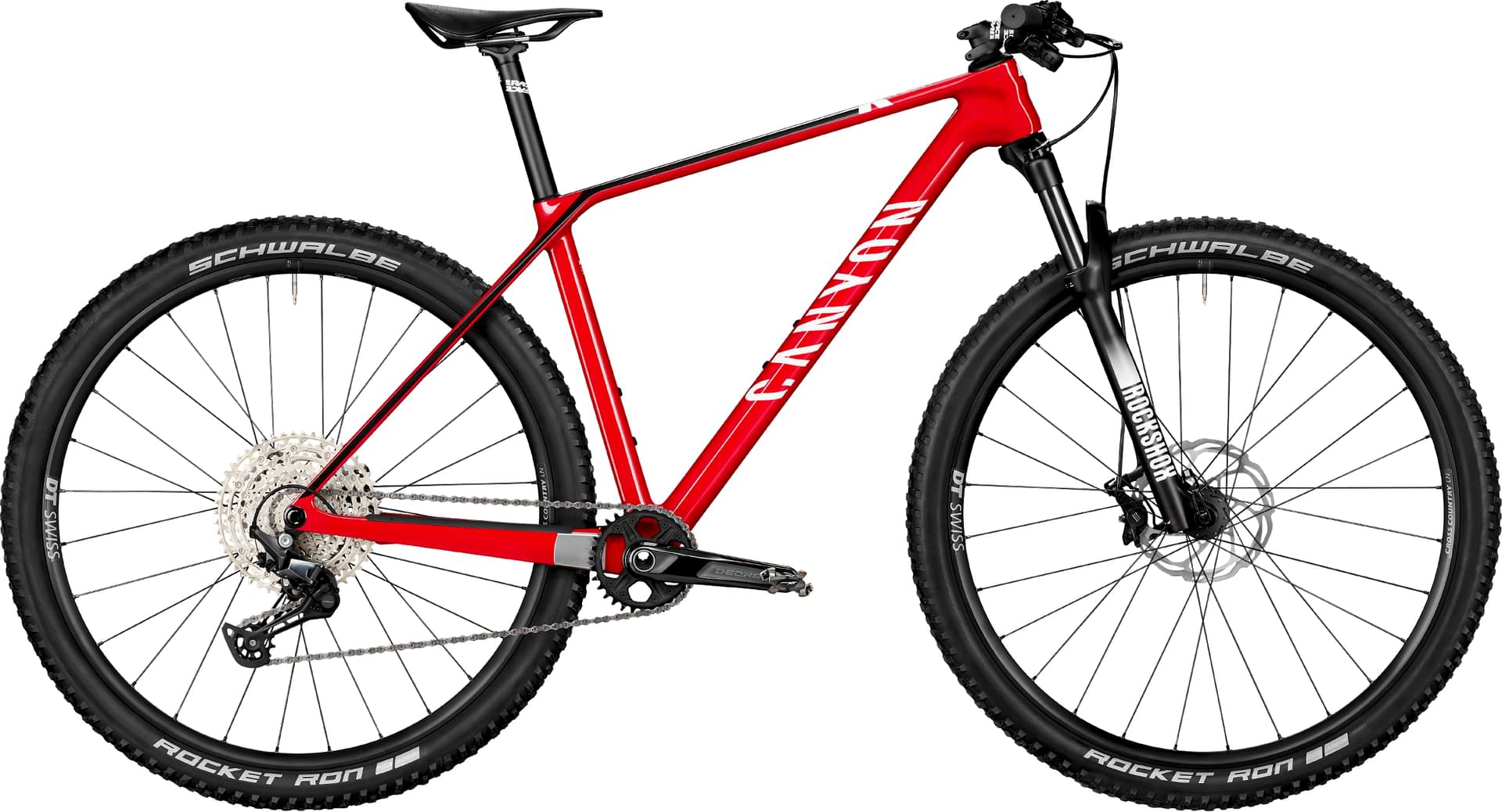

Canyon Exceed CF 5 2023
2023 Mountain
Estimate price |
1,999$
Weight | 11.74 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 176cm
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Exceed CF, Our superlight, cross-country 29er hardtail gives you race DNA in an accessible carbon package., Axle dimension: 12x148 mm, Material: Carbon (CF)
Suspension Fork
Rock Shox Recon RL Remote, Travel: 100 mm, Fork steer tube diameter: 1 1/8" - 1,5", Weight: 2.50 kg
Drivetrain
Rear Derailleur
Shimano DEORE M6100, Cage length: long, Weight: 317 g
Shift Levers
Shimano DEORE M6100
Cassette
Shimano DEORE M6100, Number of sprockets: 12
Crank
Shimano Deore M6120, Number of chainrings: 1
Bottom Bracket
Shimano Pressfit BB71, Bottom bracket standard: PF 89,5/92, Weight: 10 g
Chain
Shimano CN-M6100
Pedals
None included
Wheels
Rims
DT Swiss LN XC, Rotor mount: IS 6-bolt, Weight: 976 g | DT Swiss LN XC, Rotor mount: IS 6-bolt
Tires
Schwalbe Rocket Ron 2.25'', Width: 2.25"
Brakes
Brakes
Shimano SLX M7100 | Shimano SLX M7110
Cockpit
Stem
Race Face Ride, Size XS and S bikes are specced with Iridium stems., Fork steer tube diameter: 1 1/8" | Newmen Evolution 318.4, Fork steer tube diameter: 1 1/8"
Handlebar
Race Face Ride Rise, Clamping diameter: 31,8 mm, Width: 740 mm | Newmen Evolution SL 318.10, Width: 740 mm
Grips
Canyon push-on Grips
Seat
Saddle
Selle Italia Model X, Gender: Unisex, Weight: 315 g
Seatpost
Race Face Ride, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 10 g | Newmen Evolution, Clamp diameter: 30,9 mm, Material: Aluminium (AL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.45 mm | 1.39 mm | 1.36 mm | 1.34 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 661 mm | 683 mm | 704 mm | 730 mm | 757 mm |
| Rake | 55 mm | 55 mm | 54 mm | 55 mm | 55 mm |
| Trail | 85 mm | 85 mm | 86 mm | 85 mm | 85 mm |
| Stack | 589 mm | 589 mm | 594 mm | 608 mm | 626 mm |
| Reach | 384 mm | 407 mm | 427 mm | 447 mm | 467 mm |
| Top Tube Length | 544 mm | 567 mm | 588 mm | 612 mm | 637 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 375 mm | 415 mm | 458 mm | 495 mm | 535 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 90 mm | 90 mm | 95 mm | 110 mm | 130 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 422 mm | 427 mm |
| Wheelbase | 1071 mm | 1094 mm | 1115 mm | 1146 mm | 1178 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 773 mm | 795 mm | 820 mm | 846 mm | 875 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Max Height | 167 cm | 176 cm | 184 cm | 193 cm | cm |
About this model
Exceed CF 5 belongs to the Canyon Exceed model. Canyon released 56 bikes variations of this model so far. Take a sneak peek at all Canyon Exceed bikes models from 2023, by clicking here.
Model range prices
Canyon Exceed CF 4 2023 is the most economical model, with a starting price of 1698$. Canyon Exceed CFR LTD 2023 on the other hand costs 7599$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 1999$. In conclusion, this bike price is 4.93% higher than the price of the average Crosscountry bike.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Exceed CF 5 weighs 11.74 kg (25.88 lbs) and is a bit lighter than the average. In conclusion, the average Crosscountry bike weighs 5.62% more than Exceed CF 5.
Overview of components
Fork
Canyon Exceed CF 5 2023 bike is equipped with the RockShox Recon Silver RL fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the Exceed CF 5 bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Exceed CF 5 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
