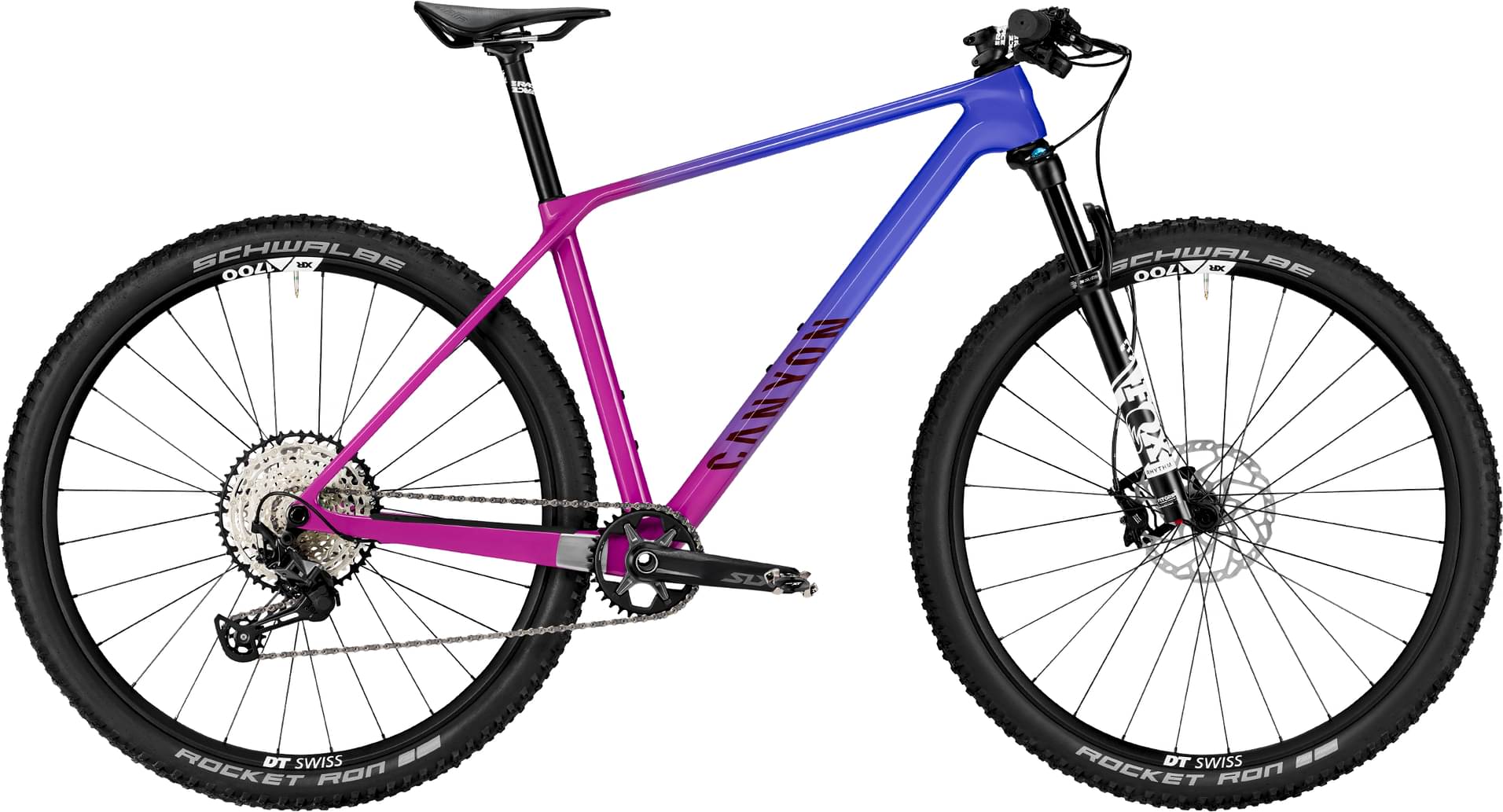

Canyon Exceed CF 6 2023
2023 Mountain
Estimate price |
2,752$
Weight | 10.85 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Rhythm Float 32
-
Groupset SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 176cm
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Exceed CF, Our superlight, cross-country 29er hardtail gives you race DNA in an accessible carbon package., Axle dimension: 12x148 mm, Material: Carbon (CF)
Suspension Fork
FOX 32 Rhythm Remote, Axle dimension: 15x110 mm, Stanchion Diameter: 32 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8" - 1,5"
Drivetrain
Rear Derailleur
Shimano SLX M7100, Cage length: long, Weight: 286 g
Shift Levers
Shimano SLX M7100
Cassette
Shimano SLX M7100, Number of sprockets: 12 | Shimano CS-M7100 MTB 12-speed Cassette
Crank
Shimano SLX M7120, Number of chainrings: 1
Bottom Bracket
Shimano Pressfit BB71, Bottom bracket standard: PF 89,5/92, Weight: 10 g | Ceramicspeed BB92 Shimano PressFit Bottom Bracket | Shimano MTB BB-MT800-PA 89.5/92 Press-Fit Bottom Bracket
Chain
Shimano CN-M7100 12s | Shimano CN-M7100 12-speed Chain 138 Links | Shimano SM-CN910 12-speed Quick-Link Chain Connector
Pedals
None included
Wheels
Rims
DT Swiss XR 1700 SH12, Axle dimension: 12x148 mm, Rotor mount: IS 6-bolt, Inner width: 25 mm, Weight: 896 g | DT Swiss XR 1700, Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt, Inner width: 25 mm, Weight: 799 g
Tires
Schwalbe Rocket Ron 2.25'', Width: 2.25"
Brakes
Brakes
Shimano SLX M7100 | Shimano SLX M7110
Cockpit

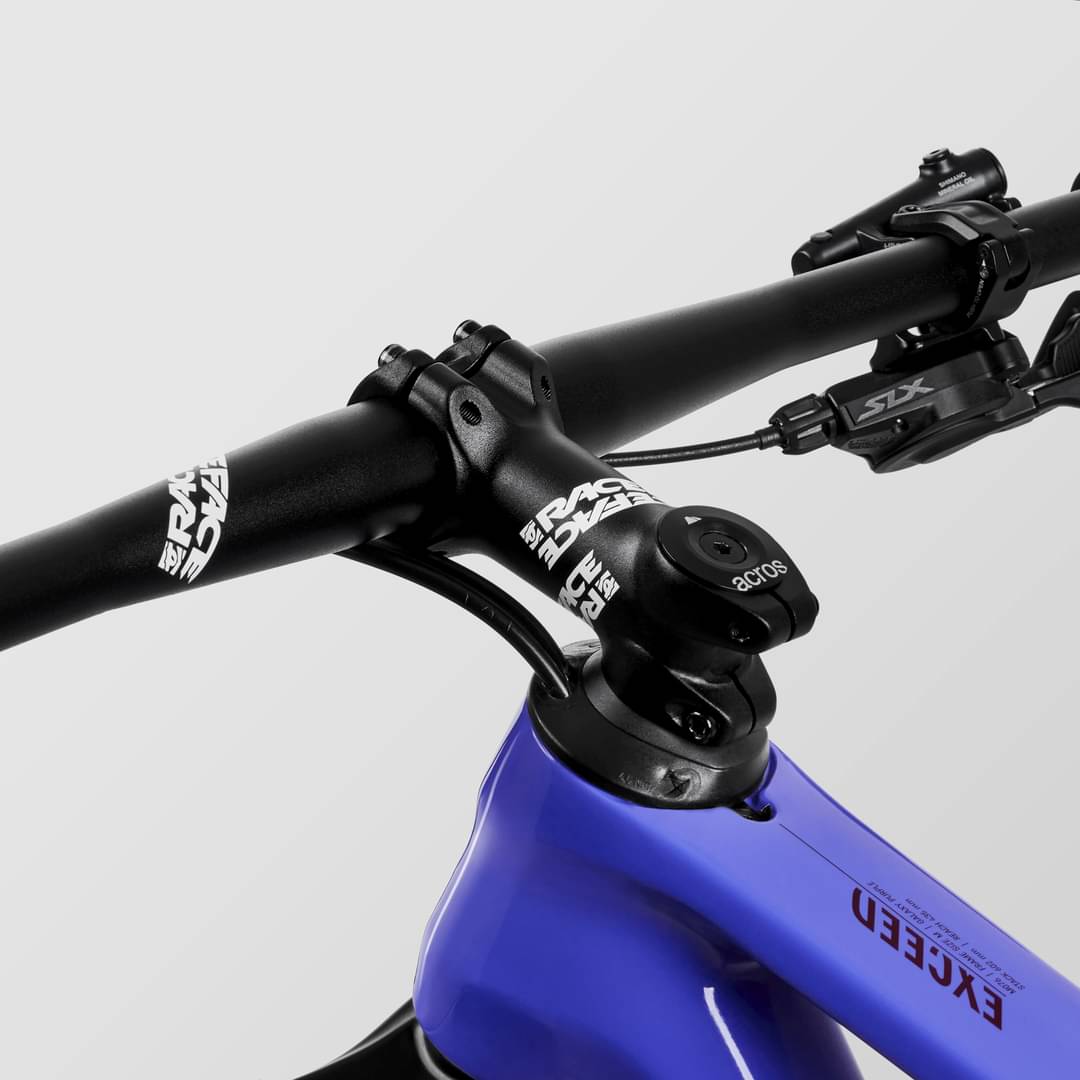

Stem
Race Face Ride, Size XS and S bikes are specced with Iridium stems., Fork steer tube diameter: 1 1/8"
Handlebar
Race Face Ride Rise, Clamping diameter: 31,8 mm, Width: 740 mm
Grips
Canyon push-on Grips
Seat
Saddle
Selle Italia Model X, Gender: Unisex, Weight: 315 g
Seatpost
Race Face Ride, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 10 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.45 mm | 1.39 mm | 1.36 mm | 1.34 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 657 mm | 679 mm | 700 | 726 mm | 753 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 89 mm | 89 mm | 89 mm | 89 mm | 89 mm |
| Stack | 589 mm | 589 mm | 594 mm | 608 mm | 626 mm |
| Reach | 384 mm | 407 mm | 427 mm | 447 mm | 467 mm |
| Top Tube Length | 553 mm | 576 mm | 597 mm | 620 mm | 645 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 375 mm | 415 mm | 458 mm | 495 mm | 535 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 90 mm | 90 mm | 95 mm | 110 mm | 130 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 426 mm | 431 mm |
| Wheelbase | 1071 mm | 1094 mm | 1115 mm | 1146 mm | 1178 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 773 mm | 795 mm | 820 mm | 846 mm | 875 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Max Height | 167 cm | 176 cm | 184 cm | 193 cm | cm |
About this model
Exceed CF 6 belongs to the Canyon Exceed model. Canyon released 56 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Canyon Exceed CF 4 2023 is the cheapest bike model and costs 1698$. Canyon Exceed CFR LTD 2023 is the most expensive one and costs 7599$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2547$. In conclusion, this bike price is 33.7% higher than the price of the average Crosscountry bike.
Crosscountry bikes average weight
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Canyon Exceed CF 6 it’s weighing 10.85 kg (23.92 lbs). At this weight, is considerably lighter than average. In short, the average Crosscountry bike weight is 14.29% higher than this one.
Exceed CF 6 components
Fork
This bike has the Fox Rhythm Float 32 fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on Exceed CF 6 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Exceed CF 6 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
