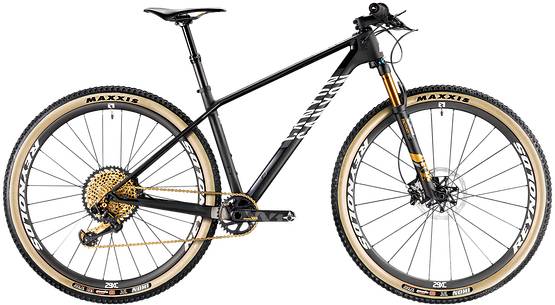

Canyon Exceed CF SLX 9.0 Pro Race LTD 2018
2018 Mountain
Estimate price |
6,499$
Weight | 8.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset XX1 Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Exceed CF SLX, Carbon frames made of multi-modulus carbon composite, Brake calliper between the seat stay and chainstay saves on weight yet increases stiffness, Extended front centre for greater safety and control when riding, Removable derailleur holder, IPU unit on the top tube, Canyon quick-release axle, Press-Fit inner bearing, Internally routed cables, Di2 compatible, Dropper Post compatible, Weight: 870 g (M)
Suspension Fork
Fox Factory 32 Step Cast Remote, BOOST, Air suspension, Tapered steerer, 15 mm quick-release axle, Lockout Remote
Drivetrain
Rear Derailleur
SRAM XX1 Eagle, 12s, X-Horizon derailleur, X-Actuation, X-Sync, Roller Bearing Clutch, Cage Lock, Long carbon cage, 12-speed
Shift Levers
SRAM XX1 Eagle Grip Shift, Carbon fibre, 12-speed, X-Actuation
Cassette
SRAM XG-1299 Eagle, 12s, XD™ driver body, 500% range, Gradation: 10-12-14-16-18-21-24-28-32-36-42-50
Crank
SRAM XX1 EAGLE Carbon, 12s, Carbon cranks, X-SYNC™ tooth profile for maximum chain control, Direct mount chainring, 24 mm axle
Bottom Bracket
SRAM GXP Pressfit
Chain
SRAM XX1 Eagle
Pedals
none included
Wheels
Rims
Reynolds Black Label XC
Tires
Maxxis IKON, 3C MaxxSpeed, Tubeless-Ready, 120tpi, Low rolling resistance
Brakes
Brakes
SRAM Level Ultimate
Cockpit
Stem
Canyon V14, Angle: +/- 6°, 1 1/8" Stem clamp, In-house developed Canyon stem with new clamping concept for added security, Hexagonal profile design for extra torsional stiffness, Compliant with Canyon Category 3 testing standards
Handlebar
Canyon H20 Flat CF, Width: 720 mm, Rise: +/- 5 mm, Backsweep: 9°, In-house developed Canyon handlebars with lightweight carbon construction and balanced geometry, Compliant with Canyon Category 3 testing standards
Grips
Canyon Race Grip, Ultralight silicone grip, Specially adapted for grip shift, Outer diameter: 32 mm black
Headset
Cane Creek 40 | IPU Top Cap
Seat
Saddle
Selle Italia SLR Kit Carbonio
Seatpost
Kind Shock LEV SI
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.44 mm | 1.42 mm | 1.42 mm |
| Bottom Bracket Height | 309 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 651 mm | 685 mm | 705 mm | 738 mm |
| Rake | 48 mm | 48 mm | 48 mm | 49 mm |
| Trail | 89 mm | 89 mm | 89 mm | 88 mm |
| Stack | 599 mm | 606.3 mm | 620.3 mm | 648.4 mm |
| Reach | 390 mm | 420 mm | 436 mm | 458 mm |
| Top Tube Length | 563.2 mm | 595.3 mm | 615.3 mm | 645.4 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 395 mm | 440 mm | 485 mm | 545 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 145 mm |
| Chainstay Length | 422 mm | 422 mm | 427 mm | 432 mm |
| Wheelbase | 1065 mm | 1099 mm | 1125 mm | 1163 mm |
| Bottom Bracket Drop | 65 mm | 63 mm | 63 mm | 63 mm |
| Standover Height | 758 mm | 786 mm | 817 mm | 861 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Exceed CF SLX 9.0 Pro Race LTD is part of the Canyon Exceed model. 56 bikes variations carry this model name so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Canyon Exceed CF SL 6.0 Pro Race 2018 is the most economical model, with a starting price of 2499$. Canyon Exceed CF SLX 9.0 Pro Race LTD 2018 on the other hand costs 6499$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6499$. Comparing this to the average Crosscountry bike price, we see that the price is 241.15% higher.
Average weight for Crosscountry bikes
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Canyon Exceed CF SLX 9.0 Pro Race LTD it’s weighing 8.9 kg (19.62 lbs). At this weight, is much lighter than average. In short, the average Crosscountry bike weight is 39.33% higher than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 32 model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
As for the wheels, Canyon Exceed CF SLX 9.0 Pro Race LTD 2018, has a 29″ carbon model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Exceed CF SLX 9.0 Pro Race LTD has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Canyon Exceed CF SLX 9.0 Pro Race LTD bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Canyon Exceed CF SLX 9.0 Pro Race LTD includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
