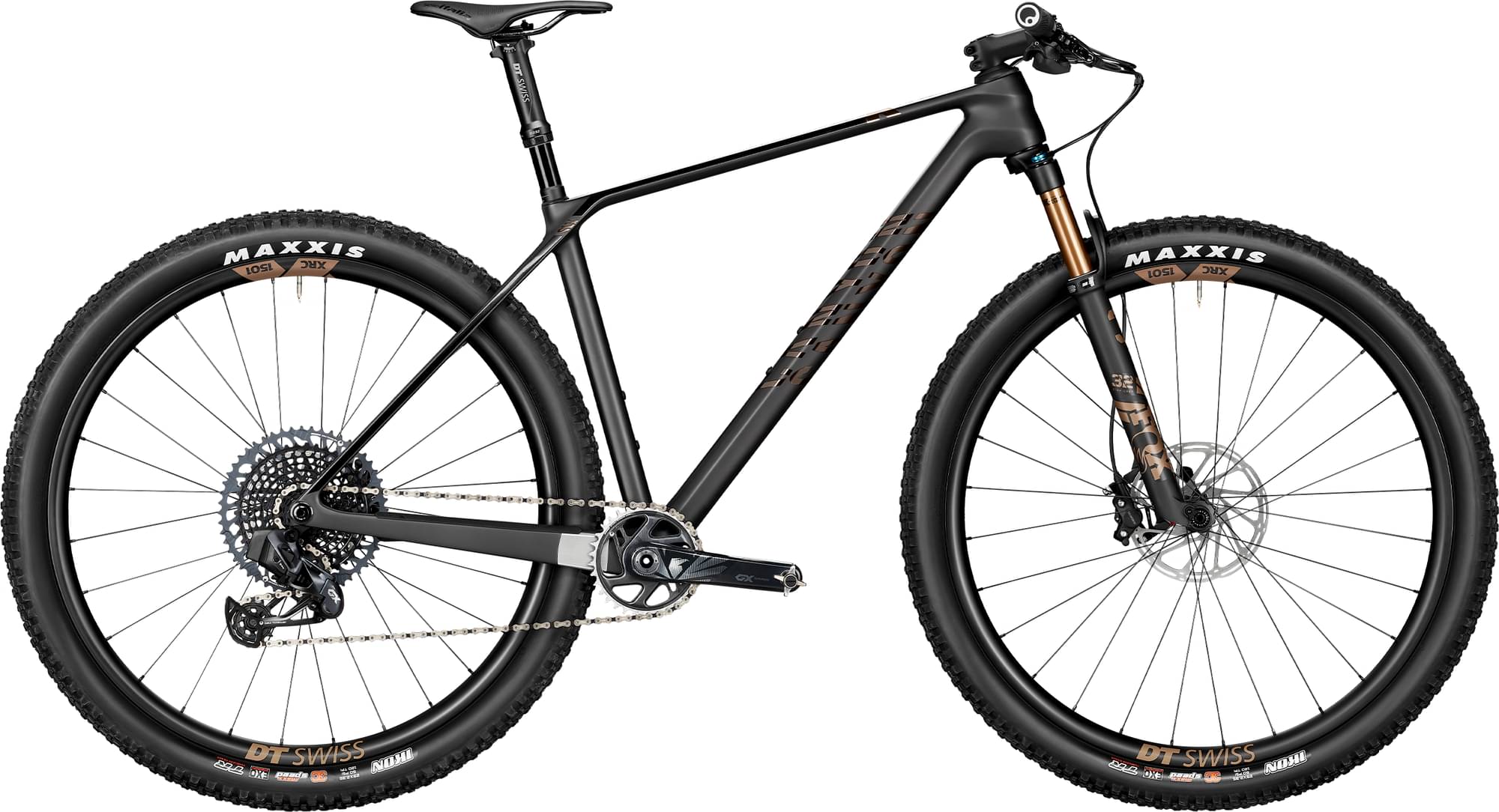

Canyon Exceed CF SLX 9 2023
2023 Mountain
Estimate price |
5,390$
Weight | 9.94 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset GX Eagle AXS -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 176cm
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Exceed CF SLX, The Exceed is our hardtail weapon of choice for XC riders and racers. 29 inch wheels, 100mm forks for peak performance between the tapes or on the trails., Material: Carbon (CF)
Suspension Fork
FOX 32 Stepcast Factory Remote, Built to withstand the demands of top XC riders, the Fox 32 Stepcast forks feature a remote 2 position damper to adjust the ride characteristics without missing a pedal stroke., Travel: 100 mm, Fork steer tube diameter: 1 1/8" - 1,5"
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS 12s, Next-gen wireless 1x12 groupset. App-configurable.
Shift Levers
SRAM GX Eagle AXS Controller, Unsurpassed wireless 12 speed shifting. No need for cables, no need for fiddly cockpits, the AXS system frees up handlebar space and keeps gear changes neat and tidy.
Cassette
SRAM XG Eagle 10-52, All the range you need to climb the biggest mountains, courtesy of SRAM's 10-52, 12-speed cassette. | SRAM Eagle XG-1295 12-speed Cassette
Crank
SRAM GX Eagle Carbon DUB 34T, Light and strong carbon crankset with 175mm cranks and 34 tooth chainring., Number of chainrings: 1
Bottom Bracket
SRAM Pressfit DUB, No noise, no fuss bottom bracket from SRAM that will keep running smoothly for years., Bottom bracket standard: PF 92 | SRAM DUB PF41 BB89,5 | BB92 PressFit Bottom Bracket
Chain
SRAM GX Eagle 12s, Strong and sturdy 12 speed chain with SRAM's easy to use powerlink. | SRAM GX EAGLE 12-speed Chain 126 Links
Pedals
None included
Wheels
Rims
DT Swiss XRC 1501 Spline, These light, 30mm wide carbon rims are the super fast partner for modern XC tyres., Rotor mount: IS 6-bolt, Wheelsize: 29" | DT Swiss XRC 1501 Spline S12, These carbon wheels with the RATCHET EXP freehub system make sure every bit of your energy is sent directly through the wheels., Rotor mount: IS 6-bolt, Wheelsize: 29"
Tires
MAXXIS Ikon Exo 2.35", Designed for speed and reliability these tyres offer outstanding grip across a wide range of conditions., Width: 2.35"
Brakes
Brakes
SRAM Level TLM, From the lever to the caliper SRAM's Level brakes give you all day, never quit performance.
Cockpit
Stem
Canyon V14, Fork steer tube diameter: 1 1/8"
Handlebar
Canyon H21 Carbon Flatbar, Material: Carbon, Rise: 5 mm
Grips
Ergon GA20, High-grade lock-on grips providing comfort and control in equal measure.
Seat
Saddle
Selle Italia SLR Boost, Saddle shaped to support a more aggressive riding position., Gender: Male
Seatpost
DT Swiss D 232, DT Swiss' lightweight, reliable dropper post is a dream for XC riders wanting to descend as capably as they climb., Clamp diameter: 30,9 mm, Material: Aluminium (AL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.45 mm | 1.39 mm | 1.36 mm | 1.34 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 661 mm | 683 mm | 704 mm | 730 mm | 757 mm |
| Rake | 55 mm | 55 mm | 54 mm | 55 mm | 55 mm |
| Trail | 85 mm | 85 mm | 86 mm | 85 mm | 85 mm |
| Stack | 589 mm | 589 mm | 594 mm | 608 mm | 626 mm |
| Reach | 384 mm | 407 mm | 427 mm | 447 mm | 467 mm |
| Top Tube Length | 544 mm | 567 mm | 588 mm | 612 mm | 637 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 375 mm | 415 mm | 458 mm | 495 mm | 535 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 90 mm | 90 mm | 95 mm | 110 mm | 130 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 422 mm | 427 mm |
| Wheelbase | 1071 mm | 1094 mm | 1115 mm | 1146 mm | 1178 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 773 mm | 795 mm | 820 mm | 846 mm | 875 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Max Height | 167 cm | 176 cm | 184 cm | 193 cm | cm |
Model Overview
Exceed CF SLX 9 completes the Canyon Exceed model. There are 56 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Canyon Exceed CF 4 2023 is the cheapest bike model and costs 1698$. Canyon Exceed CFR LTD 2023 is the most expensive one and costs 7599$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Canyon released this model in 2023, its price was 4989$. Doing a quick comparison, we notice that Exceed CF SLX 9 price is 161.89% higher than the average cost of a Crosscountry bike.
Crosscountry bikes average weight
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 9.94 kg (21.91 lbs), Canyon bike is much lighter than average. In other words, this model is 24.75% lighter than the average Crosscountry bike.
Overview of components
Fork
The Fox Factory Float 32 is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the Exceed CF SLX 9 bike is equipped with the 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Exceed CF SLX 9 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Dropper post
Canyon Exceed CF SLX 9 includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
