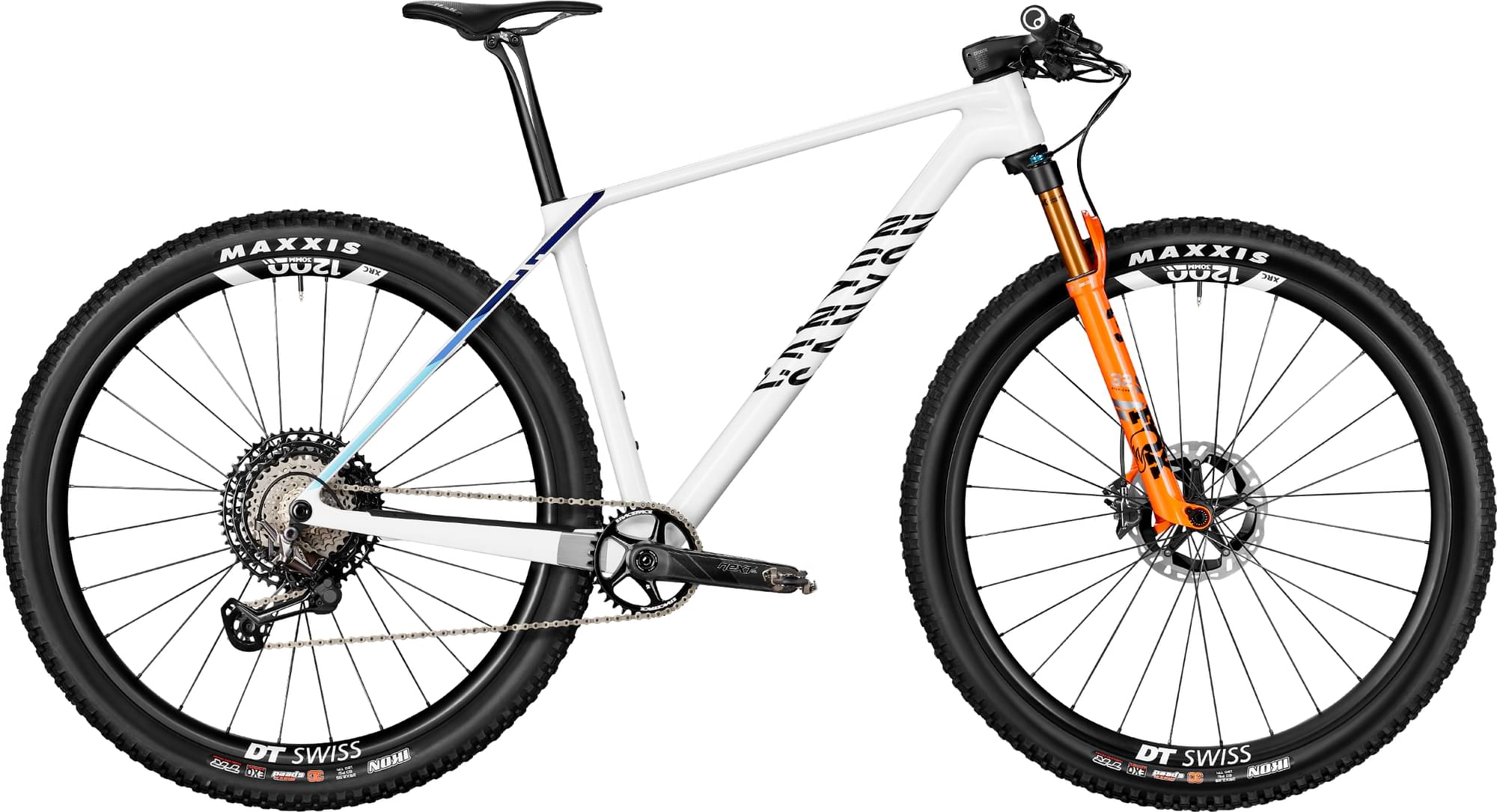

Canyon Exceed CFR Team 2022
2022 Mountain
Estimate price |
6,651$
Weight | 9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset XTR, Race Face -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 176cm
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Exceed CFR, The pinnacle of hardtail XC racing. This bike is the fastest, lightest and best of the bunch. Ridden by Canyon Factory Racing riders including Mathieu van der Poel and Emily Batty., Material: Carbon (CFR)
Suspension Fork
FOX 32 Stepcast Factory Remote, Built to withstand the demands of top XC riders, the Fox 32 Stepcast forks feature a remote 2 position damper to adjust the ride characteristics without missing a pedal stroke., Axle dimension: 15x110 mm, Stanchion Diameter: 32 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8" - 1,5"
Drivetrain
Rear Derailleur
Shimano XTR, 12-speed, High-end 12-speed shifting system.
Shift Levers
Shimano XTR, 12-speed, Rear derailleur shifter, 12-speed, Textured rubber lever pad, Multi-Release, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 60-degrees rotation adjustment, 127 g
Cassette
Shimano XTR CS-M9101 12s 10-51
Crank
Race Face Next SL G5 Carbon 34T, Carbon crankset. Crank arm length: S = 170 | M - XL = 175. Chainring size: 34T.
Bottom Bracket
Race Face Pressfit Cinch, Race Face's CINCH system provides a great, no fuss, reliable drivetrain with a quiet bottom bracket that will keep you going for years.
Chain
Shimano M9100 12-speed | Shimano XTR CN-M9100 12-speed Chain | Shimano SM-CN910 12-speed Quick-Link Chain Connector
Pedals
None included
Wheels
Rims
DT Swiss XRC 1200 Spline, Rotor Mount: Center Lock
Tires
MAXXIS Ikon Exo 2.35", Designed for speed and reliability these tyres offer outstanding grip across a wide range of conditions., Width: 2.35"
Brakes
Brakes
Shimano XTR M9100, Clean and compact disc brakes with superb performance and reliable stopping power in all conditions. | Shimano XTR M9110, Clean and compact disc brakes with superb performance and reliable stopping power in all conditions.
Disk Rotors
Shimano RT-MT900, 180mm | Shimano RT-MT900
Cockpit
Grips
Ergon GA20, High-grade lock-on grips providing comfort and control in equal measure.
Seat
Saddle
Selle Italia SLR KC Boost, One of the lightest saddles available., Gender: Male
Seatpost
Canyon VCLS 2.0, Our light and strong carbon seatpost. The revolutionary, adjustable floating seat clamp lets the saddle tilt so that it's always in contact, even when flexing., Clamp diameter: 30,9 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.45 mm | 1.39 mm | 1.36 mm | 1.34 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 661 mm | 683 mm | 704 mm | 730 mm | 757 mm |
| Rake | 55 mm | 55 mm | 54 mm | 55 mm | 55 mm |
| Trail | 85 mm | 85 mm | 86 mm | 85 mm | 85 mm |
| Stack | 589 mm | 589 mm | 594 mm | 608 mm | 626 mm |
| Reach | 384 mm | 407 mm | 427 mm | 447 mm | 467 mm |
| Top Tube Length | 544 mm | 567 mm | 588 mm | 612 mm | 637 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 375 mm | 415 mm | 458 mm | 495 mm | 535 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 90 mm | 90 mm | 95 mm | 110 mm | 130 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 422 mm | 427 mm |
| Wheelbase | 1071 mm | 1094 mm | 1115 mm | 1146 mm | 1178 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 773 mm | 795 mm | 820 mm | 846 mm | 875 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Max Height | 167 cm | 176 cm | 184 cm | 193 cm | cm |
Model Overview
Exceed CFR Team belongs to the Canyon Exceed model. Canyon released 56 bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Canyon Exceed CF 5 2022 is the cheapest bike model and costs 2016$. Canyon Exceed CFR LTD 2022 is the most expensive one and costs 7113$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Canyon released this model in 2022, its price was 6157$. In conclusion, this bike price is 223.2% more expensive than the price of the average Crosscountry bike.
Average weight for Crosscountry bikes
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
much lighter than average, Exceed CFR Team has a weight of 9 kg (19.84 lbs). In other words, this model is 37.78% lighter than the average Crosscountry bike.
Overview of components
Fork
This bike has the Fox Factory Float 32 fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the Exceed CFR Team bike is equipped with the 29″ carbon model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Exceed CFR Team is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
