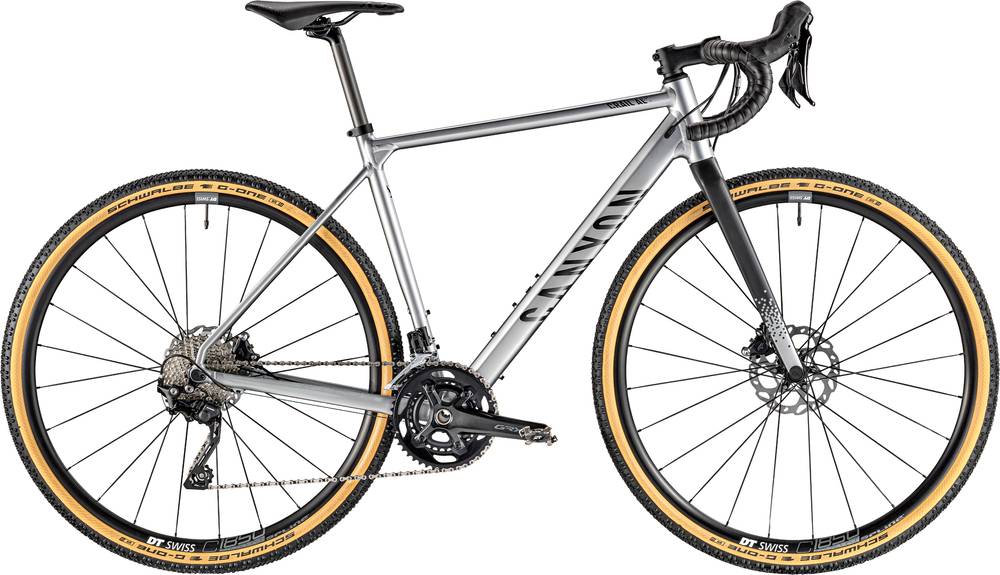

Canyon Grail 6 2020
2020 Road
Estimate price |
1,673$
Weight | 9.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b / 700c -
Groupset GRX 400, GRX 600 -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 190cm
XL
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grail AL Disc, Material: Aluminium 6061, Axle Dimension: 12 x 142 mm, Brake Mount: Flat Mount, Weight: 1480 g (M)
Suspension Fork
Canyon FK0070 CF Disc, Material: Carbon, Steerer: 1 1/4", Axle Dimension: 12 x 100 mm, Brake Mount: Flat Mount
Drivetrain
Rear Derailleur
Shimano GRX RX400 GS
Front Derailleur
Shimano GRX RX400
Shift Levers
Shimano GRX RX400 10s
Cassette
Shimano HG500 11-34 10s
Crank
Shimano RX600 46/30
Bottom Bracket
Shimano Pressfit BB72, BB72 standard, with Hollowtech 2 technology, weight: 69 g
Chain
KMC X10-93 10-speed
Pedals
None included
Wheels
Rims
DT Swiss C 1850 Spline db SH11, Rim Material: Aluminium, Rim Height: 23 mm, Inner Width: 22 mm, Weight: 979 g
Tires
Schwalbe G-One Bite 40 mm, Technology: Tubeless Easy
Brakes
Brake Levers
Shimano GRX RX400 10s
Disk Rotors
Shimano RT70, Disc Mount: Centerlock
Cockpit
Stem
Canyon V13
Handlebar
Canyon HB 0050 Ergobar AL, Material: Aluminium, Shape: Ergo, Reach: 70 mm, Drop: 130 mm
Seat
Saddle
Selle Italia X3
Seatpost
Canyon SP0043 VCLS CF, Material: Carbon, Setback: 20 mm, Technology: VCLS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.43 mm | 1.43 mm | 1.43 mm | 1.47 mm | 1.45 mm | 1.47 mm |
| Front Center | 576 mm | 582 mm | 608 mm | 616 mm | 628 mm | 651 mm | 666 mm |
| Rake | 41 mm | 41 mm | 44 mm | 44 mm | 42 mm | 43 mm | 43 mm |
| Trail | 76 mm | 70 mm | 75 mm | 65 mm | 66 mm | 63 mm | 63 mm |
| Stack | 512 mm | 531 mm | 554 mm | 577 mm | 603 mm | 624 mm | 642 mm |
| Reach | 362 mm | 371 mm | 388 mm | 403 mm | 410 mm | 429 mm | 438 mm |
| Top Tube Length | 514 mm | 529 mm | 553 mm | 575 mm | 589 mm | 614 mm | 629 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 432 mm | 462 mm | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Head Tube Angle | 70 ° | 71 ° | 70.8 ° | 72.3 ° | 72.5 ° | 72.8 ° | 72.8 ° |
| Head Tube Length | 117 mm | 133 mm | 124 mm | 143 mm | 169 mm | 190 mm | 209 mm |
| Chainstay Length | 413 mm | 413 mm | 428 mm | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 982 mm | 988 mm | 1025 mm | 1033 mm | 1045 mm | 1068 mm | 1083 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 723 mm | 749 mm | 779 mm | 806 mm | 832 mm | 857 mm | 879 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 190 cm | 195 cm | cm |
About this model
Grail 6 completes the Canyon Grail model. Canyon launched 90 bikes of this model so far. You can easily view all of the Canyon Grail bikes models from 2020, here.
Model range prices
Canyon Grail 6 2020 is the most affordable bike of this model and has a price of 1549$. On the other hand, Canyon Grail CF SLX 8.0 ETAP 2020, is the most expensive and costs 5499$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2020 and its price was 1549$. In conclusion, this bike price is 58.94% lower than the price of the average Gravel bike.
Average weight for Gravel bikes
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 9.5 kg (20.94 lbs), the Grail 6 model is much heavier than average. To sum up, it’s 16.85% heavier than the average weight of Gravel bikes.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When leaving the production line, the Grail 6 model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Grail 6 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
