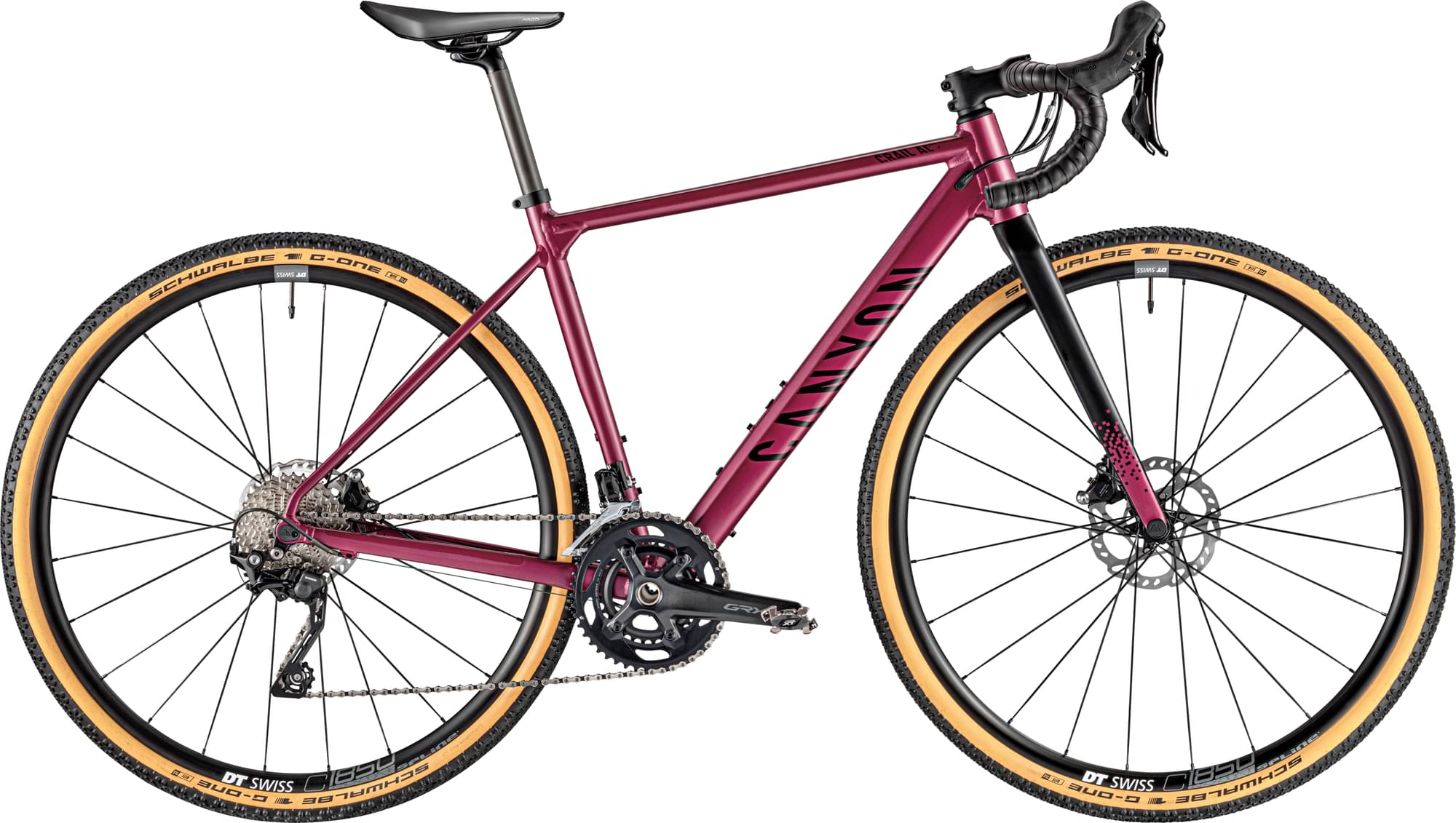

Canyon Grail 6 WMN 2022
2022 Road
Estimate price |
1,699$
Weight | 9.42 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Groupset GRX 400, GRX 600 -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grail AL Disc, Material: Aluminium 6061, Axle Dimension: 12 x 142 mm, Brake Mount: Flat Mount, Weight: 1480 g (M)
Suspension Fork
Canyon FK0070 CF Disc, Material: Carbon, Steerer: 1 1/4", Axle Dimension: 12 x 100 mm, Brake Mount: Flat Mount
Drivetrain
Rear Derailleur
Shimano GRX RX400 GS
Front Derailleur
Shimano GRX RX400
Shift Levers
Shimano GRX RX400, 2-speed, Gravel-specific shifter with ergonomic design for improved comfort and textured, anti-slip brake lever for more control on bumpy terrain. Featuring adjustable reach.
Cassette
Shimano HG500 11-34 10s, 11-34 tooth cassette
Crank
Shimano RX600
Bottom Bracket
Token Ninja Lite BB4124 PF86.5, Thread-Fit Technology reduces chances of bearing misalignment. BB86 Road standard, compatible with 24 mm axles. Weight: 83 g
Chain
KMC X10-93 10-speed
Pedals
None included
Wheels
Rims
DT Swiss C 1850 Spline db, Rim Material: Aluminium, Rim Height: 23 mm, Inner Width: 22 mm, Weight: 842 g | DT Swiss C 1850 Spline db SH11, Rim Material: Aluminium, Rim Height: 23 mm, Inner Width: 22 mm, Weight: 979 g
Tires
Schwalbe G-One Bite 40 mm
Brakes
Brakes
hydraulicDisc
Brake Levers
Shimano GRX RX400, 2-speed, Gravel-specific shifter with ergonomic design for improved comfort and textured, anti-slip brake lever for more control on bumpy terrain. Featuring adjustable reach.
Disk Rotors
Shimano RT70, Disc Mount: Centerlock
Cockpit
Stem
Canyon V13
Handlebar
Canyon HB 0050 Ergobar AL, Material: Aluminium, Shape: Ergo, Reach: 70 mm, Drop: 130 mm
Seat
Saddle
Fizik Argo Tempo R5, Endurance saddle with pressure-relieving short-nose design. With compliant carbon-reinforced nylon shell & robust s-alloy rails.
Seatpost
Canyon SP0043 VCLS CF, Material: Carbon, Setback: 20 mm, Technology: VCLS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.43 mm | 1.43 mm | 1.43 mm |
| Front Center | 576 mm | 582 mm | 608 mm | 616 mm |
| Rake | 41 mm | 41 mm | 43 mm | 43 mm |
| Trail | 76 mm | 70 mm | 76 mm | 67 mm |
| Stack | 512 mm | 531 mm | 554 mm | 577 mm |
| Reach | 362 mm | 371 mm | 388 mm | 403 mm |
| Top Tube Length | 514 mm | 529 mm | 553 mm | 575 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 432 mm | 462 mm | 492 mm | 522 mm |
| Head Tube Angle | 70 ° | 71 ° | 70.75 ° | 72.25 ° |
| Head Tube Length | 117 mm | 133 mm | 124 mm | 143 mm |
| Chainstay Length | 413 mm | 413 mm | 428 mm | 428 mm |
| Wheelbase | 982 mm | 988 mm | 1025 mm | 1033 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 75 mm | 75 mm |
| Standover Height | 723 mm | 749 mm | 779 mm | 806 mm |
| Wheels | 650 | 650 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | cm |
About this model
Grail 6 WMN is part of the Canyon Grail model. Canyon launched 90 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Canyon Grail 6 2022 has a starting price of 1699$. Canyon Grail CF SLX 9 eTap 2022 on the other hand is the most expensive at 6901$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Canyon released this model in 2022, its price was 1699$. In conclusion, this bike price is 44.91% smaller than the price of the average Gravel bike.
Average weight for Gravel bikes
If we make a quick analysis of the average weight of a Gravel bike, we get 8.13 kg (17.92 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 9.42 kg (20.77 lbs), the Grail 6 WMN model is much heavier than average. In other words, this model is 15.87% heavier than the average Gravel bike.
Grail 6 WMN components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the Grail 6 WMN bike is equipped with the aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Grail 6 WMN comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
