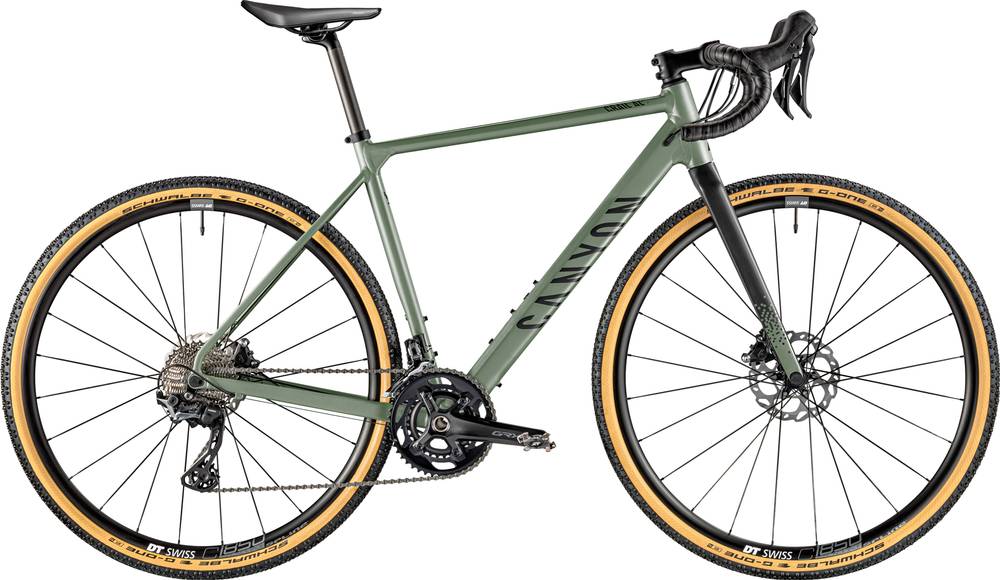

Canyon Grail 7 2021
2021 Road
Estimate price |
1,999$
Weight | 9.39 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b / 700c -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 190cm
XL
188cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grail AL Disc, Material: Aluminium 6061, Axle Dimension: 12 x 142 mm, Brake Mount: Flat Mount, Weight: 1480 g (M)
Suspension Fork
Canyon FK0070 CF Disc, Material: Carbon, Steerer: 1 1/4", Axle Dimension: 12 x 100 mm, Brake Mount: Flat Mount
Drivetrain
Rear Derailleur
Shimano GRX RX810 GS, Gravel-specific rear derailleur. With adjustable chain stabiliser to prevent chain slap and chain drops. Max. cassette size: 34T.
Front Derailleur
Shimano GRX RX810, Gravel-specific derailleur with lighter operation and easier setup thanks to the new link construction and integrated cable tensioner., Max chainring gear range: 17T.
Shift Levers
Shimano GRX RX600, 2-speed, Gravel-specific shifter with ergonomic design for improved comfort and textured, anti-slip brake lever for more control on bumpy terrain. Featuring adjustable reach. | Shimano GRX RX600 11s
Cassette
Shimano HG700 11-34 11s, Shimano 105-level cassette., Gear range: 11-34T
Crank
Shimano RX600
Bottom Bracket
Token Ninja Lite BB4124 PF86.5, Thread-Fit Technology reduces chances of bearing misalignment. BB86 Road standard, compatible with 24 mm axles. Weight: 83 g
Chain
Shimano HG601 11-speed
Pedals
None included
Wheels
Rims
DT Swiss C 1850 Spline db, Rim Material: Aluminium, Rim Height: 23 mm, Inner Width: 22 mm, Weight: 842 g | DT Swiss C 1850 Spline db SH11, Rim Material: Aluminium, Rim Height: 23 mm, Inner Width: 22 mm, Weight: 979 g
Tires
Schwalbe G-One Bite 40 mm
Brakes
Brake Levers
Shimano GRX RX600, 2-speed, Gravel-specific shifter with ergonomic design for improved comfort and textured, anti-slip brake lever for more control on bumpy terrain. Featuring adjustable reach. | Shimano GRX RX600 11s
Disk Rotors
Shimano RT70, Disc Mount: Centerlock
Cockpit
Stem
Canyon V13, High-quality aluminium stem with square cross-sectional profile. A new handlebar clamp design increases torsional stiffness by up to 40%. Handlebar clamp diameter: 31.8 mm. Head tube diameter: 1 1/4".
Handlebar
Canyon HB 0050 Ergobar AL, Material: Aluminium, Shape: Ergo, Reach: 70 mm, Drop: 130 mm
Seat
Saddle
Fizik Argo Tempo R5, Endurance saddle with pressure-relieving short-nose design. With compliant carbon-reinforced nylon shell & robust s-alloy rails.
Seatpost
Canyon SP0043 VCLS CF, Material: Carbon, Setback: 20 mm, Technology: VCLS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.43 mm | 1.43 mm | 1.43 mm | 1.47 mm | 1.45 mm | 1.47 mm |
| Front Center | 576 mm | 582 mm | 608 mm | 616 mm | 628 mm | 651 mm | 666 mm |
| Rake | 41 mm | 41 mm | 43 mm | 43 mm | 42 mm | 42 mm | 43 mm |
| Trail | 76 mm | 70 mm | 76 mm | 67 mm | 66 mm | 64 mm | 63 mm |
| Stack | 512 mm | 531 mm | 554 mm | 577 mm | 603 mm | 624 mm | 642 mm |
| Reach | 362 mm | 371 mm | 388 mm | 403 mm | 410 mm | 429 mm | 438 mm |
| Top Tube Length | 514 mm | 529 mm | 553 mm | 575 mm | 589 mm | 614 mm | 629 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 432 mm | 531 mm | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Head Tube Angle | 70 ° | 71 ° | 70.75 ° | 72.25 ° | 72.5 ° | 72.75 ° | 72.75 ° |
| Head Tube Length | 117 mm | 133 mm | 124 mm | 143 mm | 169 mm | 190 mm | 209 mm |
| Chainstay Length | 413 mm | 413 mm | 428 mm | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 982 mm | 988 mm | 1025 mm | 1033 mm | 1045 mm | 1068 mm | 1083 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 723 mm | 749 mm | 779 mm | 806 mm | 832 mm | 857 mm | 879 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 190 cm | 194 cm | cm |
Model Overview
Grail 7 is part of the Canyon Grail model. There are 90 bikes that carry this model name. You can easily view all of the Canyon Grail bikes models from 2021, here.
Model range prices
Canyon Grail 6 2021 is the most affordable bike of this model and has a price of 1699$. On the other hand, Canyon Grail CF SLX 8 Di2 2021, is the most expensive and costs 5299$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel bikes average price
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2021 for 1999$. If we compare this with the average Gravel bike cost we notice that the price is 23.16% lower.
Gravel bikes average weight
Gravel bikes have an average weight of 8.13 kg (17.92 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much heavier than average, Grail 7 has a weight of 9.39 kg (20.7 lbs). In conclusion, the average Gravel bike weighs 15.5% less than Grail 7.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The Grail 7 2021 bike is equipped with aluminum wheels when leaving the factory. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Grail 7 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
