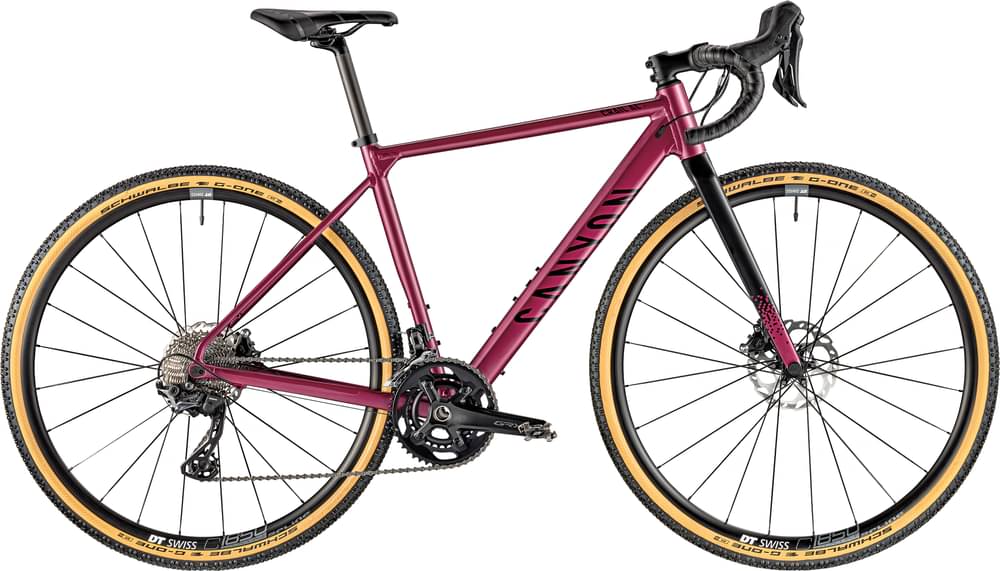

Canyon Grail 7 WMN 2021
2021 Road
Estimate price |
2,178$
Weight | 9.37 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b / 700c -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grail AL Disc, Material: Aluminium 6061, Axle Dimension: 12 x 142 mm, Brake Mount: Flat Mount, Weight: 1480 g (M)
Suspension Fork
Canyon FK0070 CF Disc, Material: Carbon, Steerer: 1 1/4", Axle Dimension: 12 x 100 mm, Brake Mount: Flat Mount
Drivetrain
Rear Derailleur
Shimano GRX RX810 GS, Gravel-specific rear derailleur. With adjustable chain stabiliser to prevent chain slap and chain drops. Max. cassette size: 34T.
Front Derailleur
Shimano GRX RX810, Gravel-specific derailleur with lighter operation and easier setup thanks to the new link construction and integrated cable tensioner., Max chainring gear range: 17T.
Shift Levers
Shimano RX600 2s | Shimano GRX RX600 11s
Cassette
Shimano HG700 11-34 11s, Shimano 105-level cassette., Gear range: 11-34T
Crank
Shimano RX600
Bottom Bracket
Shimano Pressfit BB72, Pressfit BB86 road standard, compatible with 24 mm axles featuring Hollowtech 2 technology. Weight: 69 g
Chain
Shimano HG601 11-speed
Pedals
None included
Wheels
Rims
DT Swiss C 1850 Spline db, Rim Material: Aluminium, Rim Height: 23 mm, Inner Width: 22 mm, Weight: 842 g | DT Swiss C 1850 Spline db SH11, Rim Material: Aluminium, Rim Height: 23 mm, Inner Width: 22 mm, Weight: 979 g
Tires
Schwalbe G-One Bite 40 mm, Technology: Tubeless Easy
Brakes
Brake Levers
Shimano RX600 2s | Shimano GRX RX600 11s
Disk Rotors
Shimano RT70, Disc Mount: Centerlock
Cockpit
Stem
Canyon V13
Handlebar
Canyon HB 0050 Ergobar AL, Material: Aluminium, Shape: Ergo, Reach: 70 mm, Drop: 130 mm
Seat
Saddle
Selle Italia X3 Lady, Saddle specially designed to deliver maximum comfort for female riders. With pressure-relieving cutout.
Seatpost
Canyon SP0043 VCLS CF, Material: Carbon, Setback: 20 mm, Technology: VCLS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.43 mm | 1.43 mm | 1.43 mm |
| Front Center | 576 mm | 582 mm | 608 mm | 616 mm |
| Rake | 41 mm | 41 mm | 44 mm | 44 mm |
| Trail | 76 mm | 70 mm | 75 mm | 65 mm |
| Stack | 512 mm | 531 mm | 554 mm | 577 mm |
| Reach | 362 mm | 371 mm | 388 mm | 403 mm |
| Top Tube Length | 514 mm | 529 mm | 553 mm | 575 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 432 mm | 462 mm | 492 mm | 522 mm |
| Head Tube Angle | 70 ° | 71 ° | 70.8 ° | 72.3 ° |
| Head Tube Length | 117 mm | 133 mm | 124 mm | 143 mm |
| Chainstay Length | 413 mm | 413 mm | 428 mm | 428 mm |
| Wheelbase | 982 mm | 988 mm | 1025 mm | 1033 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 75 mm | 75 mm |
| Standover Height | 723 mm | 749 mm | 779 mm | 806 mm |
| Wheels | 650 | 650 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | cm |
Model Overview
Grail 7 WMN is a Canyon Grail model. 90 bikes variations carry this model name so far. You can easily view all of the Canyon Grail bikes models from 2021, here.
Model range prices
Canyon Grail 6 2021 is the most economical model, with a starting price of 1699$. Canyon Grail CF SLX 8 Di2 2021 on the other hand costs 5299$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel bikes average price
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Canyon Grail 7 WMN price was 2016$. Doing a quick comparison, we notice that Grail 7 WMN price is 22.12% smaller than the average cost of a Gravel bike.
Average weight for Gravel bikes
On a deeper look, we notice that the average weight of a Gravel bike is 8.13 kg (17.92 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Grail 7 WMN weighs 9.37 kg (20.66 lbs) and is much heavier than the average. To sum up, it’s 15.25% heavier than the average weight of Gravel bikes.
Grail 7 WMN components
Fork material
Grail 7 WMN has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When it comes to wheels, the Grail 7 WMN bike is equipped with the aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Grail 7 WMN has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
