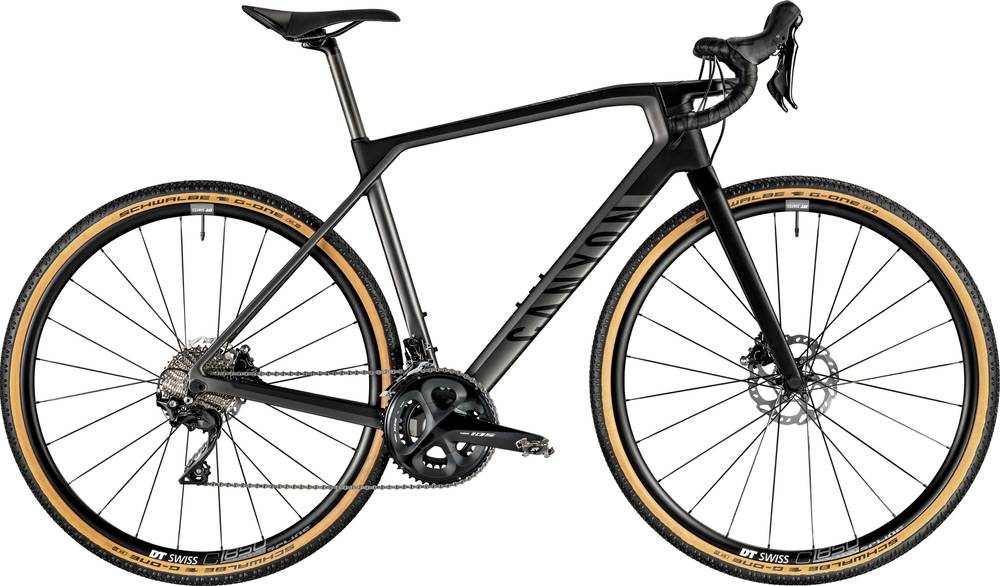

Canyon Grail CF SL 7.0 2019
2019 Road
Estimate price |
2,499$
Weight | 8.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 650b / 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
156cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 197cm
XXL
195cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grail CF SL Disc, Material: Carbon, Axle Dimension: 12 x 142 mm, Brake Mount: Flat Mount
Suspension Fork
Canyon FK0047 CF SLX Disc, Material: Carbon, Steerer: 1 1/4", Axle Dimension: 12 x 100 mm, Brake Mount: Flat Mount
Drivetrain
Rear Derailleur
Shimano 105 R7000 GS
Front Derailleur
Shimano 105 R7000
Shift Levers
Shimano 105 R7020 2s, Weight: 305 g | Shimano 105 R7020 11s, Weight: 305 g
Cassette
Shimano HG700 11-34 11s
Crank
Shimano 105 R7000, 50/34
Bottom Bracket
Shimano Pressfit BB72
Chain
Shimano CN-HG601, 11s
Pedals
None included
Wheels
Rims
DT Swiss C 1850 Spline db, Rim Material: Aluminium, Rim Height: 23 mm, Inner Width: 22 mm, Weight: 842 g | DT Swiss C 1850 Spline db SH11, Rim Material: Aluminium, Rim Height: 23 mm, Inner Width: 22 mm, Weight: 979 g
Tires
Schwalbe G-One Bite 40 mm, Technology: Tubeless Easy
Brakes
Brake Levers
Shimano 105 R7020 2s, Weight: 305 g | Shimano 105 R7020 11s, Weight: 305 g
Disk Rotors
Shimano RT70, Disc Mount: Centerlock
Cockpit
Headset
Canyon | Acros
Seat
Saddle
Fizik Aliante R5
Seatpost
Canyon SP0043 VCLS CF, Material: Carbon, Setback: 20 mm, Technology: VCLS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Front Center | 580 mm | 582 mm | 606 mm | 615 mm | 626 mm | 649 mm | 659 mm |
| Top Tube Length | 521 mm | 531 mm | 555 mm | 577 mm | 588 mm | 612 mm | 623 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 432 mm | 462 mm | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Head Tube Angle | 70.25 ° | 71.25 ° | 71 ° | 72.5 ° | 72.5 ° | 72.75 ° | 72.75 ° |
| Head Tube Length | 70 mm | 88 mm | 78 mm | 97 mm | 125 mm | 146 mm | 167 mm |
| Chainstay Length | 413 mm | 413 mm | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 986 mm | 988 mm | 1018 mm | 1027 mm | 1038 mm | 1061 mm | 1071 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 751 mm | 776 mm | 803 mm | 831 mm | 858 mm | 886 mm | 910 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 165 cm | 171 cm | 177 cm | 183 cm | 189 cm | 195 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |
Model Overview
Grail CF SL 7.0 completes the Canyon Grail model. 90 bikes variations carry this model name so far. You can easily view all of the Canyon Grail bikes models from 2019, here.
Model range prices
The most economical model, the Canyon Grail AL 6.0 2019 has a starting price of 1273$. Canyon Grail CF SLX 8.0 Di2 2019 on the other hand is the most expensive at 5000$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2499$. Comparing the average cost of a Gravel bike to this one, you will see that Grail CF SL 7.0 price is 1.5% more expensive.
Gravel bikes average weight
If we make a quick analysis of the average weight of a Gravel bike, we get 8.13 kg (17.92 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 8.8 kg (19.4 lbs), the Grail CF SL 7.0 model is a bit heavier than average. In conclusion, the average Gravel bike weighs 8.24% less than Grail CF SL 7.0.
Grail CF SL 7.0 components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The Grail CF SL 7.0 2019 bike is equipped with aluminum wheels when leaving the factory. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Grail CF SL 7.0 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 7 sizes available for this model. Rider height can be anywhere between 156 cm – 204 cm (5.12 ft – 6.69 ft). In conclusion, it won’t take much to find one that’s right for you.
