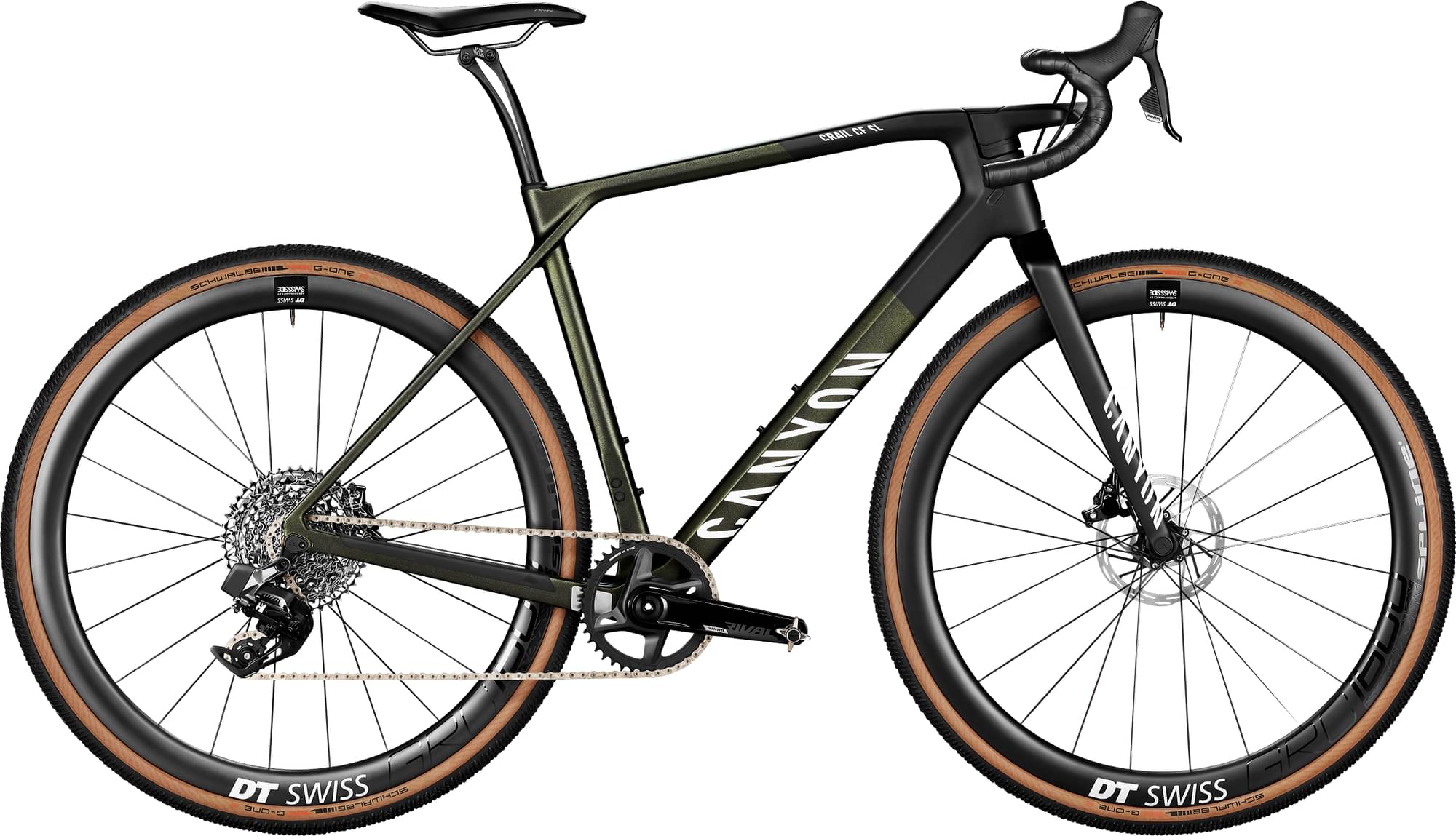

Canyon Grail CF SL 7 Race Green 2022
2022 Road
Estimate price |
4,587$
Weight | 8.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Rival XPLR eTap, Rival eTap -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
166cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grail CF SL Disc, Carbon frame with Gravel Pro geometry and extended wheelbase for extra off-road stability., Material: carbon, Axle dimensions: 12 x 142 mm, Brake mount: flat mount, Weight: 925 g, Axle dimension: 12x142 mm, Material: Carbon (CF)
Suspension Fork
Canyon FK0070 CF Disc, Material: carbon, Fork dimensions: 1 ¼”, Axle dimensions: 12 x 100 mm, Brake type: disc brakes
Drivetrain
Rear Derailleur
SRAM Rival XPLR eTap AXS, 12-speed rear derailleur, optimised for gravel riding. With spring clutch for precise shifting and excellent chain stability, and larger X-SYNC pulley wheels for greater durability and efficiency. Max cassette size: 44 teeth.
Shift Levers
SRAM Rival eTap AXS 2s, Left-hand shifter with hood shape optimised to fit hands of all sizes, for comfortable and controlled braking from any position. With wireless shifting, contact point adjustment, reach adjust. | SRAM Rival eTap AXS 12s, Right-hand shifter with hood shape optimised to fit hands of all sizes, for comfortable and controlled braking from any position. With wireless shifting, contact point adjustment, reach adjust.
Cassette
SRAM Rival XPLR XG-1251, 12-speed, 10-44T, Gravel-specific 12-speed cassette with X-Range gearing for a larger range with smaller gaps between gears. Gear range: 10-44T.
Crank
SRAM Rival D1 Wide, 40T, Number of chainrings: 1
Bottom Bracket
SRAM Pressfit DUB Wide, Pressfit BB compatible with SRAM DUB axles. BB-frame interface: 86.5 mm. Weight: 72 g
Chain
SRAM RIVAL D1 12-speed, 12-speed chain with flattop technology for narrower design, quieter operation, and increased strength and durability.
Pedals
None included
Wheels
Rims
DT Swiss GRC1600 Spline, Rotor Mount: Center Lock | DT Swiss GRC 1600, Rotor Mount: Center Lock
Tires
Schwalbe G-One R, 40mm, High-end gravel race tyres for light gravel and asphalt. Combining incredible smoothness, speed, and control. Technology: tubeless-ready, V-Guard puncture protection., Width: 40mm
Brakes
Brakes
hydraulicDisc
Brake Levers
SRAM Rival eTap AXS 2s, Left-hand shifter with hood shape optimised to fit hands of all sizes, for comfortable and controlled braking from any position. With wireless shifting, contact point adjustment, reach adjust. | SRAM Rival eTap AXS 12s, Right-hand shifter with hood shape optimised to fit hands of all sizes, for comfortable and controlled braking from any position. With wireless shifting, contact point adjustment, reach adjust.
Disk Rotors
SRAM Paceline, Designed for optimal venting. With rounded edges for easier wheel installs. Disc mount: centerlock. Weight: 155 g.
Seat
Saddle
Fizik Argo Terra X5, Short-nose, pressure-relieving saddle., Shell material: carbon fibre-reinforced nylon., Rail material: S-alloy.
Seatpost
Canyon S15 VCLS 2.0 CF, Material: Carbon, Setback: 13 mm / 25 mm, Technology: VCLS 2.0 | Fliphead, Weight: 220 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.27 mm | 1.27 mm | 1.28 mm | 1.34 mm | 1.32 mm |
| Front Center | 582 mm | 606 mm | 615 mm | 626 mm | 649 mm |
| Rake | 43 mm | 43 mm | 42 mm | 43 mm | 45 mm |
| Trail | 67 mm | 75 mm | 66 mm | 65 mm | 61 mm |
| Stack | 484 mm | 507 mm | 530 mm | 557 mm | 576 mm |
| Reach | 382 mm | 399 mm | 415 mm | 417 mm | 435 mm |
| Top Tube Length | 517 mm | 541 mm | 563 mm | 574 mm | 598 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 462 mm | 492 mm | 522 mm | 552 mm | 582 mm |
| Head Tube Angle | 71.2 ° | 71 ° | 72.5 ° | 72.5 ° | 72.8 ° |
| Head Tube Length | 88 mm | 78 mm | 97 mm | 125 mm | 146 mm |
| Chainstay Length | 409 mm | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 984 mm | 1014 mm | 1023 mm | 1034 mm | 1057 mm |
| Bottom Bracket Drop | 60 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 772 mm | 799 mm | 827 mm | 854 mm | 882 mm |
| Wheels | 650 | 700 | 700 | 700 | 700 |
| Rider Min Height | 166 cm | 171 cm | 177 cm | 183 cm | 189 cm |
| Rider Max Height | 173 cm | 179 cm | 185 cm | 191 cm | 196 cm |
About this model
Grail CF SL 7 Race Green is part of the Canyon Grail model. Canyon released 90 bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Canyon Grail 6 2022 has a starting price of 1699$. Canyon Grail CF SLX 9 eTap 2022 on the other hand is the most expensive at 6901$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel bikes average price
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 4246$. Comparing the average cost of a Gravel bike to this one, you will see that Grail CF SL 7 Race Green price is 72.46% more expensive.
Average weight for Gravel bikes
On a deeper look, we notice that the average weight of a Gravel bike is 8.13 kg (17.92 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 8.7 kg (19.18 lbs), Canyon bike is a bit heavier than average. In conclusion, the average Gravel bike weighs 7.01% less than Grail CF SL 7 Race Green.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The Grail CF SL 7 Race Green 2022 bike is equipped with aluminum wheels when leaving the factory. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Grail CF SL 7 Race Green is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Canyon Grail CF SL 7 Race Green bike has 5 sizes, in the range of 166 cm – 196 cm (5.45 ft – 6.43 ft). In short, you can easily find one that suits you.
