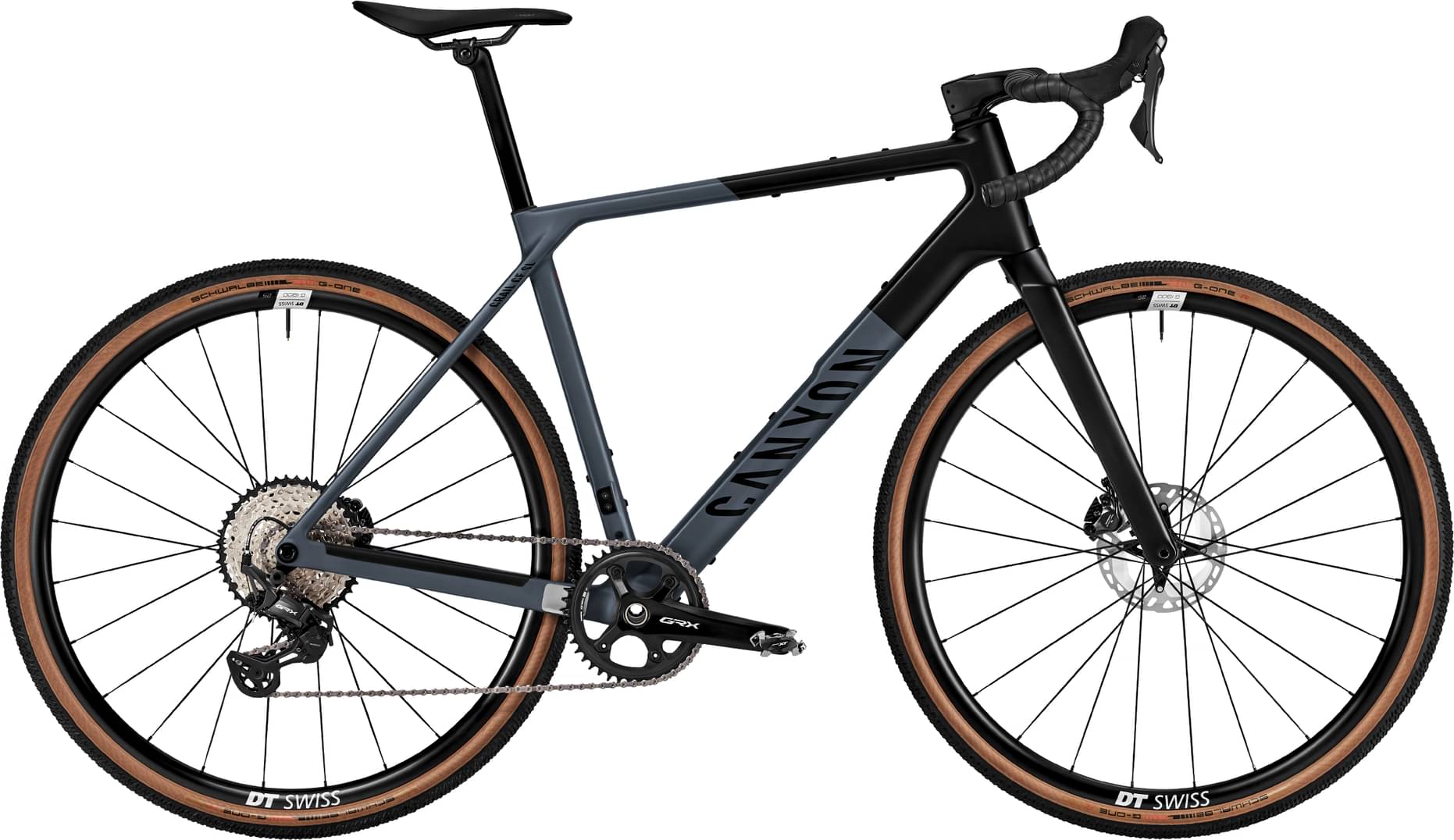

Canyon Grail CF SL 8 2024
2024 Road
Estimate price |
3,440$
Weight | 8.74 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800 -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

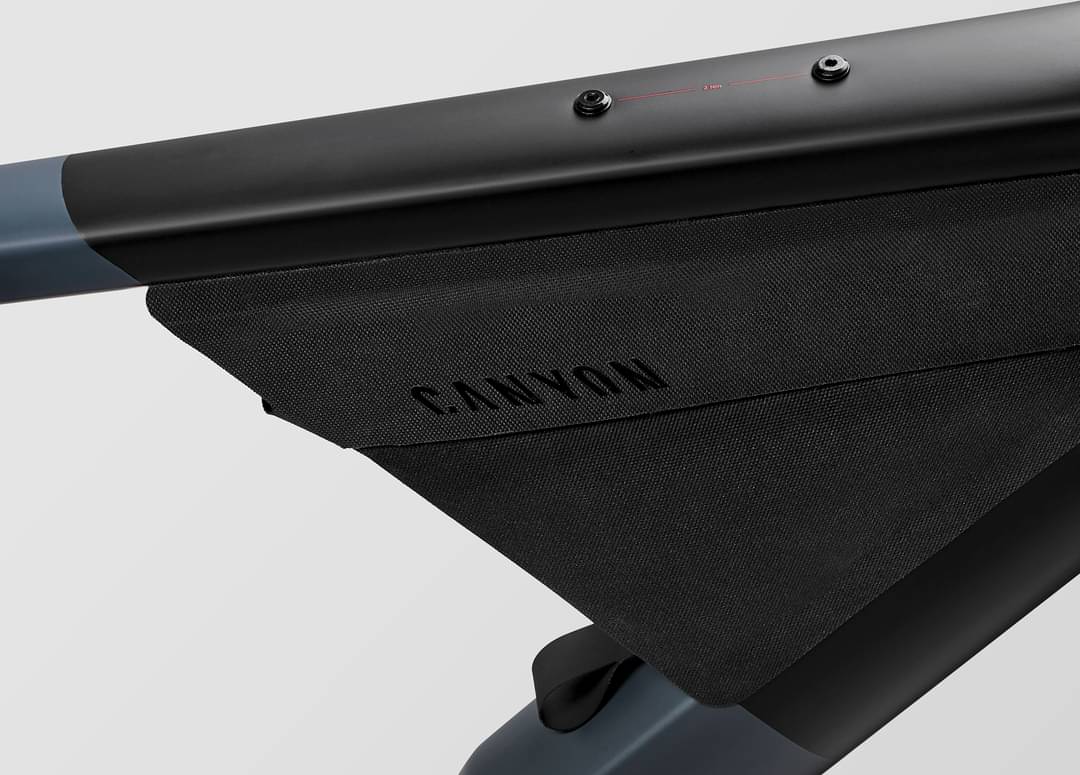

Canyon Grail CF SL, Latest-generation Grail carbon gravel race bike with more capable geometry, aero tube forms, top tube mounts and strapless bag compatibility., Axle dimension: 12x142 mm, Tyre Clearance: 42MM, Material: Carbon (CF)
Suspension Fork

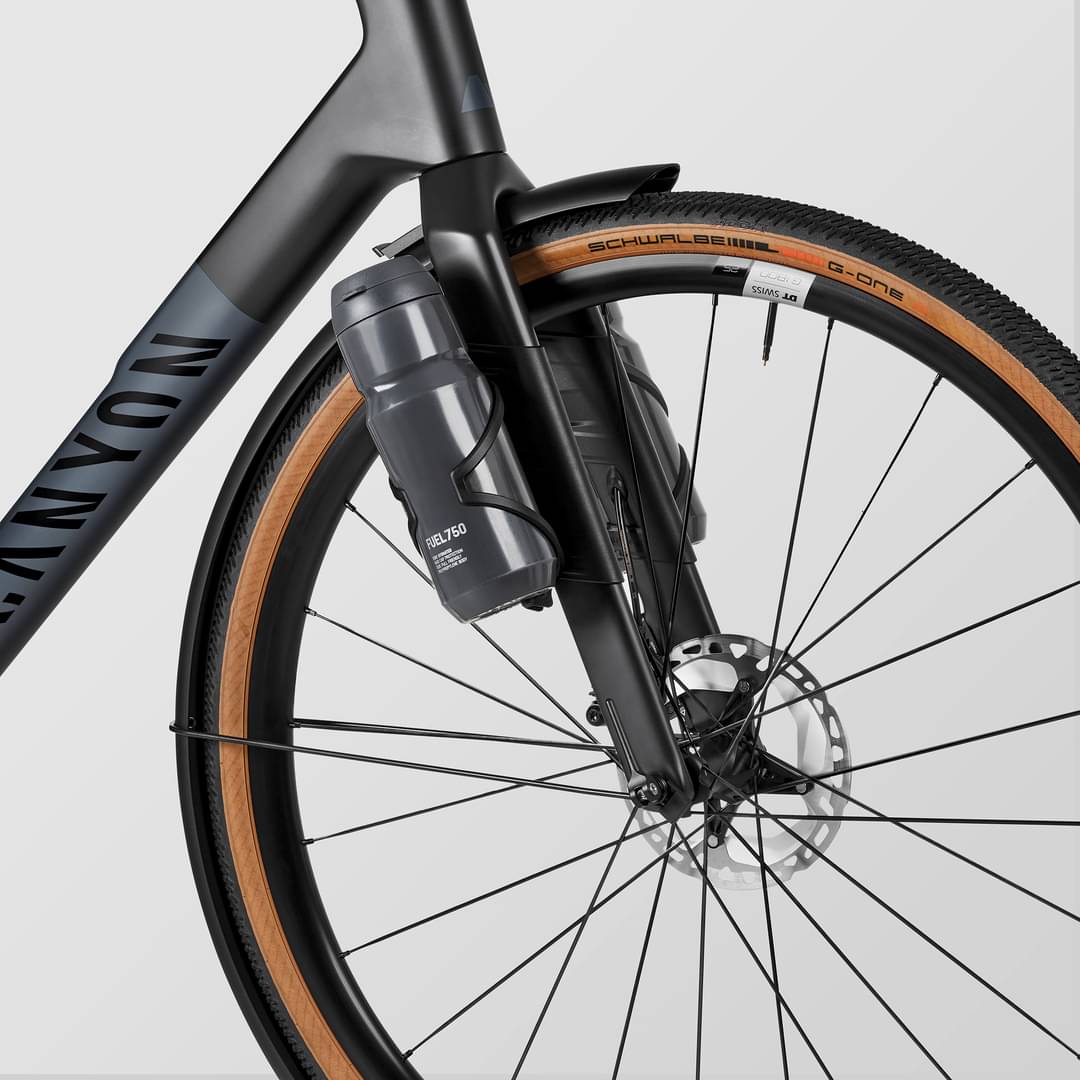

Canyon FK0117 CF Disc, Robust, stiff, compliant carbon fork. Compatible with LOAD Fork Sleeve Quickloader system for modular, secure storage., Tyre Clearance: 46MM, Material: Carbon (CF)
Drivetrain
Rear Derailleur
Shimano GRX RX822 12s, Cage length: medium, Weight: 290 g
Front Derailleur
Canyon EP1839-01 Blind Plate
Shift Levers
Shimano GRX RX820, Number of pistons: 2 | Shimano RX820 Gravel, Number of pistons: 2
Cassette
Shimano SLX M7100 10-45 12s, Number of sprockets: 12
Crank
Shimano RX820 Gravel, Number of chainrings: 1
Bottom Bracket
Token Ninja Lite BB4124, Bottom bracket standard: PF 86,5, Weight: 85 g
Chain
Shimano CN-M7100 12s
Pedals
None included
Wheels
Rims
DT Swiss G1800 Spline, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 25 mm, Weight: 880 g | DT Swiss G1800 Spline, Axle dimension: 12x142 mm, Rotor mount: Center Lock
Tires
Schwalbe G-One R, 40mm, Width: 40mm, Weight: 480 g
Brakes
Brakes
Hydraulic Disc
Brake Levers
Shimano GRX RX820, Number of pistons: 2 | Shimano RX820 Gravel, Number of pistons: 2
Seat
Saddle

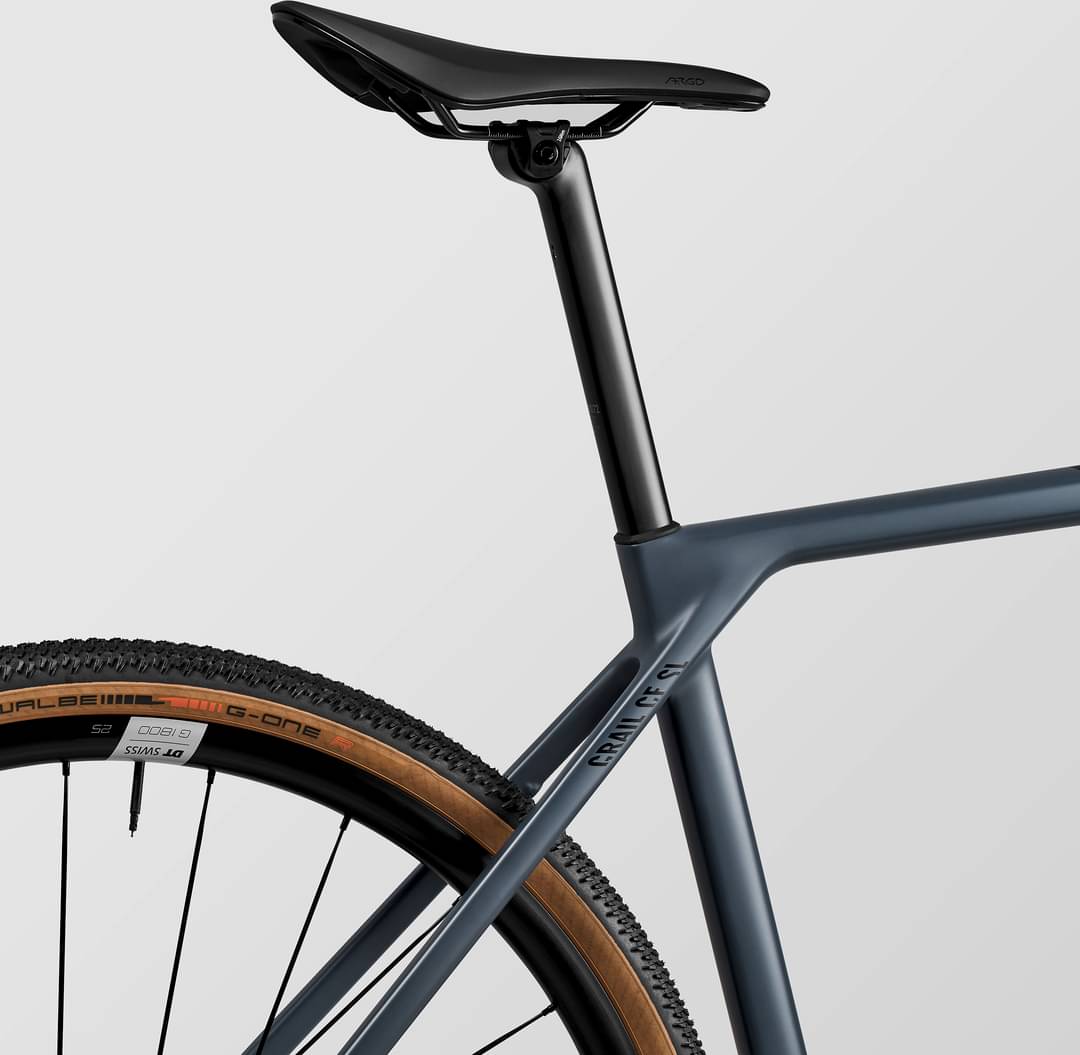

Fizik Terra Argo X5, Gender: Unisex, Weight: 240 g
Seatpost
Canyon SP0072, Material: Carbon (CF)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.465 mm | 1.444 mm | 1.454 mm | 1.438 mm | 1.436 mm | 1.455 mm | 1.443 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 607 mm | 610 mm | 620 mm | 643 mm | 666 mm | 678 mm | 704 mm |
| Rake | 51 mm | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 76 mm | 65 mm | 62 mm | 62 mm | 62 mm | 60 mm | 60 mm |
| Stack | 545 mm | 556 mm | 573 mm | 591 mm | 613 mm | 633 mm | 655 mm |
| Reach | 372 mm | 385 mm | 394 mm | 411 mm | 427 mm | 435 mm | 454 mm |
| Top Tube Length | 533 mm | 550 mm | 564 mm | 586 mm | 609 mm | 623 mm | 648 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm | 510 mm | 540 mm | 570 mm | 600 mm |
| Head Tube Angle | 69.5 ° | 71 ° | 71.5 ° | 71.5 ° | 71.5 ° | 71.8 ° | 71.8 ° |
| Head Tube Length | 123 mm | 129 mm | 145 mm | 163 mm | 187 mm | 207 mm | 230 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1021 mm | 1024 mm | 1034 mm | 1057 mm | 1080 mm | 1092 mm | 1118 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 745 mm | 766 mm | 789 mm | 813 mm | 838 mm | 863 mm | 901 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
About this model
Grail CF SL 8 completes the Canyon Grail model. 99 bikes variations carry this model name so far. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
Canyon Grail CF SL 7 2024 is the cheapest bike model and costs 2858$. Canyon Grail CFR LTD 2024 is the most expensive one and costs 10589$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2024 and its price was 3176$. In conclusion, this bike price is 29% higher than the price of the average Gravel bike.
Average weight for Gravel bikes
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
a bit heavier than average, Grail CF SL 8 has a weight of 8.74 kg (19.27 lbs). To sum up, it’s 7.5% heavier than the average weight of Gravel bikes.
Grail CF SL 8 components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the Grail CF SL 8 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Grail CF SL 8 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
