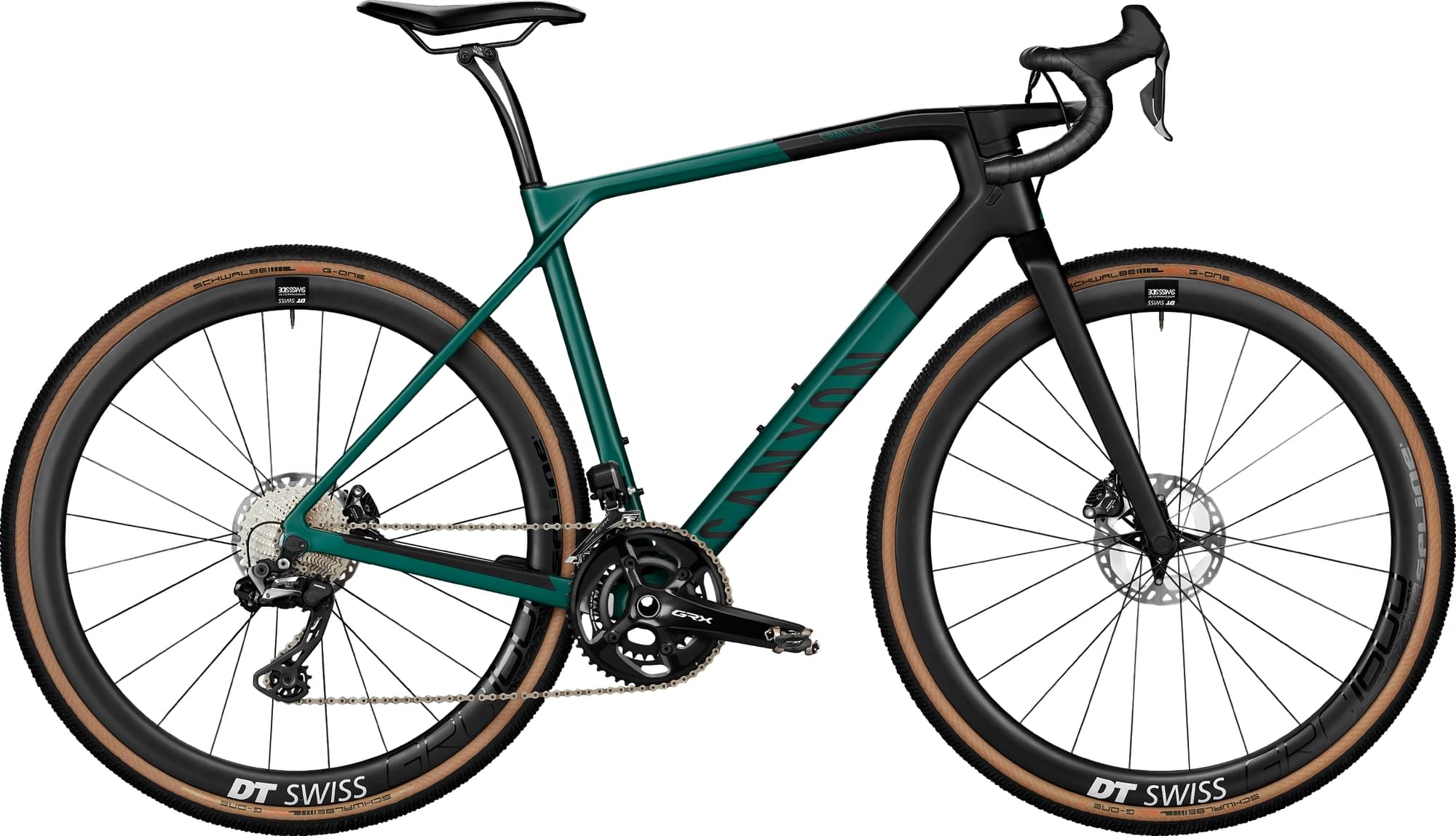

Canyon Grail CF SL 8 Di2 2022
2022 Road
Estimate price |
4,816$
Weight | 8.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset GRX Di2, GRX 800 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grail CF SL Disc
Suspension Fork
Canyon FK0070 CF Disc, Material: Carbon, Steerer: 1 1/4", Axle Dimension: 12 x 100 mm, Brake Mount: Flat Mount
Drivetrain
Rear Derailleur
Shimano GRX Di2 RX815 GS
Front Derailleur
Shimano GRX Di2 RX815
Shift Levers
Shimano GRX Di2 RX815 2s | Shimano GRX Di2 RX815 11s
Cassette
Shimano Ultegra HG800 11-34 11s, High-end cassette., Gear range: 11-34T
Crank
Shimano RX810, Gravel-specific crankset with gear ratios selected to preserve riding rhythm over rough surfaces with wider tires., Gearing: 48/31T
Bottom Bracket
Token Ninja Lite BB4124 PF86.5, Thread-Fit Technology reduces chances of bearing misalignment. BB86 Road standard, compatible with 24 mm axles. Weight: 83 g
Chain
Shimano CN-HG701 11s, High-grade chain with premium SIL-TEC treatment on roller link plate and pin link plate for increased durability and efficiency.
Pedals
None included
Wheels
Rims
DT Swiss GRC1600 Spline | DT Swiss GRC1600 Spline SH11
Tires
Schwalbe G-One R, 40mm
Brakes
Brakes
hydraulicDisc
Brake Levers
Shimano GRX Di2 RX815 2s | Shimano GRX Di2 RX815 11s
Disk Rotors
Shimano MT800
Seat
Saddle
Fizik Argo Terra X5, Short-nose, pressure-relieving saddle., Shell material: carbon fibre-reinforced nylon., Rail material: S-alloy.
Seatpost
Canyon S15 VCLS 2.0 CF, Material: Carbon, Setback: 13 mm / 25 mm, Technology: VCLS 2.0 | Fliphead, Weight: 220 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.23 mm | 1.26 mm | 1.27 mm | 1.27 mm | 1.33 mm | 1.33 mm | 1.3 mm |
| Front Center | 580 mm | 582 mm | 606 mm | 615 mm | 626 mm | 649 mm | 659 mm |
| Rake | 43 mm | 43 mm | 43 mm | 42 mm | 43 mm | 44 mm | 23 mm |
| Trail | 73 mm | 67 mm | 75 mm | 66 mm | 65 mm | 62 mm | 84 mm |
| Stack | 468 mm | 488 mm | 511 mm | 534 mm | 561 mm | 582 mm | 602 mm |
| Reach | 382 mm | 386 mm | 403 mm | 419 mm | 421 mm | 439 mm | 464 mm |
| Top Tube Length | 511 mm | 521 mm | 545 mm | 567 mm | 578 mm | 602 mm | 613 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 432 mm | 462 mm | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Head Tube Angle | 70.25 ° | 71.25 ° | 71 ° | 72.5 ° | 72.5 ° | 72.75 ° | 72.75 ° |
| Head Tube Length | 70 mm | 88 mm | 78 mm | 97 mm | 125 mm | 146 mm | 167 mm |
| Chainstay Length | 413 mm | 413 mm | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 986 mm | 988 mm | 1018 mm | 1027 mm | 1038 mm | 1061 mm | 1071 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 751 mm | 776 mm | 803 mm | 832 mm | 858 mm | 886 mm | 910 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
About this model
Grail CF SL 8 Di2 belongs to the Canyon Grail model. There are 90 bikes that carry this model name. You can easily view all of the Canyon Grail bikes models from 2022, here.
Model range prices
The most economical model, the Canyon Grail 6 2022 has a starting price of 1699$. Canyon Grail CF SLX 9 eTap 2022 on the other hand is the most expensive at 6901$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel bikes average price
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2022 and its price was 4458$. Doing a quick comparison, we notice that Grail CF SL 8 Di2 price is 81.07% higher than the average cost of a Gravel bike.
Gravel bikes average weight
On a deeper look, we notice that the average weight of a Gravel bike is 8.13 kg (17.92 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 8.7 kg (19.18 lbs), the Grail CF SL 8 Di2 model is a bit heavier than average. In other words, this model is 7.01% heavier than the average Gravel bike.
Grail CF SL 8 Di2 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on Grail CF SL 8 Di2 are the aluminum type. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Grail CF SL 8 Di2 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
