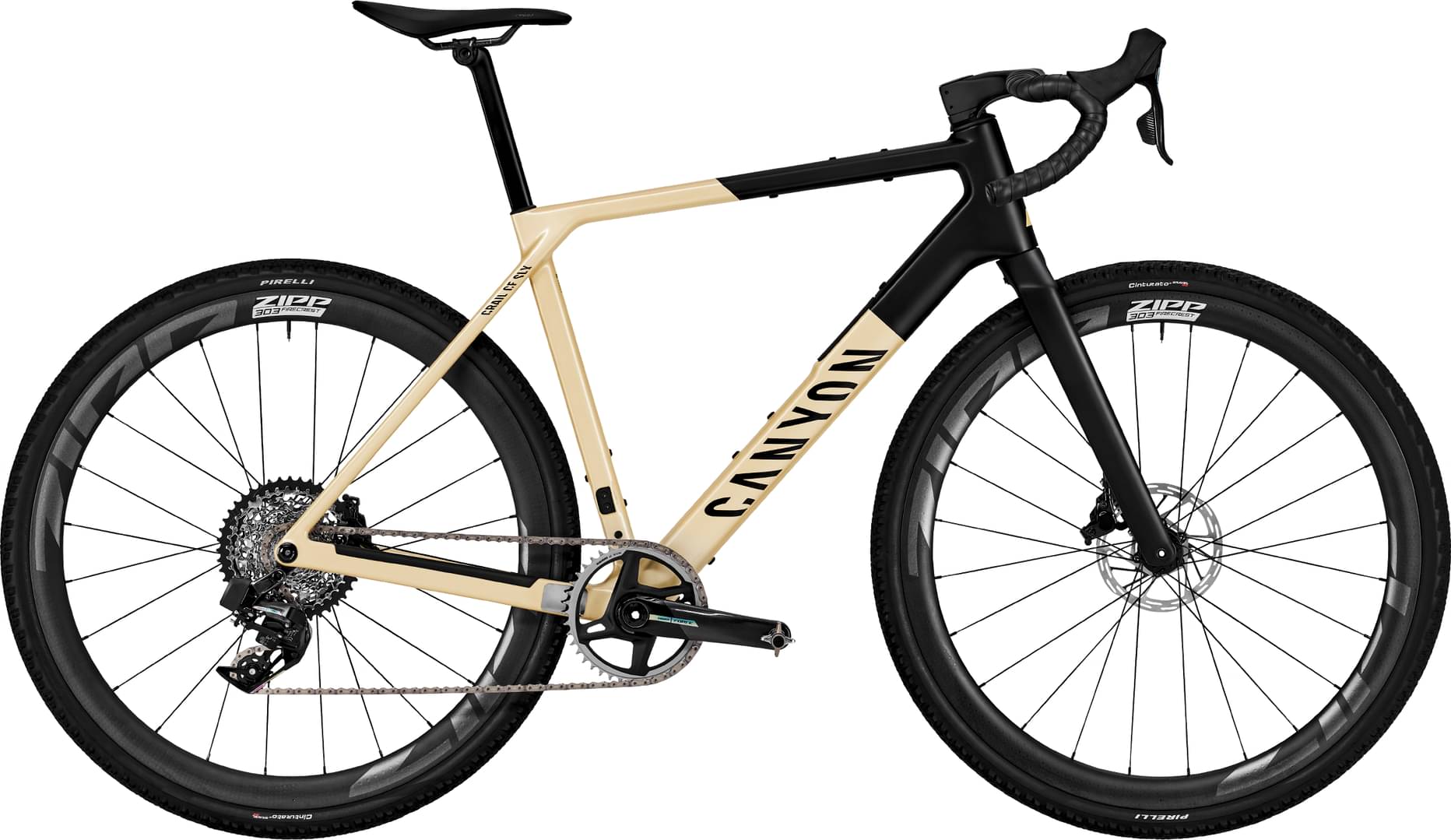

Canyon Grail CF SLX 8 AXS 2024
2024 Road
Estimate price |
6,078$
Weight | 8.14 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force XPLR eTap, Force eTap -
Suspension Rigid -
Battery SRAM Powerpack -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

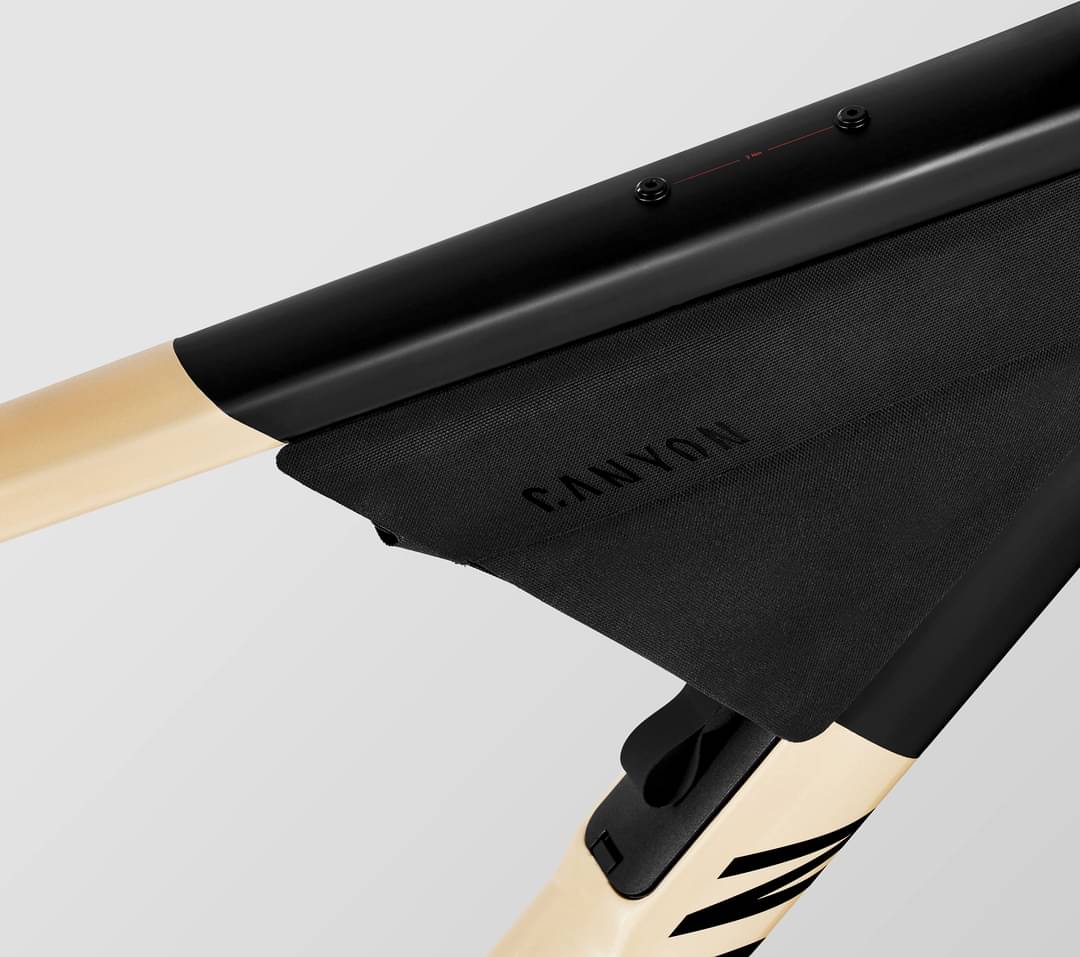

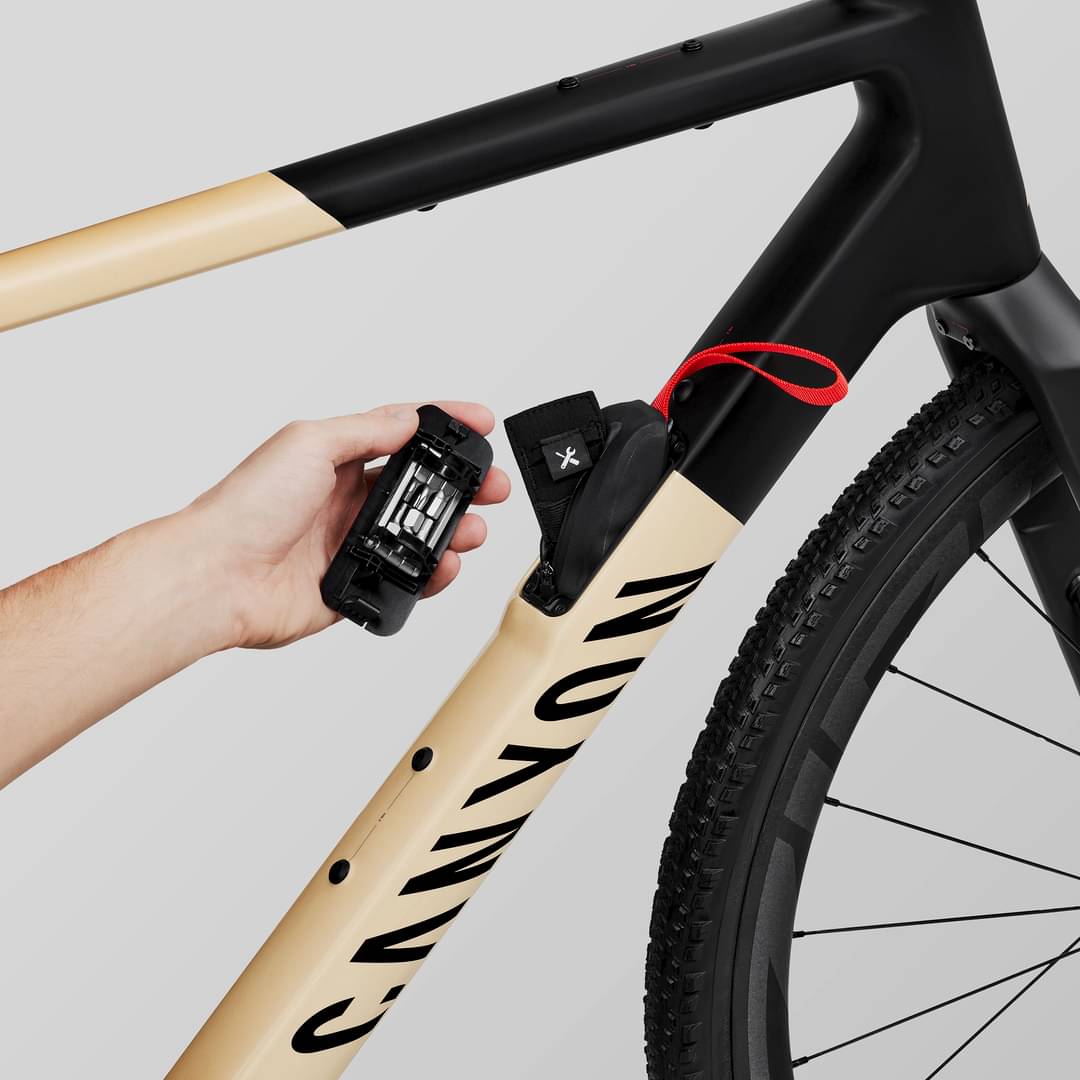

Canyon Grail CF SLX, Lightweight build of the latest-generation Grail gravel race bike. More capable geometry, aero tube forms, integrated LOAD down tube storage, top tube mounts and strapless bag compatibility., Axle dimension: 12x142 mm, Tyre Clearance: 42MM, Material: Carbon (CF)
Suspension Fork
Canyon FK0117 CF Disc, Robust, stiff, compliant carbon fork. Compatible with LOAD Fork Sleeve Quickloader system for modular, secure storage., Tyre Clearance: 46MM, Material: Carbon (CF)
Drivetrain
Rear Derailleur
SRAM Force XPLR AXS, 12-speed
Front Derailleur
Canyon EP1839-01 Blind Plate
Shift Levers
SRAM Force AXS HRD D2
Cassette
SRAM Force XPLR XG-1271, 12-speed, 10-44, Number of sprockets: 12
Crank
SRAM Force, Number of chainrings: 1
Bottom Bracket
SRAM Pressfit DUB Wide, Bottom bracket standard: PF 86,5, Weight: 65 g
Chain
SRAM Force D1 12s
Pedals
None included
Wheels
Rims
Zipp 303 Firecrest, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 40 mm, Weight: 711 g | Zipp 303 Firecrest, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 40 mm, Weight: 819 g
Tires
Pirelli Cinturato Gravel RC, Width: 40mm
Brakes
Brakes
Hydraulic Disc
Brake Levers
SRAM Force AXS HRD D2
Seat
Saddle
Fizik Terra Argo X3, Gender: Unisex, Weight: 213 g
Seatpost
Canyon SP0072, Material: Carbon (CF)
Motor & Battery
Battery
SRAM Powerpack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.465 mm | 1.444 mm | 1.454 mm | 1.438 mm | 1.436 mm | 1.455 mm | 1.443 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 607 mm | 610 mm | 620 mm | 643 mm | 666 mm | 678 mm | 704 mm |
| Rake | 51 mm | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 76 mm | 65 mm | 62 mm | 62 mm | 62 mm | 60 mm | 60 mm |
| Stack | 545 mm | 556 mm | 573 mm | 591 mm | 613 mm | 633 mm | 655 mm |
| Reach | 372 mm | 385 mm | 394 mm | 411 mm | 427 mm | 435 mm | 454 mm |
| Top Tube Length | 528 mm | 550 mm | 559 mm | 586 mm | 609 mm | 623 mm | 648 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm | 510 mm | 540 mm | 570 mm | 600 mm |
| Head Tube Angle | 69.5 ° | 71 ° | 71.5 ° | 71.5 ° | 71.5 ° | 71.8 ° | 71.8 ° |
| Head Tube Length | 123 mm | 129 mm | 145 mm | 163 mm | 187 mm | 207 mm | 230 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1021 mm | 1024 mm | 1034 mm | 1057 mm | 1080 mm | 1092 mm | 1118 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 745 mm | 766 mm | 789 mm | 813 mm | 838 mm | 863 mm | 901 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
Model Overview
Grail CF SLX 8 AXS is a Canyon Grail model. Canyon launched 99 bikes of this model so far. You can easily view all of the Canyon Grail bikes models from 2024, here.
Model range prices
Canyon Grail CF SL 7 2024 is the cheapest bike model and costs 2858$. Canyon Grail CFR LTD 2024 is the most expensive one and costs 10589$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Canyon released this model in 2024, its price was 5611$. If we compare this with the average Gravel bike cost we notice that the price is 127.9% higher.
Average weight for Gravel bikes
If we make a quick analysis of the average weight of a Gravel bike, we get 8.13 kg (17.92 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 8.14 kg (17.95 lbs), Canyon bike is slightly heavier than average. In conclusion, the average Gravel bike weighs 0.12% less than Grail CF SLX 8 AXS.
Overview of components
Fork material
Grail CF SLX 8 AXS has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the Grail CF SLX 8 AXS model has 700c carbon wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Grail CF SLX 8 AXS has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
