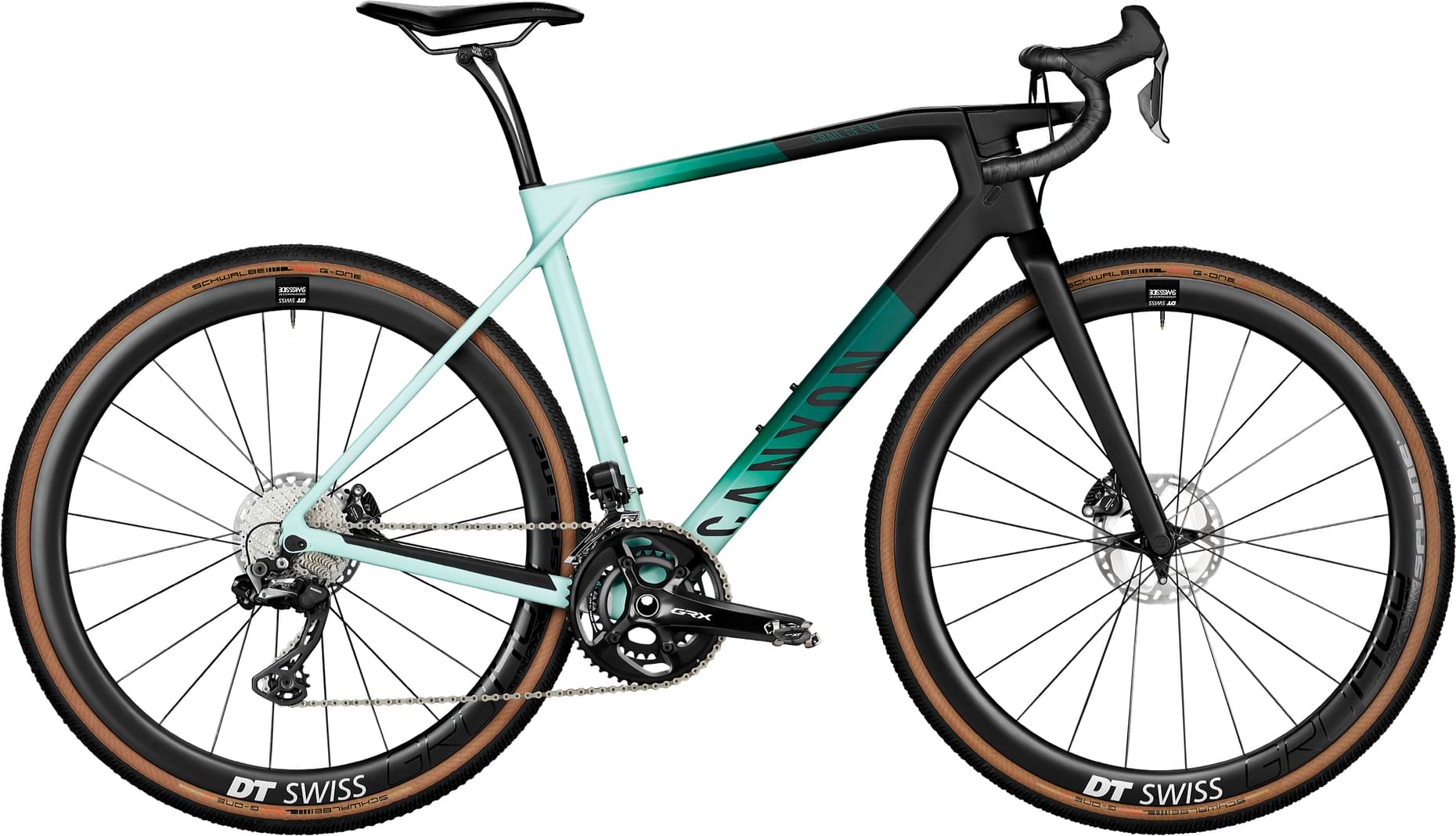

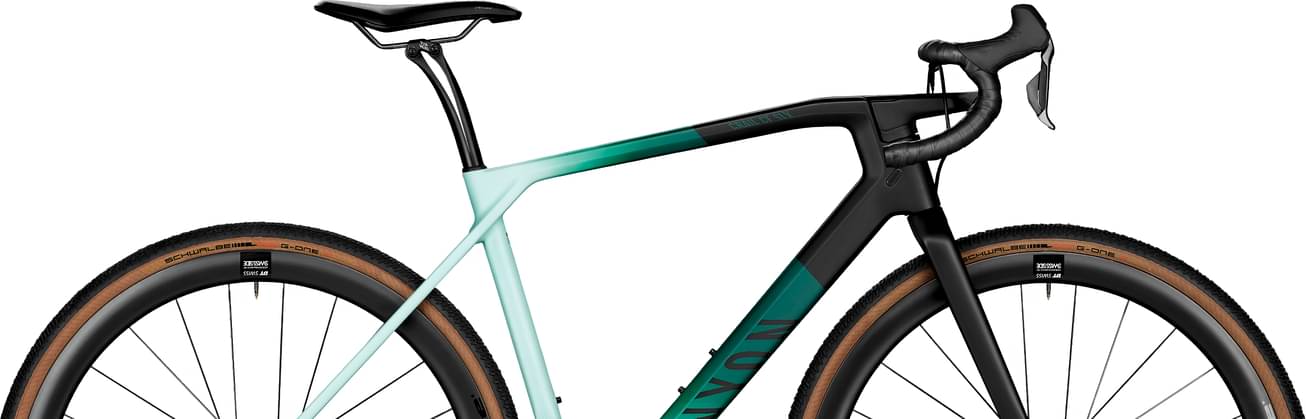

Canyon Grail CF SLX 8 Di2 2023
2023 Road
Estimate price |
4,499$
Weight | 8.46 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset GRX Di2, GRX 800 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

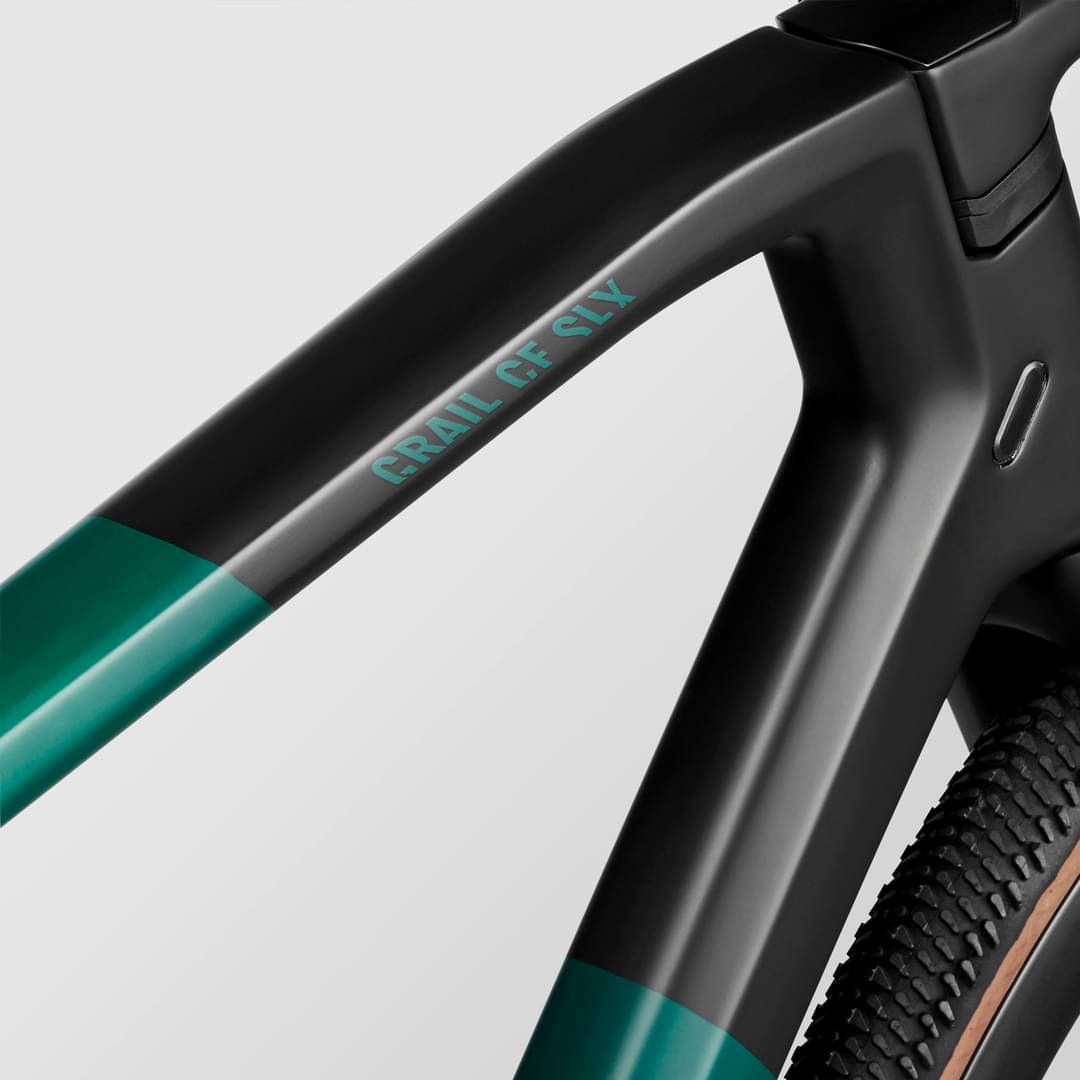

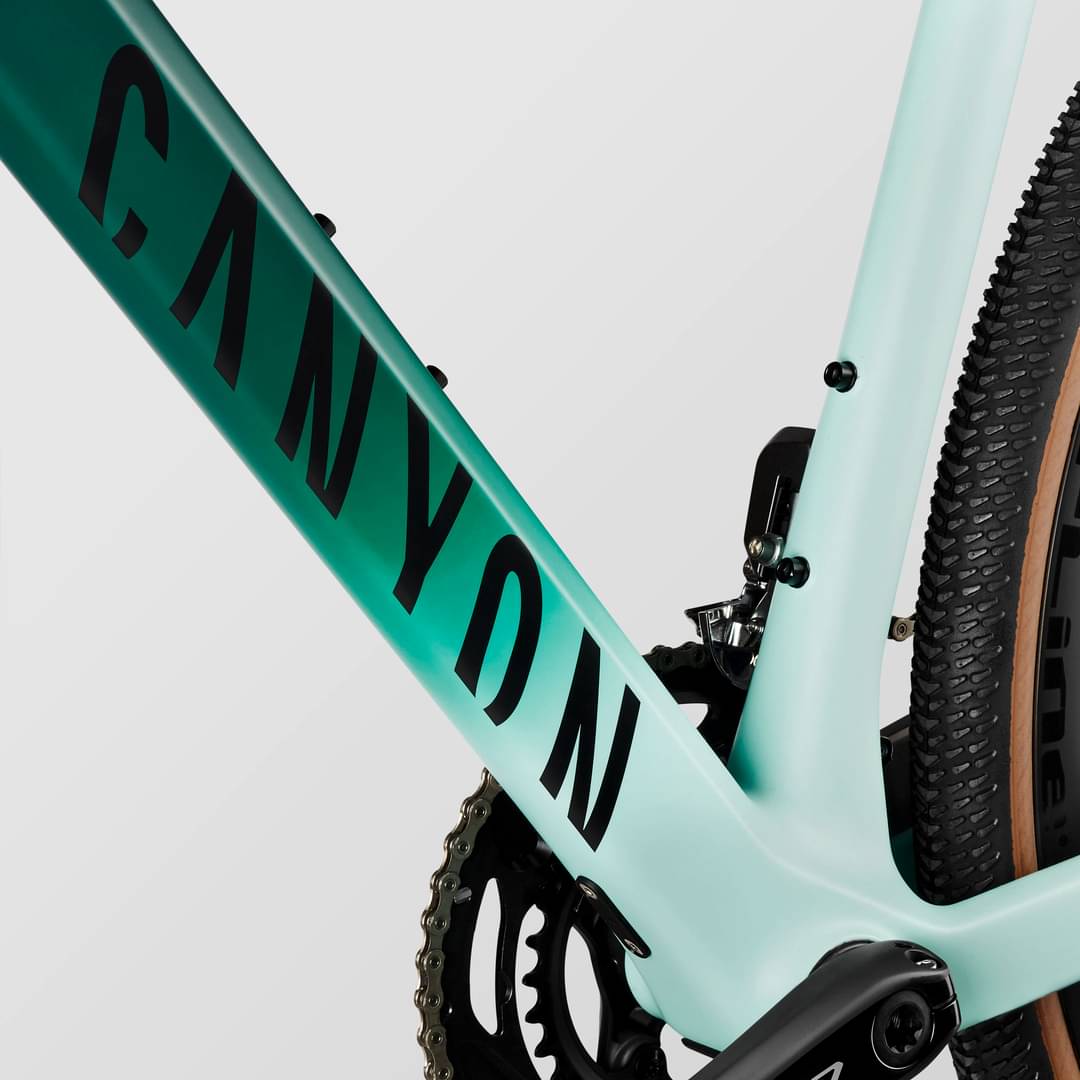

Canyon Grail CF SLX Disc, Superlight carbon frame with Gravel Pro geometry for the optimal mix of stability, agility, and comfort., Axle dimension: 12x142 mm, Tyre Clearance: 42 mm, Material: Carbon (CF)
Suspension Fork
Canyon FK0070 CF Disc, A robust carbon fibre fork offering the optimal mix of robustness, stiffness, and lightness., Fork steer tube diameter: 1 1/4", Material: Carbon (CF)
Drivetrain
Rear Derailleur
Shimano GRX Di2 RX815 GS, Cage length: long
Front Derailleur
Shimano GRX Di2 RX815
Shift Levers
Shimano GRX Di2 RX815 2s | Shimano GRX Di2 RX815 11s
Cassette
Shimano Ultegra HG800 11-34 11s, Number of sprockets: 11
Crank
Shimano RX810, Number of chainrings: 2
Bottom Bracket
Shimano Pressfit BB72, Bottom bracket standard: PF 86,5
Chain
Shimano CN-HG701 11s
Pedals
None included
Wheels
Rims
DT Swiss GRC1400 Spline db, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 42 mm, Wheelsize: 28" | DT Swiss GRC1400 Spline db SH11, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 42 mm, Wheelsize: 28"
Tires
Schwalbe G-One R, 40mm, Width: 40mm
Brakes
Brakes
Shimano Flat Mount Adapter +20mm
Brake Levers
Shimano GRX Di2 RX815 2s | Shimano GRX Di2 RX815 11s
Seat
Saddle
Fizik Argo Terra X3, Gender: Male
Seatpost
Canyon S15 VCLS 2.0 CF, Material: Carbon, Setback: 13 mm / 25 mm, Technology: VCLS 2.0 | Fliphead, Weight: 220 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.23 mm | 1.26 mm | 1.27 mm | 1.27 mm | 1.33 mm | 1.33 mm | 1.3 mm |
| Front Center | 580 mm | 582 mm | 606 mm | 615 mm | 626 mm | 649 mm | 659 mm |
| Rake | 43 mm | 43 mm | 43 mm | 42 mm | 43 mm | 44 mm | 23 mm |
| Trail | 73 mm | 67 mm | 75 mm | 66 mm | 65 mm | 62 mm | 84 mm |
| Stack | 468 mm | 488 mm | 511 mm | 534 mm | 561 mm | 582 mm | 602 mm |
| Reach | 382 mm | 386 mm | 403 mm | 419 mm | 421 mm | 439 mm | 464 mm |
| Top Tube Length | 511 mm | 521 mm | 545 mm | 567 mm | 578 mm | 602 mm | 613 mm |
| Seat Tube Angle | 72.68 ° | 72.72 ° | 72.75 ° | 72.78 ° | 72.81 ° | 72.83 ° | 72.86 ° |
| Seat Tube Length | 432 mm | 462 mm | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Head Tube Angle | 70.25 ° | 71.25 ° | 71 ° | 72.5 ° | 72.5 ° | 72.75 ° | 72.75 ° |
| Head Tube Length | 70 mm | 88 mm | 78 mm | 97 mm | 125 mm | 146 mm | 167 mm |
| Chainstay Length | 413 mm | 413 mm | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 986 mm | 988 mm | 1018 mm | 1027 mm | 1038 mm | 1061 mm | 1071 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 751 mm | 776 mm | 803 mm | 832 mm | 858 mm | 886 mm | 910 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
Model Overview
Grail CF SLX 8 Di2 is part of the Canyon Grail model. Canyon released 90 bikes variations of this model so far. You can easily view all of the Canyon Grail bikes models from 2023, here.
Model range prices
Canyon Grail 6 2023 is the most affordable bike of this model and has a price of 1699$. On the other hand, Canyon Grail CF SLX 9 eTap 2023, is the most expensive and costs 6999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2023 and its price was 4499$. If we compare this with the average Gravel bike cost we notice that the price is 82.74% more expensive.
Gravel bikes average weight
Gravel bikes have an average weight of 8.13 kg (17.92 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Grail CF SLX 8 Di2 weighs 8.46 kg (18.65 lbs) and is slightly heavier than the average. In other words, this model is 4.06% heavier than the average Gravel bike.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on Grail CF SLX 8 Di2 are the carbon type. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Grail CF SLX 8 Di2 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
