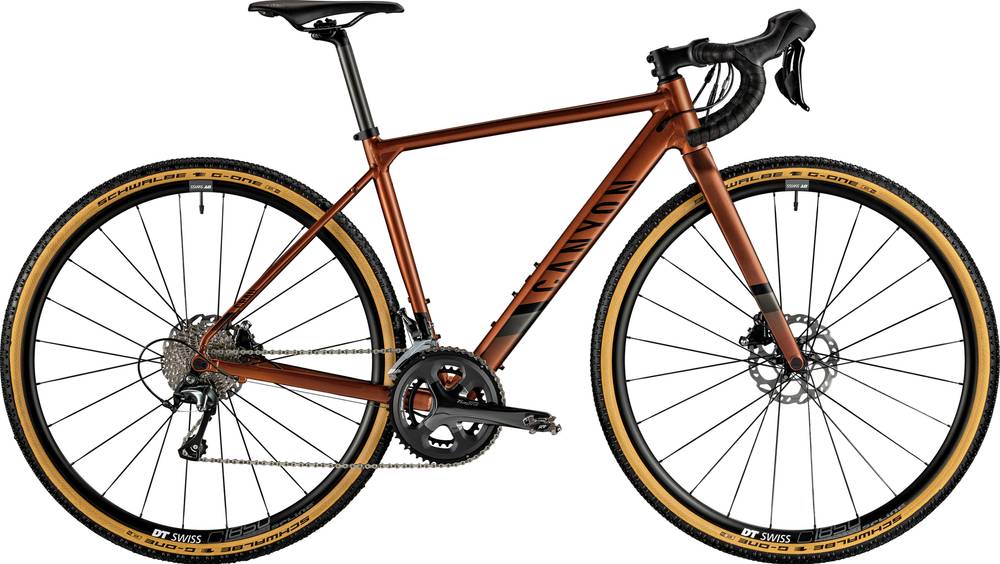

Canyon Grail WMN AL 6.0 2019
2019 Road
Estimate price |
1,375$
Weight | 9.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b / 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grail AL Disc, Material: Aluminium 6061, Axle Dimension: 12 x 142 mm, Brake Mount: Flat Mount
Suspension Fork
Canyon FK0047 CF SLX Disc, Material: Carbon, Steerer: 1 1/4", Axle Dimension: 12 x 100 mm, Brake Mount: Flat Mount
Drivetrain
Rear Derailleur
Shimano Tiagra 4700 GS
Front Derailleur
Shimano Tiagra 4700
Shift Levers
Shimano Tiagra 4700 10s
Cassette
Shimano HG500 11-34 10s
Crank
Shimano Tiagra 4700, 50/34
Bottom Bracket
Shimano Pressfit BB72
Chain
KMC X10-93 10s
Pedals
None included
Wheels
Rims
DT Swiss C 1850 Spline db SH11, Rim Material: Aluminium, Rim Height: 23 mm, Inner Width: 22 mm, Weight: 979 g
Tires
Schwalbe G-One Bite 40 mm, Technology: Tubeless Easy
Brakes
Brake Levers
Shimano Tiagra 4700 10s
Disk Rotors
Shimano RT70, Disc Mount: Centerlock
Cockpit
Stem
Canyon V13
Handlebar
Canyon HB 0050 Ergobar AL, Material: Aluminium, Shape: Ergo, Reach: 70 mm, Drop: 130 mm
Seat
Saddle
Selle Italia X1 Lady Flow
Seatpost
Canyon SP0043 VCLS CF, Material: Carbon, Setback: 20 mm, Technology: VCLS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.43 mm | 1.43 mm | 1.43 mm |
| Front Center | 576 mm | 582 mm | 608 mm | 616 mm |
| Rake | 41 mm | 41 mm | 38 mm | 43 mm |
| Trail | 76 mm | 70 mm | 85 mm | 67 mm |
| Stack | 512 mm | 531 mm | 554 mm | 577 mm |
| Reach | 362 mm | 371 mm | 388 mm | 403 mm |
| Top Tube Length | 514 mm | 529 mm | 553 mm | 575 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 432 mm | 462 mm | 492 mm | 522 mm |
| Head Tube Angle | 70 ° | 71 ° | 70.25 ° | 72.25 ° |
| Head Tube Length | 117 mm | 133 mm | 124 mm | 143 mm |
| Chainstay Length | 413 mm | 413 mm | 428 mm | 428 mm |
| Wheelbase | 982 mm | 988 mm | 1025 mm | 1033 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 75 mm | 75 mm |
| Standover Height | 723 mm | 749 mm | 779 mm | 806 mm |
| Wheels | 650 | 650 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 184 cm |
Model Overview
Grail WMN AL 6.0 belongs to the Canyon Grail model. Canyon released 90 bikes variations of this model so far. You can easily view all of the Canyon Grail bikes models from 2019, here.
Model range prices
Canyon Grail WMN AL 6.0 2019 is the most affordable bike of this model and has a price of 1273$. On the other hand, Canyon Grail CF SLX 8.0 Di2 2019, is the most expensive and costs 5000$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel bikes average price
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2019 and its price was 1273$. Comparing this to the average Gravel bike price, we see that the price is 93.4% smaller.
Average weight for Gravel bikes
If we make a quick analysis of the average weight of a Gravel bike, we get 8.13 kg (17.92 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 9.7 kg (21.38 lbs), Canyon bike is much heavier than average. In short, the average Gravel bike weight is 19.31% lower than this one.
Grail WMN AL 6.0 components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, Canyon Grail WMN AL 6.0 2019, has a aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Grail WMN AL 6.0 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
