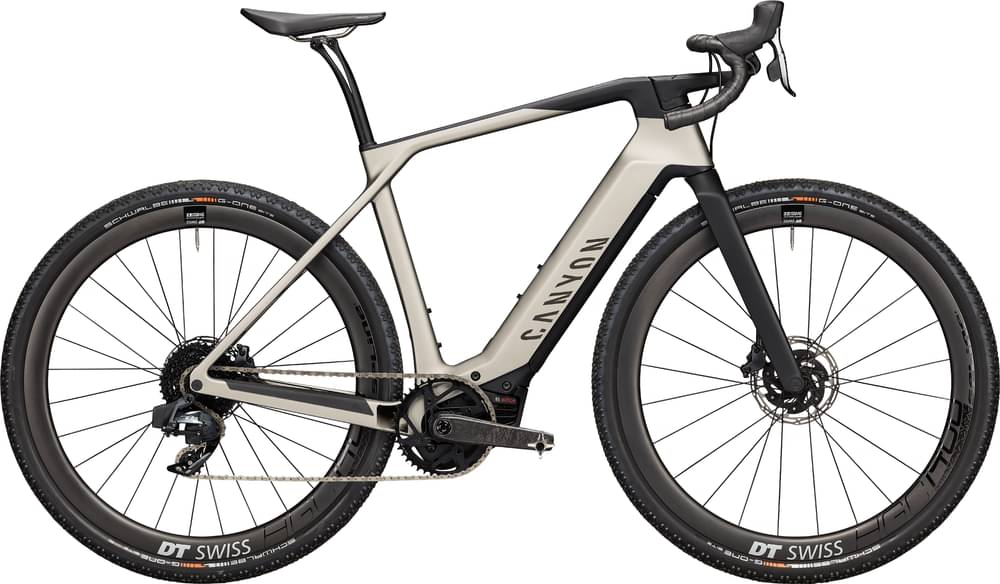

Canyon Grail:ON CF 8 eTap 2022
2022 E-bike
Estimate price |
6,999$
Weight | 15.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 650b / 700c -
Groupset Force eTAP, FSA -
Suspension Rigid -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 500 Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 190cm
XL
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grail:ON CF
Suspension Fork
Canyon FK0064 CF Disc
Drivetrain
Rear Derailleur
SRAM Force eTap AXS 12s, High-performance rear derailleur with wireless shifting. With Orbit tech for quiet, secure chain management. Maximum cassette size: 36T.
Shift Levers
SRAM Force eTap AXS HRD 2s | SRAM Force eTap AXS HRD 12s, Right-hand shifter. With wireless shifting, contact point adjustment, reach adjust.
Cassette
SRAM Force XG-1270 12s 10-36, With mini cluster construction for reduced weight and increased durability. Gear range: 10-36 T.
Crank
FSA CK-702 Gen4
Chain
SRAM Force D1 12s, With signature flat-top design for quieter operation and increased strength and durability.
Wheels
Rims
DT Swiss HGC1400 Spline | DT Swiss HGC1400 Spline XD-R
Tires
Schwalbe G-One Bite TLE, 50mm
Brakes
Brake Levers
SRAM Force eTap AXS HRD 2s | SRAM Force eTap AXS HRD 12s, Right-hand shifter. With wireless shifting, contact point adjustment, reach adjust.
Disk Rotors
SRAM Centerline X, Two-piece design centerlock brake rotor, rounded edges for easier wheel installs. Weight: 135 g
Seat
Saddle
Fizik Tempo Argo R3
Seatpost
Canyon S15 VCLS 2.0 CF, Material: Carbon, Setback: 13 mm / 25 mm, Technology: VCLS 2.0 | Fliphead, Weight: 220 g
Motor & Battery
Motor
Bosch Performance Line CX (Gen4)
Battery
Bosch PowerTube 500 Wh
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.31 mm | 1.29 mm | 1.32 mm | 1.37 mm | 1.41 mm | 1.41 mm | 1.45 mm |
| Front Center | 605 mm | 616 mm | 625 mm | 624 mm | 630 mm | 653 mm | 661 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 74 mm | 70 mm | 70 mm | 71 mm | 70 mm | 68 mm | 67 mm |
| Stack | 510 mm | 522 mm | 539 mm | 559 mm | 580 mm | 603 mm | 626 mm |
| Reach | 390 mm | 404 mm | 407 mm | 409 mm | 411 mm | 429 mm | 432 mm |
| Top Tube Length | 542 mm | 559 mm | 567 mm | 575 mm | 583 mm | 608 mm | 618 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 432 mm | 462 mm | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Head Tube Angle | 70 ° | 70.75 ° | 70.75 ° | 71.5 ° | 71.75 ° | 72 ° | 72.25 ° |
| Head Tube Length | 110 mm | 119 mm | 137 mm | 122 mm | 143 mm | 166 mm | 189 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1021 mm | 1032 mm | 1041 mm | 1051 mm | 1057 mm | 1080 mm | 1088 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 723 mm | 749 mm | 779 mm | 806 mm | 832 mm | 857 mm | 879 mm |
| Wheels | 650 | 650 | 650 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 190 cm | 195 cm | cm |
About this model
Grail:ON CF 8 eTap is a Canyon E Grailon model. 14 e-bikes variations carry this model name so far. You can easily view all of the Canyon E Grailon e-bikes models from 2022, here.
Model range prices
Canyon Grail:ON CF 7 2022 is the most economical model, with a starting price of 5308$. Canyon Grail:ON CF 8 eTap 2022 on the other hand costs 6999$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel e-bikes
If you want an acceptable Gravel e-bike you should know that the average price is 3642$. However, you could also get a good Gravel e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When Canyon released this model in 2022, its price was 6999$. In conclusion, this e-bike price is 92.17% higher than the price of the average Gravel e-bike.
Average weight for Gravel e-bikes
On a deeper look, we notice that the average weight of a Gravel e-bike is 13.58 kg (29.94 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 15.9 kg (35.05 lbs), the Grail:ON CF 8 eTap model is much heavier than average. In conclusion, the average Gravel e-bike weighs 17.08% less than Grail:ON CF 8 eTap.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The Grail:ON CF 8 eTap 2022 e-bike is equipped with carbon wheels when leaving the factory. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Grail:ON CF 8 eTap comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
