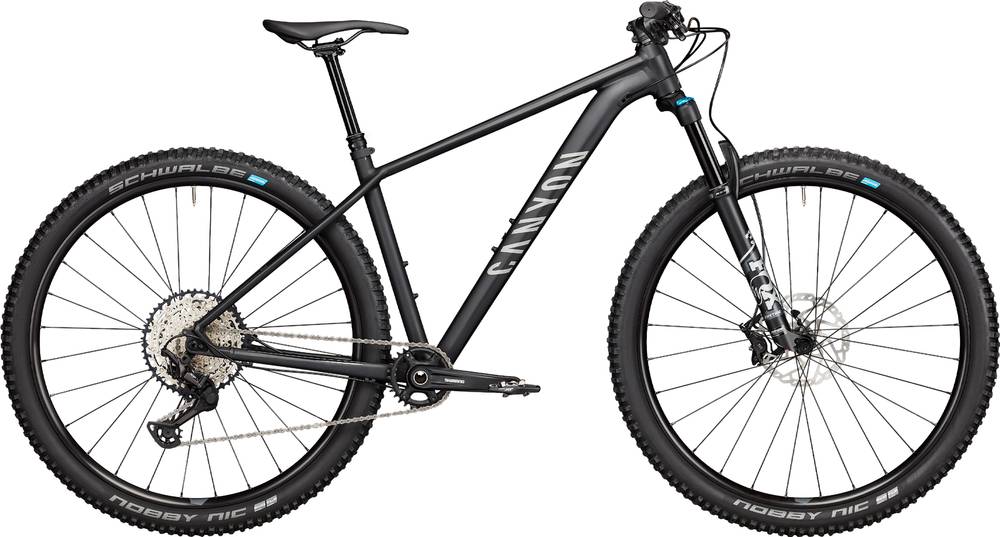

Canyon Grand 9 2021
2021 Mountain
Estimate price |
2,006$
Weight | 13.38 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 120mm -
Fork Fox Rhythm Float 34
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 176cm
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grand Canyon AL SL
Suspension Fork
FOX 34 Rhythm, Travel: 120 mm, Technology: GRIP, Axle Dimension: 15 x 110 mm
Drivetrain
Rear Derailleur
Shimano Deore XT M8100 SGS
Shift Levers
Shimano Deore XT M8100 12s, Clamp: I-Spec EV
Cassette
Shimano SLX M7100 10-51 12s
Crank
Shimano M610 30T 30
Bottom Bracket
Shimano Pressfit BB-MT500
Chain
Shimano CN-M7100 12s
Pedals
None included
Wheels
Rims
Canyon MXD5 29"
Tires
Schwalbe Nobby Nic 2.35'', Casing: Snake Skin, Compound: Evolution, Technology: Tubeless Easy
Brakes
Brakes
Shimano Deore XT M8100
Disk Rotors
Shimano RT66, Disc Mount: 6-Hole
Cockpit
Stem
Iridium
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Grips
Canyon
Seat
Saddle
Iridium Trail
Seatpost
Iridium Dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.44 mm | 1.44 mm | 1.41 mm | 1.4 mm |
| Bottom Bracket Height | 308 mm | 308 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 665 mm | 686 mm | 730 mm | 756 mm | 787 mm |
| Rake | 44 mm | 44 mm | 55 mm | 55 mm | 55 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 588 mm | 597 mm | 627 mm | 641 mm | 668 mm |
| Reach | 399 mm | 416 mm | 436 mm | 456 mm | 476 mm |
| Top Tube Length | 567 mm | 587 mm | 615 mm | 639 mm | 667 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 350 mm | 395 mm | 440 mm | 485 mm | 545 mm |
| Head Tube Angle | 68 ° | 68 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 90 mm | 100 mm | 100 mm | 115 mm | 145 mm |
| Chainstay Length | 424 mm | 424 mm | 429 mm | 434 mm | 439 mm |
| Wheelbase | 1085 mm | 1106 mm | 1151 mm | 1182 mm | 1218 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 731 mm | 761 mm | 814 mm | 842 mm | 880 mm |
| Front Travel | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Max Height | 167 cm | 176 cm | 184 cm | 193 cm | cm |
About this model
Grand Canyon 9 belongs to the Canyon Grand Canyon model. Canyon launched 49 bikes of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Canyon Grand Canyon Young Hero 2021 is the most economical model, with a starting price of 615$. Canyon Grand Canyon 9 2021 on the other hand costs 1857$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Canyon Grand Canyon 9 price was 1857$. In conclusion, this bike price is 48.73% lower than the price of the average Trail bike.
Average weight for Trail bikes
Trail bikes have an average weight of 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 13.38 kg (29.5 lbs), Canyon bike is slightly heavier than average. To sum up, it’s 3.08% heavier than the average weight of Trail bikes.
Overview of components
Fork
The Fox Rhythm Float 34 is included from the factory. It has a travel distance of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the Grand Canyon 9 model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Grand Canyon 9 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Dropper post
A dropper post is included with the Grand Canyon 9. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
