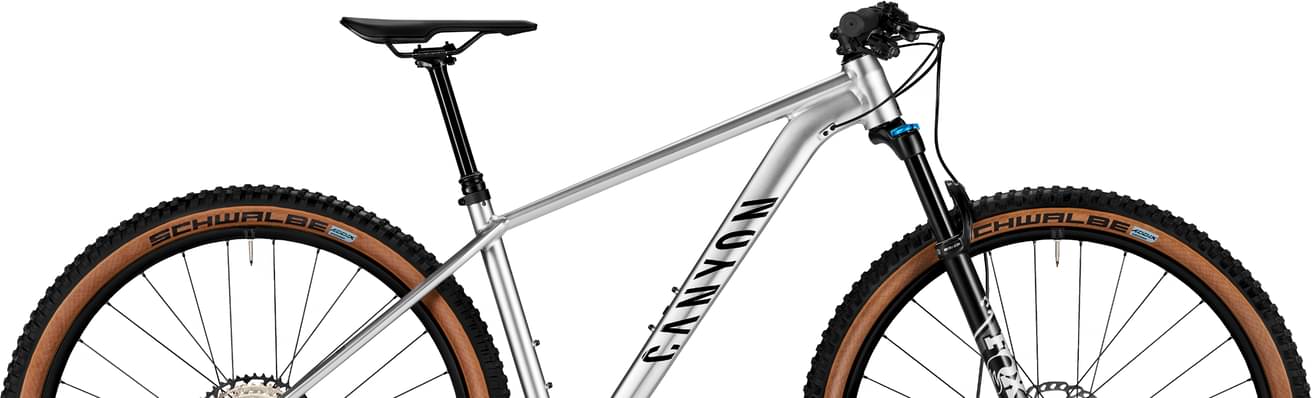

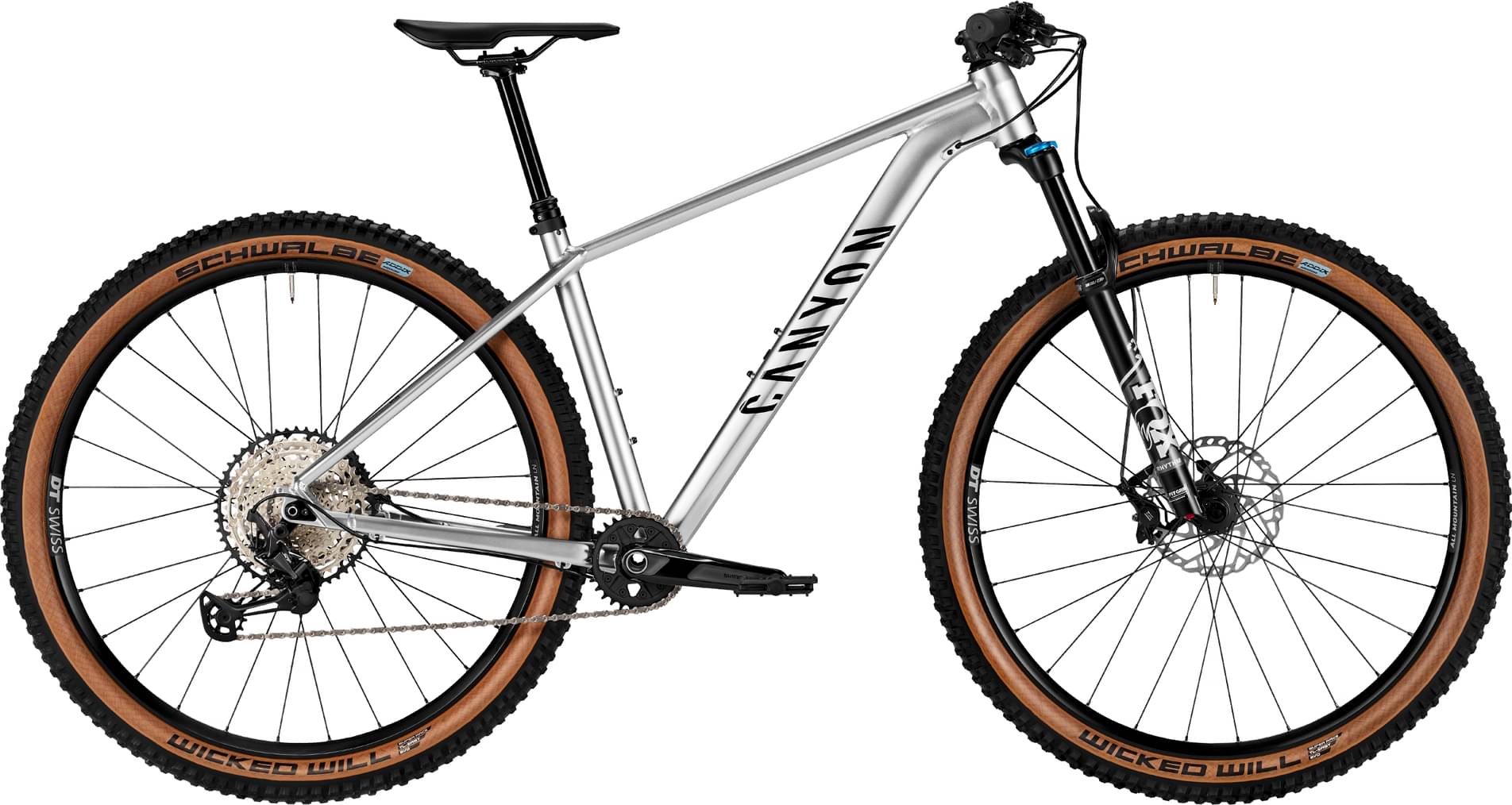

Canyon Grand 9 2023
2023 Mountain
Estimate price |
2,063$
Weight | 13.72 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork Fox Rhythm Float 32
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 176cm
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Grand Canyon AL SL, Material: Aluminium (AL)
Suspension Fork
FOX 32 Rhythm GRIP, Axle dimension: 15x110 mm, Stanchion Diameter: 32 mm, Travel: 120 mm, Fork steer tube diameter: 1 1/8" - 1,5", Offset: 51 mm
Drivetrain
Rear Derailleur
Shimano DEORE XT M8100, Cage length: long, Weight: 286 g
Shift Levers
Shimano DEORE XT M8100
Cassette
Shimano SLX M7100, Number of sprockets: 12 | Shimano CS-M7100 MTB 12-speed Cassette
Crank
Shimano M610 30T, Number of chainrings: 1
Bottom Bracket
Shimano Pressfit BB-MT500, Bottom bracket standard: PF 89,5/92, Weight: 200 g
Chain
Shimano CN-M7100 12s | Shimano CN-M7100 12-speed Chain 138 Links | Shimano SM-CN910 12-speed Quick-Link Chain Connector
Pedals
None included
Wheels
Rims
DT Swiss AM LN 370, Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt, Weight: 1.05 kg | DT Swiss LN Allmountain, Rotor mount: IS 6-bolt
Tires
Schwalbe Wicked Will SR TLE EVO 2.4", Width: 2.4"
Brakes
Brakes
Shimano SLX M7100
Cockpit
Stem
Iridium, Fork steer tube diameter: 1 1/8", Clamping diameter: 31,8 mm
Handlebar
Iridium Flatbar, Clamping diameter: 31,8 mm, Width: 740 mm, Rise: 5 mm
Grips
Canyon push-on Grips
Seat
Saddle
Iridium Trail
Seatpost
Iridium Dropper, Clamp diameter: 34,9 mm, Material: Aluminium (AL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.44 mm | 1.44 mm | 1.41 mm | 1.4 mm |
| Bottom Bracket Height | 308 mm | 308 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 665 mm | 686 mm | 730 mm | 756 mm | 787 mm |
| Rake | 44 mm | 44 mm | 55 mm | 55 mm | 55 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 588 mm | 597 mm | 627 mm | 641 mm | 668 mm |
| Reach | 399 mm | 416 mm | 436 mm | 456 mm | 476 mm |
| Top Tube Length | 567 mm | 587 mm | 615 mm | 639 mm | 667 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 350 mm | 395 mm | 440 mm | 485 mm | 545 mm |
| Head Tube Angle | 68 ° | 68 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 90 mm | 100 mm | 100 mm | 115 mm | 145 mm |
| Chainstay Length | 424 mm | 424 mm | 429 mm | 434 mm | 439 mm |
| Wheelbase | 1085 mm | 1106 mm | 1151 mm | 1182 mm | 1218 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 731 mm | 761 mm | 814 mm | 842 mm | 880 mm |
| Front Travel | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Max Height | 167 cm | 176 cm | 184 cm | 193 cm | cm |
Model Overview
Grand Canyon 9 is part of the Canyon Grand Canyon model. 49 bikes variations carry this model name so far. You can easily view all of the Canyon Grand Canyon bikes models from 2023, here.
Model range prices
Canyon Grand Canyon 5 2023 is the most economical model, with a starting price of 699$. Canyon Grand Canyon 9 2023 on the other hand costs 1910$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Canyon Grand Canyon 9 price was 1910$. In conclusion, this bike price is 44.61% lower than the price of the average Trail bike.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Grand Canyon 9 weighs 13.72 kg (30.25 lbs) and is a bit heavier than the average. In conclusion, the average Trail bike weighs 5.7% less than Grand Canyon 9.
Overview of components

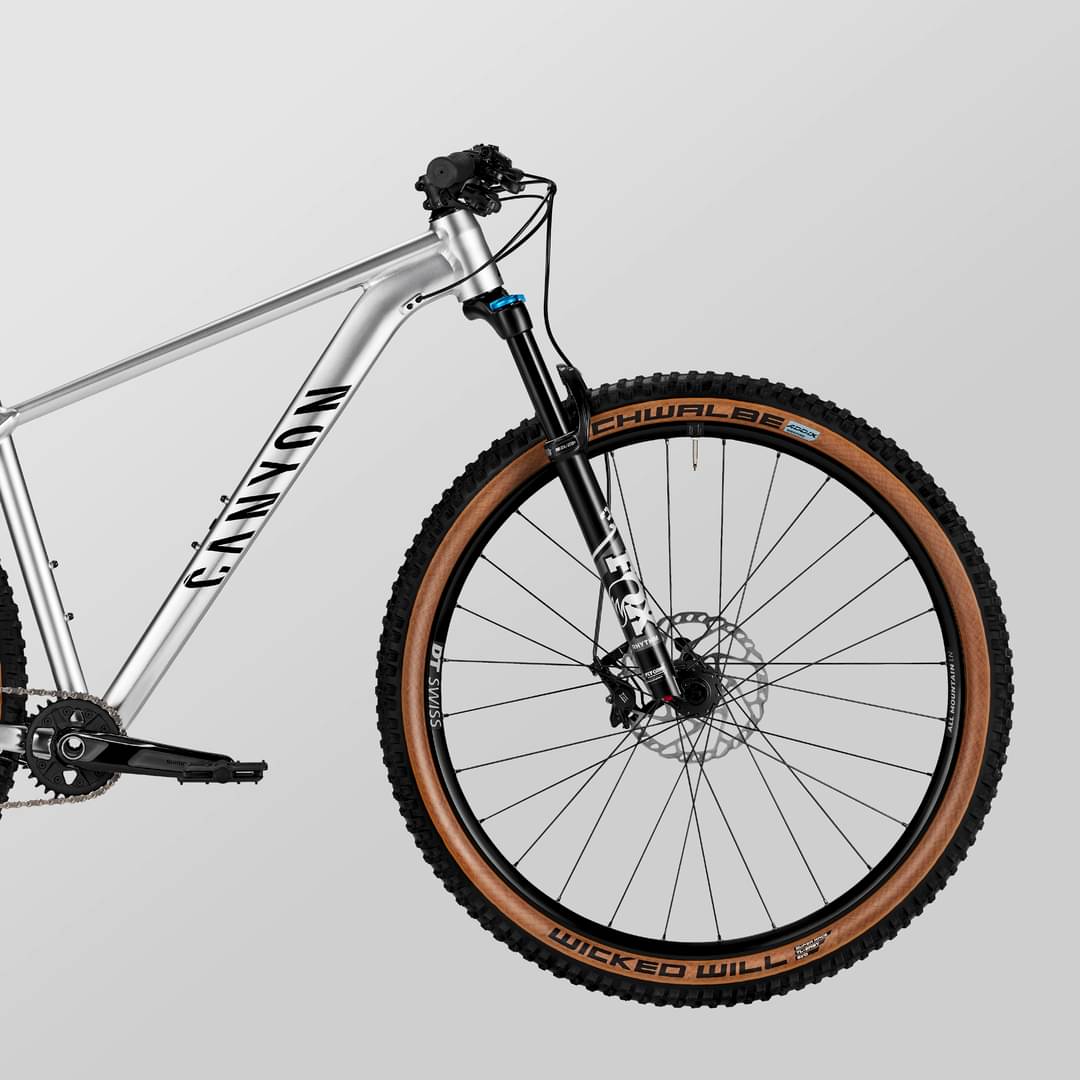

Fork
The Fox Rhythm Float 32 is included from the factory. It has a travel distance of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When it comes to wheels, the Grand Canyon 9 bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Grand Canyon 9 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Dropper post
Canyon Grand Canyon 9 comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
