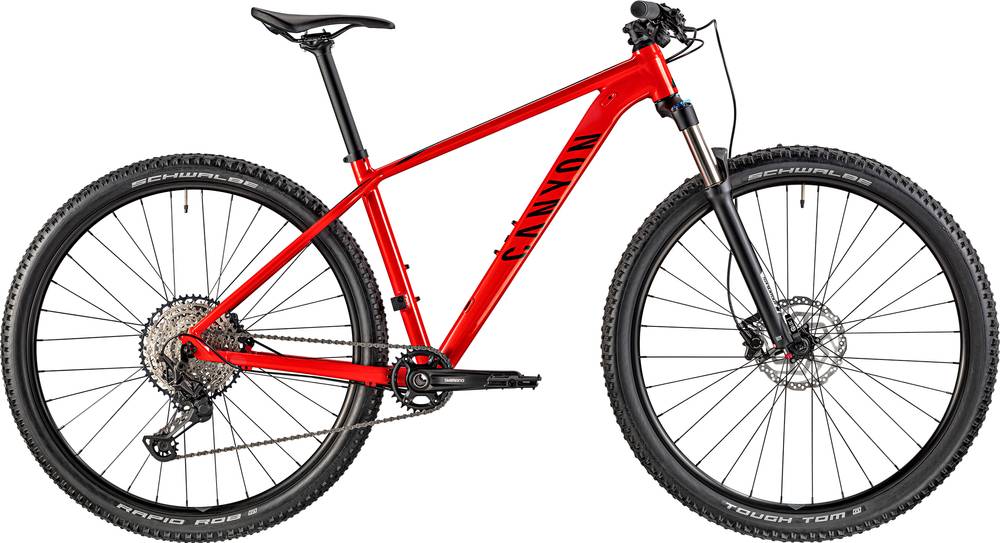

Canyon Grand AL 6.0 2020
2020 Mountain
Estimate price |
1,146$
Weight | 13.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork SunTour XCR
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 176cm
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grand Canyon AL, Material: Aluminium 6061, Axle Dimension: 9 x 135 mm, Brake Mount: Post Mount 160
Suspension Fork
SR Suntour XCR
Drivetrain
Rear Derailleur
Shimano Deore XT M8100 SGS
Shift Levers
Shimano SLX M7100 12s
Cassette
Shimano SLX M710012 10-51 12s
Crank
Shimano M610 30T 30
Bottom Bracket
Shimano BSA BB52
Chain
Shimano CN-M7100 12s
Wheels
Rims
WH PC IRIDIUM/MT400 29 9x100 CL bk | WH PC IRIDIUM/MT510 29 9x135 CL bk
Tires
Schwalbe Tough Tom 2.25" | Schwalbe Rapid Rob 2.25'', Casing: K-Guard
Brakes
Brakes
Shimano MT400
Disk Rotors
Shimano RT10, Disc Mount: Centerlock
Cockpit
Stem
Iridium
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Grips
Canyon
Headset
Femin FP-H863
Seat
Saddle
Iridium Fitness
Seatpost
Iridium
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.44 mm | 1.43 mm | 1.4 mm | 1.39 mm |
| Bottom Bracket Height | 308 mm | 308 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 636 mm | 665 mm | 715 mm | 749 mm | 778 mm |
| Rake | 44 mm | 44 mm | 56 mm | 55 mm | 55 mm |
| Trail | 93 mm | 93 mm | 91 mm | 92 mm | 92 mm |
| Stack | 571 mm | 580 mm | 611 mm | 634 mm | 657 mm |
| Reach | 377 mm | 402 mm | 427 mm | 452 mm | 472 mm |
| Top Tube Length | 542 mm | 569 mm | 603 mm | 635 mm | 661 mm |
| Seat Tube Angle | 72.7 ° | 72.7 ° | 72.8 ° | 72.9 ° | 72.9 ° |
| Seat Tube Length | 380 mm | 395 mm | 440 mm | 485 mm | 545 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 100 mm | 125 mm | 150 mm |
| Chainstay Length | 420 mm | 420 mm | 427 mm | 432 mm | 437 mm |
| Wheelbase | 1052 mm | 1081 mm | 1134 mm | 1173 mm | 1207 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 722 mm | 752 mm | 792 mm | 827 mm | 870 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Max Height | 167 cm | 176 cm | 184 cm | 193 cm | cm |
About this model
Grand Canyon AL 6.0 is a Canyon Grand Canyon model. There are 49 bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Canyon Grand Canyon AL 4.0 2020 is the cheapest bike model and costs 848$. Canyon Grand Canyon WMN AL SL 9.0 2020 is the most expensive one and costs 1910$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Canyon released this model in 2020, its price was 1061$. Doing a quick comparison, we notice that Grand Canyon AL 6.0 price is 79.55% lower than the average cost of a Crosscountry bike.
Average weight for Crosscountry bikes
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
a bit heavier than average, Grand Canyon AL 6.0 has a weight of 13.4 kg (29.54 lbs). In other words, this model is 8.06% heavier than the average Crosscountry bike.
Overview of components
Fork
The SunTour XCR is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on Grand Canyon AL 6.0 are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Grand Canyon AL 6.0 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
