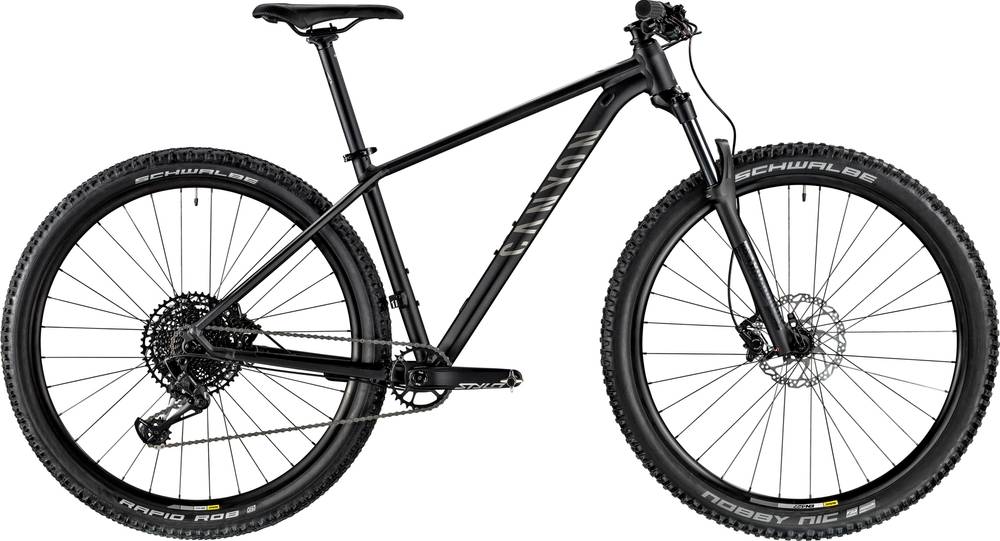

Canyon Grand AL SL 7.0 2019
2019 Mountain
Estimate price |
1,261$
Weight | 12.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 120mm -
Fork RockShox Judy
-
Groupset GX Eagle, NX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
161cm - 173cm
MD
171cm - 183cm
LG
181cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grand Canyon AL SL, Material: Aluminium 6061, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 160
Suspension Fork
RockShox Judy Silver, Travel: 120 mm, Axle Dimension: 15 x 110 mm
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM NX Eagle Trigger 12s
Cassette
SRAM PG-1230 Eagle 11-50 12s
Crank
Truvativ Stylo 6K DUB 30T 30
Bottom Bracket
SRAM Pressfit DUB
Chain
SRAM NX Eagle 12s
Pedals
None included
Wheels
Rims
Mavic XM 424 | Shimano MT400 SH11, Rim Material: Aluminium, Inner Width: 24 mm
Tires
Schwalbe Rapid Rob 2.25'', Casing: K-Guard
Brakes
Brakes
Shimano MT400
Disk Rotors
Shimano RT54, Disc Mount: Centerlock
Cockpit
Stem
Iridium
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Grips
Lock-On
Seat
Saddle
Selle Italia X-Base
Seatpost
Iridium
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.45 mm | 1.42 mm | 1.39 mm | 1.39 mm |
| Bottom Bracket Height | 308 mm | 308 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 639 mm | 668 mm | 713 mm | 747 mm | 778 mm |
| Rake | 44 mm | 45 mm | 61 mm | 61 mm | 61 mm |
| Trail | 93 mm | 92 mm | 82 mm | 82 mm | 82 mm |
| Stack | 581 mm | 590 mm | 611 mm | 634 mm | 662 mm |
| Reach | 381 mm | 406 mm | 431 mm | 456 mm | 476 mm |
| Top Tube Length | 547 mm | 575 mm | 606 mm | 638 mm | 665 mm |
| Seat Tube Angle | 72.7 ° | 72.7 ° | 72.8 ° | 72.9 ° | 72.9 ° |
| Seat Tube Length | 350 mm | 395 mm | 440 mm | 485 mm | 545 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 90 mm | 100 mm | 90 mm | 115 mm | 145 mm |
| Chainstay Length | 424 mm | 424 mm | 429 mm | 434 mm | 439 mm |
| Wheelbase | 1059 mm | 1088 mm | 1134 mm | 1173 mm | 1209 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 735 mm | 755 mm | 800 mm | 831 mm | 876 mm |
| Front Travel | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Max Height | 163 cm | 173 cm | 183 cm | 193 cm | cm |
Model Overview
Grand Canyon AL SL 7.0 belongs to the Canyon Grand Canyon model. Canyon launched 49 bikes of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
The most economical model, the Canyon Grand Canyon WMN AL 4.0 2019 has a starting price of 742$. Canyon Grand Canyon WMN AL SLX 9.0 2019 on the other hand is the most expensive at 1698$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1167$. If we compare this with the average Trail bike cost we notice that the price is 136.68% lower.
Average weight for Trail bikes
Trail bikes have an average weight of 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 12.7 kg (28 lbs), Canyon bike is slightly lighter than average. To sum up, it’s 2.2% lighter than the average weight of Trail bikes.
Overview of components
Fork
This bike has the RockShox Judy fork installed. The fork’s travel is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the Grand Canyon AL SL 7.0 bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Grand Canyon AL SL 7.0 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
