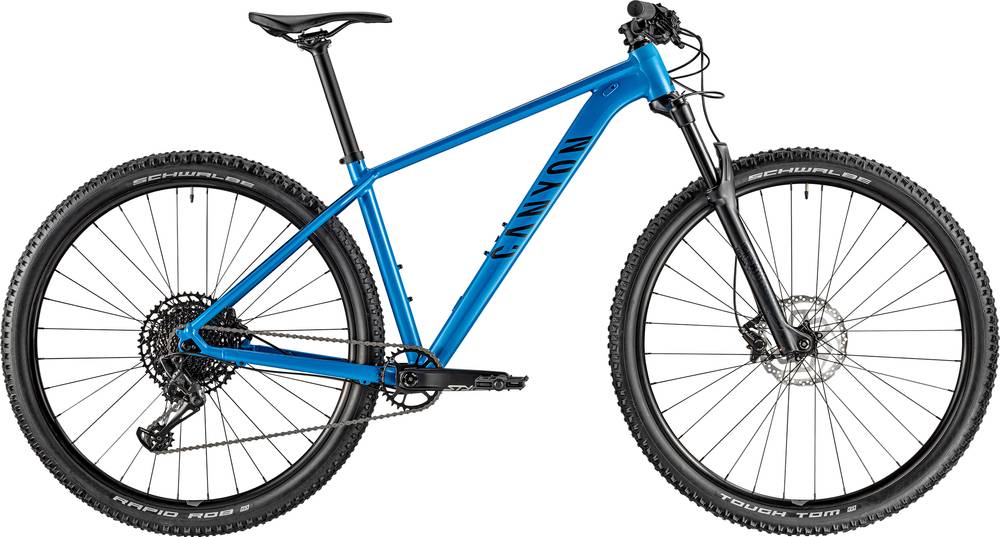

Canyon Grand AL SL 7.0 2020
2020 Mountain
Estimate price |
1,375$
Weight | 13.45 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 120mm -
Fork RockShox Judy
-
Groupset GX Eagle, NX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 176cm
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grand Canyon AL SL
Suspension Fork
RockShox Judy Silver, Travel: 120 mm, Axle Dimension: 15 x 110 mm, Size XS bikes: 100 mm travel
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM NX Eagle Trigger 12s
Cassette
SRAM PG-1230 Eagle 11-50 12s
Crank
Truvativ Stylo 6K DUB 30T 30
Bottom Bracket
SRAM Pressfit DUB
Chain
SRAM NX Eagle 12s
Wheels
Rims
Alexrims MD25 | Shimano MT400 | Alexrims MD25 | Shimano MT400 SH11
Tires
Schwalbe Tough Tom 2.25" | Schwalbe Rapid Rob 2.25'', Casing: K-Guard
Brakes
Brakes
Shimano MT400
Disk Rotors
Shimano RT10
Cockpit
Stem
Iridium
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Grips
Canyon
Seat
Saddle
Iridium Trail
Seatpost
Iridium
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.44 mm | 1.44 mm | 1.41 mm | 1.4 mm |
| Bottom Bracket Height | 308 mm | 308 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 665 mm | 686 mm | 730 mm | 756 mm | 787 mm |
| Rake | 44 mm | 44 mm | 55 mm | 55 mm | 55 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 588 mm | 597 mm | 627 mm | 641 mm | 668 mm |
| Reach | 399 mm | 416 mm | 436 mm | 456 mm | 476 mm |
| Top Tube Length | 567 mm | 587 mm | 615 mm | 639 mm | 667 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 350 mm | 395 mm | 440 mm | 485 mm | 545 mm |
| Head Tube Angle | 68 ° | 68 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 90 mm | 100 mm | 100 mm | 115 mm | 145 mm |
| Chainstay Length | 424 mm | 424 mm | 429 mm | 434 mm | 439 mm |
| Wheelbase | 1085 mm | 1106 mm | 1151 mm | 1182 mm | 1218 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 731 mm | 761 mm | 814 mm | 842 mm | 880 mm |
| Front Travel | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Max Height | 167 cm | 176 cm | 184 cm | 193 cm | cm |
Model Overview
Grand Canyon AL SL 7.0 is part of the Canyon Grand Canyon model. 49 bikes variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
The most economical model, the Canyon Grand Canyon AL 4.0 2020 has a starting price of 848$. Canyon Grand Canyon WMN AL SL 9.0 2020 on the other hand is the most expensive at 1910$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Canyon Grand Canyon AL SL 7.0 price was 1273$. Doing a quick comparison, we notice that Grand Canyon AL SL 7.0 price is 116.97% smaller than the average cost of a Trail bike.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly heavier than average, Grand Canyon AL SL 7.0 has a weight of 13.45 kg (29.65 lbs). In other words, this model is 3.62% heavier than the average Trail bike.
Grand Canyon AL SL 7.0 components
Fork
The fork installed on this bike is the RockShox Judy model. The travel on this model is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the Grand Canyon AL SL 7.0 bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Grand Canyon AL SL 7.0 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
