Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 120mm -
Fork Fox Rhythm Float 34
-
Groupset GX Eagle, Truvativ Stylo -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
161cm - 173cm
MD
171cm - 183cm
LG
181cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grand Canyon AL SL, Material: Aluminium 6061, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 160
Suspension Fork
FOX 34 Rhythm, Travel: 120 mm, Technology: GRIP, Axle Dimension: 15 x 110 mm
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle Trigger 12s
Cassette
SRAM XG-1275 Eagle 10-50 12s
Crank
Truvativ Stylo 6K DUB 30T 30
Bottom Bracket
SRAM Pressfit DUB
Chain
SRAM NX Eagle 12s
Pedals
None included
Wheels
Rims
DT Swiss M 1900 XD, Rim Material: Aluminium, Inner Width: 25 mm, Freewheel: 3 Pawl, Weight: 1022 g
Tires
Schwalbe Nobby Nic 2.35'', Casing: Snake Skin, Compound: Evolution, Technology: Tubeless Easy
Brakes
Brakes
SRAM Guide R
Disk Rotors
SRAM Centerline Rounded Edges, Disc Mount: 6-Hole
Cockpit
Stem
Iridium
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Grips
Ergon GA20
Seat
Saddle
Fizik Taiga
Seatpost
Iridium Dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.45 mm | 1.42 mm | 1.39 mm | 1.39 mm |
| Bottom Bracket Height | 308 mm | 308 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 639 mm | 668 mm | 713 mm | 747 mm | 778 mm |
| Rake | 44 mm | 45 mm | 61 mm | 61 mm | 61 mm |
| Trail | 93 mm | 92 mm | 82 mm | 82 mm | 82 mm |
| Stack | 581 mm | 590 mm | 611 mm | 634 mm | 662 mm |
| Reach | 381 mm | 406 mm | 431 mm | 456 mm | 476 mm |
| Top Tube Length | 547 mm | 575 mm | 606 mm | 638 mm | 665 mm |
| Seat Tube Angle | 72.7 ° | 72.7 ° | 72.8 ° | 72.9 ° | 72.9 ° |
| Seat Tube Length | 350 mm | 395 mm | 440 mm | 485 mm | 545 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 90 mm | 100 mm | 90 mm | 115 mm | 145 mm |
| Chainstay Length | 424 mm | 424 mm | 429 mm | 434 mm | 439 mm |
| Wheelbase | 1059 mm | 1088 mm | 1134 mm | 1173 mm | 1209 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 735 mm | 755 mm | 800 mm | 831 mm | 876 mm |
| Front Travel | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Max Height | 163 cm | 173 cm | 183 cm | 193 cm | cm |
About this model

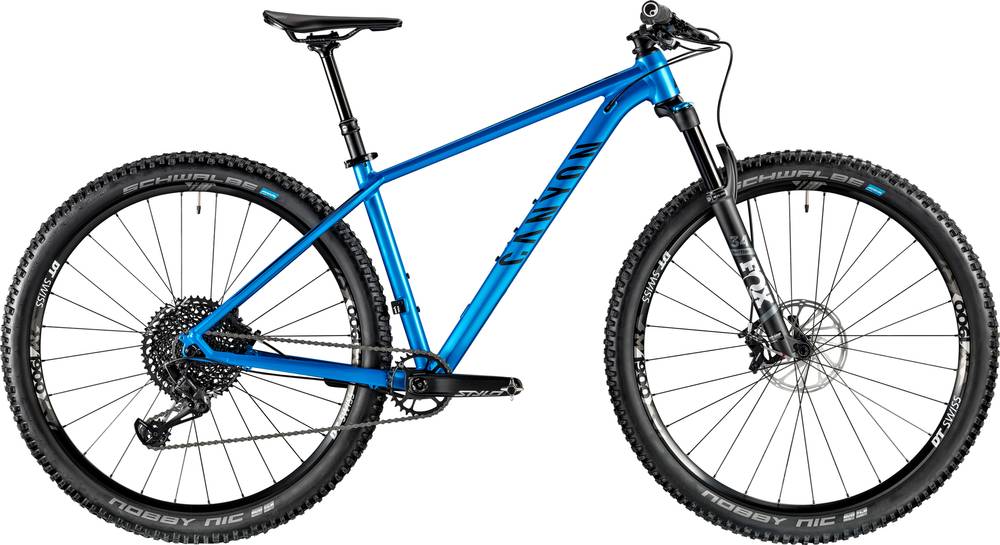

Grand Canyon AL SL 9.0 belongs to the Canyon Grand Canyon model. Canyon released 49 bikes variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Canyon Grand Canyon WMN AL 4.0 2019 is the most economical model, with a starting price of 742$. Canyon Grand Canyon WMN AL SLX 9.0 2019 on the other hand costs 1698$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Canyon released this model in 2019, its price was 1645$. In conclusion, this bike price is 67.9% lower than the price of the average Trail bike.
Overview of components
Fork
The fork installed on this bike is the Fox Rhythm Float 34 model. The travel on this model is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, Canyon Grand Canyon AL SL 9.0 2019, has a 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Grand Canyon AL SL 9.0 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Dropper post
Canyon Grand Canyon AL SL 9.0 includes a dropper post. Therefore, climbing or descending will be a breeze.
