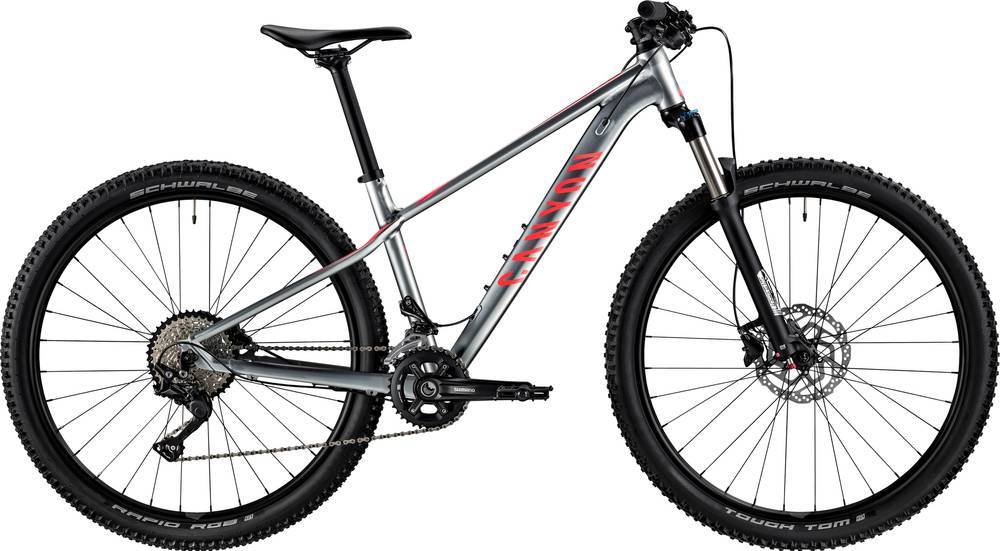

Canyon Grand WMN AL 4.0 2020
2020 Mountain
Estimate price |
916$
Weight | 13.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork SunTour XCR
-
Groupset Deore, Shimano -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 163cm
SM
161cm - 173cm
MD
171cm - 182cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grand Canyon AL
Suspension Fork
SR Suntour XCR
Drivetrain
Rear Derailleur
Shimano Deore M6000 GS
Front Derailleur
Shimano Deore M6020
Shift Levers
Shimano Deore M6000 2/3s | Shimano Deore M6000 10s
Cassette
Shimano HG500 11-42 10s
Crank
Shimano MT500 36/26 36/26
Bottom Bracket
Shimano BSA BB52
Chain
KMC X10-93 10s
Wheels
Rims
Iridium / Shimano TX505 | Iridium / Shimano TX505 SH11
Tires
Schwalbe Tough Tom 2.25" | Schwalbe Rapid Rob 2.25'', Casing: K-Guard
Brakes
Brakes
Shimano MT200
Disk Rotors
Shimano RT10, Disc Mount: Centerlock
Cockpit
Stem
Iridium
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Grips
Iridium
Headset
Femin FP-H863
Seat
Saddle
Iridium WMN Fitness
Seatpost
Iridium
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.57 mm | 1.49 mm | 1.48 mm |
| Bottom Bracket Height | 301 mm | 301 mm | 301 mm | 309 mm |
| Front Center | 608 mm | 632 mm | 661 mm | 704 mm |
| Rake | 46 mm | 46 mm | 45 mm | 56 mm |
| Trail | 91 mm | 91 mm | 92 mm | 87 mm |
| Stack | 570 mm | 593 mm | 602 mm | 632 mm |
| Reach | 363 mm | 378 mm | 404 mm | 427 mm |
| Top Tube Length | 524 mm | 546 mm | 575 mm | 606 mm |
| Seat Tube Angle | 72.6 ° | 72.7 ° | 72.7 ° | 72.8 ° |
| Seat Tube Length | 305 mm | 350 mm | 395 mm | 440 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 90 mm | 95 mm | 105 mm | 110 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 437 mm |
| Wheelbase | 1031 mm | 1055 mm | 1084 mm | 1133 mm |
| Bottom Bracket Drop | 54 mm | 54 mm | 54 mm | 65 mm |
| Standover Height | 741 mm | 741 mm | 793 mm | 831 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 27" | 27" | 27" | 29" |
| Rider Max Height | 153 cm | 163 cm | 173 cm | 182 cm |
About this model
Grand Canyon WMN AL 4.0 is part of the Canyon Grand Canyon model. There are 49 bikes that carry this model name. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Canyon Grand Canyon AL 4.0 2020 is the most economical model, with a starting price of 848$. Canyon Grand Canyon WMN AL SL 9.0 2020 on the other hand costs 1910$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Canyon Grand Canyon WMN AL 4.0 price was 848$. If we compare this with the average Crosscountry bike cost we notice that the price is 124.65% lower.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Grand Canyon WMN AL 4.0 weighs 13.6 kg (29.98 lbs) and is a bit heavier than the average. To sum up, it’s 9.68% heavier than the average weight of Crosscountry bikes.
Grand Canyon WMN AL 4.0 components
Fork
This bike has the SunTour XCR fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When it comes to wheels, the Grand Canyon WMN AL 4.0 bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Grand Canyon WMN AL 4.0 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
