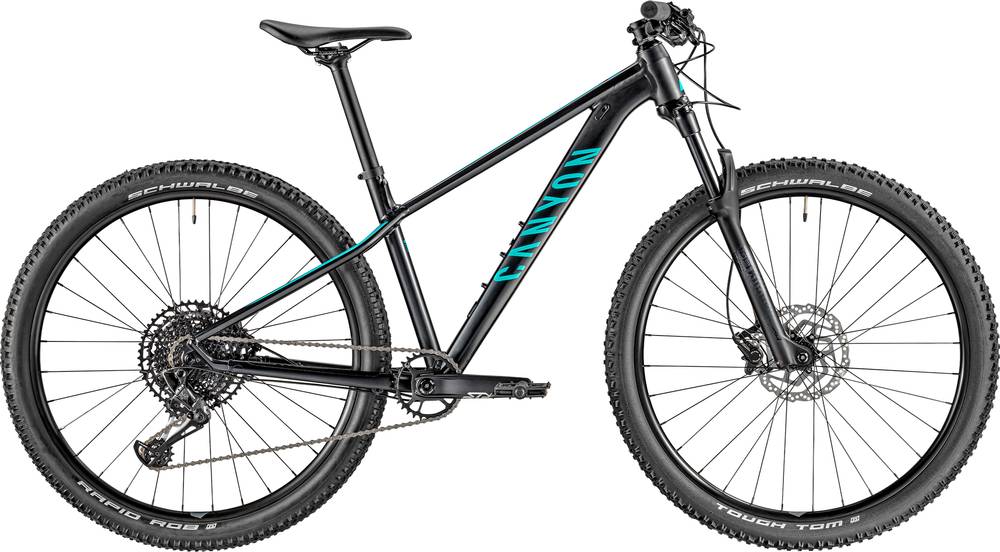

Canyon Grand WMN AL SL 7.0 2020
2020 Mountain
Estimate price |
1,375$
Weight | 12.95 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 120mm -
Fork RockShox Judy
-
Groupset GX Eagle, NX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 163cm
SM
161cm - 173cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grand Canyon WMN AL SL
Suspension Fork
RockShox Judy Silver, Travel: 120 mm, Axle Dimension: 15 x 110 mm, Size XS bikes: 100 mm travel
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM NX Eagle Trigger 12s
Cassette
SRAM PG-1230 Eagle 11-50 12s
Crank
Truvativ Stylo 6K DUB 30T 30
Bottom Bracket
SRAM Pressfit DUB
Chain
SRAM NX Eagle 12s
Wheels
Rims
Alexrims MD25 | Shimano MT400 | Alexrims MD25 | Shimano MT400 SH11
Tires
Schwalbe Tough Tom 2.25" | Schwalbe Rapid Rob 2.25'', Casing: K-Guard
Brakes
Brakes
Shimano MT400
Disk Rotors
Shimano RT10
Cockpit
Stem
Iridium
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Grips
Canyon
Seat
Saddle
Iridium WMN
Seatpost
Iridium
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.57 mm | 1.49 mm | 1.46 mm |
| Bottom Bracket Height | 301 mm | 301 mm | 301 mm | 315 mm |
| Front Center | 608 mm | 634 mm | 663 mm | 694 mm |
| Rake | 47 mm | 47 mm | 47 mm | 48 mm |
| Trail | 90 mm | 90 mm | 90 mm | 96 mm |
| Stack | 565 mm | 593 mm | 602 mm | 623 mm |
| Reach | 363 mm | 378 mm | 404 mm | 427 mm |
| Top Tube Length | 523 mm | 546 mm | 575 mm | 604 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 305 mm | 350 mm | 395 mm | 440 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 105 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 437 mm |
| Wheelbase | 1031 mm | 1057 mm | 1086 mm | 1124 mm |
| Bottom Bracket Drop | 54 mm | 54 mm | 54 mm | 59 mm |
| Standover Height | 677 mm | 707 mm | 747 mm | 797 mm |
| Front Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 27" | 27" | 27" | 29" |
| Rider Max Height | 153 cm | 163 cm | 173 cm | cm |
About this model
Grand Canyon WMN AL SL 7.0 is part of the Canyon Grand Canyon model. Canyon released 49 bikes variations of this model so far. You can easily view all of the Canyon Grand Canyon bikes models from 2020, here.
Model range prices
Canyon Grand Canyon AL 4.0 2020 is the cheapest bike model and costs 848$. Canyon Grand Canyon WMN AL SL 9.0 2020 is the most expensive one and costs 1910$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Canyon released this model in 2020, its price was 1273$. Comparing this to the average Trail bike price, we see that the price is 116.97% smaller.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Canyon Grand Canyon WMN AL SL 7.0 it’s weighing 12.95 kg (28.55 lbs). At this weight, is slightly lighter than average. In other words, this model is 0.23% lighter than the average Trail bike.
Overview of components
Fork
The fork installed on this bike is the RockShox Judy model. The travel on this model is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
As for the wheels, Canyon Grand Canyon WMN AL SL 7.0 2020, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Grand Canyon WMN AL SL 7.0 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
