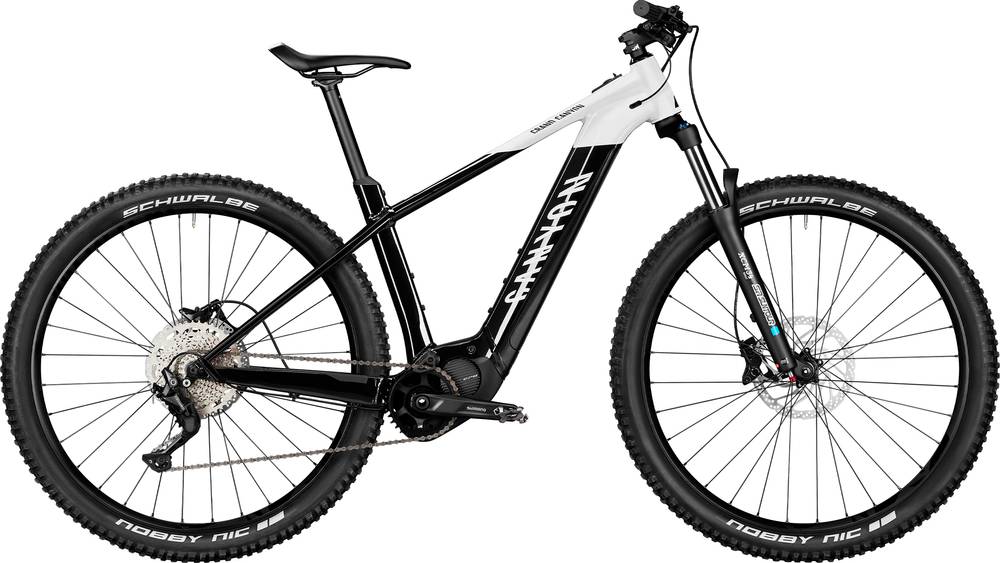

Canyon Grand :ON 7 2021
2021 E-bike
Estimate price |
3,325$
Weight | 23.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 120mm -
Fork SunTour XCM
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano STEPS 504-Wh Battery, Lithium-Ion battery, IPX5 water resistant, 3.1 Kg, adaptor for external charging not included -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
171cm - 184cm
LG
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grand Canyon:ON, Aluminium frame, 120 mm fork travel, balanced geometry, frame size-dependent wheel sizing (29-inch wheels on M-L bikes, 27.5-inch wheels on XS-S), integrated battery with anti-theft design, USB-C charging jack.
Suspension Fork
Suntour XCM34, 120mm, 120mm of front suspension, 29er fork, Boost 110 spacing, 34mm stanchions, coil spring with preload adjuster
Drivetrain
Rear Derailleur
Shimano Deore, 10-speed, 10/11-speed, max cassette size: 46T. Weight: 331 g, Shadow RD+ chain stabilizing system
Shift Levers
Shimano Deore, 10-speed, Rear derailleur shifter, 10-speed, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 10-degrees rotation adjustment, 133 g
Cassette
Shimano Deore, 10-speed (11-46), All-steel cog design, Shimano HG freehub compatible, Gear range: 11-46T, weight: 360 g,
Crank
Shimano STEPS e-MTB crank arms, Designed for the rigors of E-MTB riding, 24mm spindle, 170mm crank arms
Bottom Bracket
STEPS, press-fit
Wheels
Rims
Rodi TRYP 30 | Shimano MT400, Shimano MT400 front hub with Boost 110 spacing, Iridium 30 aluminum rim, 30mm inner rim width | TRYP 30 | Shimano MT400, Shimano MT400 rear hub with Boost 148 spacing, TRYP 30 aluminum rim, 30mm inner rim width
Tires
Schwalbe Nobby Nic Performance, 2.6, 29x2.6"
Brakes
Brakes
Shimano MT420 4-piston, front brake, Shimano 4-piston caliper provide 20% more stopping power than equivalent 2-piston version | Shimano MT410 2-piston, rear brake, Deore-caliber, 2-piston disc brake, resin pads
Disk Rotors
Shimano Tourney TX front rotor, A big Shimano RT830 brake rotor delivers equally big stopping power. | Shimano EM300 STEPS rear rotor, 203mm, Specifically designed to work with E-MTB speed sensors. Center lock mounting for quick installation/removal. Resin pad only.
Cockpit
Stem
Canyon:ON Stem, 35mm clamp diameter, 60mm length
Handlebar
Canyon:ON HB0056 Riser bar, Aluminum, 760mm width, 35mm clamp diameter, 20mm rise
Grips
Canyon Lock-On Grips
Seat
Saddle
Canyon SD:ON, Perfect for long rides in a seated position or on steep climbs, extra padding around sit bones, additional rear support prevents you from sliding backwards on steep climbs, chromoly rails, durable nylon composite shell, 290 g
Seatpost
Iridium Seatpost, Alloy seatpost.
Motor & Battery
Motor
Shimano Steps EP8 Motor
Battery
Shimano STEPS 504-Wh Battery, Lithium-Ion battery, IPX5 water resistant, 3.1 Kg, adaptor for external charging not included
Remote
Shimano Steps SC-E7000 Display
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.486 mm | 1.514 mm | 1.462 mm | 1.421 mm |
| Bottom Bracket Height | 301 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 693 mm | 730 mm | 761 mm | 784 mm |
| Rake | 49 mm | 56 mm | 56 mm | 55 mm |
| Trail | 98 mm | 91 mm | 91 mm | 92 mm |
| Stack | 602 mm | 651 mm | 665 mm | 675 mm |
| Reach | 405 mm | 430 mm | 455 mm | 475 mm |
| Top Tube Length | 578 mm | 617 mm | 646 mm | 668 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 540 mm |
| Head Tube Angle | 67 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 120 mm | 135 mm | 145 mm |
| Chainstay Length | 422 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1109 mm | 1157 mm | 1188 mm | 1211 mm |
| Bottom Bracket Drop | 54 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 752 mm | 797 mm | 814 mm | 844 mm |
| Front Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Max Height | 173 cm | 184 cm | 195 cm | cm |
Model Overview
Grand Canyon:ON 7 completes the Canyon E Grand Canyonon model. Canyon launched 17 e-bikes of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Canyon Grand Canyon:ON 7 2021 is the most economical model, with a starting price of 3078$. Canyon Grand Canyon:ON 9 2021 on the other hand costs 3609$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When Canyon released this model in 2021, its price was 3078$. Doing a quick comparison, we notice that Grand Canyon:ON 7 price is 9.32% lower than the average cost of a Trail e-bike.
Trail e-bikes average weight
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 23.6 kg (52.03 lbs), the Grand Canyon:ON 7 model is slightly lighter than average. To sum up, it’s 0.42% lighter than the average weight of Trail e-bikes.
Overview of components
Fork
The Grand Canyon:ON 7 comes factory-installed with the SunTour XCM fork. This has a travel range of 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Canyon Grand Canyon:ON 7 2021, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
