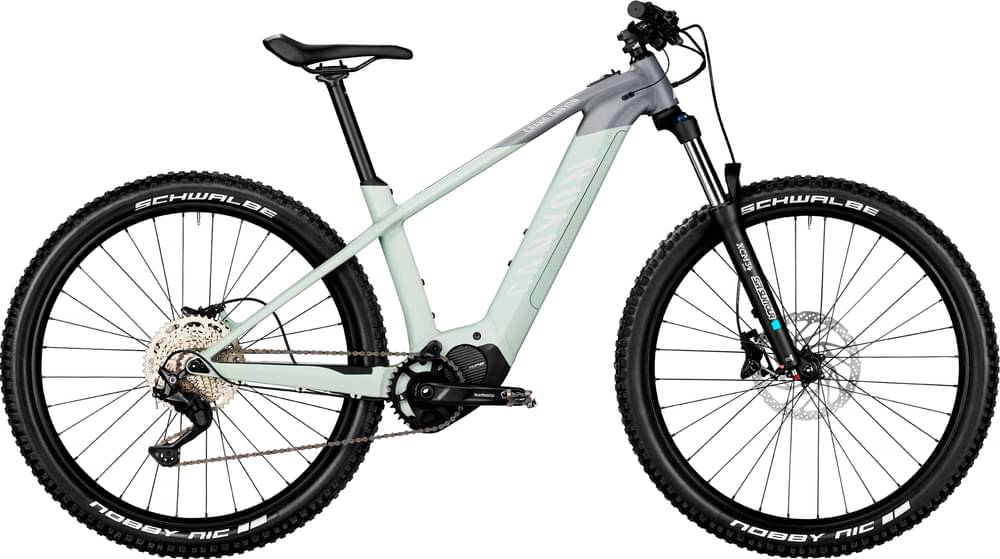

Canyon Grand :ON 7 WMN 2022
2022 E-bike
Estimate price |
3,325$
Weight | 23.16 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 120mm -
Fork SunTour XCM
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano STEPS 504-Wh Battery, Lithium-Ion battery, IPX5 water resistant, 3.1 Kg, adaptor for external charging not included -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
159cm - 173cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grand Canyon:ON, Aluminium frame, 120 mm fork travel, balanced geometry, frame size-dependent wheel sizing (29-inch wheels on M-L bikes, 27.5-inch wheels on XS-S), integrated battery with anti-theft design, USB-C charging jack.
Suspension Fork
Suntour XCM34, 120mm, 120mm of front suspension, 29er fork, Boost 110 spacing, 34mm stanchions, coil spring with preload adjuster
Drivetrain
Rear Derailleur
Shimano Deore, 10-speed, 10/11-speed, max cassette size: 46T. Weight: 331 g, Shadow RD+ chain stabilizing system
Shift Levers
Shimano Deore, 10-speed, Rear derailleur shifter, 10-speed, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 10-degrees rotation adjustment, 133 g
Cassette
Shimano Deore, 10-speed (11-46), All-steel cog design, Shimano HG freehub compatible, Gear range: 11-46T, weight: 360 g,
Crank
Shimano STEPS e-MTB crank arms, Designed for the rigors of E-MTB riding, 24mm spindle, 170mm crank arms
Bottom Bracket
STEPS, press-fit
Wheels
Rims
Rodi TRYP 30 | Shimano MT400, Shimano MT400 front hub with Boost 110 spacing, Iridium 30 aluminum rim, 30mm inner rim width | TRYP 30 | Shimano MT400, Shimano MT400 rear hub with Boost 148 spacing, TRYP 30 aluminum rim, 30mm inner rim width
Tires
Schwalbe Nobby Nic Performance, 2.6, 29x2.6"
Brakes
Brakes
Shimano MT420 4-piston, front brake, Shimano 4-piston caliper provide 20% more stopping power than equivalent 2-piston version | Shimano MT410 2-piston, rear brake, Deore-caliber, 2-piston disc brake, resin pads
Disk Rotors
Shimano Tourney TX front rotor, A big Shimano RT830 brake rotor delivers equally big stopping power. | Shimano EM300 STEPS rear rotor, 203mm, Specifically designed to work with E-MTB speed sensors. Center lock mounting for quick installation/removal. Resin pad only.
Cockpit
Stem
Canyon:ON Stem, 35mm clamp diameter, 60mm length
Handlebar
Canyon:ON HB0056 Riser bar, Aluminum, 760mm width, 35mm clamp diameter, 20mm rise
Grips
Canyon Lock-On Grips
Seat
Saddle
Canyon SD:ON, Perfect for long rides in a seated position or on steep climbs, extra padding around sit bones, additional rear support prevents you from sliding backwards on steep climbs, chromoly rails, durable nylon composite shell, 290 g
Seatpost
Iridium Seatpost, Alloy seatpost.
Motor & Battery
Motor
Shimano Steps EP8 Motor
Battery
Shimano STEPS 504-Wh Battery, Lithium-Ion battery, IPX5 water resistant, 3.1 Kg, adaptor for external charging not included
Remote
Shimano Steps SC-E7000 Display
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.51 mm |
| Bottom Bracket Height | 301 mm | 301 mm | 309 mm |
| Front Center | 675 mm | 693 mm | 730 mm |
| Rake | 48 mm | 49 mm | 56 mm |
| Trail | 99 mm | 98 mm | 91 mm |
| Stack | 585 mm | 603 mm | 652 mm |
| Reach | 396 mm | 406 mm | 431 mm |
| Top Tube Length | 566 mm | 579 mm | 618 mm |
| Seat Tube Angle | 73.8 ° | 74 ° | 74 ° |
| Seat Tube Length | 350 mm | 400 mm | 440 mm |
| Head Tube Angle | 67 ° | 67 ° | 68 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm |
| Chainstay Length | 423 mm | 423 mm | 436 mm |
| Wheelbase | 1092 mm | 1110 mm | 1158 mm |
| Bottom Bracket Drop | 54 mm | 54 mm | 65 mm |
| Standover Height | 718 mm | 753 mm | 798 mm |
| Front Travel | 100 mm | 120 mm | 120 mm |
| Wheels | 27" | 27" | 29" |
| Rider Max Height | 161 cm | 173 cm | cm |
Model Overview
Grand Canyon:ON 7 WMN completes the Canyon E Grand Canyonon model. Canyon released 17 e-bikes variations of this model so far. Take a sneak peek at all Canyon E Grand Canyonon e-bikes models from 2022, by clicking here.
Model range prices
Canyon Grand Canyon:ON 7 2022 is the cheapest e-bike model and costs 3078$. Canyon Grand Canyon:ON 9 2022 is the most expensive one and costs 3609$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 3078$. In conclusion, this e-bike price is 9.32% smaller than the price of the average Trail e-bike.
Average weight for Trail e-bikes
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Grand Canyon:ON 7 WMN weighs 23.16 kg (51.06 lbs) and is slightly lighter than the average. To sum up, it’s 2.33% lighter than the average weight of Trail e-bikes.
Grand Canyon:ON 7 WMN components
Fork
This e-bike has the SunTour XCM fork installed. The fork’s travel is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The Grand Canyon:ON 7 WMN 2022 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Grand Canyon:ON 7 WMN has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
