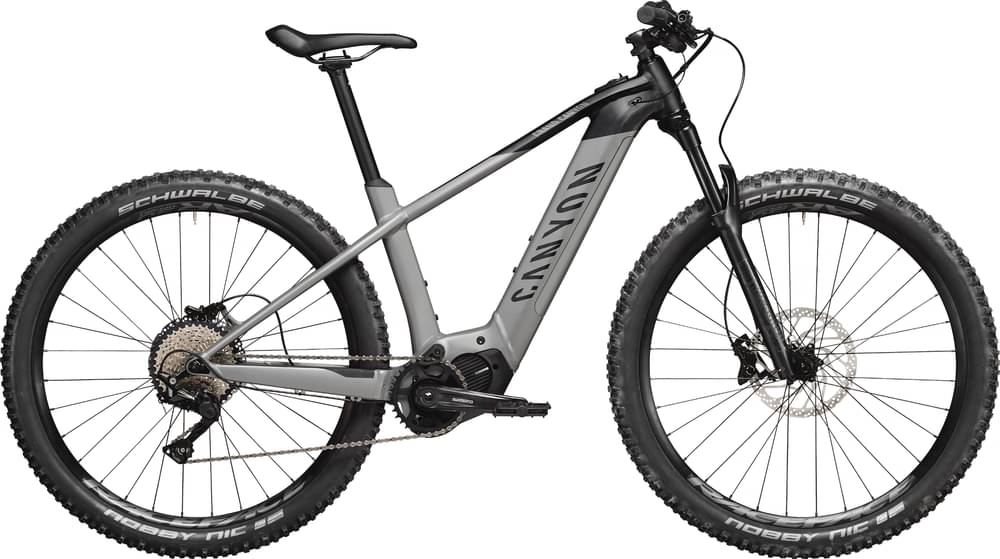

Canyon Grand :ON WMN AL 8.0 2020
2020 E-bike
Estimate price |
3,440$
Weight | 21.25 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 120mm -
Fork RockShox Judy
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano STEPS 504-Wh Battery, Lithium-Ion battery, IPX5 water resistant, 2.9 Kg, Adapter for external charging not included -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
159cm - 173cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grand Canyon:On, Material: Aluminium 6061, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Suspension Fork
RockShox Judy Silver, Travel: 120 mm, Axle Dimension: 15 x 110 mm, Size XS bikes: 100 mm travel
Drivetrain
Rear Derailleur
Shimano Deore M6000 GS
Shift Levers
Shimano Deore M6000 10s, Shimano Deore 10-speed shifters are reliable and precise.
Cassette
Shimano HG500 11-42 10s
Crank
Shimano E8000
Chain
SHIMANO HG54 10-speed
Wheels
Rims
RaceFace AR30 | Shimano MT400, Shimano MT400 front hub with Boost 110 spacing, RaceFace AR30 aluminum rim, 30mm inner rim width | RaceFace AR30 | Shimano MT400 SH11
Tires
Schwalbe Nobby Nic 2.6'', Technology: Tubeless Easy
Brakes
Brakes
Shimano MT420 | Shimano MT401
Disk Rotors
Shimano EM300, Disc Mount: Centerlock | Shimano Tourney TX front rotor, 203mm, Center lock mounting for quick installation/removal. Resin pad only.
Cockpit
Stem
Canyon:ON Stem, 35mm clamp diameter, 60mm length
Handlebar
Canyon:ON HB0056 Riser bar, Aluminum, 760mm width, 35mm clamp diameter, 20mm rise
Grips
Canyon Lock-On Grips
Seat
Saddle
Canyon SD:ON, Perfect for long rides in a seated position or on steep climbs, extra padding around sit bones, additional rear support prevents you from sliding backwards on steep climbs, chromoly rails, durable nylon composite shell, 290 g
Seatpost
Iridium
Motor & Battery
Motor
Shimano Steps E8000, Max. power output: 250 W, Torque: 70 Nm, Weight: 2.8 kg
Battery
Shimano STEPS 504-Wh Battery, Lithium-Ion battery, IPX5 water resistant, 2.9 Kg, Adapter for external charging not included
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.51 mm |
| Bottom Bracket Height | 301 mm | 301 mm | 309 mm |
| Front Center | 675 mm | 693 mm | 730 mm |
| Rake | 48 mm | 49 mm | 56 mm |
| Trail | 99 mm | 98 mm | 91 mm |
| Stack | 585 mm | 603 mm | 652 mm |
| Reach | 396 mm | 406 mm | 431 mm |
| Top Tube Length | 566 mm | 579 mm | 618 mm |
| Seat Tube Angle | 73.81 ° | 74 ° | 74 ° |
| Seat Tube Length | 350 mm | 400 mm | 440 mm |
| Head Tube Angle | 67 ° | 67 ° | 68 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm |
| Chainstay Length | 423 mm | 423 mm | 436 mm |
| Wheelbase | 1092 mm | 1110 mm | 1158 mm |
| Bottom Bracket Drop | 54 mm | 54 mm | 65 mm |
| Standover Height | 718 mm | 753 mm | 798 mm |
| Front Travel | 100 mm | 120 mm | 120 mm |
| Wheels | 27" | 27" | 29" |
| Rider Max Height | 161 cm | 173 cm | cm |
About this model
Grand Canyon:ON WMN AL 8.0 belongs to the Canyon E Grand Canyonon model. 17 e-bikes variations carry this model name so far. Take a sneak peek at all Canyon E Grand Canyonon e-bikes models from 2020, by clicking here.
Model range prices
Canyon Grand Canyon:ON WMN AL 8.0 2020 is the most economical model, with a starting price of 3184$. Canyon Grand Canyon:ON AL 9.0 2020 on the other hand costs 3609$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2020 and its price was 3184$. If we compare this with the average Trail e-bike cost we notice that the price is 5.68% smaller.
Average weight for Trail e-bikes
Trail e-bikes weigh an average of 23.7 kg (52.25 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 21.25 kg (46.85 lbs), Canyon e-bike is considerably lighter than average. To sum up, it’s 11.53% lighter than the average weight of Trail e-bikes.
Grand Canyon:ON WMN AL 8.0 components
Fork
The RockShox Judy is included from the factory. It has a travel distance of 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The Grand Canyon:ON WMN AL 8.0 2020 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the e-bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
