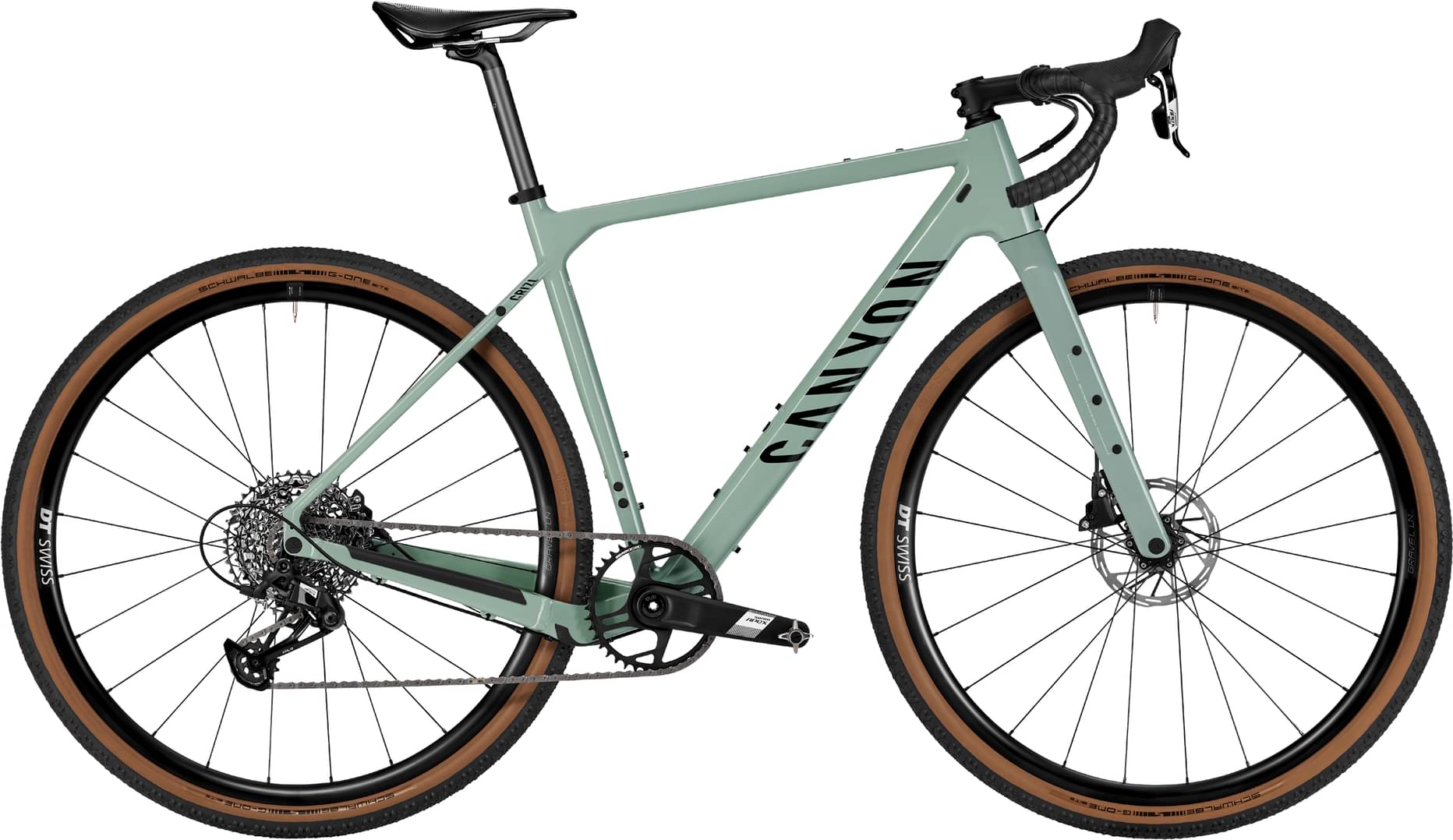

Canyon Grizl 6 1BY 2024
2024 Road
Estimate price |
1,949$
Weight | 10.54 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Apex -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 190cm
XL
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components

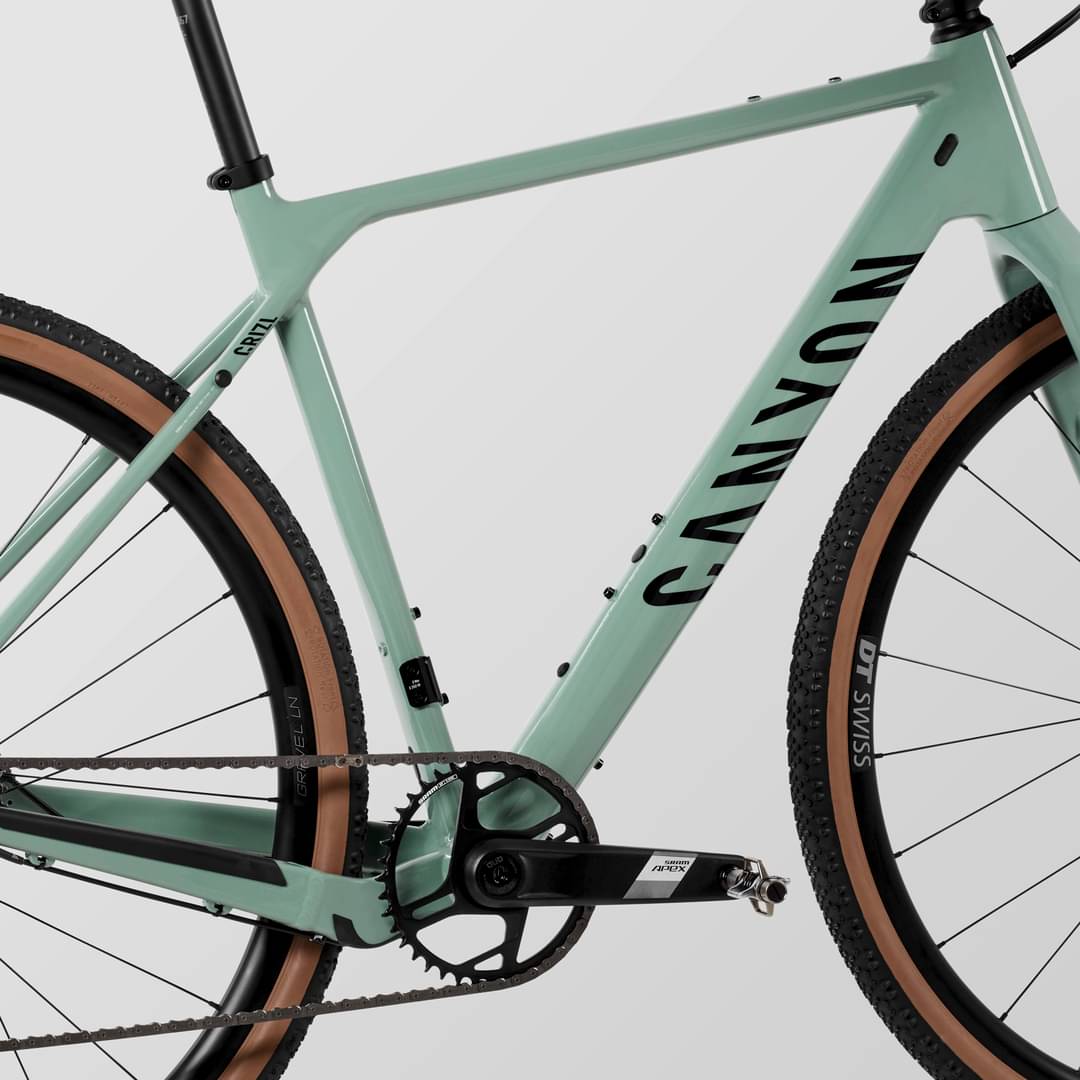

Frame
Frame
Canyon Grizl AL, Axle dimension: 12x142 mm, Tyre Clearance: 50MM, Material: Aluminium (AL)

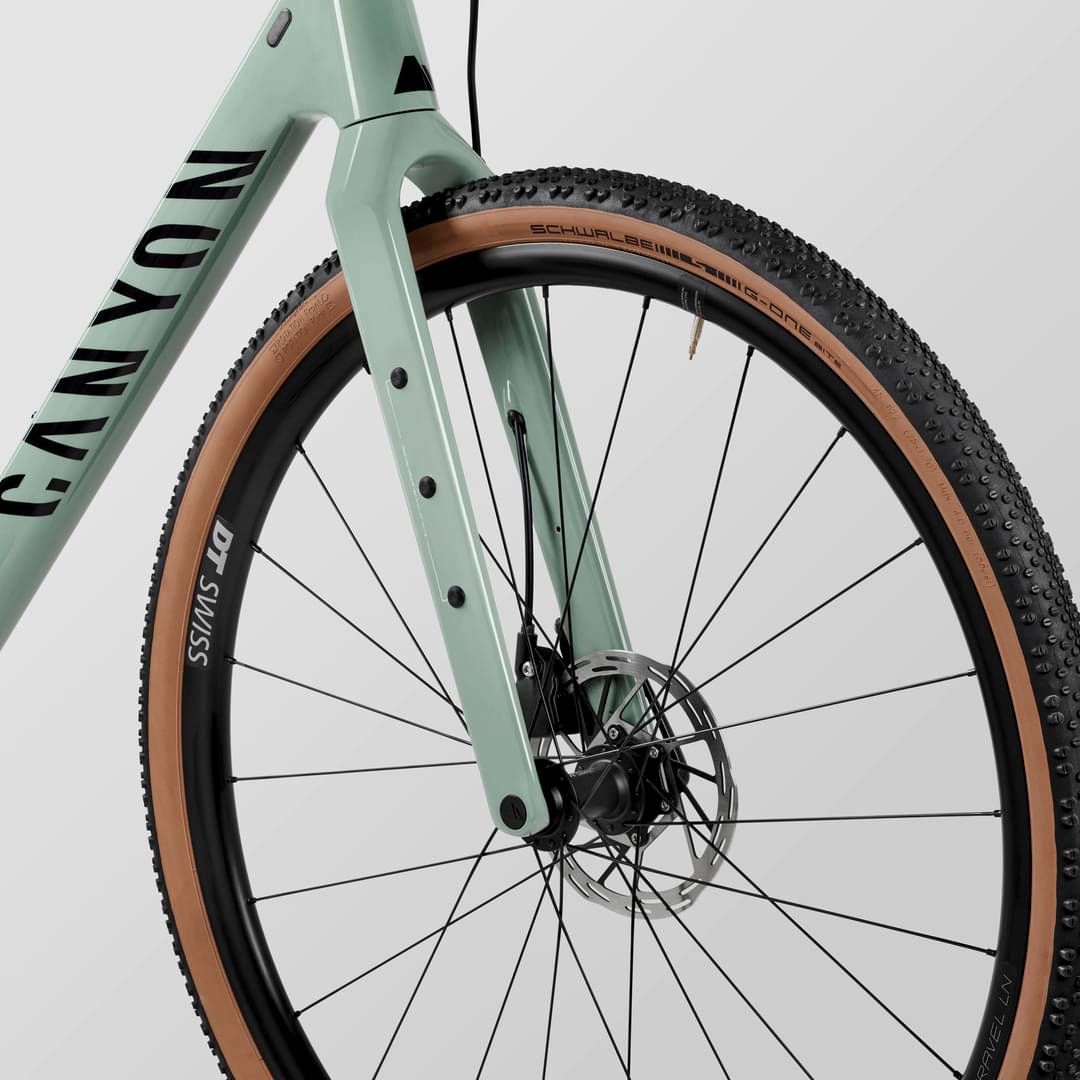

Suspension Fork
Canyon FK0087 CF Disc, Fork steer tube diameter: 1 1/4", Tyre Clearance: 54MM, Material: Carbon (CF)

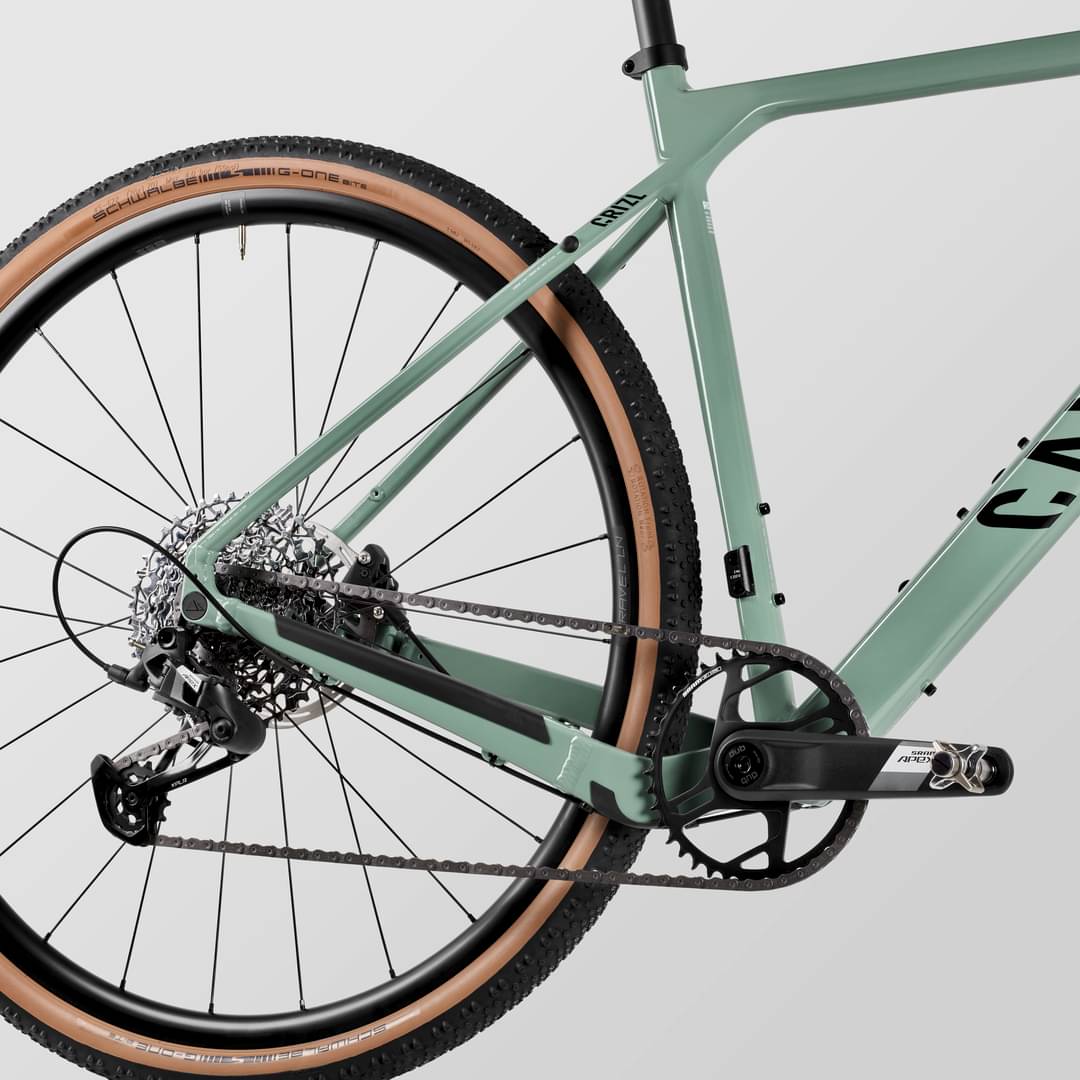

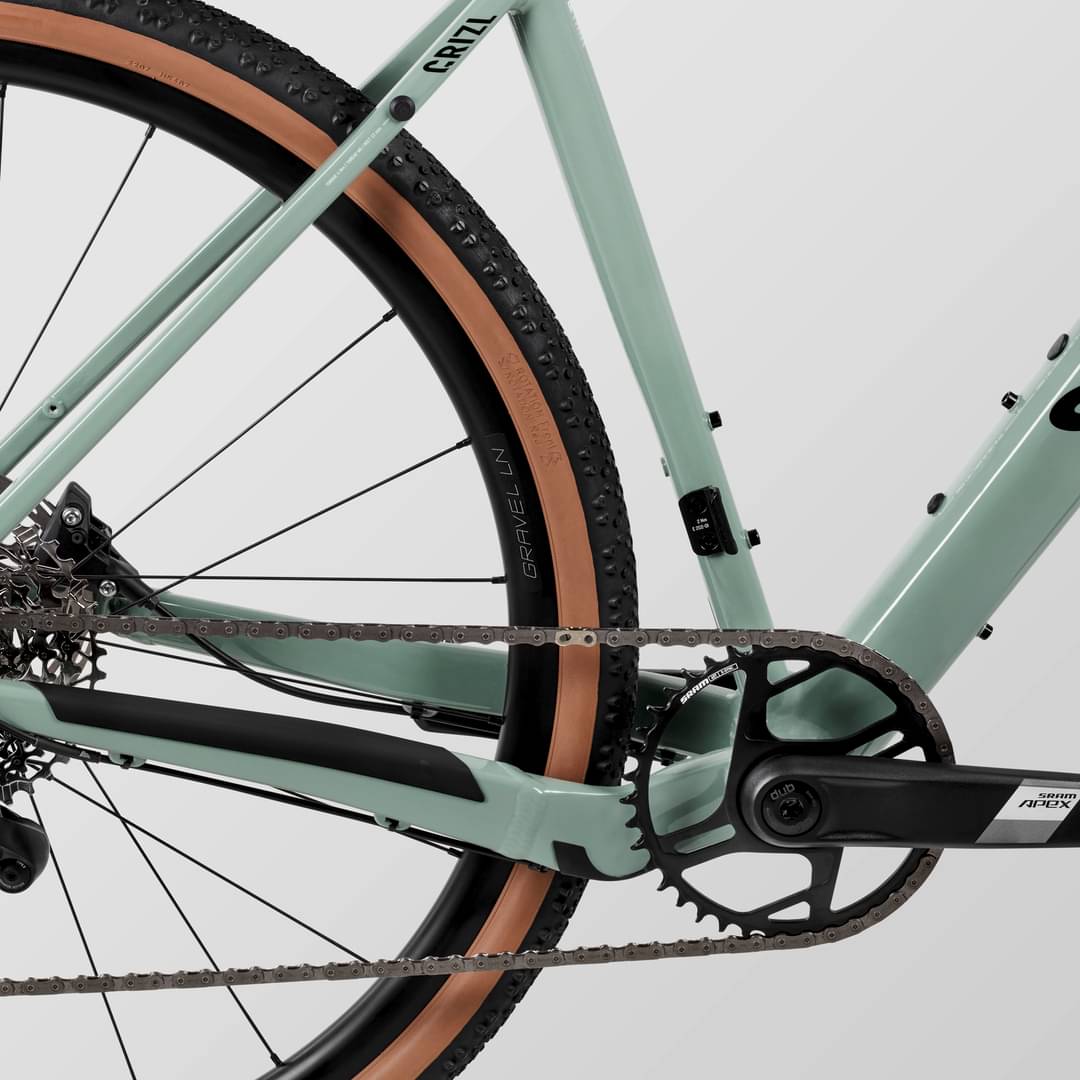

Drivetrain
Rear Derailleur
SRAM Apex
Shift Levers
SRAM Apex | SRAM Apex 12s
Cassette
SRAM XPLR 11-44 12s | SRAM PG 1231 12-speed Cassette 11-44
Crank
SRAM Apex Wide, Number of chainrings: 1
Bottom Bracket
SRAM Pressfit DUB Wide, Bottom bracket standard: PF 86,5, Weight: 65 g
Chain
SRAM Apex 12s | SRAM Apex 12-speed Chain 120L
Pedals
None included
Wheels
Rims
DT Swiss Gravel LN, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 25 mm, Weight: 946 g | DT Swiss Gravel LN, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 25 mm, Weight: 1.10 kg
Tires
Schwalbe G-One Bite Performance, 45mm, Width: 45mm | Schwalbe G-One R Super Race 28" x 45mm Gravel Tyre
Brakes
Brakes
Hydraulic Disc
Brake Levers
SRAM Apex | SRAM Apex 12s
Cockpit
Stem
Canyon ST0035, A lightweight and durable aluminium stem for use on gravel and road bikes., Fork steer tube diameter: 1 1/4", Clamping diameter: 31,8 mm
Handlebar
Canyon HB0064 Ergo, Robust aluminium handlebar with flared drops for enhanced off-road control., Clamping diameter: 31,8 mm, Width: 440 mm
Seat
Saddle
Selle Italia Model X, Gender: Unisex, Weight: 315 g
Seatpost
Canyon SP0057 VCLS, With vibration-absorbing design for top rear-end comfort., Setback: 20 mm, Clamp diameter: 27,2 mm, Material: Carbon (CF), Weight: 265 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXXS | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.376 mm | 1.385 mm | 1.406 mm | 1.401 mm | 1.44 mm | 1.479 mm | 1.466 mm | 1.477 mm |
| Front Center | 594 mm | 596 mm | 599 mm | 620 mm | 621 mm | 631 mm | 650 | 665 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 44 mm | 43 mm | 43 mm | 43 mm |
| Trail | 81 mm | 76 mm | 71 mm | 80 mm | 70 mm | 68 mm | 65 mm | 65 mm |
| Stack | 512 mm | 522 mm | 537 mm | 556 mm | 579 mm | 605 mm | 626 mm | 644 mm |
| Reach | 372 mm | 377 mm | 382 mm | 397 mm | 402 mm | 409 mm | 427 mm | 436 mm |
| Top Tube Length | 524 mm | 532 mm | 541 mm | 562 mm | 574 mm | 588 mm | 612 mm | 627 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 402 mm | 432 mm | 462 mm | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Head Tube Angle | 69 ° | 69.75 ° | 70.5 ° | 70.25 ° | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 115 mm | 122 mm | 135 mm | 121 mm | 141 mm | 166 mm | 186 mm | 205 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1007 mm | 1009 mm | 1012 mm | 1044 mm | 1045 mm | 1055 mm | 1074 mm | 1089 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 709 mm | 730 mm | 752 mm | 780 mm | 807 mm | 835 mm | 860 mm | 884 mm |
| Wheels | 650 | 650 | 650 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 159 cm | 167 cm | 173 cm | 179 cm | 185 cm | 190 cm | 195 cm | cm |
About this model
Grizl 6 1BY completes the Canyon Grizl model. Canyon launched 80 bikes of this model so far. You can easily view all of the Canyon Grizl bikes models from 2024, here.
Model range prices
Canyon Grizl 5 2024 is the cheapest bike model and costs 1376$. Canyon Grizl CF SLX 8 AXS Trail 2024 is the most expensive one and costs 5505$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2024 for 1799$. Comparing this to the average Gravel bike price, we see that the price is 36.85% smaller.
Average weight for Gravel bikes
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 10.54 kg (23.24 lbs), the Grizl 6 1BY model is much heavier than average. In other words, this model is 29.64% heavier than the average Gravel bike.
Grizl 6 1BY components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Canyon Grizl 6 1BY 2024, has a aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
When you want to stop the bike in time, the brakes are vital. The Grizl 6 1BY has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
