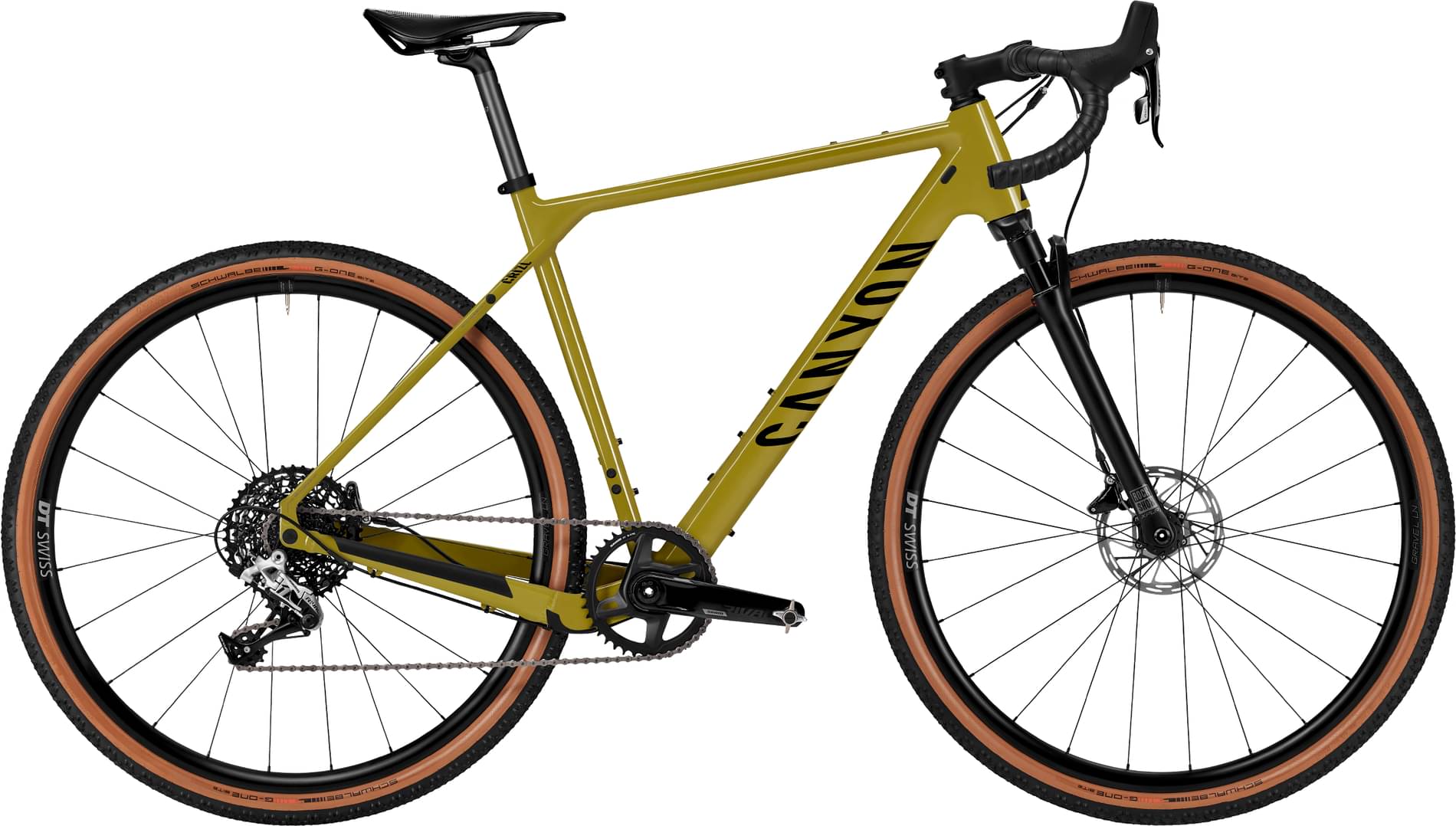

Canyon Grizl 7 Suspension 1by 2023
2023 Road
Estimate price |
1,999$
Weight | 11.22 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 30mm -
Fork RockShox Rudy XPLR
-
Groupset Rival, SRAM -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
177cm - 185cm
LG
183cm - 190cm
XL
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grizl AL, Axle dimension: 12x142 mm, Tyre Clearance: 50 mm, Material: Aluminium (AL)
Suspension Fork
RockShox Rudy 30, Axle dimension: 12x100 mm, Stanchion Diameter: 30 mm, Travel: 30 mm, Fork steer tube diameter: 1 1/4", Weight: 2.30 kg
Drivetrain
Rear Derailleur
SRAM Rival 1 SGS, Cage length: long, Weight: 276 g
Shift Levers
SBL SRAM RIV A! RR FM 2000 ISJ
Cassette
SRAM XG-1150 10-42 11s, Number of sprockets: 11
Crank
SRAM Rival D1 Wide, 40T, Number of chainrings: 1
Bottom Bracket
SRAM Pressfit DUB Wide, Bottom bracket standard: PF 86,5, Weight: 65 g
Pedals
None included
Wheels
Rims
DT Swiss Gravel LN, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 25 mm, Weight: 946 g | DT Swiss Gravel LN, Rotor mount: Center Lock, Rim height: 25 mm, Weight: 950 g
Tires
TY SCHW G-ONE OVERLAND SKIN 45-622, Width: 45mm, Weight: 669 g
Brakes
Brakes
DB SRAM RIV A1 LF FMD 1000 ISJ
Brake Levers
SBL SRAM RIV A! RR FM 2000 ISJ
Cockpit
Stem
Canyon ST0035, Fork steer tube diameter: 1 1/4", Clamping diameter: 31,8 mm
Handlebar
Canyon HB 0050 Ergobar AL, Material: Aluminium, Shape: Ergo, Reach: 70 mm, Drop: 130 mm
Seat
Saddle
Selle Italia Model X, Gender: Unisex, Weight: 315 g
Seatpost
Canyon SP0057 VCLS, With vibration-absorbing design for top rear-end comfort., Setback: 20 mm, Clamp diameter: 27,2 mm, Material: Carbon (CF), Weight: 265 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.43 mm | 1.47 mm | 1.46 mm | 1.47 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 620 mm | 621 mm | 631 mm | 650 | 665 mm |
| Rake | 43 mm | 44 mm | 43 mm | 43 mm | 43 mm |
| Trail | 80 mm | 70 mm | 68 mm | 65 mm | 65 mm |
| Stack | 563 mm | 586 mm | 612 mm | 633 mm | 651 mm |
| Reach | 404 mm | 409 mm | 416 mm | 434 mm | 443 mm |
| Top Tube Length | 569 mm | 581 mm | 595 mm | 619 mm | 634 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Head Tube Angle | 70.25 ° | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 121 mm | 141 mm | 166 mm | 186 mm | 205 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1051 mm | 1052 mm | 1062 mm | 1081 mm | 1096 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 787 mm | 814 mm | 842 mm | 867 mm | 891 mm |
| Front Travel | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 179 cm | 185 cm | 190 cm | 195 cm | cm |
Model Overview
Grizl 7 Suspension 1by completes the Canyon Grizl model. Canyon released 65 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Canyon Grizl 6 2023 is the most affordable bike of this model and has a price of 1499$. On the other hand, Canyon Grizl CF SLX 8 Force AXS Trail 2023, is the most expensive and costs 5626$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1999$. If we compare this with the average Gravel bike cost we notice that the price is 23.16% smaller.
Gravel bikes average weight
On a deeper look, we notice that the average weight of a Gravel bike is 8.13 kg (17.92 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Canyon Grizl 7 Suspension 1by it’s weighing 11.22 kg (24.74 lbs). At this weight, is much heavier than average. To sum up, it’s 38.01% heavier than the average weight of Gravel bikes.
Overview of components

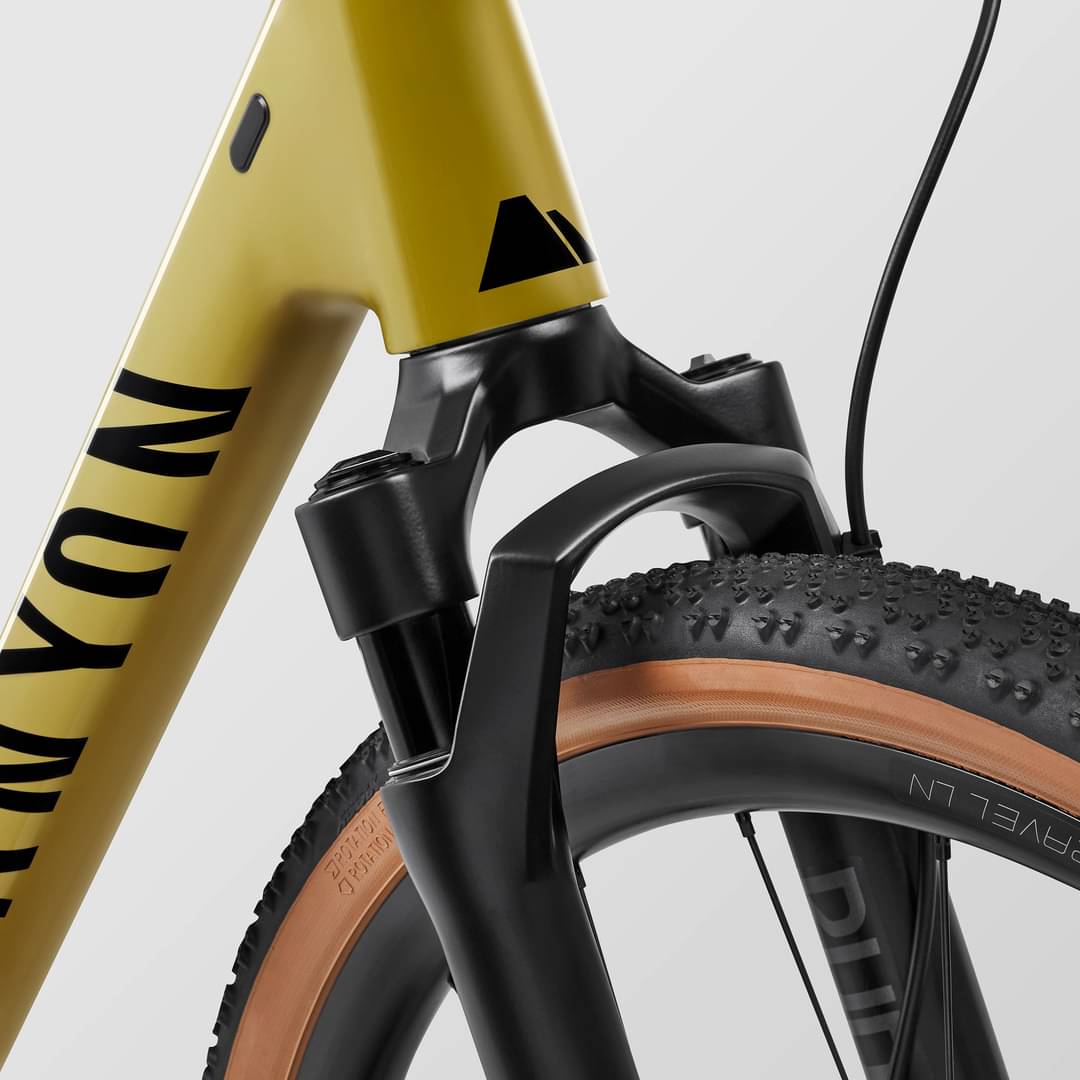

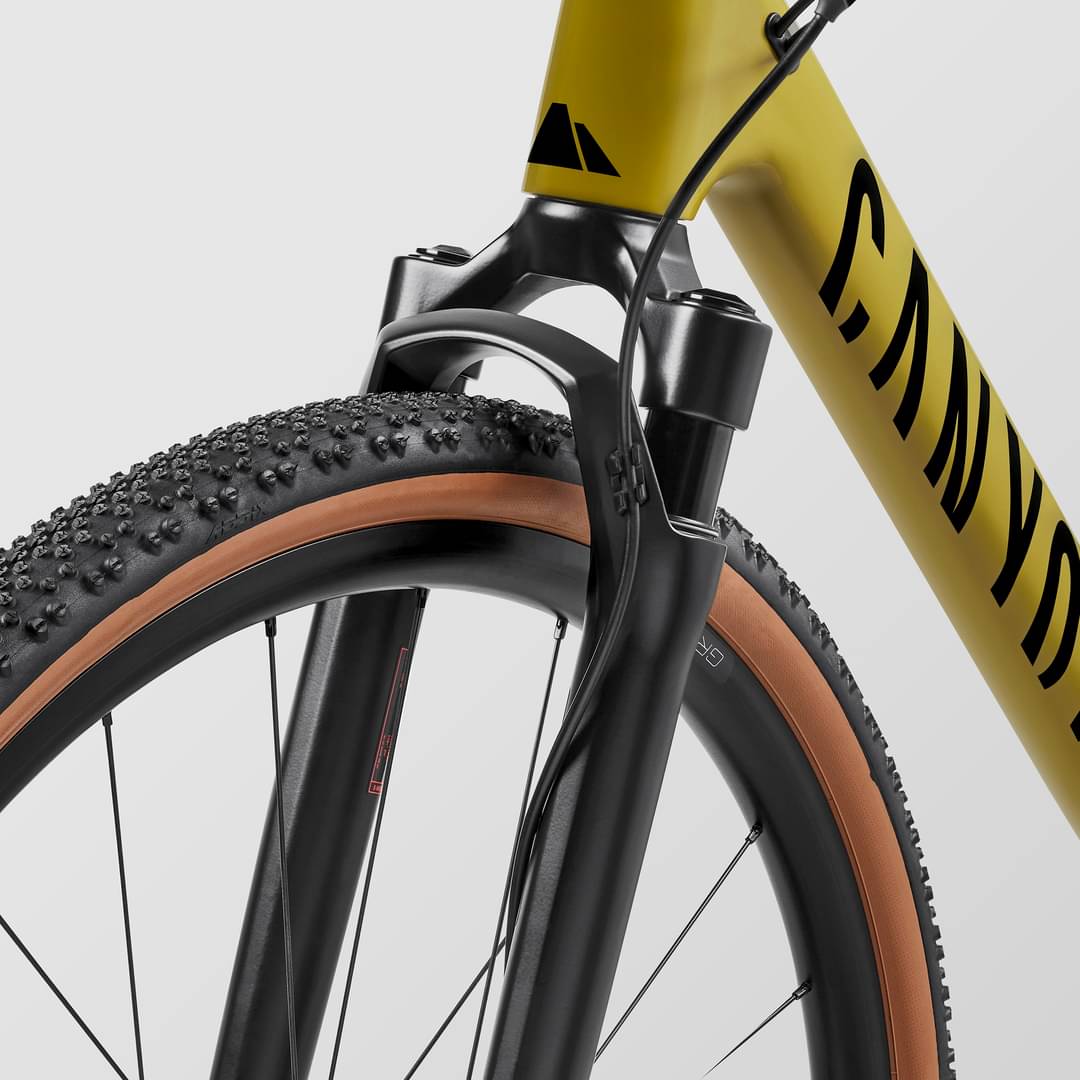

Fork
This bike has the RockShox Rudy XPLR fork installed. The fork’s travel is 30mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When leaving the production line, the Grizl 7 Suspension 1by model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Grizl 7 Suspension 1by is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
