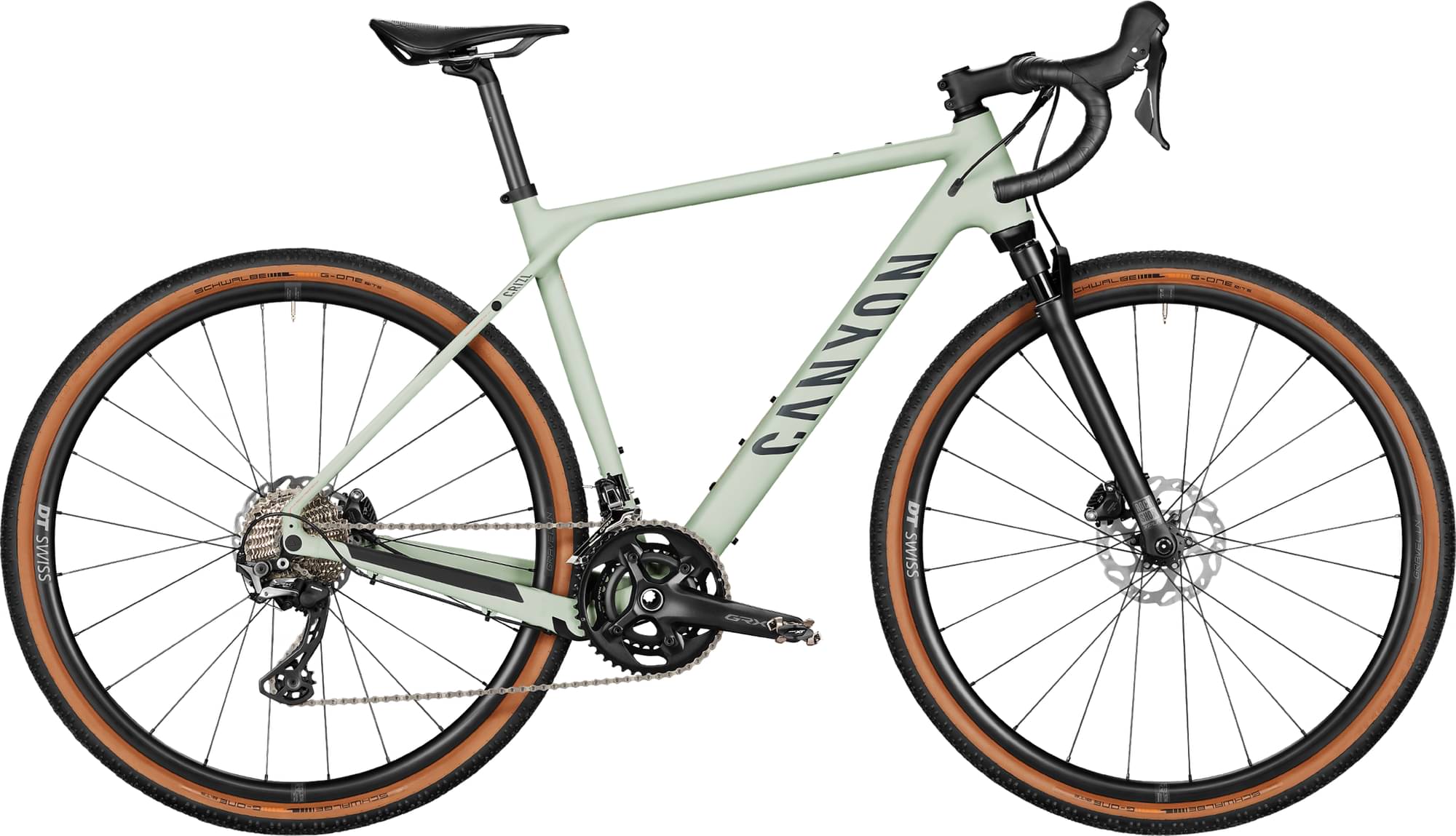

Canyon Grizl 7 Suspension 2022
2022 Road
Estimate price |
2,293$
Weight | 11.38 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Travel Front 30mm -
Fork RockShox Rudy Ultimate XPLR
-
Groupset GRX 800, GRX 600 -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
177cm - 185cm
LG
183cm - 190cm
XL
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grizl AL
Suspension Fork
RockShox Rudy 30, Suspension fork purpose-built for gravel riding., Tyre clearance: 50 mm, Travel: 30 mm
Drivetrain
Rear Derailleur
Shimano GRX RX810 GS, Gravel-specific rear derailleur. With adjustable chain stabiliser to prevent chain slap and chain drops. Max. cassette size: 34T.
Front Derailleur
Shimano GRX RX810, Gravel-specific derailleur with lighter operation and easier setup thanks to the new link construction and integrated cable tensioner., Max chainring gear range: 17T.
Shift Levers
Shimano GRX RX600, 2s | Shimano GRX RX600 11s
Cassette
Shimano HG700 11-34 11s, Shimano 105-level cassette., Gear range: 11-34T
Crank
46/30
Bottom Bracket
Token Ninja Lite BB4124 PF86.5, Thread-Fit Technology reduces chances of bearing misalignment. BB86 Road standard, compatible with 24 mm axles. Weight: 83 g
Chain
Shimano CN-HG601 11s, Chain featuring SIL-TEC ultra-low friction surface treatment for precise shifting and improved durability.
Pedals
None included
Wheels
Rims
DT Swiss Gravel LN | DT Swiss Gravel LN SH11
Tires
Schwalbe G-One Bite 45mm, Specialist gravel tyres. Open tread design and strong outer blocks provide traction on loose surfaces and stability when cornering. Technology: Tubeless Easy for simple tubeless setup.
Brakes
Brakes
hydraulicDisc
Brake Levers
Shimano GRX RX600, 2s | Shimano GRX RX600 11s
Disk Rotors
Shimano RT70, Disc Mount: Centerlock
Cockpit
Stem
Canyon V13, High-quality aluminium stem with square cross-sectional profile. A new handlebar clamp design increases torsional stiffness by up to 40%. Handlebar clamp diameter: 31.8 mm. Head tube diameter: 1 1/4".
Handlebar
Canyon HB 0050 Ergobar AL, Material: Aluminium, Shape: Ergo, Reach: 70 mm, Drop: 130 mm
Seat
Saddle
Selle Italia Model X, Saddle with central cut-out and flexible wings for maximum comfort. Featuring durable Soft-Tek cover for maximum durability and scratch resistance. Rail material: manganese.
Seatpost
Canyon SP0057 VCLS, With vibration-absorbing design for top rear-end comfort. Material: Carbon. Setback: 20 mm.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.43 mm | 1.47 mm | 1.46 mm | 1.47 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 620 mm | 621 mm | 631 mm | 650 | 665 mm |
| Rake | 43 mm | 44 mm | 43 mm | 43 mm | 43 mm |
| Trail | 80 mm | 70 mm | 68 mm | 65 mm | 65 mm |
| Stack | 563 mm | 586 mm | 612 mm | 633 mm | 651 mm |
| Reach | 404 mm | 409 mm | 416 mm | 434 mm | 443 mm |
| Top Tube Length | 569 mm | 581 mm | 595 mm | 619 mm | 634 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Head Tube Angle | 70.25 ° | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 121 mm | 141 mm | 166 mm | 186 mm | 205 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1051 mm | 1052 mm | 1062 mm | 1081 mm | 1096 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 787 mm | 814 mm | 842 mm | 867 mm | 891 mm |
| Front Travel | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 179 cm | 185 cm | 190 cm | 195 cm | cm |
About this model
Grizl 7 Suspension is a Canyon Grizl model. Canyon launched 65 bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Canyon Grizl 6 WMN 2022 is the most affordable bike of this model and has a price of 1592$. On the other hand, Canyon Grizl CF SLX 8 eTap Suspension 2022, is the most expensive and costs 6499$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Gravel bikes average price
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2123$. In conclusion, this bike price is 15.97% lower than the price of the average Gravel bike.
Average weight for Gravel bikes
Gravel bikes have an average weight of 8.13 kg (17.92 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much heavier than average, Grizl 7 Suspension has a weight of 11.38 kg (25.09 lbs). In short, the average Gravel bike weight is 39.98% lower than this one.
Grizl 7 Suspension components
Fork
This bike has the RockShox Rudy Ultimate XPLR fork installed. The fork’s travel is 30mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When it comes to wheels, the Grizl 7 Suspension bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Grizl 7 Suspension has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
