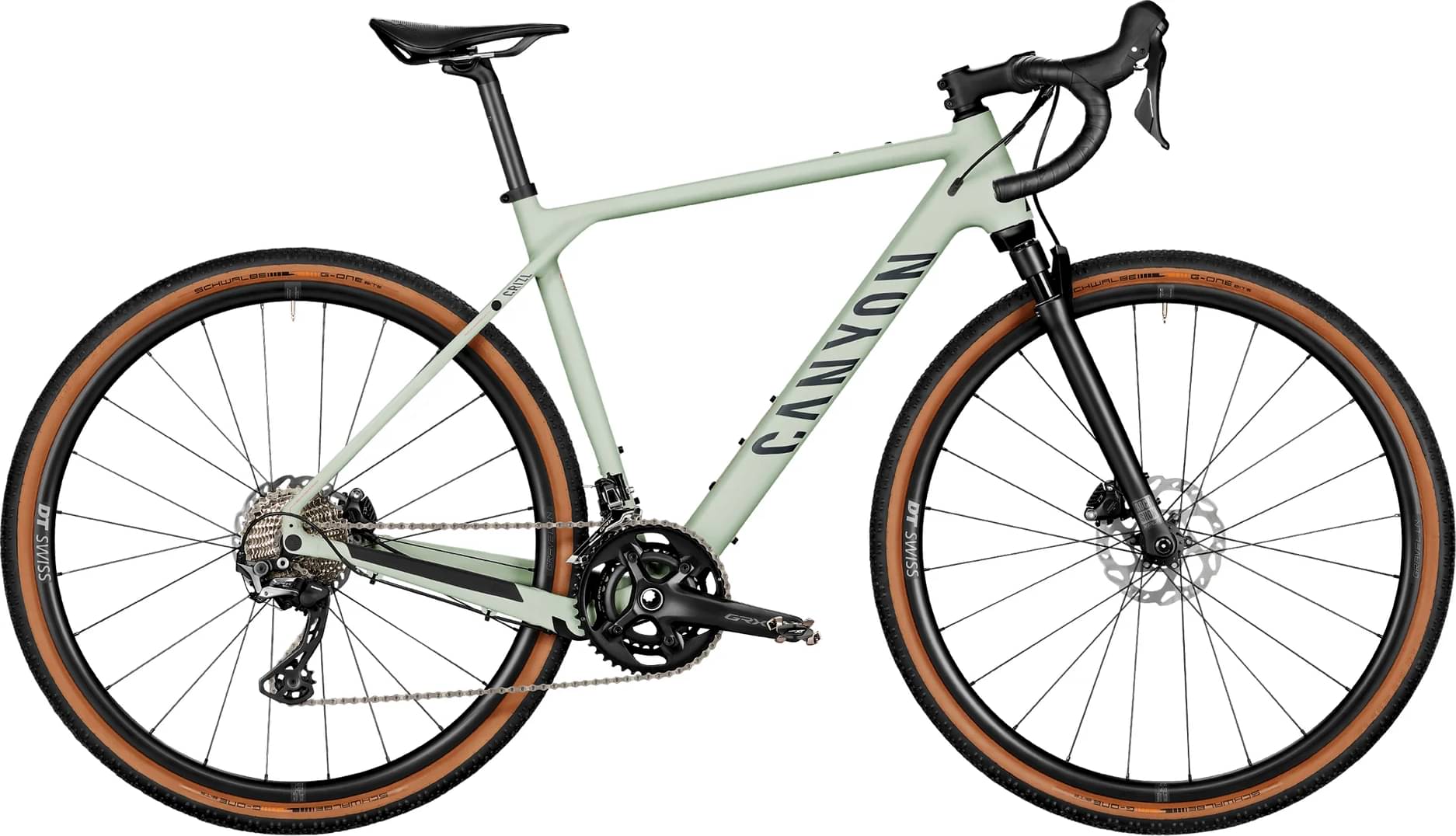

Canyon Grizl 7 Trail 2023
2023 Road
Estimate price |
1,999$
Weight | 11.38 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 30mm -
Fork RockShox Rudy XPLR
-
Groupset GRX 800, GRX 600 -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
177cm - 185cm
LG
183cm - 190cm
XL
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components

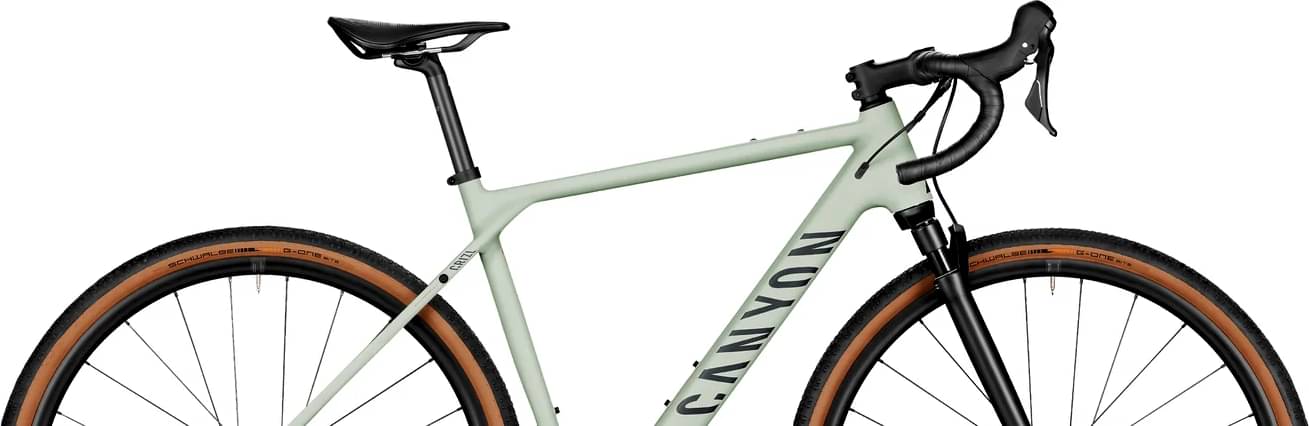

Frame
Frame

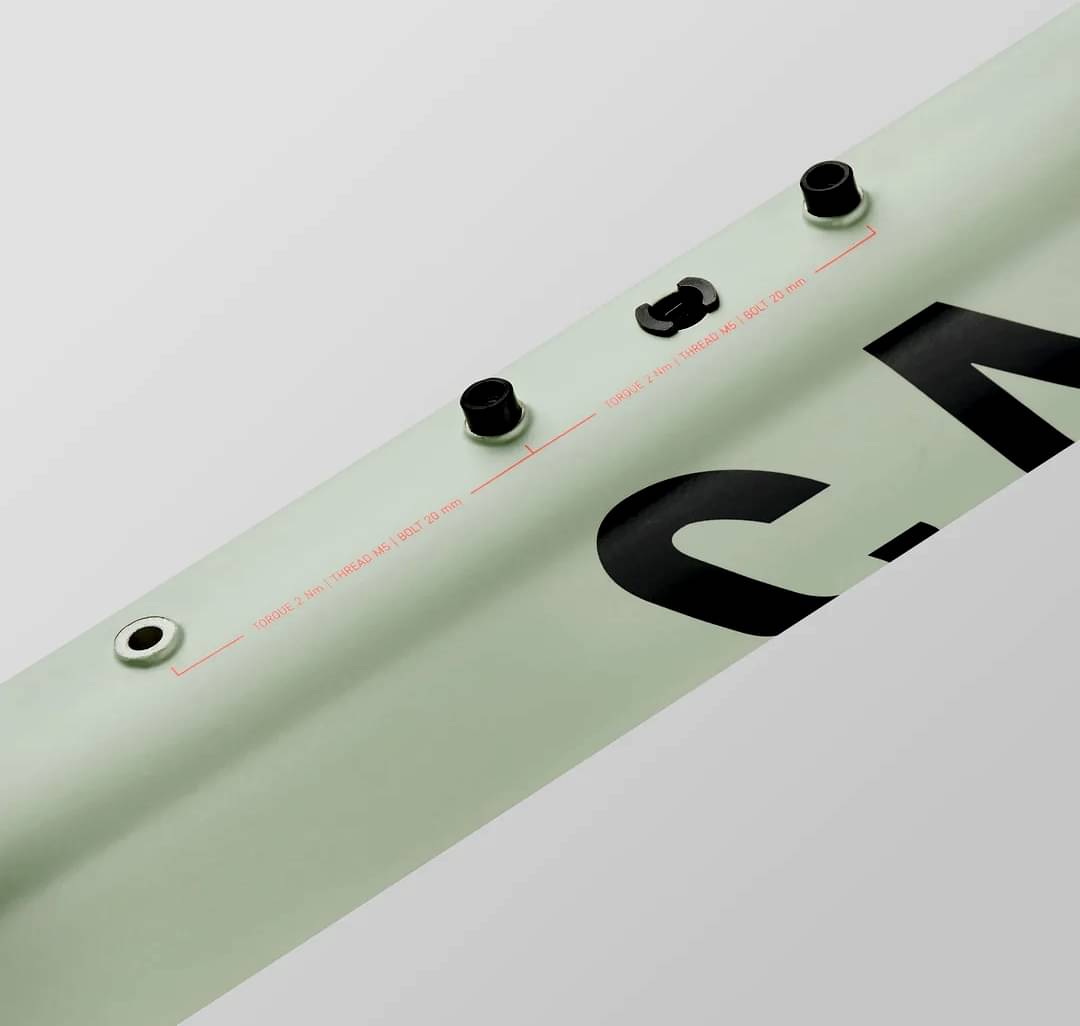

Canyon Grizl AL, Aluminium frame with Gravel Pro geometry, a range of mounting points, and extended wheelbase for extra off-road stability., Tyre Clearance: 50 mm, Material: Aluminium (AL)
Suspension Fork
RockShox Rudy 30, Axle dimension: 12x100 mm, Stanchion Diameter: 30 mm, Travel: 30 mm, Fork steer tube diameter: 1 1/4"

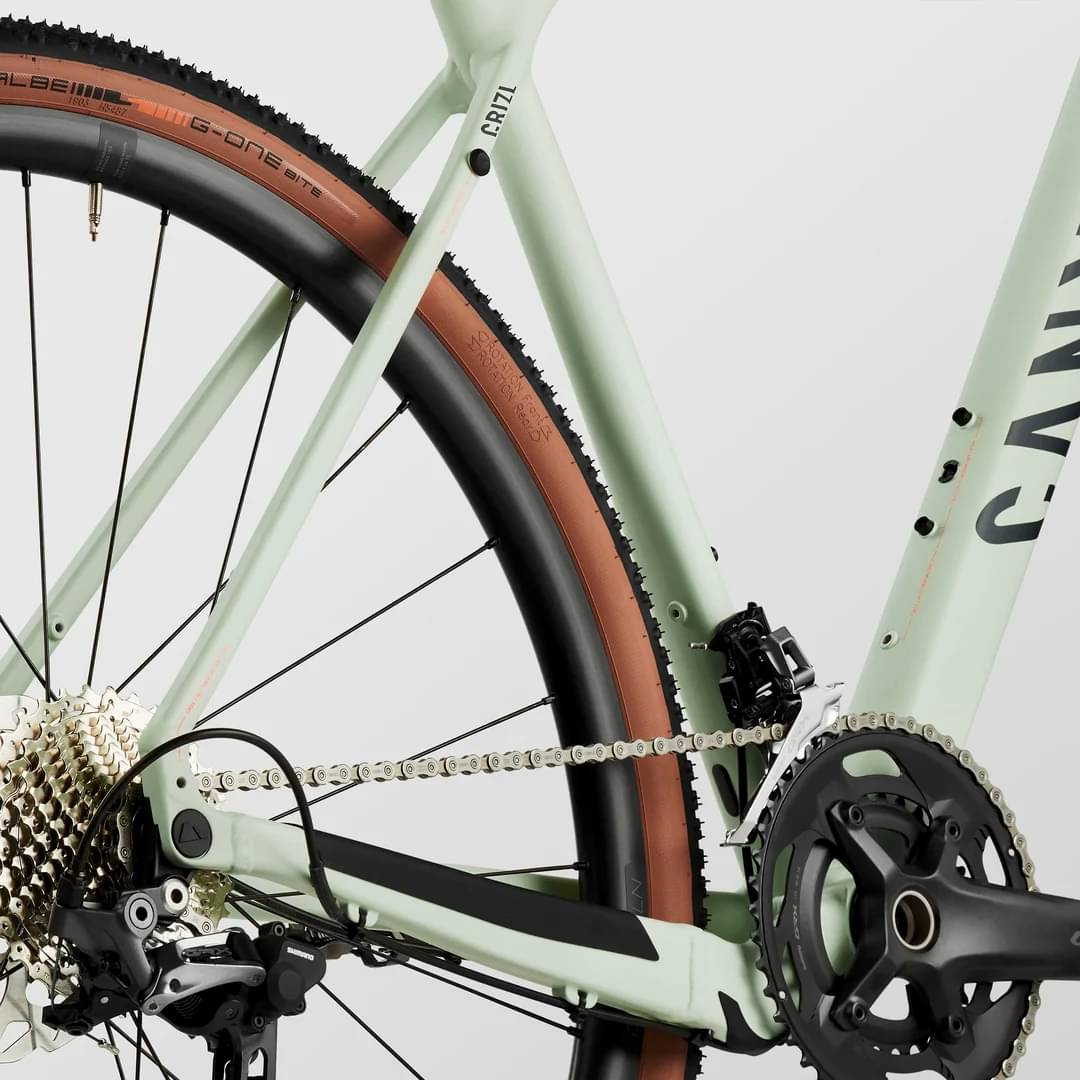

Drivetrain
Rear Derailleur
Shimano GRX RX810 GS, Cage length: long
Front Derailleur
Shimano GRX RX810, Max chainring gear range: 17T.
Shift Levers
Shimano GRX RX600, 2s | Shimano GRX RX600 11s
Cassette
Shimano HG700 11-34 11s, Number of sprockets: 11
Crank
Rotor Canyon LTD, 46/30, Number of chainrings: 2
Bottom Bracket
Token Ninja Lite BB4124, Bottom bracket standard: PF 86,5
Chain
Shimano CN-HG601 11s
Pedals
None included
Wheels
Rims
DT Swiss Gravel LN, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 25 mm, Wheelsize: 28" | DT Swiss Gravel LN, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 25 mm, Wheelsize: 28"
Tires
Schwalbe G-One Bite 45mm, Width: 45mm
Brakes
Brakes
Hydraulic Disc
Brake Levers
Shimano GRX RX600, 2s | Shimano GRX RX600 11s

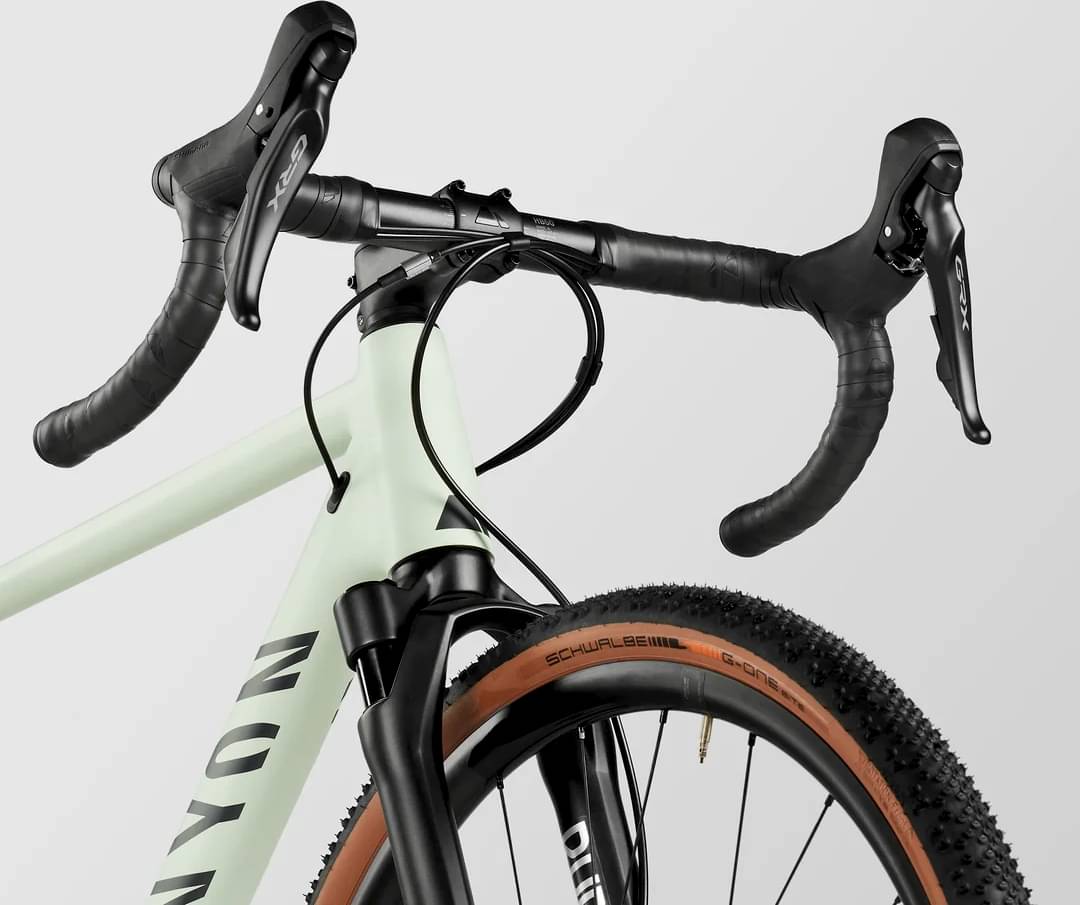

Cockpit
Stem
Canyon V13, High-quality aluminium stem with square cross-sectional profile. A new handlebar clamp design increases torsional stiffness by up to 40%. Handlebar clamp diameter: 31.8 mm. Head tube diameter: 1 1/4"., Fork steer tube diameter: 1 1/4", Clamping diameter: 31,8 mm
Handlebar
Canyon HB 0050 Ergobar AL, Material: Aluminium, Shape: Ergo, Reach: 70 mm, Drop: 130 mm, Clamping diameter: 31,8 mm, Width: 420 mm
Seat
Saddle
Selle Italia Model X, Gender: Unisex
Seatpost
Canyon SP0057 VCLS, With vibration-absorbing design for top rear-end comfort., Setback: 20 mm, Clamp diameter: 27,2 mm, Material: Carbon (CF)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.43 mm | 1.47 mm | 1.46 mm | 1.47 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 620 mm | 621 mm | 631 mm | 650 | 665 mm |
| Rake | 43 mm | 44 mm | 43 mm | 43 mm | 43 mm |
| Trail | 80 mm | 70 mm | 68 mm | 65 mm | 65 mm |
| Stack | 563 mm | 586 mm | 612 mm | 633 mm | 651 mm |
| Reach | 404 mm | 409 mm | 416 mm | 434 mm | 443 mm |
| Top Tube Length | 569 mm | 581 mm | 595 mm | 619 mm | 634 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Head Tube Angle | 70.25 ° | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 121 mm | 141 mm | 166 mm | 186 mm | 205 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1051 mm | 1052 mm | 1062 mm | 1081 mm | 1096 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 787 mm | 814 mm | 842 mm | 867 mm | 891 mm |
| Front Travel | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 179 cm | 185 cm | 190 cm | 195 cm | cm |
About this model
Grizl 7 Trail completes the Canyon Grizl model. Canyon launched 65 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Canyon Grizl 6 2023 is the cheapest bike model and costs 1499$. Canyon Grizl CF SLX 8 Force AXS Trail 2023 is the most expensive one and costs 5626$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel bikes average price
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2023 and its price was 1999$. Comparing the average cost of a Gravel bike to this one, you will see that Grizl 7 Trail price is 23.16% smaller.
Average weight for Gravel bikes
Gravel bikes have an average weight of 8.13 kg (17.92 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
much heavier than average, Grizl 7 Trail has a weight of 11.38 kg (25.09 lbs). In conclusion, the average Gravel bike weighs 39.98% less than Grizl 7 Trail.
Overview of components

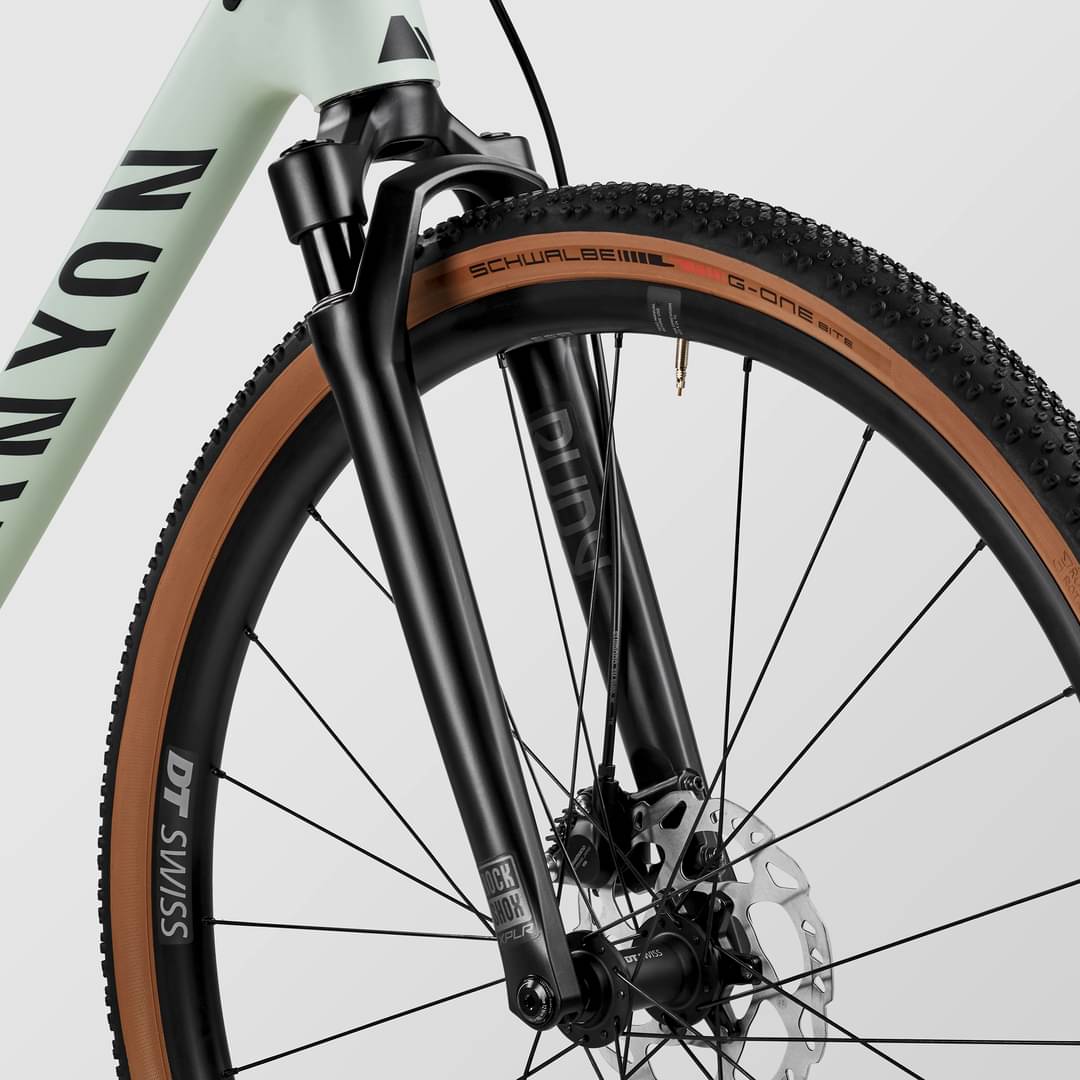

Fork
The fork installed on this bike is the RockShox Rudy XPLR model. The travel on this model is 30mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the Grizl 7 Trail model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
