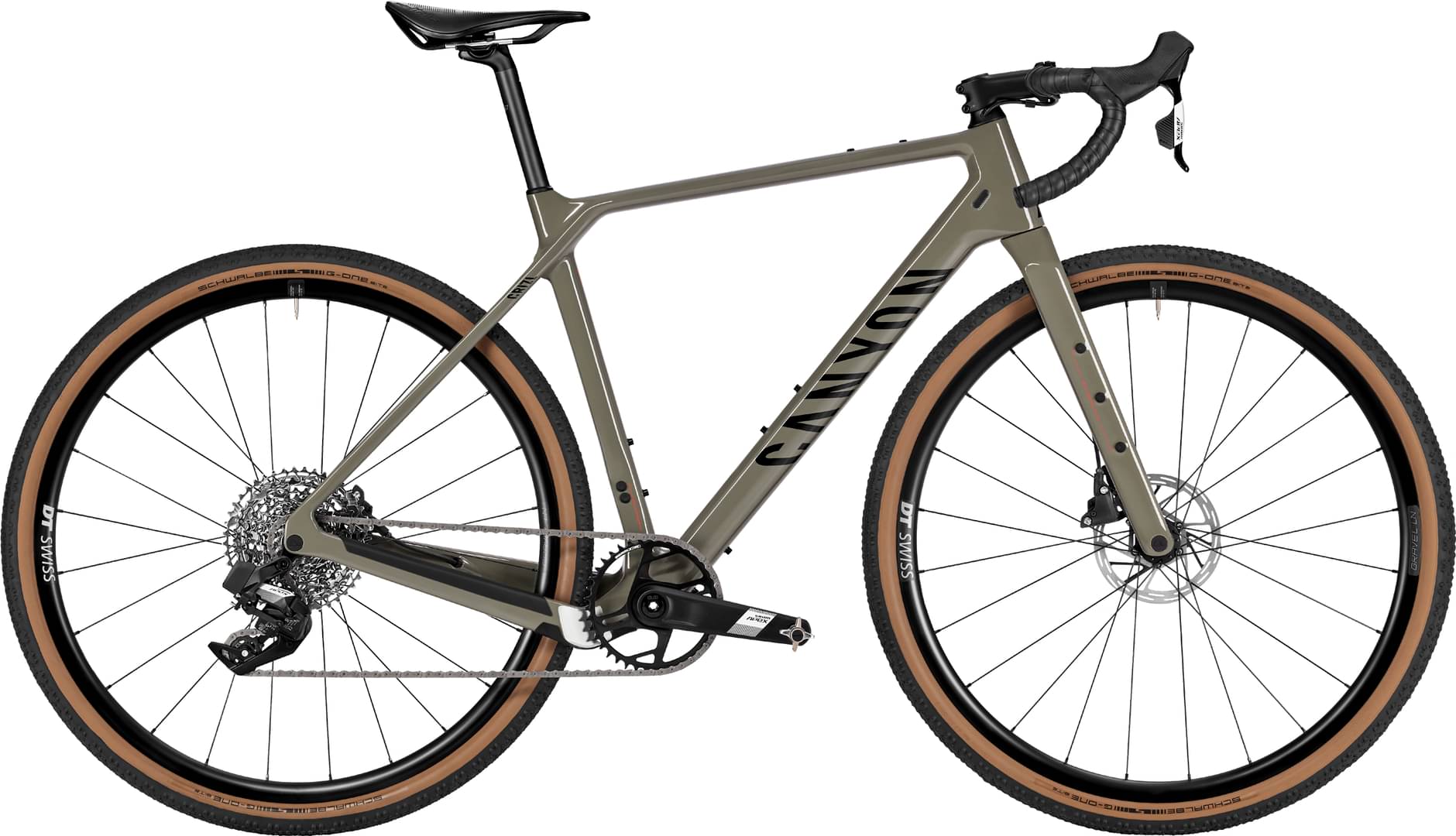

Canyon Grizl CF SL 6 AXS 2024
2024 Road
Estimate price |
2,866$
Weight | 9.66 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Apex XPLR AXS -
Suspension Rigid -
Battery SRAM Powerpack -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 190cm
XL
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components

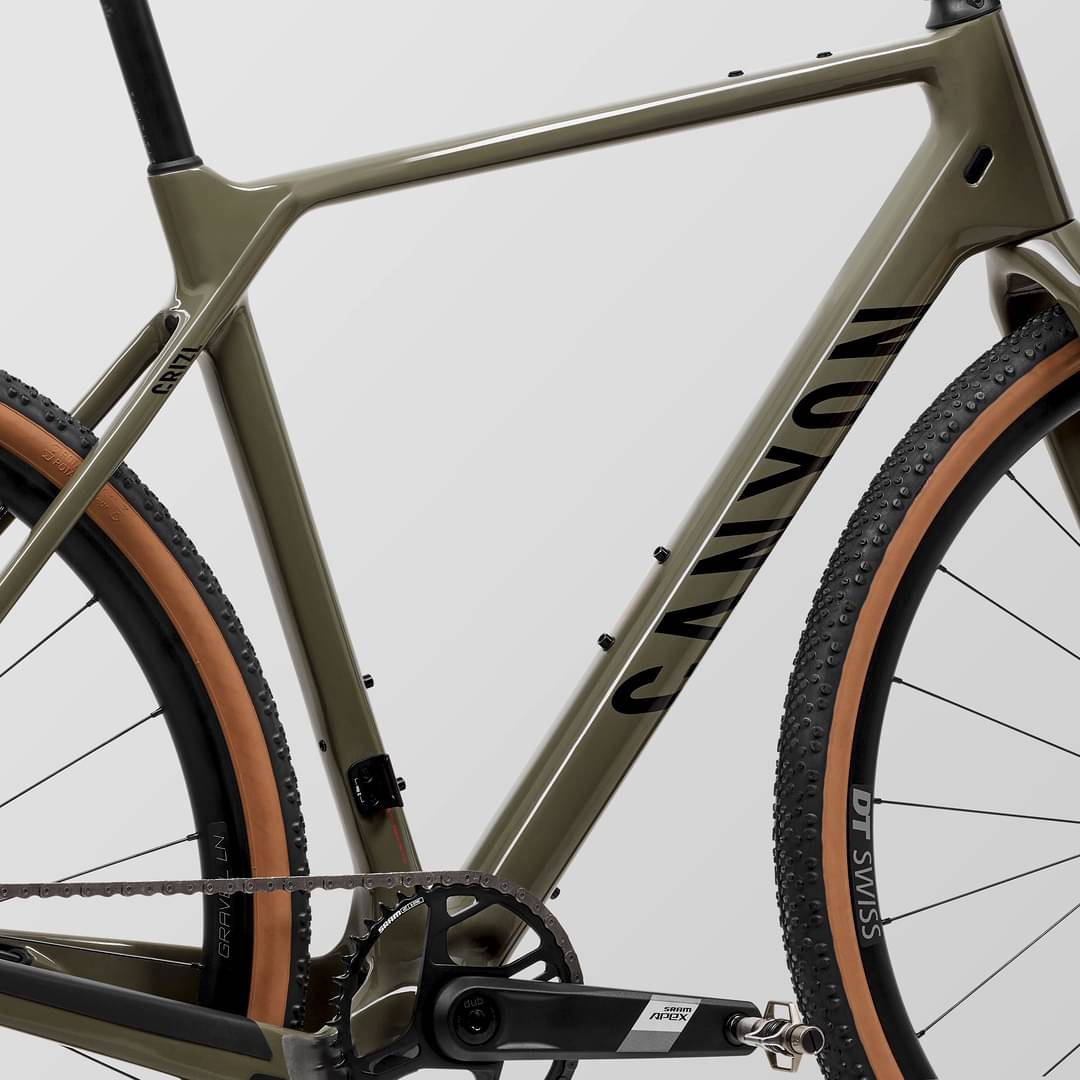

Frame
Frame
Canyon Grizl CF SL, Light robust carbon frame with Gravel Pro geometry, 50 mm tyre clearance, and extended wheelbase for extra off-road stability., Axle dimension: 12x142 mm, Tyre Clearance: 50MM, Material: Carbon (CF)

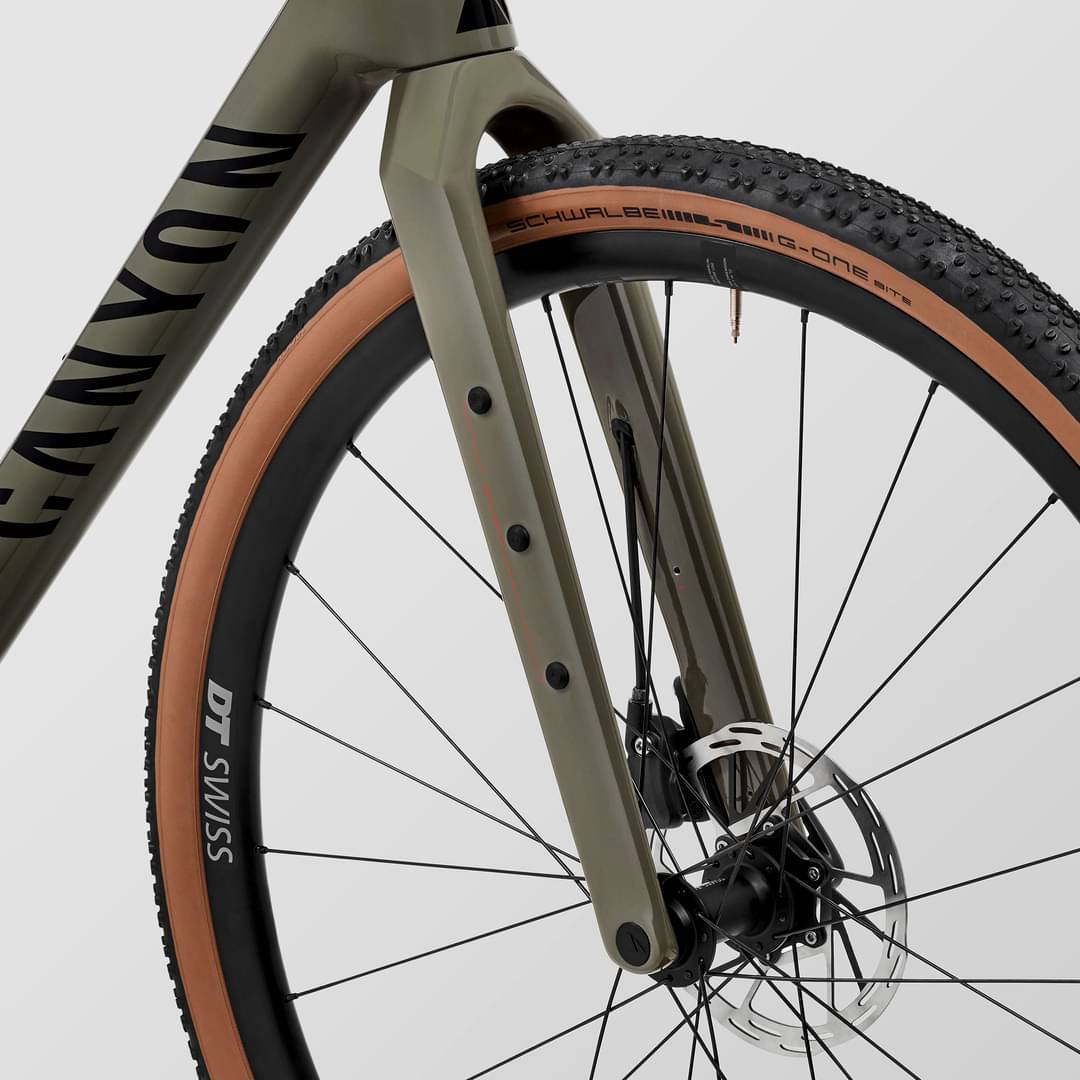

Suspension Fork
Canyon FK0124 CF Disc, Light, robust carbon fork with 3-screw mounting points on each side for attaching bottle cages and Anything Cages., Fork steer tube diameter: 1 1/4", Material: Carbon (CF)

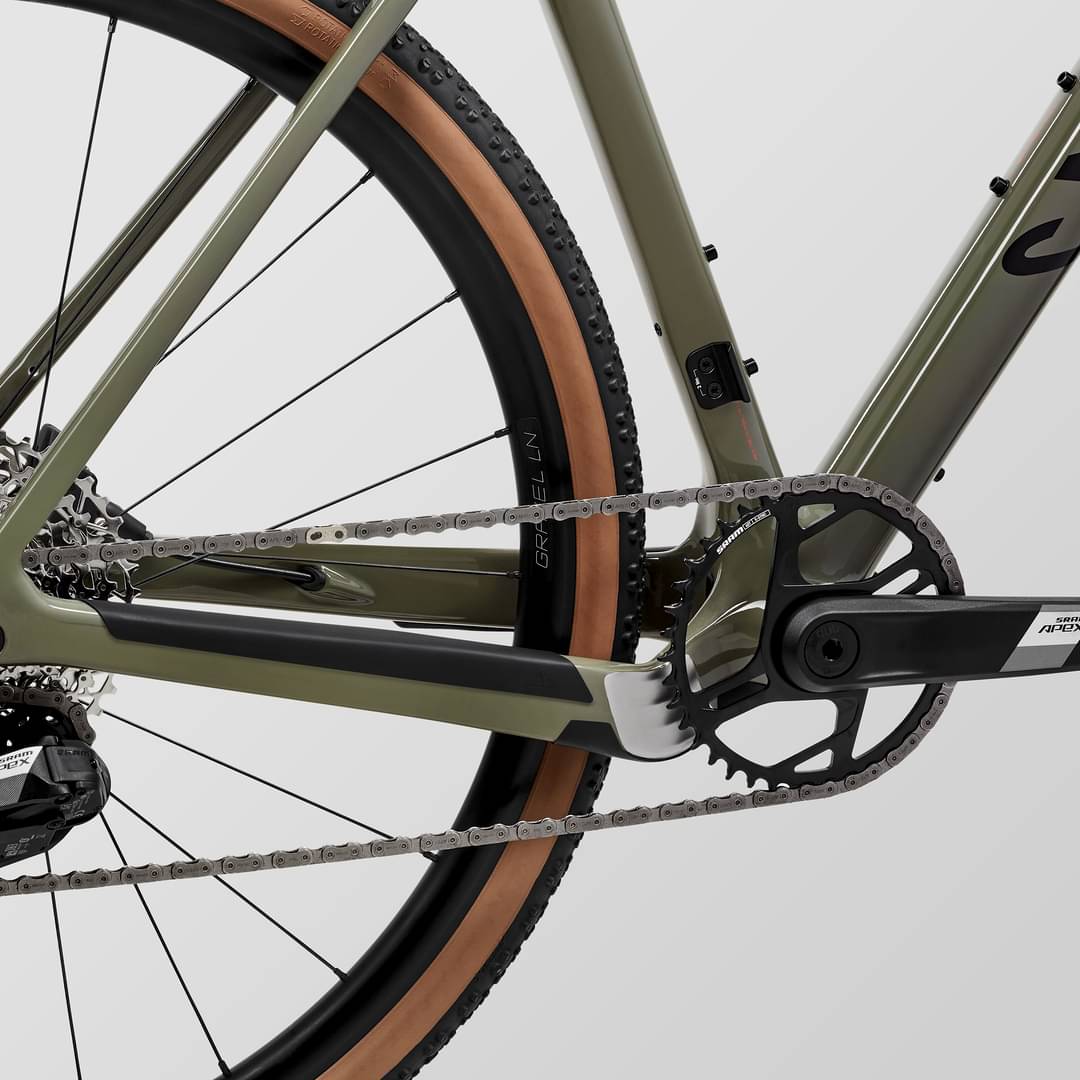

Drivetrain
Rear Derailleur
SRAM Apex XPLR AXS
Shift Levers
SRAM Apex | SRAM Apex 12s
Cassette
SRAM XPLR 11-44 12s | SRAM PG 1231 12-speed Cassette 11-44
Crank
SRAM Apex Wide, Number of chainrings: 1
Bottom Bracket
SRAM Pressfit DUB Wide, Bottom bracket standard: PF 86,5, Weight: 65 g
Chain
SRAM Apex 12s | SRAM Apex 12-speed Chain 120L
Pedals
None included
Wheels
Rims
DT Swiss Gravel LN, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 25 mm, Weight: 946 g | DT Swiss Gravel LN, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 25 mm, Weight: 1.10 kg
Tires
Schwalbe G-One Bite Performance, 45mm, Width: 45mm | Schwalbe G-One R Super Race 28" x 45mm Gravel Tyre
Brakes
Brakes
Hydraulic Disc
Brake Levers
SRAM Apex | SRAM Apex 12s
Cockpit

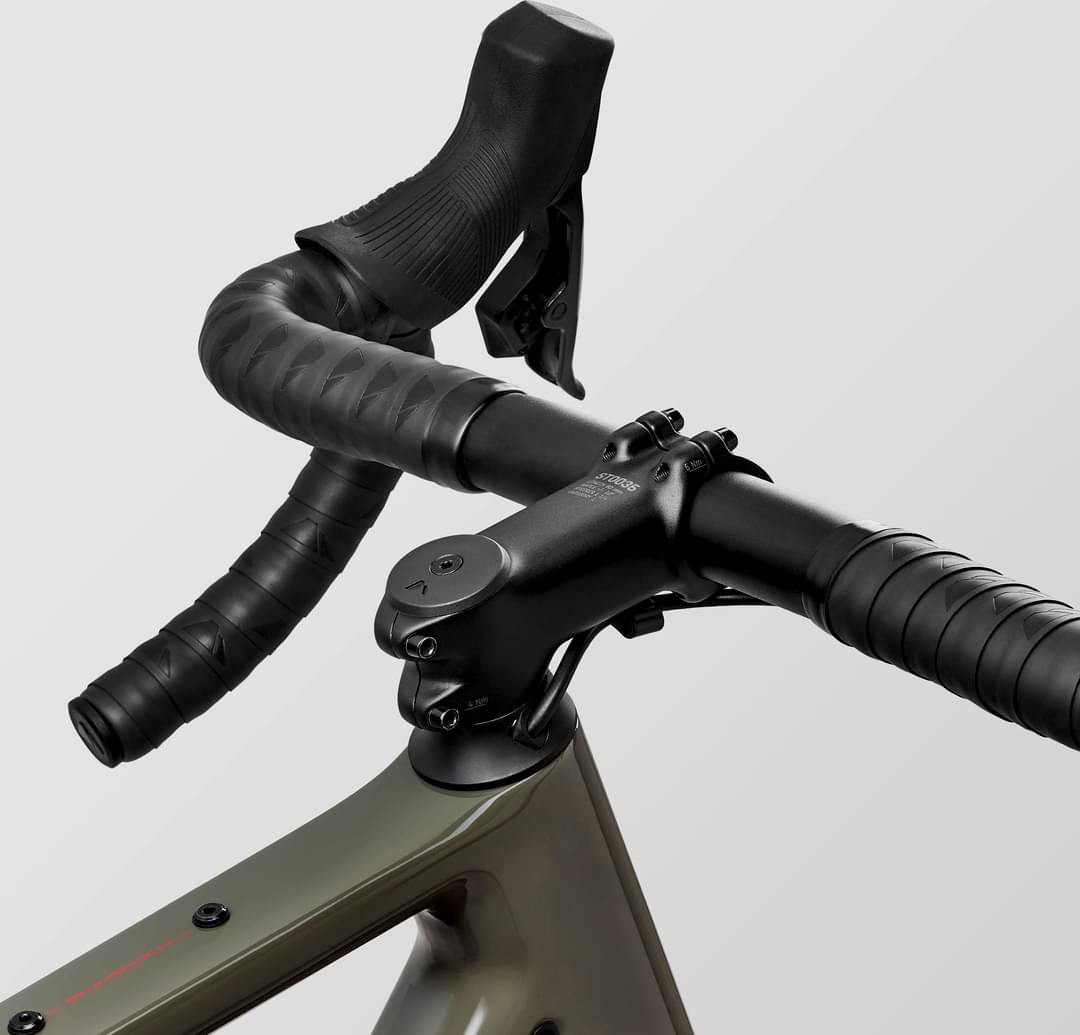

Stem
Canyon ST0035, A lightweight and durable aluminium stem for use on gravel and road bikes., Fork steer tube diameter: 1 1/4", Clamping diameter: 31,8 mm
Handlebar
Canyon HB0064 Ergo, Robust aluminium handlebar with flared drops for enhanced off-road control., Clamping diameter: 31,8 mm, Width: 440 mm
Seat
Saddle
Selle Italia Model X, Gender: Unisex, Weight: 315 g
Seatpost
Canyon SP0057 VCLS, With vibration-absorbing design for top rear-end comfort., Setback: 20 mm, Clamp diameter: 27,2 mm, Material: Carbon (CF), Weight: 265 g
Motor & Battery
Battery
SRAM Powerpack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.385 mm | 1.406 mm | 1.401 mm | 1.44 mm | 1.479 mm | 1.466 mm | 1.477 mm |
| Front Center | 594 mm | 594 mm | 612 mm | 613 mm | 626 mm | 648 mm | 662 mm |
| Rake | 43 mm | 43 mm | 42 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 74 mm | 68 mm | 76 mm | 67 mm | 65 mm | 63 mm | 63 mm |
| Stack | 522 mm | 537 mm | 556 mm | 579 mm | 605 mm | 626 mm | 644 mm |
| Reach | 377 mm | 382 mm | 397 mm | 402 mm | 409 mm | 427 mm | 436 mm |
| Top Tube Length | 522 mm | 531 mm | 552 mm | 564 mm | 578 mm | 602 mm | 617 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 432 mm | 462 mm | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 72.25 ° | 72.5 ° | 72.75 ° | 72.75 ° |
| Head Tube Length | 121 mm | 133 mm | 118 mm | 138 mm | 164 mm | 185 mm | 204 mm |
| Chainstay Length | 420 mm | 420 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1007 mm | 1007 mm | 1036 mm | 1037 mm | 1050 mm | 1072 mm | 1086 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 737 mm | 761 mm | 789 mm | 816 mm | 845 mm | 870 mm | 892 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 190 cm | 195 cm | cm |
Model Overview
Grizl CF SL 6 AXS is part of the Canyon Grizl model. 80 bikes variations carry this model name so far. You can easily view all of the Canyon Grizl bikes models from 2024, here.
Model range prices
Canyon Grizl 5 2024 is the cheapest bike model and costs 1376$. Canyon Grizl CF SLX 8 AXS Trail 2024 is the most expensive one and costs 5505$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Canyon Grizl CF SL 6 AXS price was 2646$. If we compare this with the average Gravel bike cost we notice that the price is 7.47% more expensive.
Gravel bikes average weight
If we make a quick analysis of the average weight of a Gravel bike, we get 8.13 kg (17.92 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 9.66 kg (21.3 lbs), Canyon bike is much heavier than average. In other words, this model is 18.82% heavier than the average Gravel bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, Canyon Grizl CF SL 6 AXS 2024, has a aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Grizl CF SL 6 AXS is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
