Canyon Grizl CF SL 8 1BY 2023
2023 Road
Estimate price |
3,499$
Weight | 9.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset GRX 800 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 190cm
XL
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grizl CF SL, Light robust carbon frame with Gravel Pro geometry, 50 mm tyre clearance, and extended wheelbase for extra off-road stability., Versatile frame designed for maximum utility. Tyre clearance: 50 mm. Gravel Pro geometry for off-road stability & agility. Dropper post and suspension fork compatibility. 12 x 142 mm through axle. Weight: 1035 g (size M).
Suspension Fork
Canyon FK0087 CF Disc, Light, robust carbon frame with 3-screw mounting points on each side for attaching bottle cages and Anything Cages., Fork steer tube diameter: 1 1/4", Material: Carbon (CF), Weight: 360 g
Drivetrain
Rear Derailleur
Shimano GRX RX812 GS, Cage length: long, Weight: 249 g
Shift Levers
Shimano GRX RX810, 1s | Shimano GRX RX810, 11-speed
Cassette
Shimano SLX M7000 11-42 11s, Number of sprockets: 11

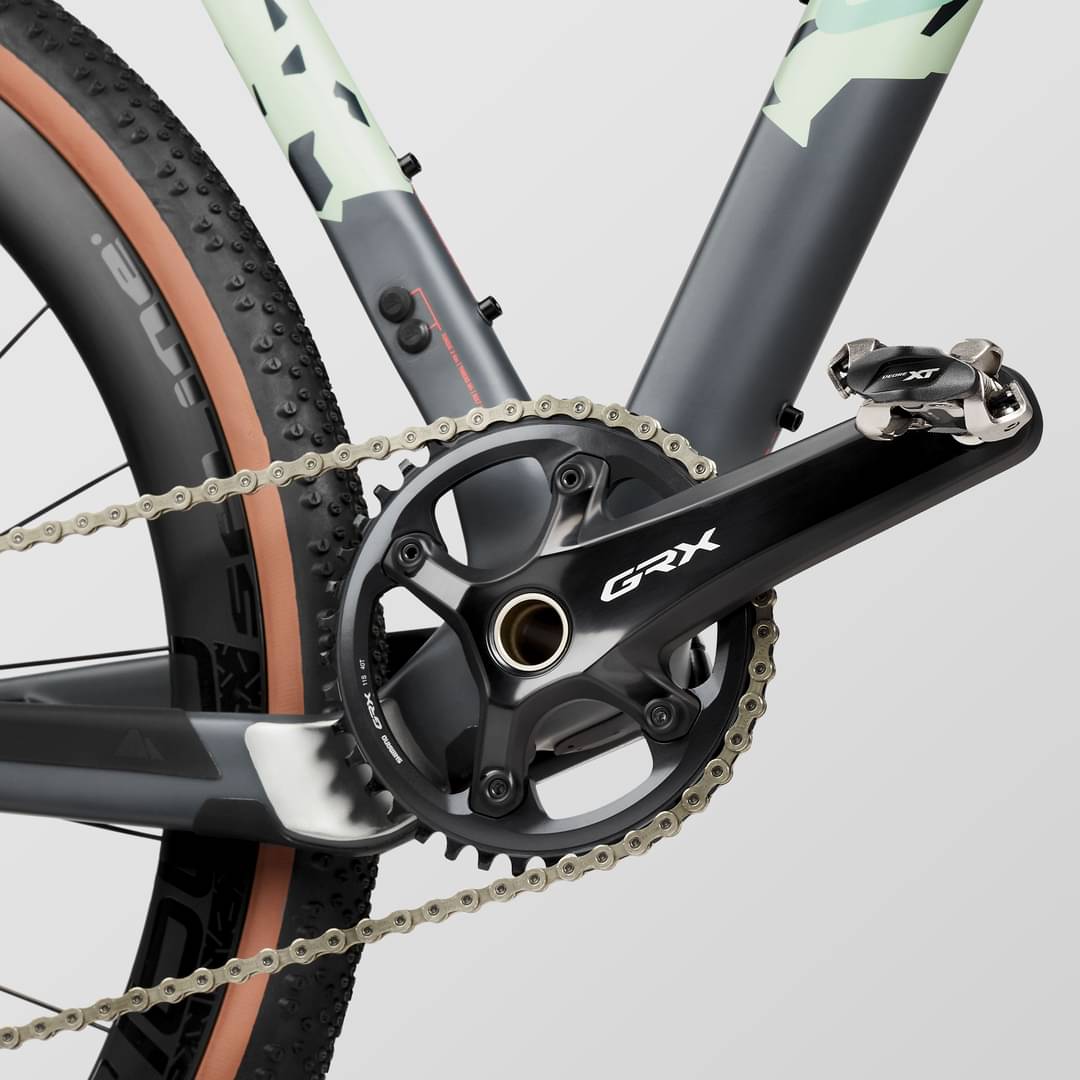

Crank
Shimano RX810 40T, 11-speed, Number of chainrings: 1
Bottom Bracket
Token Ninja Lite BB4124, Bottom bracket standard: PF 86,5, Weight: 85 g
Chain
Shimano CN-HG701 11s
Pedals
None included
Wheels
Rims
DT Swiss GRC 1600 Spline, Rotor mount: Center Lock, Rim height: 42 mm, Weight: 785 g | DT Swiss GRC1600 Spline SH11, Rotor mount: Center Lock, Rim height: 42 mm, Weight: 915 g
Tires
Schwalbe G-One Bite 45mm, Width: 45mm, Weight: 540 g | Schwalbe G-One R Super Race 28" x 45mm Gravel Tyre
Brakes
Brakes
Hydraulic Disc
Brake Levers
Shimano GRX RX810, 1s | Shimano GRX RX810, 11-speed

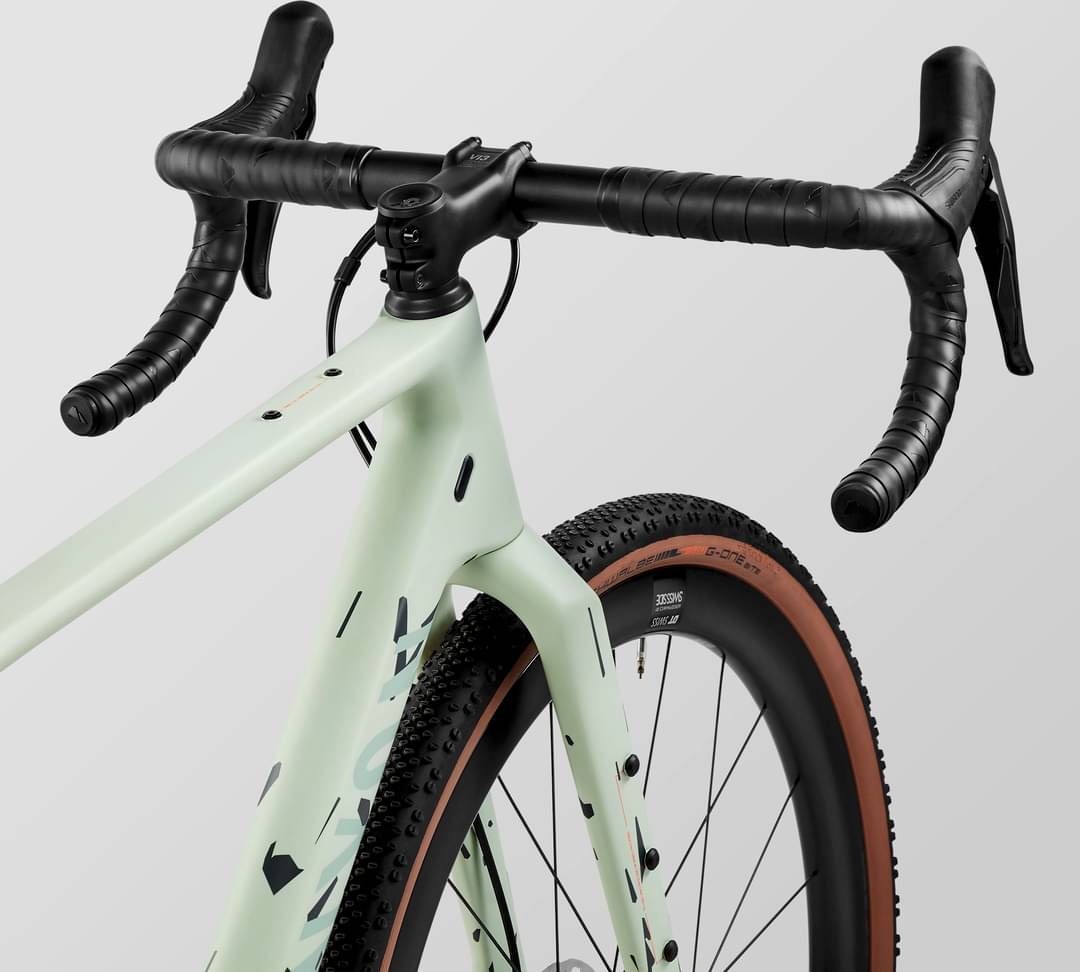

Cockpit
Stem
Canyon V13, High-quality aluminium stem with square cross-sectional profile. A new handlebar clamp design increases torsional stiffness by up to 40%. Handlebar clamp diameter: 31.8 mm. Head tube diameter: 1 1/4"., Fork steer tube diameter: 1 1/4", Clamping diameter: 31,8 mm
Handlebar
Canyon HB 0050 Ergobar AL, Material: Aluminium, Shape: Ergo, Reach: 70 mm, Drop: 130 mm
Seat
Saddle
Fizik Argo Terra X3, Gender: Male, Weight: 238 g
Seatpost
Canyon S15 VCLS 2.0 CF, Material: Carbon, Setback: 13 mm / 25 mm, Technology: VCLS 2.0 | Fliphead, Weight: 220 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.41 mm | 1.4 mm | 1.44 mm | 1.48 mm | 1.47 mm | 1.48 mm |
| Front Center | 594 mm | 594 mm | 612 mm | 613 mm | 626 mm | 648 mm | 662 mm |
| Rake | 43 mm | 43 mm | 42 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 74 mm | 68 mm | 76 mm | 67 mm | 65 mm | 63 mm | 63 mm |
| Stack | 520 mm | 535 mm | 554 mm | 577 mm | 603 mm | 624 mm | 642 mm |
| Reach | 375 mm | 380 mm | 395 mm | 400 mm | 407 mm | 425 mm | 434 mm |
| Top Tube Length | 530 mm | 539 mm | 560 mm | 572 mm | 576 mm | 600 mm | 615 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 432 mm | 462 mm | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 72.25 ° | 72.5 ° | 72.75 ° | 72.75 ° |
| Head Tube Length | 121 mm | 133 mm | 118 mm | 138 mm | 164 mm | 185 mm | 204 mm |
| Chainstay Length | 418 mm | 418 mm | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1005 mm | 1005 mm | 1034 mm | 1035 mm | 1048 mm | 1070 mm | 1084 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 735 mm | 759 mm | 787 mm | 814 mm | 843 mm | 868 mm | 890 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 190 cm | 195 cm | cm |
Model Overview
Grizl CF SL 8 1BY belongs to the Canyon Grizl model. Canyon released 65 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Canyon Grizl 6 2023 is the most economical model, with a starting price of 1499$. Canyon Grizl CF SLX 8 Force AXS Trail 2023 on the other hand costs 5626$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2023 and its price was 3499$. Doing a quick comparison, we notice that Grizl CF SL 8 1BY price is 42.12% more expensive than the average cost of a Gravel bike.
Average weight for Gravel bikes
The average weight for Gravel bikes is 8.13 kg (17.92 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 9.3 kg (20.5 lbs), Canyon bike is considerably heavier than average. In short, the average Gravel bike weight is 14.39% lower than this one.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the Grizl CF SL 8 1BY model has carbon wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon Grizl CF SL 8 1BY has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
