Canyon Grizl CF SL 8 1by Ekar 2023
2023 Road
Estimate price |
4,013$
Weight | 9.34 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Ekar -
Suspension Rigid -
Drivetrain 1 × 13 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 190cm
XL
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grizl CF SL, Axle dimension: 12x142 mm, Tyre Clearance: 50 mm, Material: Carbon (CF), Weight: 1.04 kg

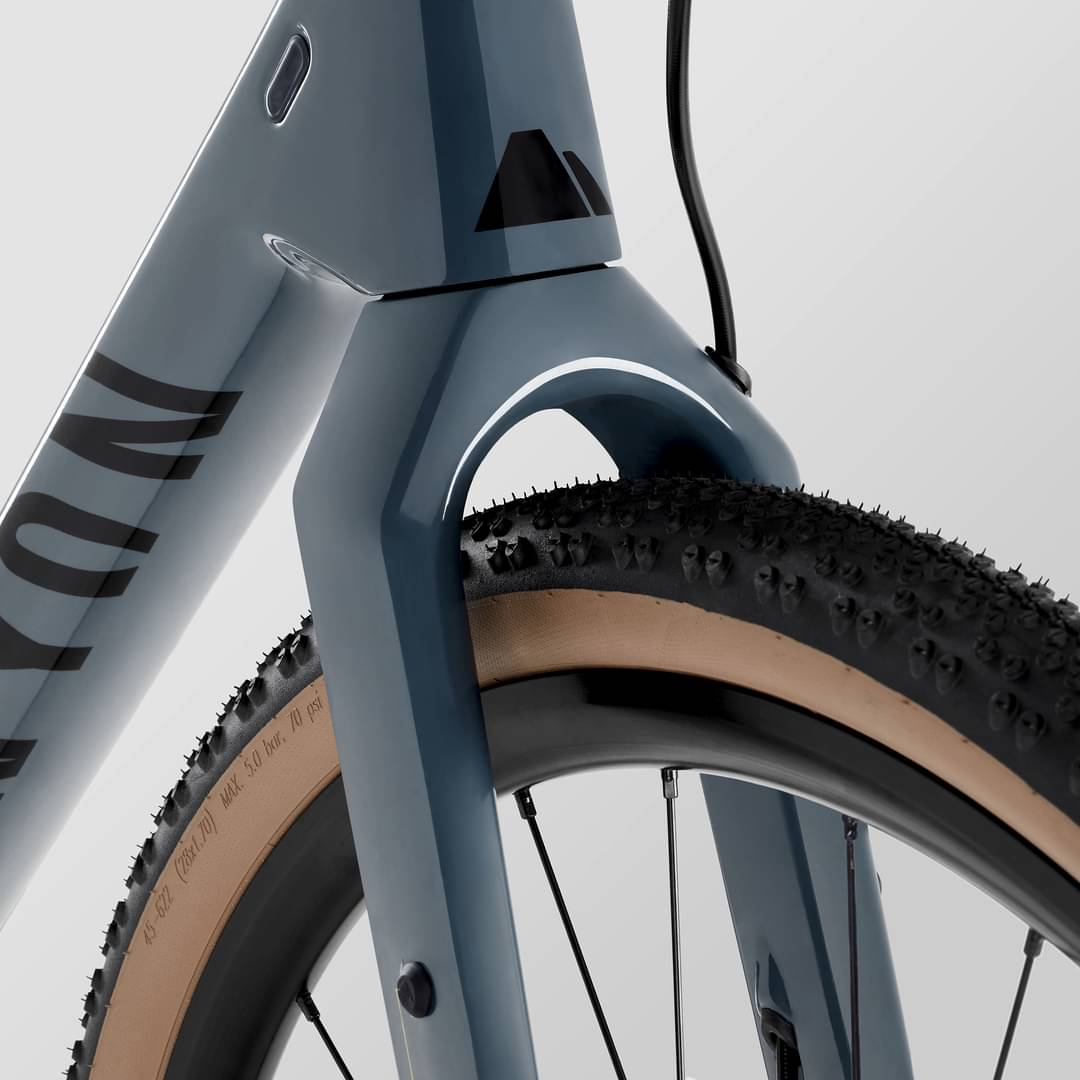

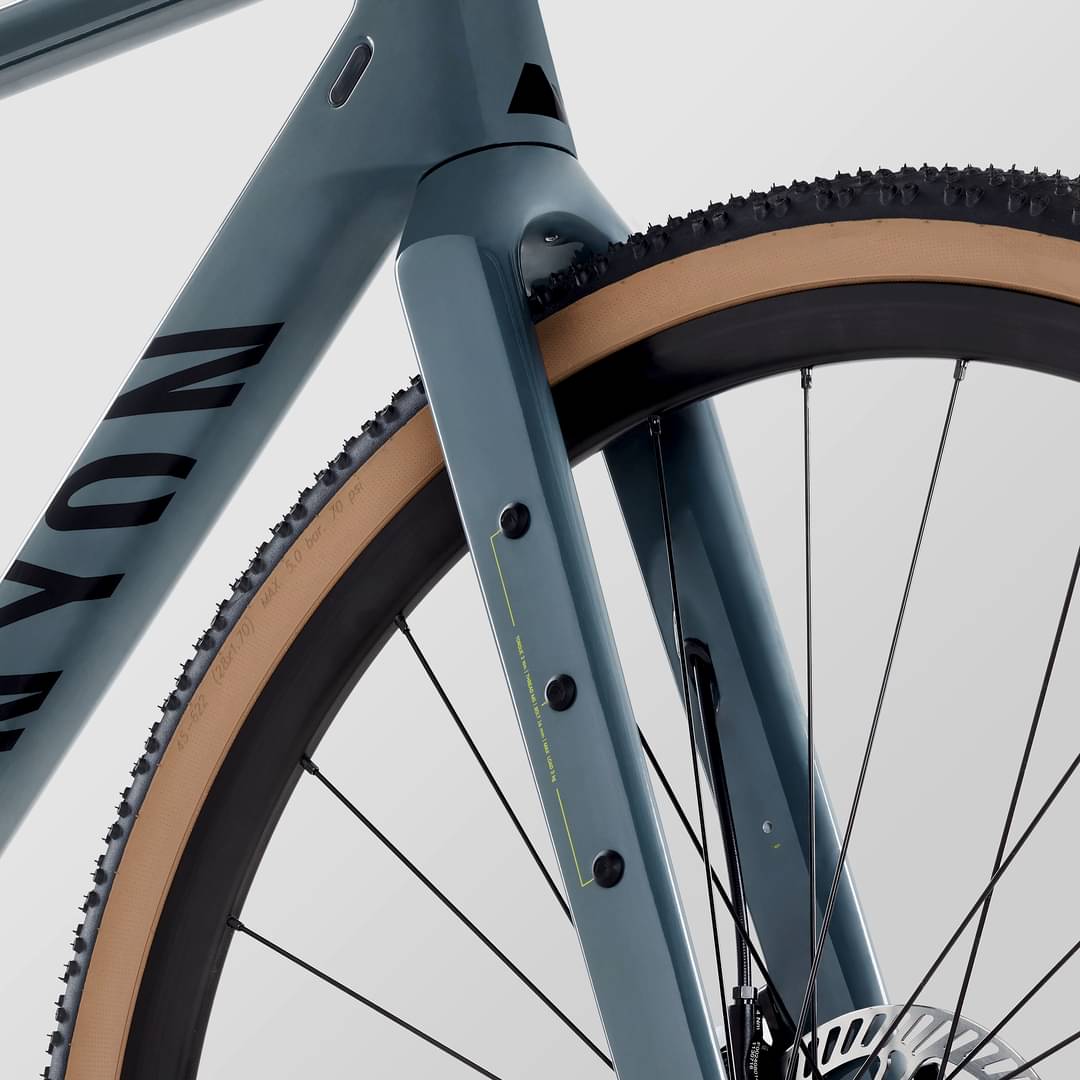

Suspension Fork
Canyon FK0087 CF Disc, Fork steer tube diameter: 1 1/4", Material: Carbon (CF)
Drivetrain
Rear Derailleur
Campagnolo Ekar, 13-speed
Shift Levers
Campagnolo Ekar Ergopower, 13-speed
Cassette
Campagnolo Ekar, 13-speed, 10-44 | Campagnolo Ekar 13-speed Cassette 10-44
Crank
Campagnolo Ekar 40T, 13-speed, Number of chainrings: 1
Bottom Bracket
Campagnolo Pro-Tech Pressfit, Bottom bracket standard: PF 86,5, Weight: 50 g
Chain
Campagnolo Ekar C13 C-Link 13-speed | Campagnolo Ekar 13-speed Chain 177L
Pedals
None included
Wheels
Rims
Fulcrum Rapid Red, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim material: Aluminium, Weight: 940 g | Fulcrum Rapid Red N3W, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim material: Aluminium, Weight: 1.01 kg
Tires
Schwalbe G-One Bite 45mm, Width: 45mm, Weight: 540 g | Schwalbe G-One R Super Race 28" x 45mm Gravel Tyre
Brakes
Brakes
Hydraulic Disc
Brake Levers
Campagnolo Ekar Ergopower, 13-speed

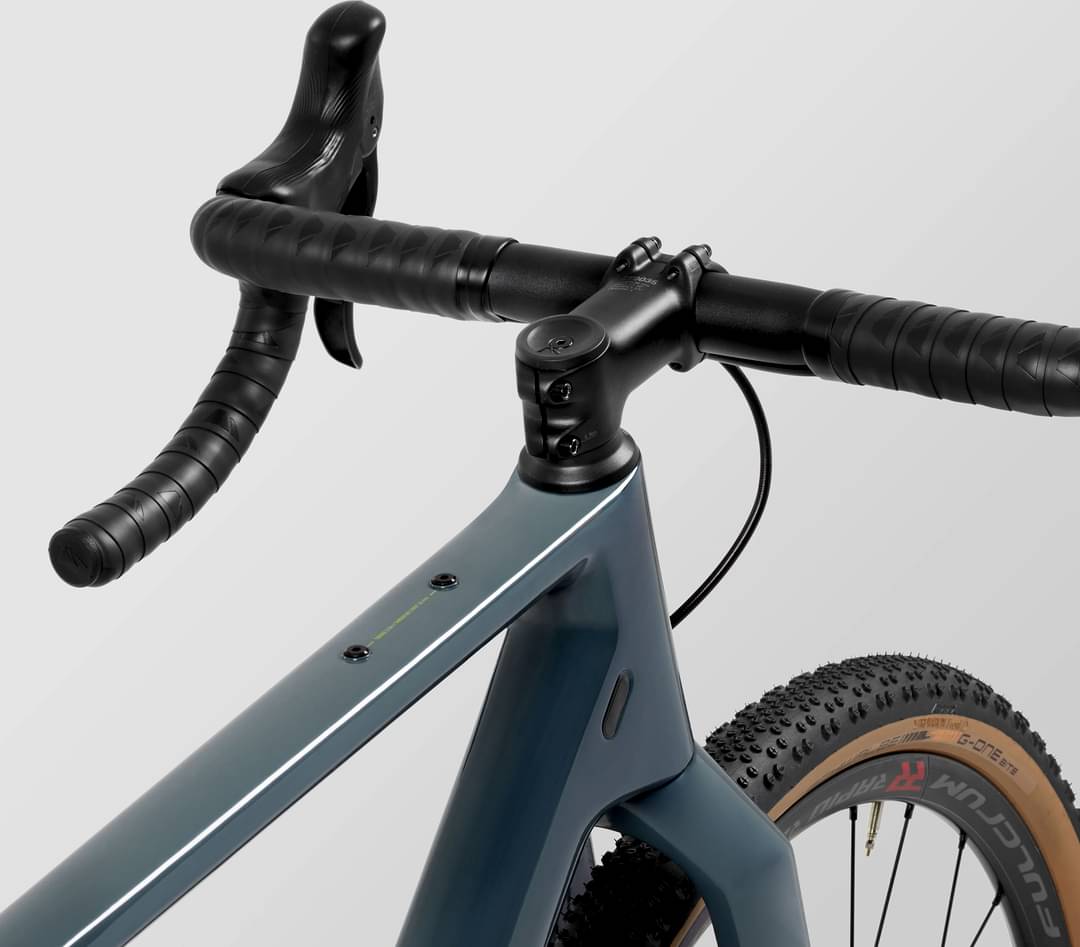

Cockpit
Stem
Canyon ST0035, Fork steer tube diameter: 1 1/4", Clamping diameter: 31,8 mm
Handlebar
Canyon HB0063, Clamping diameter: 31,8 mm, Width: 440 mm
Seat
Saddle
Fizik Argo Terra X5, Gender: Unisex, Weight: 271 g
Seatpost
Canyon S15 VCLS 2.0 CF, Material: Carbon, Setback: 13 mm / 25 mm, Technology: VCLS 2.0 | Fliphead, Weight: 220 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.41 mm | 1.4 mm | 1.44 mm | 1.48 mm | 1.47 mm | 1.48 mm |
| Front Center | 594 mm | 594 mm | 612 mm | 613 mm | 626 mm | 648 mm | 662 mm |
| Rake | 43 mm | 43 mm | 42 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 74 mm | 68 mm | 76 mm | 67 mm | 65 mm | 63 mm | 63 mm |
| Stack | 520 mm | 535 mm | 554 mm | 577 mm | 603 mm | 624 mm | 642 mm |
| Reach | 375 mm | 380 mm | 395 mm | 400 mm | 407 mm | 425 mm | 434 mm |
| Top Tube Length | 520 mm | 529 mm | 550 mm | 562 mm | 576 mm | 600 mm | 615 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 432 mm | 462 mm | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 72.25 ° | 72.5 ° | 72.75 ° | 72.75 ° |
| Head Tube Length | 121 mm | 133 mm | 118 mm | 138 mm | 164 mm | 185 mm | 204 mm |
| Chainstay Length | 418 mm | 418 mm | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1005 mm | 1005 mm | 1034 mm | 1035 mm | 1048 mm | 1070 mm | 1084 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 735 mm | 759 mm | 787 mm | 814 mm | 843 mm | 868 mm | 890 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 190 cm | 195 cm | cm |
Model Overview
Grizl CF SL 8 1by Ekar is a Canyon Grizl model. 65 bikes variations carry this model name so far. Take a sneak peek at all Canyon Grizl bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Canyon Grizl 6 2023 has a starting price of 1499$. Canyon Grizl CF SLX 8 Force AXS Trail 2023 on the other hand is the most expensive at 5626$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2023 and its price was 3715$. In conclusion, this bike price is 50.89% more expensive than the price of the average Gravel bike.
Average weight for Gravel bikes
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
considerably heavier than average, Grizl CF SL 8 1by Ekar has a weight of 9.34 kg (20.59 lbs). In conclusion, the average Gravel bike weighs 14.88% less than Grizl CF SL 8 1by Ekar.
Grizl CF SL 8 1by Ekar components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When it comes to wheels, the Grizl CF SL 8 1by Ekar bike is equipped with the aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Grizl CF SL 8 1by Ekar has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
