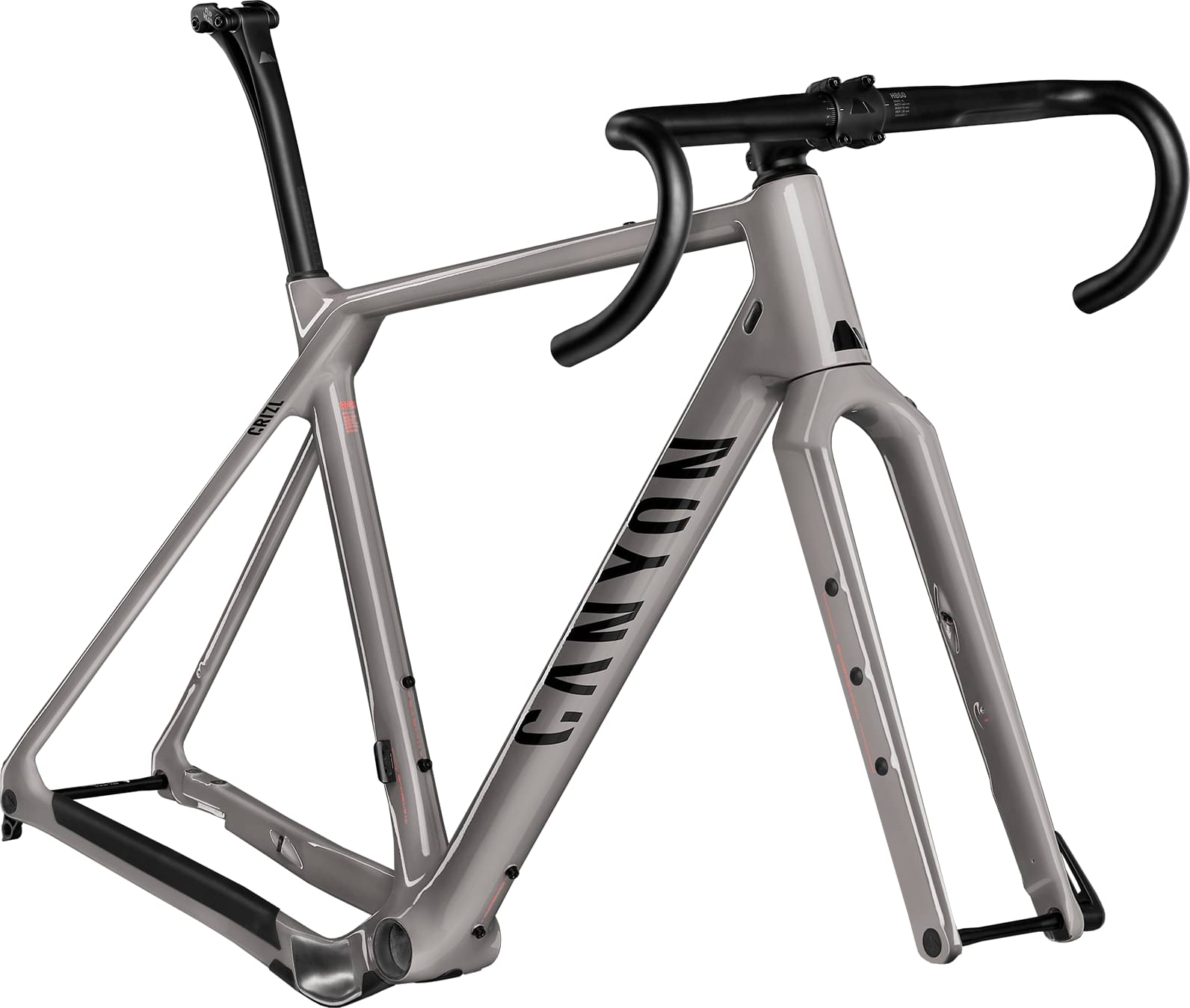

Canyon Grizl CF SL Frameset 2022
2022 Road
Estimate price |
2,063$
Weight | 2.46 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Suspension Rigid
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 190cm
XL
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Grizl CF SL, Material: Carbon (CF)
Suspension Fork
Canyon FK0087 CF Disc, Material: Carbon, Fork dimensions: 1 ¼”, Axle dimensions: 12 x 100 mm, Brake type: disc brakes
Cockpit
Stem
Canyon V13, High-quality aluminium stem with square cross-sectional profile. A new handlebar clamp design increases torsional stiffness by up to 40%. Handlebar clamp diameter: 31.8 mm. Head tube diameter: 1 1/4".
Handlebar
Canyon HB0063, Clamping Diameter: 31,8 mm, Width: 440 mm
Seat
Seatpost
Canyon S15 VCLS 2.0 CF, Material: Carbon, Setback: 13 mm / 25 mm, Technology: VCLS 2.0 | Fliphead, Weight: 220 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.41 mm | 1.4 mm | 1.44 mm | 1.48 mm | 1.47 mm | 1.48 mm |
| Front Center | 594 mm | 594 mm | 612 mm | 613 mm | 626 mm | 648 mm | 662 mm |
| Rake | 43 mm | 43 mm | 42 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 74 mm | 68 mm | 76 mm | 67 mm | 65 mm | 63 mm | 63 mm |
| Stack | 520 mm | 535 mm | 554 mm | 577 mm | 603 mm | 624 mm | 642 mm |
| Reach | 375 mm | 380 mm | 395 mm | 400 mm | 407 mm | 425 mm | 434 mm |
| Top Tube Length | 530 mm | 539 mm | 560 mm | 572 mm | 586 mm | 610 mm | 625 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 432 mm | 462 mm | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 72.25 ° | 72.5 ° | 72.75 ° | 72.75 ° |
| Head Tube Length | 121 mm | 133 mm | 118 mm | 138 mm | 164 mm | 185 mm | 204 mm |
| Chainstay Length | 418 mm | 418 mm | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1005 mm | 1005 mm | 1034 mm | 1035 mm | 1048 mm | 1070 mm | 1084 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 190 cm | 195 cm | cm |
About this model
Grizl CF SL Frameset belongs to the Canyon Grizl model. There are 65 frames that carry this model name. Take a sneak peek at all Canyon Grizl frames models from 2022, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel frames average price
Our math shows that the average cost of a dependable Gravel frame is 1505$. However, even though the average price of a Gravel frame is lower, you might still be able to get a top-quality frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1910$. If we compare this with the average Gravel frame cost we notice that the price is 26.91% more expensive.
Average weight for Gravel frames
Gravel frames weigh an average of 2.06 kg (4.54 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 2.46 kg (5.42 lbs), the Grizl CF SL Frameset model is much heavier than average. In other words, this model is 19.42% heavier than the average Gravel frame.
Overview of components
Fork material
The fork on this frame is made out of carbon, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
