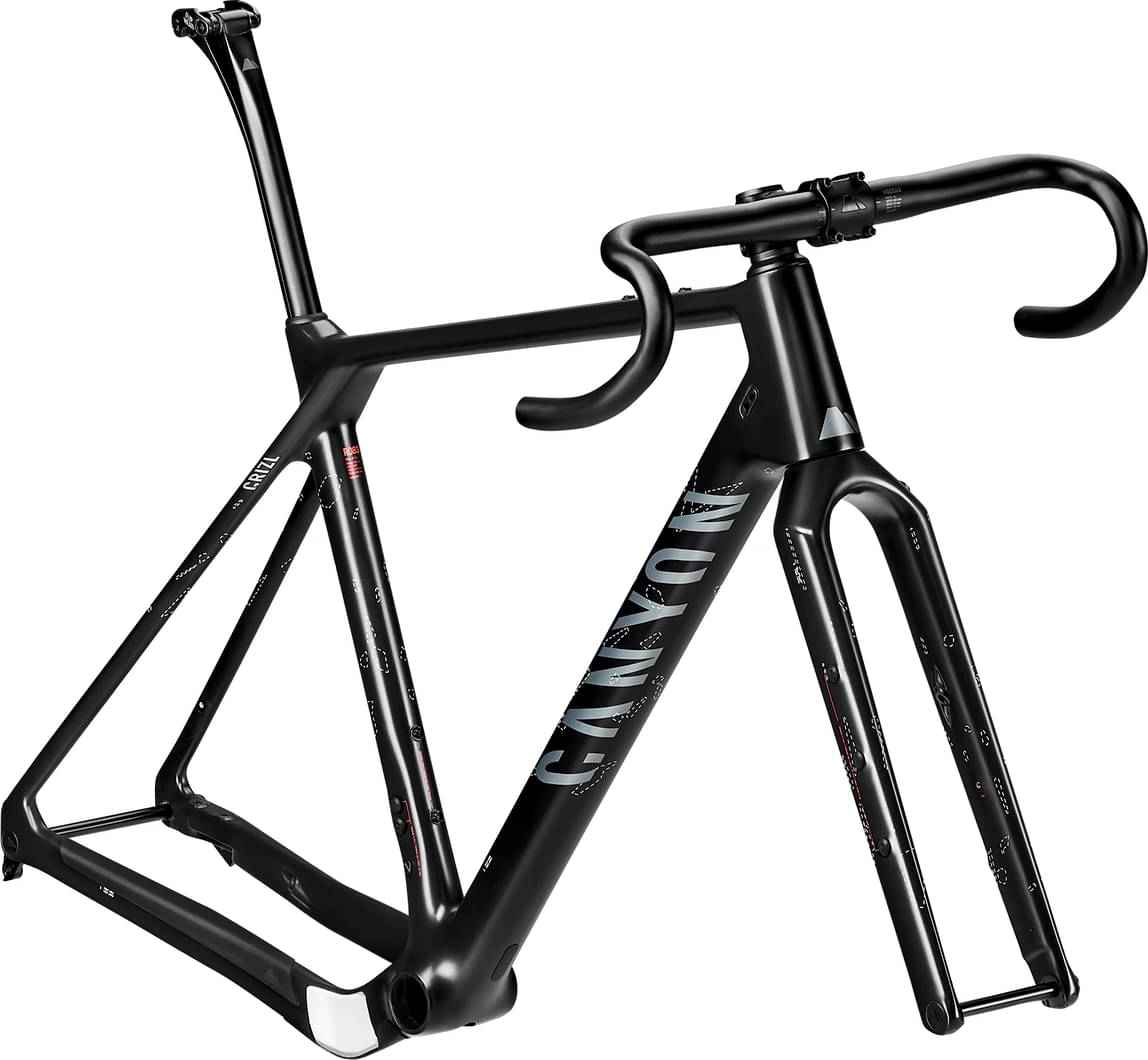

Canyon Grizl CF SLX Frameset 2024
2024 Road
Estimate price |
2,293$
Weight | 2.4 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Suspension Rigid
Sizing
Recommended size guide.
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 190cm
XL
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

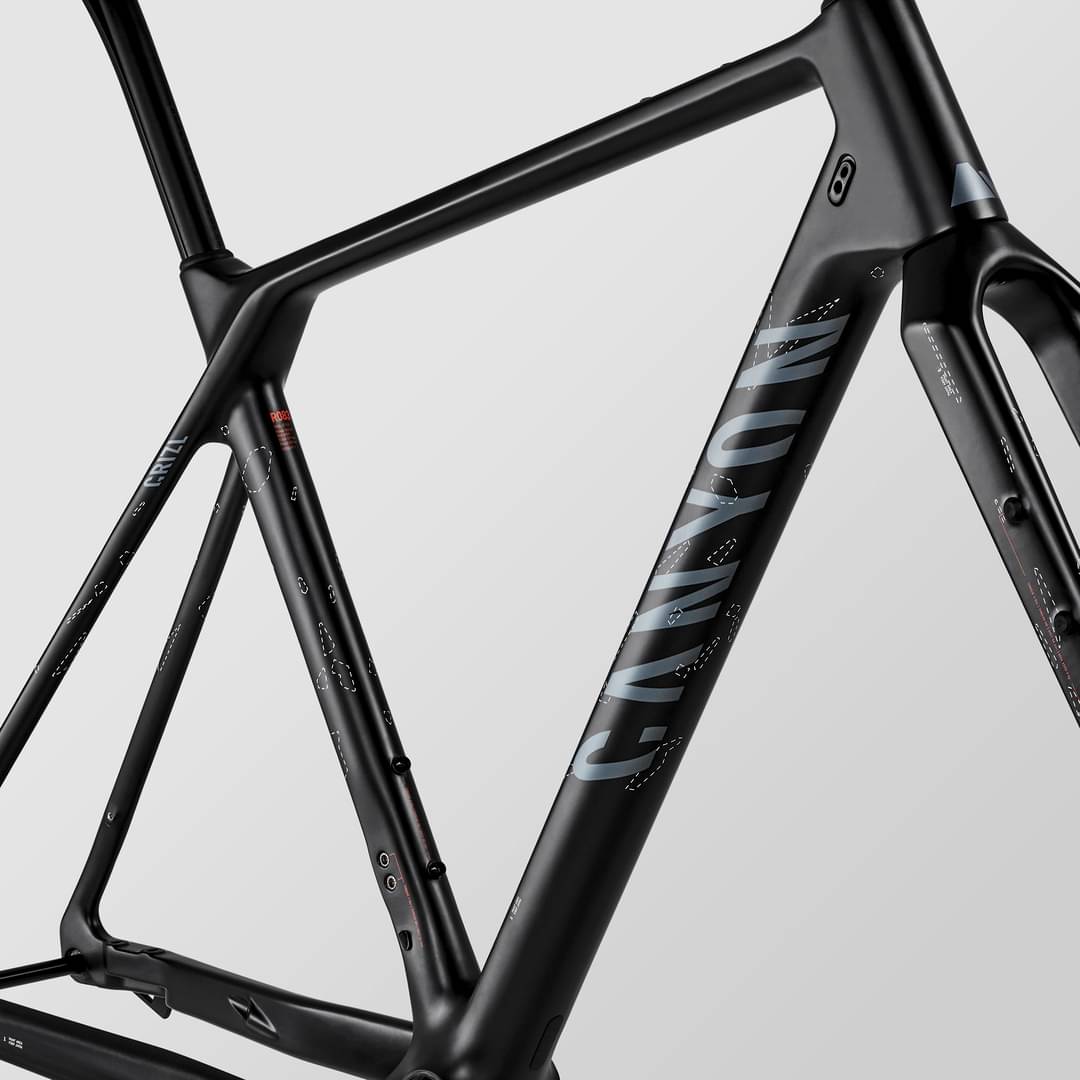

Canyon Grizl CF SLX, Superlight, robust carbon frame with Gravel Pro geometry, 50 mm tyre clearance, and extended wheelbase for extra off-road stability., Axle dimension: 12x142 mm, Tyre Clearance: 50MM, Material: Carbon (CF), Weight: 955 g
Suspension Fork

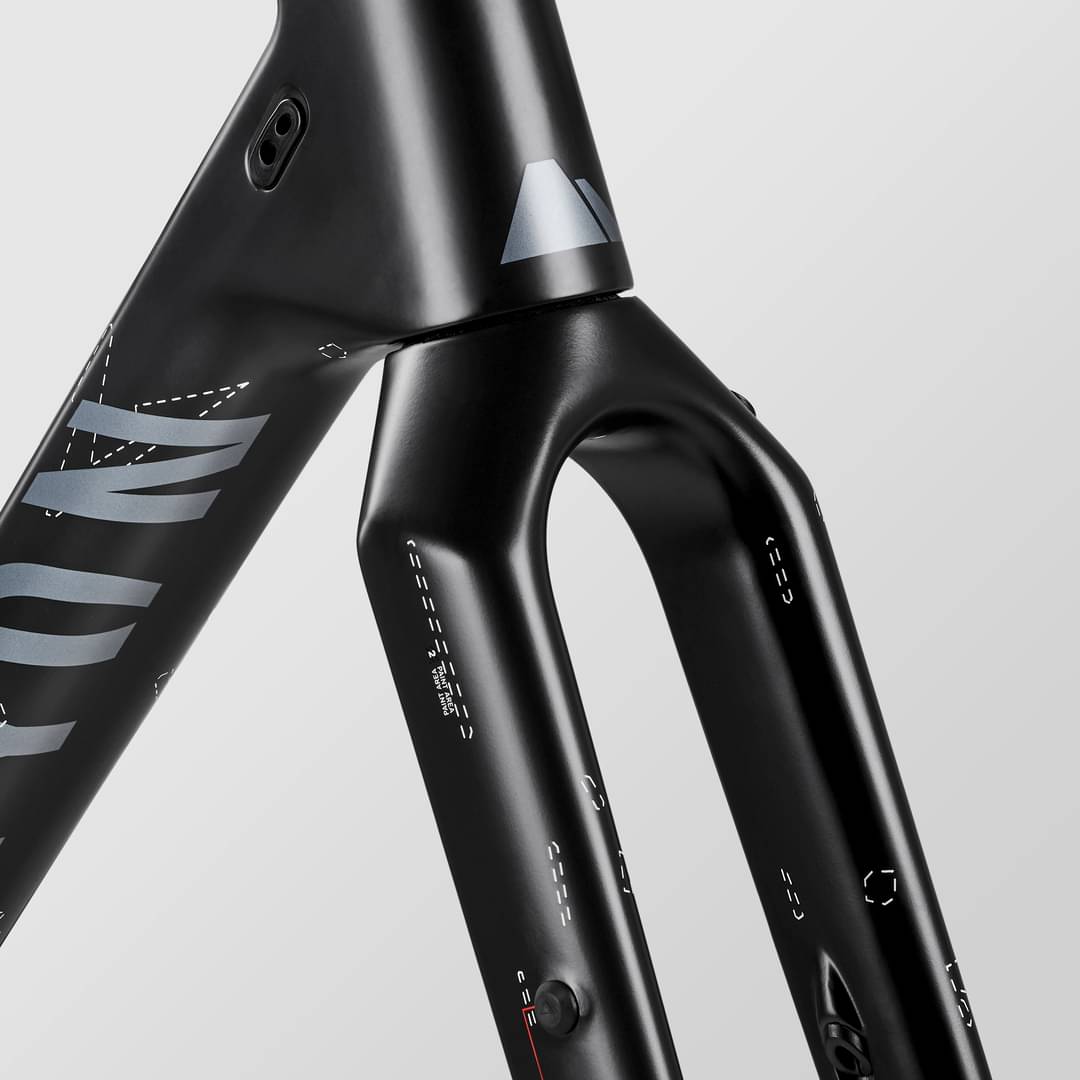

Canyon FK0087 CF Disc, Light, robust carbon frame with 3-screw mounting points on each side for attaching bottle cages and Anything Cages., Fork steer tube diameter: 1 1/4", Tyre Clearance: 54MM, Material: Carbon (CF)
Cockpit
Stem
Canyon V13, High-quality aluminium stem with square cross-sectional profile. A new handlebar clamp design increases torsional stiffness by up to 40%. Handlebar clamp diameter: 31.8 mm. Head tube diameter: 1 1/4"., Fork steer tube diameter: 1 1/4", Clamping diameter: 31,8 mm
Handlebar
Canyon HB0063, Robust aluminium handlebar with flared drops for enhanced off-road control., Clamping diameter: 31,8 mm, Width: 440 mm
Seat
Seatpost

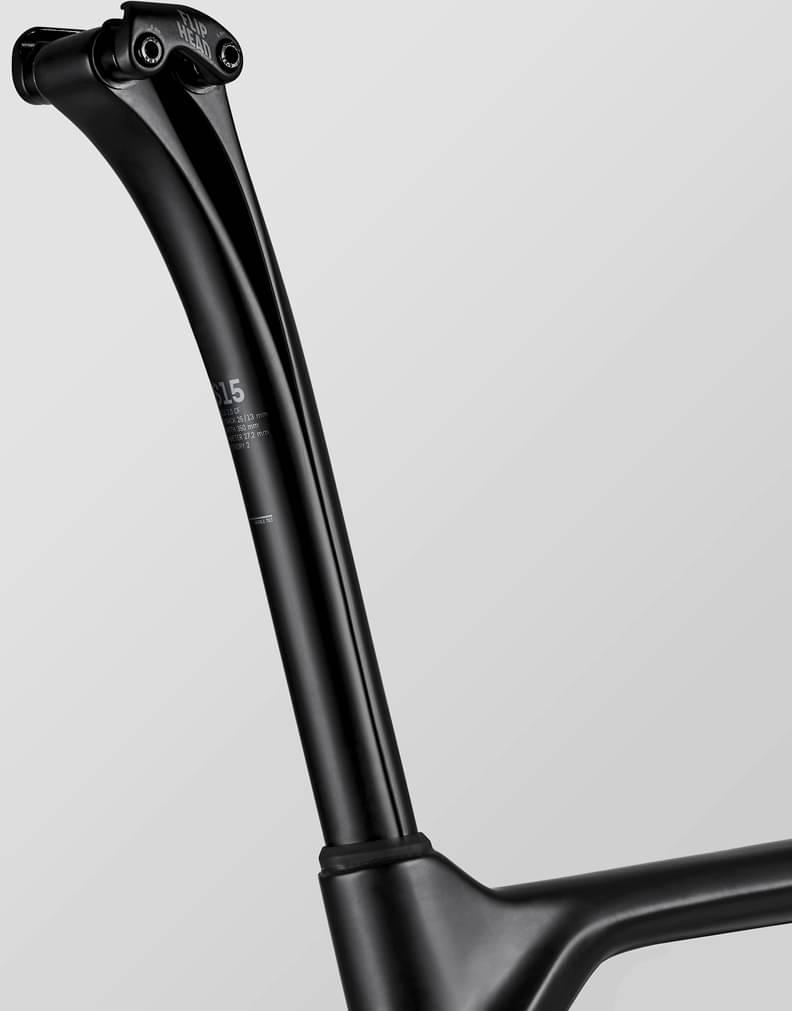

Canyon S15 VCLS 2.0 CF, Shock-absorbing carbon comfort seatpost delivering 20 mm of vertical travel in a lightweight package., Material: Carbon, Setback: 13 mm / 25 mm, Technology: VCLS 2.0 | Fliphead, Weight: 220 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.385 mm | 1.406 mm | 1.401 mm | 1.44 mm | 1.479 mm | 1.466 mm | 1.477 mm |
| Front Center | 594 mm | 594 mm | 612 mm | 613 mm | 626 mm | 648 mm | 662 mm |
| Rake | 43 mm | 43 mm | 42 mm | 43 mm | 41 mm | 43 mm | 43 mm |
| Trail | 74 mm | 68 mm | 76 mm | 67 mm | 69 mm | 63 mm | 63 mm |
| Stack | 522 mm | 537 mm | 556 mm | 579 mm | 605 mm | 626 mm | 644 mm |
| Reach | 377 mm | 382 mm | 397 mm | 402 mm | 409 mm | 427 mm | 436 mm |
| Top Tube Length | 522 mm | 531 mm | 552 mm | 564 mm | 578 mm | 602 mm | 617 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 432 mm | 462 mm | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 72.25 ° | 72.25 ° | 72.75 ° | 72.75 ° |
| Head Tube Length | 121 mm | 133 mm | 118 mm | 138 mm | 164 mm | 185 mm | 204 mm |
| Chainstay Length | 420 mm | 420 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1007 mm | 1007 mm | 1036 mm | 1037 mm | 1050 mm | 1072 mm | 1086 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 737 mm | 761 mm | 789 mm | 816 mm | 845 mm | 870 mm | 892 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 190 cm | 195 cm | cm |
About this model
Grizl CF SLX Frameset is part of the Canyon Grizl model. Canyon launched 80 frames of this model so far. You can get a glimpse at all models from 2024, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel frames
If you want to purchase a solid Gravel frame, it is important to know that the average cost is 1505$. However, even though the average price of a Gravel frame is lower, you might still be able to get a top-quality frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
When Canyon released this model in 2024, its price was 2117$. Comparing the average cost of a Gravel frame to this one, you will see that Grizl CF SLX Frameset price is 40.66% more expensive.
Average weight for Gravel frames
On a deeper look, we notice that the average weight of a Gravel frame is 2.06 kg (4.54 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much heavier than average, Grizl CF SLX Frameset has a weight of 2.4 kg (5.29 lbs). To sum up, it’s 16.5% heavier than the average weight of Gravel frames.
Grizl CF SLX Frameset components
Fork material
When it comes to the fork, this frame has a carbon one, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Dropper post
Canyon Grizl CF SLX Frameset comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
