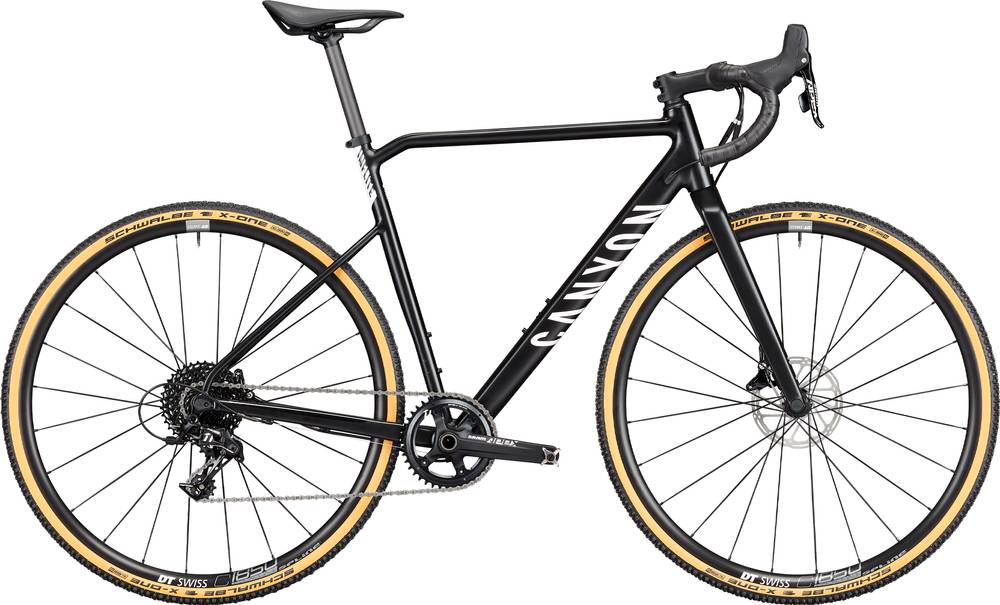

Canyon Inflite 5 2021
2021 Road
Estimate price |
1,788$
Weight | 8.85 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 650b / 700c -
Groupset Apex 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
159cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
189cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Inflite AL SLX Disc
Suspension Fork
Canyon FK0045 Disc
Drivetrain
Rear Derailleur
SRAM Apex 1 SGS
Shift Levers
SRAM Apex 1 HRD 11s
Cassette
SRAM PG-1130 11-36 11s
Crank
SRAM Apex 1 40T 40
Bottom Bracket
SRAM Pressfit GXP
Chain
SRAM PC 1110 11s
Pedals
None included
Wheels
Rims
DT Swiss C 1850 Spline db SH11, Rim Material: Aluminium, Rim Height: 23 mm, Inner Width: 22 mm, Weight: 979 g
Tires
Schwalbe X-One Allround TLE
Brakes
Brake Levers
SRAM Apex 1 HRD 11s
Disk Rotors
SRAM Centerline Rounded Edges, Disc Mount: 6-Hole
Cockpit
Stem
Canyon V13
Handlebar
Canyon H17 Ergobar AL, Material: Aluminium, Shape: Ergo, Reach: 70 mm, Drop: 130 mm
Seat
Saddle
Selle Italia Model X
Seatpost
Canyon SP0042 VCLS CF, Material: Carbon, Setback: 8 mm, Technology: VCLS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXXS | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.37 mm | 1.4 mm | 1.4 mm | 1.45 mm | 1.47 mm | 1.47 mm | 1.48 mm |
| Front Center | 561 mm | 571 mm | 584 mm | 590 mm | 601 mm | 617 mm | 638 mm | 655 mm |
| Rake | 43 mm | 43 mm | 43 mm | 42 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 71 mm | 63 mm | 73 mm | 66 mm | 63 mm | 63 mm | 62 mm | 62 mm |
| Stack | 492 mm | 515 mm | 532 mm | 552 mm | 577 mm | 598 mm | 621 mm | 642 mm |
| Reach | 362 mm | 376 mm | 381 mm | 393 mm | 398 mm | 407 mm | 423 mm | 433 mm |
| Top Tube Length | 506 mm | 527 mm | 537 mm | 555 mm | 567 mm | 583 mm | 606 mm | 622 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 422 mm | 452 mm | 482 mm | 512 mm | 542 mm | 572 mm | 602 mm | 632 mm |
| Head Tube Angle | 70.2 ° | 71.5 ° | 71 ° | 72.25 ° | 72.5 ° | 72.5 ° | 72.7 ° | 72.7 ° |
| Head Tube Length | 94 mm | 113 mm | 102 mm | 119 mm | 146 mm | 168 mm | 192 mm | 214 mm |
| Chainstay Length | 420 mm | 420 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 975 mm | 985 mm | 1005 mm | 1011 mm | 1023 mm | 1039 mm | 1060 mm | 1077 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 66 mm | 66 mm | 64 mm | 64 mm | 64 mm | 64 mm |
| Standover Height | 718 mm | 744 mm | 775 mm | 800 mm | 830 mm | 853 mm | 879 mm | 904 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 161 cm | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
About this model
Inflite 5 is a Canyon Inflite model. There are 48 bikes that carry this model name. Take a sneak peek at all Canyon Inflite bikes models from 2021, by clicking here.
Model range prices
The most economical model, the Canyon Inflite 5 2021 has a starting price of 1655$. Canyon Inflite CF SLX 9 Team 2021 on the other hand is the most expensive at 4499$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Cyclocross bikes average price
According to our calculations, the average cost of a Cyclocross bike that is reliable is 2012$. However, even if your budget is less than the average, you might still be able to get a top-quality Cyclocross bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1655$. Comparing the average cost of a Cyclocross bike to this one, you will see that Inflite 5 price is 21.57% lower.
Cyclocross bikes average weight
The average weight for Cyclocross bikes is 8.79 kg (19.38 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 8.85 kg (19.51 lbs), the Inflite 5 model is slightly heavier than average. To sum up, it’s 0.68% heavier than the average weight of Cyclocross bikes.
Inflite 5 components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Canyon Inflite 5 2021, has a aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Inflite 5 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
