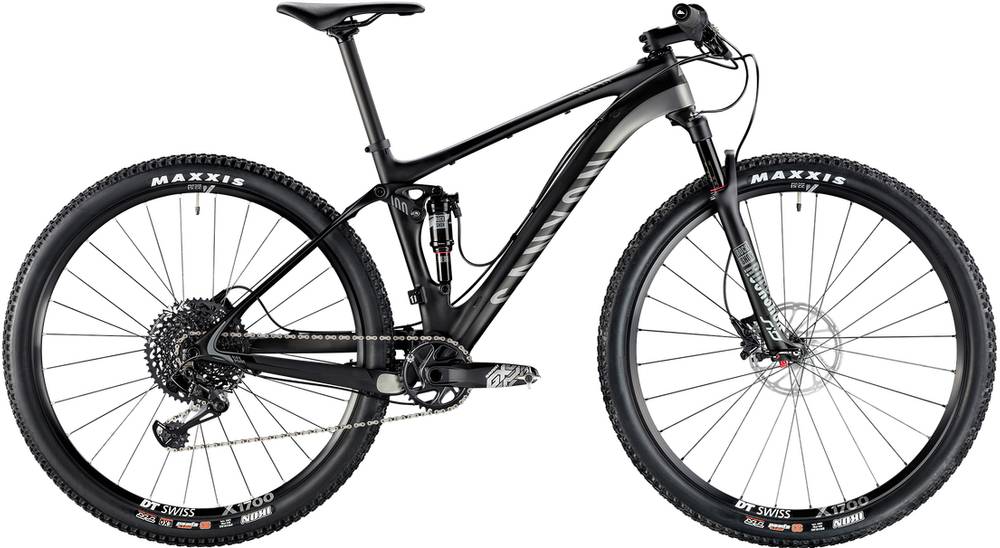

Canyon Lux CF 7.0 Pro Race 2018
2018 Mountain
Estimate price |
3,299$
Weight | 11.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork RockShox SID
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Lux CF 29, Single piece carbon rear triangle, Carbon Flex Pivot, Carbon monocoque main triangle, Single piece aluminium rocker, Internal Cable Routing, Internal routing for dropper seatposts, Chain suck protection plate, Press-Fit Bottom Bracket, Tapered Steerer, Tapered Head Tube
Suspension Fork
RockShox SID XX, Spring travel: 100 mm, BOOST, Air suspension, Adjustable rebound, Connectible lockout, Quick-release axle, X-Loc
Rear Shock
RockShox Monarch XX Full Sprint Remote, Hydraulic XLoc Full Sprint remote lockout system with floodgate, Dual Flow damping, Rebound adjustment, Compression adjustment
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12s
Shift Levers
SRAM GX Eagle Grip Shift, 12s
Cassette
SRAM XG-1275 Eagle, 12s
Crank
SRAM GX Eagle, 12s
Bottom Bracket
SRAM GXP Pressfit
Chain
SRAM GX Eagle
Pedals
none included
Wheels
Rims
DT Swiss X 1700 Spline TWO, Rim Width: 22,5 mm
Tires
Maxxis Ardent Race | Maxxis Ikon
Brakes
Brakes
SRAM Level T, 2-piston brake calliper, Aluminium brake lever, DirectLink, Organic brake discs, Brake disc size: 180/160 mm
Cockpit
Stem
Canyon V14, Angle: +/- 6°, 1 1/8" Stem clamp, In-house developed Canyon stem with new clamping concept for added security, Hexagonal profile design for extra torsional stiffness, Compliant with Canyon Category 3 testing standards
Handlebar
Canyon H12 Flat AL, Width: 720 mm, Rise: +/- 5 mm, Backsweep: 9°, In-house developed Canyon handlebars with lightweight aluminium construction and balanced geometry, Compliant with Canyon Category 3 testing standards
Grips
Canyon Race Grip, Ultralight silicone grip, Specially adapted for grip shift, Outer diameter: 32 mm black
Headset
Cane Creek 40 | IPU Top Cap
Seat
Saddle
Selle Italia SLS, Length & width: 275 x 131 mm
Seatpost
Canyon S29 VCLS CF, Seat post developed by Canyon with VCLS technology for greater comfort with greater stability, Compliant with Canyon Category 3 testing standards
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.44 mm | 1.4 mm | 1.36 mm |
| Bottom Bracket Height | 414 mm | 414 mm | 414 mm | 414 mm |
| Front Center | 640 mm | 667 mm | 688 mm | 715 mm |
| Rake | 18 mm | 19 mm | 18 mm | 19 mm |
| Trail | 117 mm | 116 mm | 117 mm | 116 mm |
| Stack | 577 mm | 589 mm | 599 mm | 611 mm |
| Reach | 388 mm | 410 mm | 428 mm | 450 mm |
| Top Tube Length | 555 mm | 580 mm | 601 mm | 627 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 395 mm | 445 mm | 485 mm | 535 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 92 mm | 105 mm | 115 mm | 128 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1082 mm | 1109 mm | 1130 mm | 1157 mm |
| Bottom Bracket Drop | -40 mm | -40 mm | -40 mm | -40 mm |
| Standover Height | 795 mm | 805 mm | 811 mm | 839 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Rear Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Lux CF 7.0 Pro Race completes the Canyon Lux model. Canyon launched 57 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
The most economical model, the Canyon LUX CF SL 6.0 Pro Race 2018 has a starting price of 2999$. Canyon Lux CF 9.0 Pro Race Team 2018 on the other hand is the most expensive at 6799$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2018 for 3299$. Doing a quick comparison, we notice that Lux CF 7.0 Pro Race price is 73.18% higher than the average cost of a Crosscountry bike.
Crosscountry bikes average weight
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Canyon Lux CF 7.0 Pro Race it’s weighing 11.2 kg (24.69 lbs). At this weight, is considerably lighter than average. To sum up, it’s 10.71% lighter than the average weight of Crosscountry bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The fork installed on this bike is the RockShox SID model. The travel on this model is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The Lux CF 7.0 Pro Race has a rear shock with a travel of 100mm. The model RockShox Monarch XX Full Sprint Remote is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The wheels on Lux CF 7.0 Pro Race are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Lux CF 7.0 Pro Race is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Lux CF 7.0 Pro Race comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
