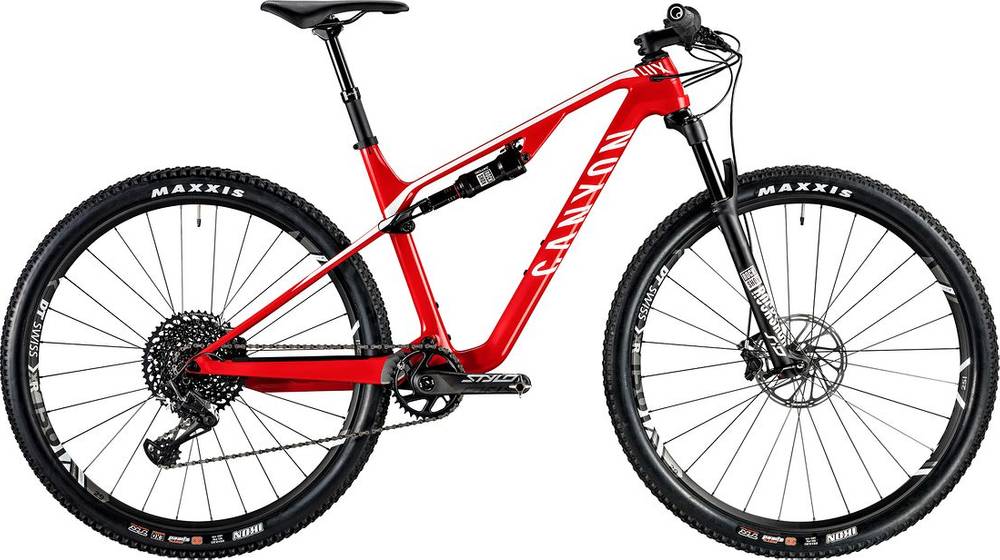

Canyon LUX CF SL 8.0 Pro Race 2018
2018 Mountain
Estimate price |
4,299$
Weight | 11.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 110mm -
Travel Rear 100mm -
Fork RockShox SID
-
Groupset X01 Eagle, Truvativ Stylo Carbon -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon LUX CF SL
Suspension Fork
RockShox SID RLC
Rear Shock
RockShox Deluxe RLR
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12s, X-Horizon derailleur, X-Actuation, X-Sync, Roller Bearing Clutch, Cage Lock, Long aluminium cage, 12-speed
Shift Levers
SRAM X01 Eagle Grip Shift, 12s, Carbon fibre, 12-speed, JAWS, Rolling Thunder, Speed Metal, X-Actuation
Cassette
SRAM XG-1275 Eagle, 12s
Crank
SRAM Stylo Carbon DUB, 12s
Bottom Bracket
SRAM DUB Pressfit
Chain
SRAM GX Eagle
Pedals
none included
Wheels
Rims
DT Swiss XR 1501 Spline ONE, 28 forged straight-pull spokes, Forged two-part hubs, DT Swiss Ratchet System, Rim width: 25 mm
Tires
Maxxis IKON, 3C MaxxSpeed, Tubeless-Ready, 120tpi, Low rolling resistance
Brakes
Brakes
SRAM Level TLM, 2-piston monoblock brake calliper, Aluminium brake lever, DirectLink, Bleeding Edge, Organic brake discs, Brake disc size: 180/160 mm
Cockpit
Stem
Canyon V14, Angle: +/- 6°, 1 1/8" Stem clamp, In-house developed Canyon stem with new clamping concept for added security, Hexagonal profile design for extra torsional stiffness, Compliant with Canyon Category 3 testing standards
Handlebar
Canyon H12 Flat AL, Width: 720 mm, Rise: +/- 5 mm, Backsweep: 9°, In-house developed Canyon handlebars with lightweight aluminium construction and balanced geometry, Compliant with Canyon Category 3 testing standards
Grips
Ergon GA20 Single Twist Shift
Headset
Canyon | Acros, Canyon engineered with extra thin and light bearings, IPU Top Cap
Seat
Saddle
Selle Italia SLS, Length & width: 275 x 131 mm
Seatpost
Kind Shock LEV SI
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.39 mm | 1.36 mm | 1.35 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 673 mm | 696 mm | 721 mm | 750 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 85 mm | 85 mm | 85 mm | 85 mm |
| Stack | 576.1 mm | 585.5 mm | 599.7 mm | 623.3 mm |
| Reach | 401 mm | 421.1 mm | 441.1 mm | 460.9 mm |
| Top Tube Length | 564.9 mm | 591.3 mm | 615.2 mm | 641.8 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 425 mm | 465 mm | 505 mm | 545 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 140 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1096 mm | 1120 mm | 1145 mm | 1173 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 782 mm | 785 mm | 792 mm | 807 mm |
| Front Travel | 110 mm | 110 mm | 110 mm | 110 mm |
| Rear Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
LUX CF SL 8.0 Pro Race is a Canyon Lux model. There are 57 bikes that carry this model name. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Canyon LUX CF SL 6.0 Pro Race 2018 is the cheapest bike model and costs 2999$. Canyon Lux CF 9.0 Pro Race Team 2018 is the most expensive one and costs 6799$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Canyon released this model in 2018, its price was 4299$. If we compare this with the average Crosscountry bike cost we notice that the price is 125.67% more expensive.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Canyon LUX CF SL 8.0 Pro Race it’s weighing 11.3 kg (24.91 lbs). At this weight, is a bit lighter than average. In other words, this model is 9.73% lighter than the average Crosscountry bike.
Overview of components
Fork
The RockShox SID is included from the factory. It has a travel distance of 110mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is RockShox Deluxe RLR, with a travel distance of 100mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When leaving the production line, the LUX CF SL 8.0 Pro Race model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Canyon LUX CF SL 8.0 Pro Race has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
LUX CF SL 8.0 Pro Race comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
