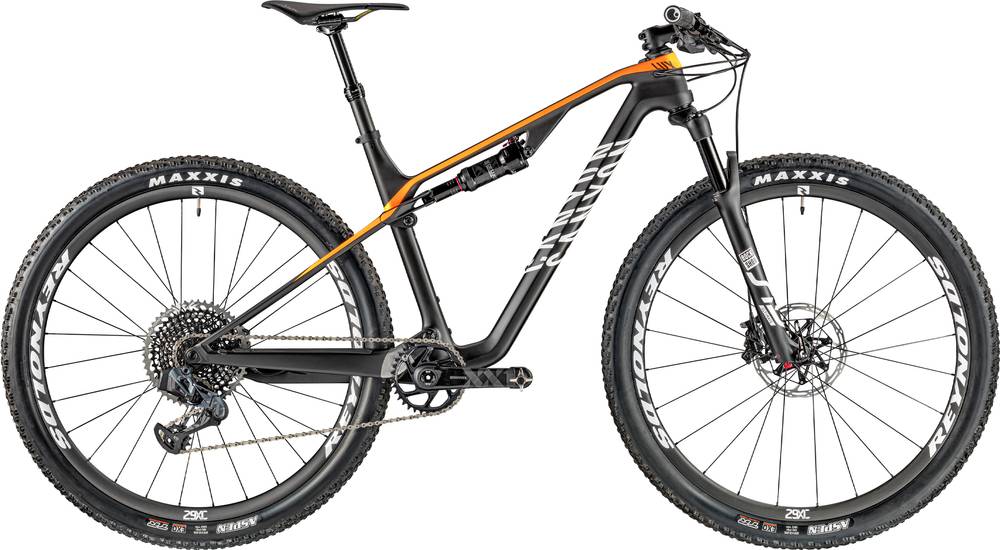

Canyon Lux CF SLX 9.0 Race Limited 2020
2020 Mountain
Estimate price |
7,999$
Weight | 10.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork RockShox SID Ultimate
-
Groupset XX1 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Lux CF SLX, Material: Carbon, Travel: 100 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Flat Mount
Suspension Fork
RockShox SID Ultimate Carbon Remote
Rear Shock
RockShox Deluxe Ultimate Remote
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS
Shift Levers
SRAM XX1 Eagle AXS 12s
Cassette
SRAM XG-1295 Eagle 10-50 12s
Crank
SRAM XX1 Eagle DUB 34T, Material: Carbon 34
Bottom Bracket
SRAM Pressfit DUB
Chain
SRAM X01 Eagle 12s
Pedals
None included
Wheels
Rims
Reynolds Blacklabel XC, Rim Material: Carbon, Inner Width: 25 mm, Weight: 552 g | Reynolds Blacklabel XC XD, Rim Material: Carbon, Inner Width: 25 mm, Weight: 828 g
Tires
MAXXIS Aspen 2.25"
Brakes
Brakes
SRAM Level Ultimate
Disk Rotors
SRAM Centerline X Rounded Edges, Disc Mount: Centerlock
Cockpit
Stem
Canyon V14
Handlebar
Canyon H20 Carbon Flatbar, Material: Carbon, Rise : 5 mm
Grips
Ergon GA20
Seat
Saddle
Selle Italia SLR Kit Carbonio
Seatpost
Kind Shock Lev CI
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.37 mm | 1.34 mm | 1.33 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 670 mm | 694 mm | 719 mm | 747 mm |
| Rake | 52 mm | 53 mm | 53 mm | 52 mm |
| Trail | 81 mm | 80 mm | 80 mm | 81 mm |
| Stack | 573 mm | 582 mm | 596 mm | 620 mm |
| Reach | 406 mm | 426 mm | 446 mm | 466 mm |
| Top Tube Length | 567 mm | 590 mm | 614 mm | 640 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 425 mm | 465 mm | 505 mm | 545 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 140 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1093 mm | 1117 mm | 1142 mm | 1170 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 777 mm | 780 mm | 787 mm | 802 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Rear Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 176 cm | 184 cm | 193 cm | cm |
Model Overview
Lux CF SLX 9.0 Race Limited is part of the Canyon Lux model. Canyon released 57 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Canyon Lux CF SL 6.0 2020 is the most affordable bike of this model and has a price of 3399$. On the other hand, Canyon Lux CF SLX 9.0 Race Limited 2020, is the most expensive and costs 7999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7999$. If we compare this with the average Crosscountry bike cost we notice that the price is 319.9% more expensive.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Canyon Lux CF SLX 9.0 Race Limited it’s weighing 10.2 kg (22.49 lbs). At this weight, is much lighter than average. To sum up, it’s 21.57% lighter than the average weight of Crosscountry bikes.
Overview of components
Fork
Canyon Lux CF SLX 9.0 Race Limited 2020 bike is equipped with the RockShox SID Ultimate fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Rear Shock
The shock that’s installed on this bike is RockShox Deluxe Ultimate Remote, with a travel distance of 100mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, Canyon Lux CF SLX 9.0 Race Limited 2020, has a 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Lux CF SLX 9.0 Race Limited has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
The Canyon model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
