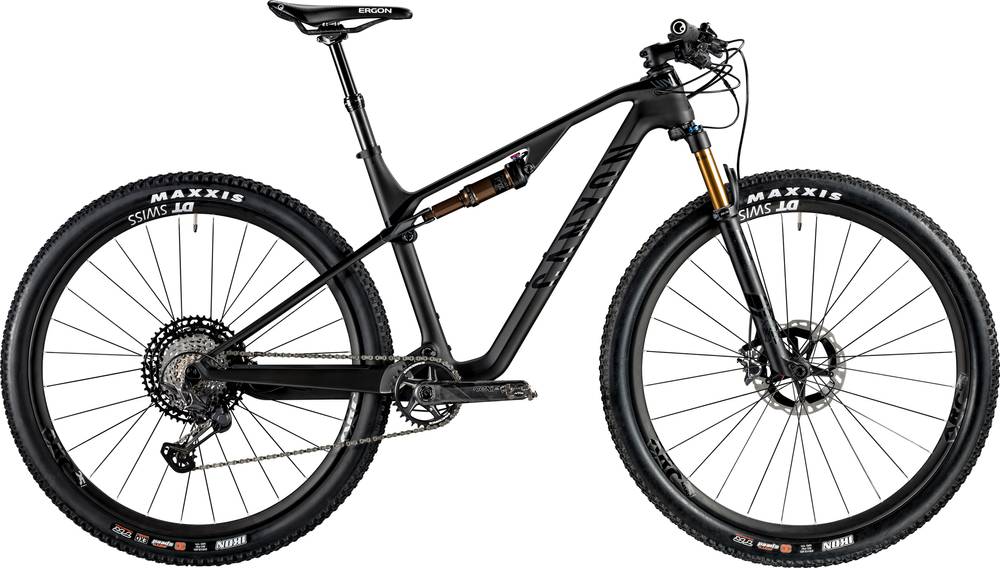

Canyon Lux CF SLX 9.0 Race Team 2019
2019 Mountain
Estimate price |
7,500$
Weight | 10.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Factory Float 32
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 176cm
MD
174cm - 184cm
LG
182cm - 193cm
XL
191cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Lux CF SLX, Material: Carbon, Travel: 100 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Flat Mount
Suspension Fork
FOX 32 Stepcast Factory, Travel: 100 mm, Technology: FIT4, Axle Dimension: 15 x 110 mm, Remote: Remote Lever
Rear Shock
FOX FLOAT DPS Factory Remote, Length: 210 x 55 mm
Drivetrain
Rear Derailleur
Shimano XTR M9100 SGS
Shift Levers
Shimano XTR M9100 12s, Clamp: I-Spec EV
Cassette
Shimano XTR M9100 10-51 12s
Crank
Race Face Next SL G5 Carbon 34T 34
Bottom Bracket
Race Face Pressfit Cinch
Chain
Shimano XTR, 12s, SH CN-M9100
Pedals
None included
Wheels
Rims
DT Swiss XRC 1200, Rim Material: Carbon, Inner Width: 25 mm, Weight: 647 g | DT Swiss XRC 1200 SH12, Rim Material: Carbon, Inner Width: 25 mm, Freewheel: Ratchet, Weight: 787 g
Tires
MAXXIS Ikon 2.2'', Compound: 3C Triple, Technology: Tubeless ready | MAXXIS Ikon 2.2'', Casing: Exo, Compound: 3C Triple, Technology: Tubeless ready
Brakes
Brakes
Shimano XTR M9100
Disk Rotors
RT SHIM RT-MT900 180 CL W / LOCK RING EX | Shimano RT-MT900, Disc Mount: Centerlock
Cockpit
Stem
Canyon V14
Handlebar
Canyon H20 Carbon Flatbar, Material: Carbon, Rise : 5 mm
Grips
Ergon GA20
Headset
Canyon | Acros, Canyon engineered with extra thin and light bearings, IPU Top Cap
Seat
Saddle
Ergon SM Team
Seatpost
Kind Shock Lev CI
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.39 mm | 1.36 mm | 1.35 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 673 mm | 696 mm | 721 mm | 750 mm |
| Rake | 58 mm | 57 mm | 57 mm | 58 mm |
| Trail | 75 mm | 76 mm | 76 mm | 75 mm |
| Stack | 576 mm | 586 mm | 600 mm | 623 mm |
| Reach | 401 mm | 421 mm | 441 mm | 461 mm |
| Top Tube Length | 566 mm | 591 mm | 616 mm | 641 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 425 mm | 465 mm | 505 mm | 545 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 140 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1097 mm | 1120 mm | 1145 mm | 1174 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 777 mm | 780 mm | 787 mm | 802 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Rear Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 174 cm | 182 cm | 191 cm |
| Rider Max Height | 176 cm | 184 cm | 193 cm | 199 cm |
Model Overview
Lux CF SLX 9.0 Race Team is part of the Canyon Lux model. Canyon released 57 bikes variations of this model so far. You can easily view all of the Canyon Lux bikes models from 2019, here.
Model range prices
Canyon Lux CF SL 6.0 Pro Race 2019 is the cheapest bike model and costs 2999$. Canyon Lux CF SLX 9.0 Race Team 2019 is the most expensive one and costs 7500$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2019 for 7500$. Comparing the average cost of a Crosscountry bike to this one, you will see that Lux CF SLX 9.0 Race Team price is 293.7% higher.
Average weight for Crosscountry bikes
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 10.2 kg (22.49 lbs), Canyon bike is much lighter than average. In short, the average Crosscountry bike weight is 21.57% higher than this one.
Lux CF SLX 9.0 Race Team components
Fork
The Fox Factory Float 32 is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this bike has the FOX FLOAT DPS Factory Remote model, with a travel of 100mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the Lux CF SLX 9.0 Race Team bike is equipped with the 29″ carbon model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Canyon Lux CF SLX 9.0 Race Team bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Canyon Lux CF SLX 9.0 Race Team includes a dropper post. Therefore, climbing or descending will be a breeze.
