Canyon Lux CF SLX Frameset MVDP 2021
2021 Mountain
Estimate price |
4,013$
Weight | 2.1 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Suspension Full
Sizing
Recommended size guide.
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

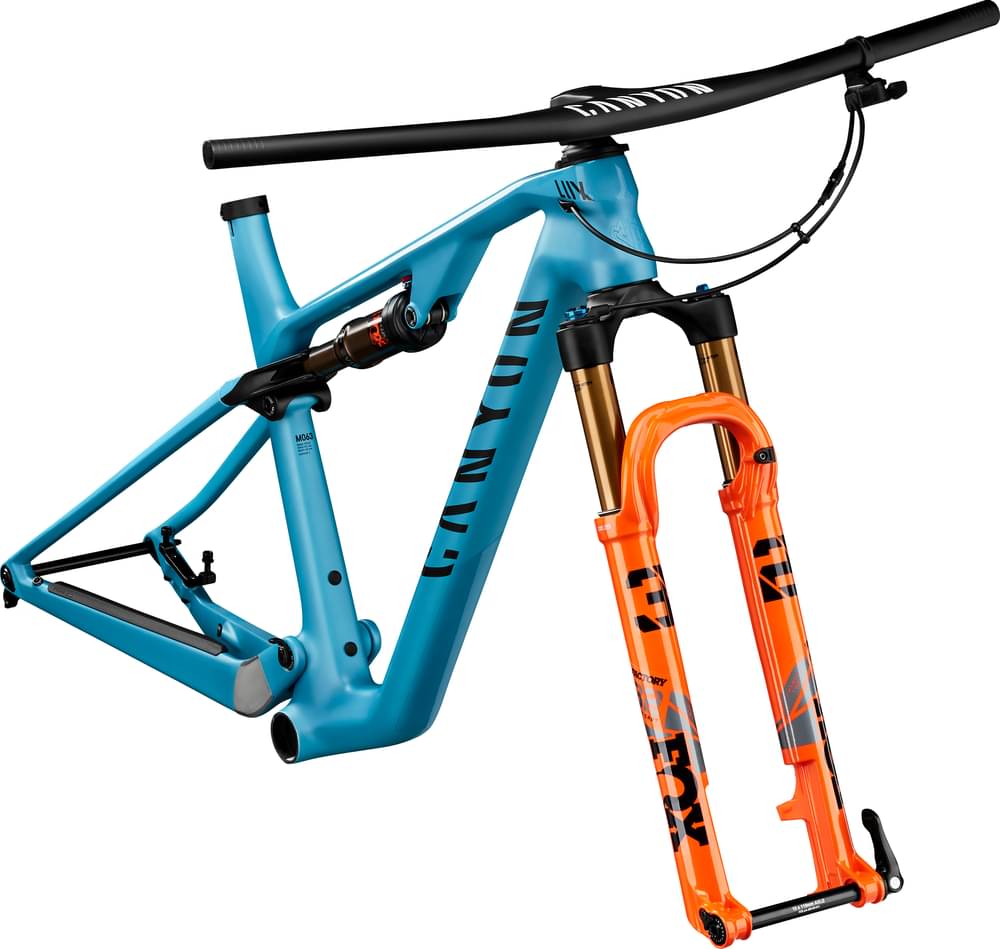

Canyon Lux CF SLX, High-end full-carbon frame engineered for maximum stiffness-to-weight, featuring exclusive special-edition artwork and unique details: MVDP 3D logo on the steerer tube, MVDP silhouette on the seat tube. Frame weight: 1662 g (size M). Category: 3. Limited-edition: only 50 units available.
Suspension Fork
FOX 32 Step-Cast Factory Remote, Premium suspension fork, proven at World Cup level and featuring premium Kashima coating. Axle dimensions: 110 x 15 mm. FIT4 damper. Aluminium 32 mm stanchions. Magnesium lower tubes. Offset: 51 mm. Tuning options: rebound, low-speed compression (2 positions: open/closed, with 22 clicks of adjustment in open mode).
Rear Shock
FOX FLOAT DPS Factory Remote, High-end shock with Kashima coating for exceptional bump compliance and maximum durability. With handlebar-mounted remote for instant lockout. Light, one-piece EVOL SV air can for maximum sensitivity. With two modes: open/closed. Dimensions: 55 x 210 mm.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.37 mm | 1.34 mm | 1.33 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 670 mm | 694 mm | 719 mm | 747 mm |
| Rake | 52 mm | 53 mm | 53 mm | 52 mm |
| Trail | 81 mm | 80 mm | 80 mm | 81 mm |
| Stack | 573 mm | 582 mm | 596 mm | 620 mm |
| Reach | 406 mm | 426 mm | 446 mm | 466 mm |
| Top Tube Length | 567 mm | 590 mm | 614 mm | 640 mm |
| Seat Tube Angle | 71.4 ° | 71.6 ° | 71.8 ° | 74.5 ° |
| Seat Tube Length | 425 mm | 465 mm | 505 mm | 545 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 140 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1093 mm | 1117 mm | 1142 mm | 1170 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 176 cm | 184 cm | 193 cm | cm |
About this model
Lux CF SLX Frameset MVDP is part of the Canyon Lux model. There are 57 frames that carry this model name. Take a sneak peek at all Canyon Lux frames models from 2021, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry frames average price
According to our math, the average price for a trustworthy Crosscountry frame is 1689$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3715$. Comparing this to the average Crosscountry frame price, we see that the price is 119.95% higher.
Average weight for Crosscountry frames
If we make a quick analysis of the average weight of a Crosscountry frame, we get 2.04 kg (4.5 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Canyon Lux CF SLX Frameset MVDP it’s weighing 2.1 kg (4.63 lbs). At this weight, is slightly heavier than average. In other words, this model is 2.94% heavier than the average Crosscountry frame.
Lux CF SLX Frameset MVDP components
Fork
The Lux CF SLX Frameset MVDP comes factory-installed with the Fox Factory Float 32 fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork on this frame is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
