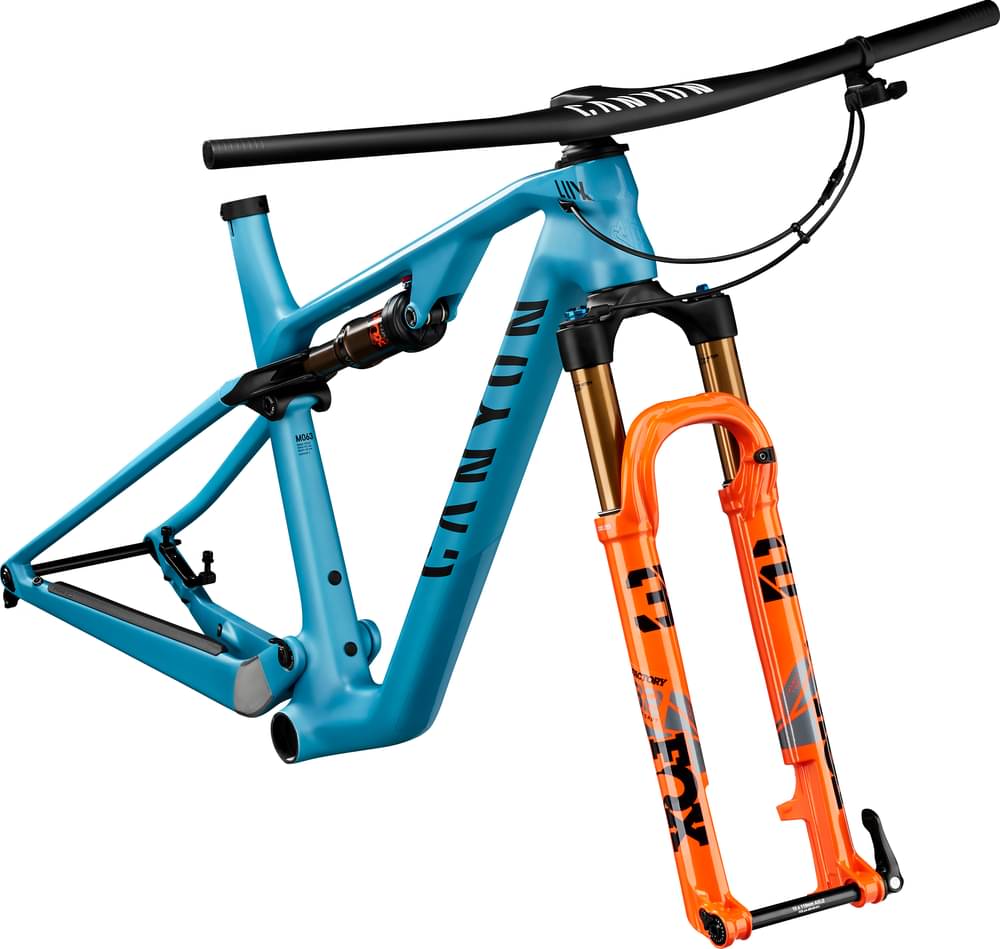

Canyon Lux CF SLX Frameset MVDP 2022
2022 Mountain
Estimate price |
4,013$
Weight | 2.1 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Suspension Full
Sizing
Recommended size guide.
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Lux CF SLX, High-end full-carbon frame engineered for maximum stiffness-to-weight, featuring exclusive special-edition artwork and unique details: MVDP 3D logo on the steerer tube, MVDP silhouette on the seat tube. Frame weight: 1662 g (size M). Category: 3. Limited-edition: only 50 units available.
Suspension Fork
FOX 32 Step-Cast Factory Remote, Premium suspension fork, proven at World Cup level and featuring premium Kashima coating. Axle dimensions: 110 x 15 mm. FIT4 damper. Aluminium 32 mm stanchions. Magnesium lower tubes. Offset: 51 mm. Tuning options: rebound, low-speed compression (2 positions: open/closed, with 22 clicks of adjustment in open mode).
Rear Shock
FOX FLOAT DPS Factory Remote, High-end shock with Kashima coating for exceptional bump compliance and maximum durability. With handlebar-mounted remote for instant lockout. Light, one-piece EVOL SV air can for maximum sensitivity. With two modes: open/closed. Dimensions: 55 x 210 mm.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.37 mm | 1.34 mm | 1.33 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 670 mm | 694 mm | 719 mm | 747 mm |
| Rake | 52 mm | 53 mm | 53 mm | 52 mm |
| Trail | 81 mm | 80 mm | 80 mm | 81 mm |
| Stack | 573 mm | 582 mm | 596 mm | 620 mm |
| Reach | 406 mm | 426 mm | 446 mm | 466 mm |
| Top Tube Length | 567 mm | 590 mm | 614 mm | 640 mm |
| Seat Tube Angle | 71.4 ° | 71.6 ° | 71.8 ° | 74.5 ° |
| Seat Tube Length | 425 mm | 465 mm | 505 mm | 545 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 140 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1093 mm | 1117 mm | 1142 mm | 1170 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 176 cm | 184 cm | 193 cm | cm |
Model Overview
Lux CF SLX Frameset MVDP belongs to the Canyon Lux model. There are 57 frames that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry frames
If you want an acceptable Crosscountry frame you should know that the average price is 1689$. However, this doesn’t mean that if you spend less money on a Crosscountry frame, you couldn’t get a decent one. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 3715$. Doing a quick comparison, we notice that Lux CF SLX Frameset MVDP price is 119.95% higher than the average cost of a Crosscountry frame.
Crosscountry frames average weight
Crosscountry frames have an average weight of 2.04 kg (4.5 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 2.1 kg (4.63 lbs), the Lux CF SLX Frameset MVDP model is slightly heavier than average. To sum up, it’s 2.94% heavier than the average weight of Crosscountry frames.
Lux CF SLX Frameset MVDP components
Fork
This frame has the Fox Factory Float 32 fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork on this frame is made out of aluminum, which doesn’t add too much extra weight to the frame. However, it is not so stiff as steel or carbon forks are.
