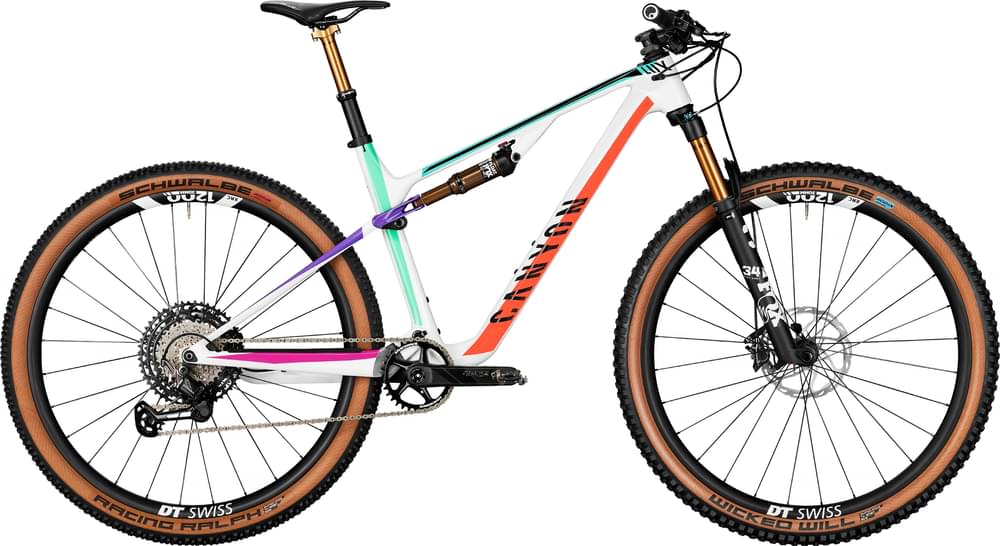

Canyon Lux Trail CF 9 Emily Batty 2022
2022 Mountain
Estimate price |
6,651$
Weight | 10.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 110mm -
Fork Fox Factory Float 34
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lux Trail CF, Lightweight, progressive, full-suspension carbon frame for greater control on rough tracks. Weight: 1,905 g. Rear travel: 110 mm. Wheel size: 29".
Suspension Fork
FOX 34 Stepcast Factory Remote, 120 mm travel. With special Kashima coating for maximum sensitivity and durability. Stanchion width: 34 mm. Axle dimensions: 15 x 110 mm., Volume Spacer: 3. Offset: 44mm.
Rear Shock
FOX Float DPS Factory 3-Pos Remote, With 3-position compression adjustment: open/trail/firm. With handlebar-mounted lockout. Dimensions: 210 x 55 mm., Tune: LCL, LRL, CMF.
Drivetrain
Rear Derailleur
Shimano XTR, 12-speed, High-end 12-speed shifting system.
Shift Levers
Shimano XTR, 12-speed, Rear derailleur shifter, 12-speed, Textured rubber lever pad, Multi-Release, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 60-degrees rotation adjustment, 127 g
Cassette
Shimano XTR, 12-speed (10-51), Lightweight cassette with a 10-51 gear range.
Crank
Race Face Next SL G5 Carbon 34T, Carbon crankset. Crank arm length: S = 170 | M - XL = 175. Chainring size: 34T.
Bottom Bracket
Race Face Pressfit Cinch
Chain
Shimano M9100 12-speed
Pedals
None included
Wheels
Rims
DT Swiss XRC 1200 Spline, Wide, light, durable premium carbon wheels. Inner rim width: 30 mm. Ratchet EXP hub. Weight: 796 g. Hub dimension: 12 x 148 mm., Rotor Mount: CL. Hub Width, Axle Front: 110mm. Hub Width, Axle Rear: 148mm. Tubeless Technology: Taped. | DT Swiss XRC 1200 Spline, Wide, light, durable premium carbon wheels. Inner rim width: 30 mm. Ratchet EXP hub. Weight: 684 g. Hub dimension: 15 x 110 mm., Rotor Mount: CL. Hub Width, Axle Front: 110mm. Hub Width, Axle Rear: 148mm. Tubeless Technology: Taped.
Tires
Schwalbe Racing Ralph SR TLE EVO 2.35", Fast-rolling 29-inch cross-country tyre. Width: 2.35". | Schwalbe Wicked Will SR TLE EVO 2.4", 29-inch tyres combining the speed of a cross-country tyre with the grip of a trail tyre. Width: 2.4".
Brakes
Brakes
Shimano XTR M9100, 2-piston brake callipers. With ergonomic design and adjustable levers. | Shimano XTR M9110 Flatmount, Flatmount two-piston brake caliper with pinpoint XTR performance and outstanding ergonomics. The ergonomically shaped handles are adjustable on the handlebar.
Disk Rotors
Hayes D-Series 160 mm | Hayes D-Series 180 mm
Cockpit
Stem
Race Face Ride, Durable, fuss-free alloy stem. Length: 60 mm. Clamp diameter: 35 mm. Material: 6061 aluminium., Stem Spacer: S: 5, M: 10, L: 15, XL: 20.
Handlebar
Race Face Next 35, Robust, reliable alloy bar. Width: 760 mm. Diameter: 35 mm. Material: 6061 aluminium., Rise: 10mm. Upsweep: 5°. Backsweep: 8°.
Grips
Ergon GA20, High-grade Lock-on grips providing comfort and control in equal measure.
Seat
Saddle
Selle Italia SLR Boost, Saddle shaped to support a more aggressive riding position.
Seatpost
FOX Transfer SL Factory, Dropper post with bar-mounted lever. Travel: 100 mm. diameter: 30.9 mm.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.31 mm | 1.28 mm | 1.26 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 720 mm | 744 mm | 769 mm | 795 mm |
| Rake | 46 mm | 46 mm | 45 mm | 46 mm |
| Trail | 105 mm | 105 mm | 106 mm | 105 mm |
| Stack | 582 mm | 591 mm | 605 mm | 619 mm |
| Reach | 431 mm | 451 mm | 471 mm | 491 mm |
| Top Tube Length | 595 mm | 618 mm | 641 mm | 665 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 425 mm | 465 mm | 505 mm | 545 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1143 mm | 1167 mm | 1192 mm | 1218 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 781 mm | 785 mm | 788 mm | 800 mm |
| Front Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Rear Travel | 110 mm | 110 mm | 110 mm | 110 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Max Height | 176 cm | 184 cm | 193 cm | cm |
About this model
Lux Trail CF 9 Emily Batty is a Canyon Lux model. Canyon launched 57 bikes of this model so far. Take a sneak peek at all Canyon Lux bikes models from 2022, by clicking here.
Model range prices
Canyon Lux CF 6 2022 is the cheapest bike model and costs 3184$. Canyon Lux World Cup CFR LTD 2022 is the most expensive one and costs 8493$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6157$. Doing a quick comparison, we notice that Lux Trail CF 9 Emily Batty price is 223.2% higher than the average cost of a Crosscountry bike.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Canyon Lux Trail CF 9 Emily Batty it’s weighing 10.9 kg (24.03 lbs). At this weight, is considerably lighter than average. In other words, this model is 13.76% lighter than the average Crosscountry bike.
Lux Trail CF 9 Emily Batty components
Fork
This bike has the Fox Factory Float 34 fork installed. The fork’s travel is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the FOX Float DPS Factory 3-Pos Remote rear shock model, which has a travel of 110mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on Lux Trail CF 9 Emily Batty are the 29″ carbon type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Lux Trail CF 9 Emily Batty comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the Lux Trail CF 9 Emily Batty. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
