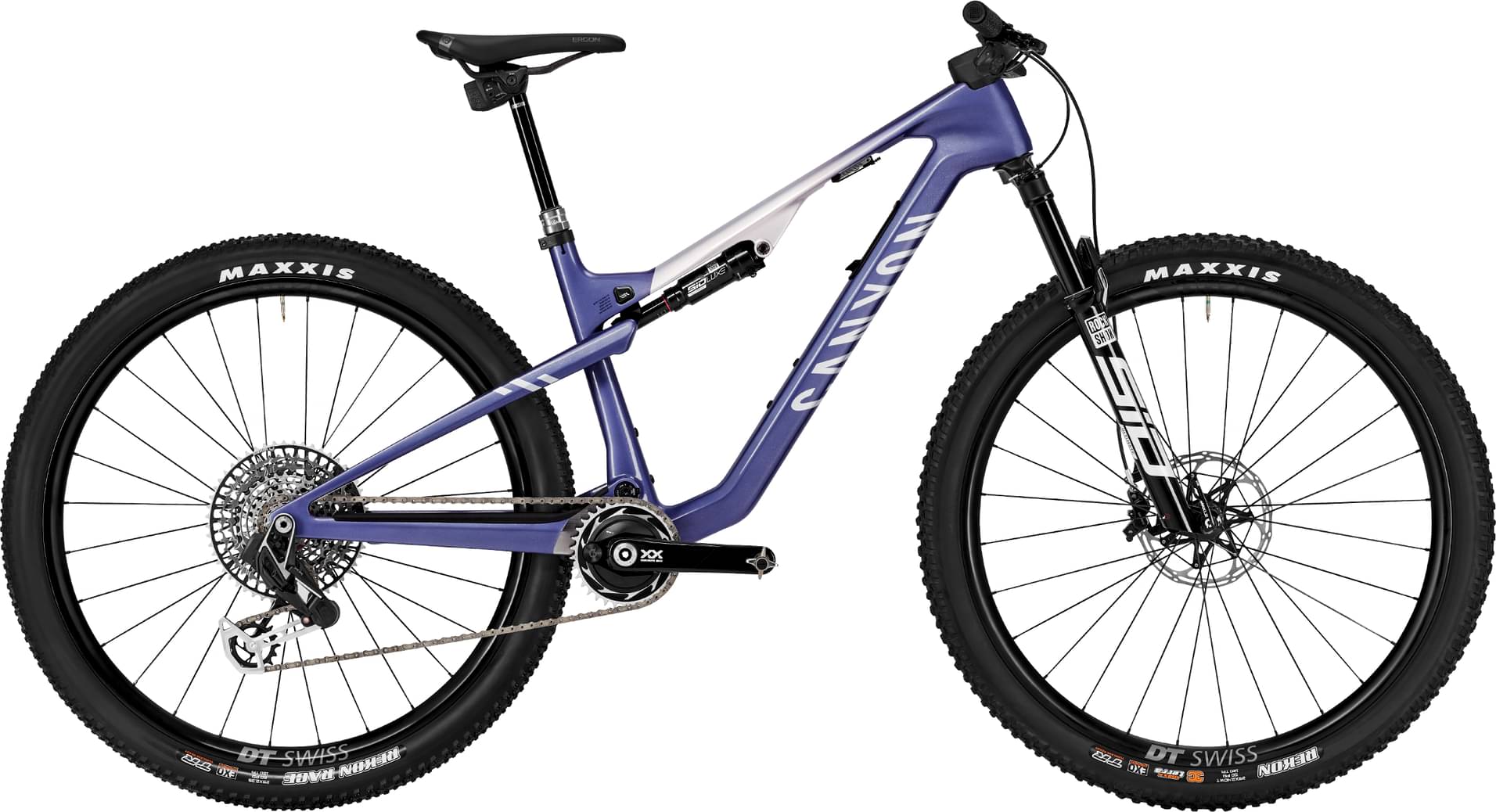

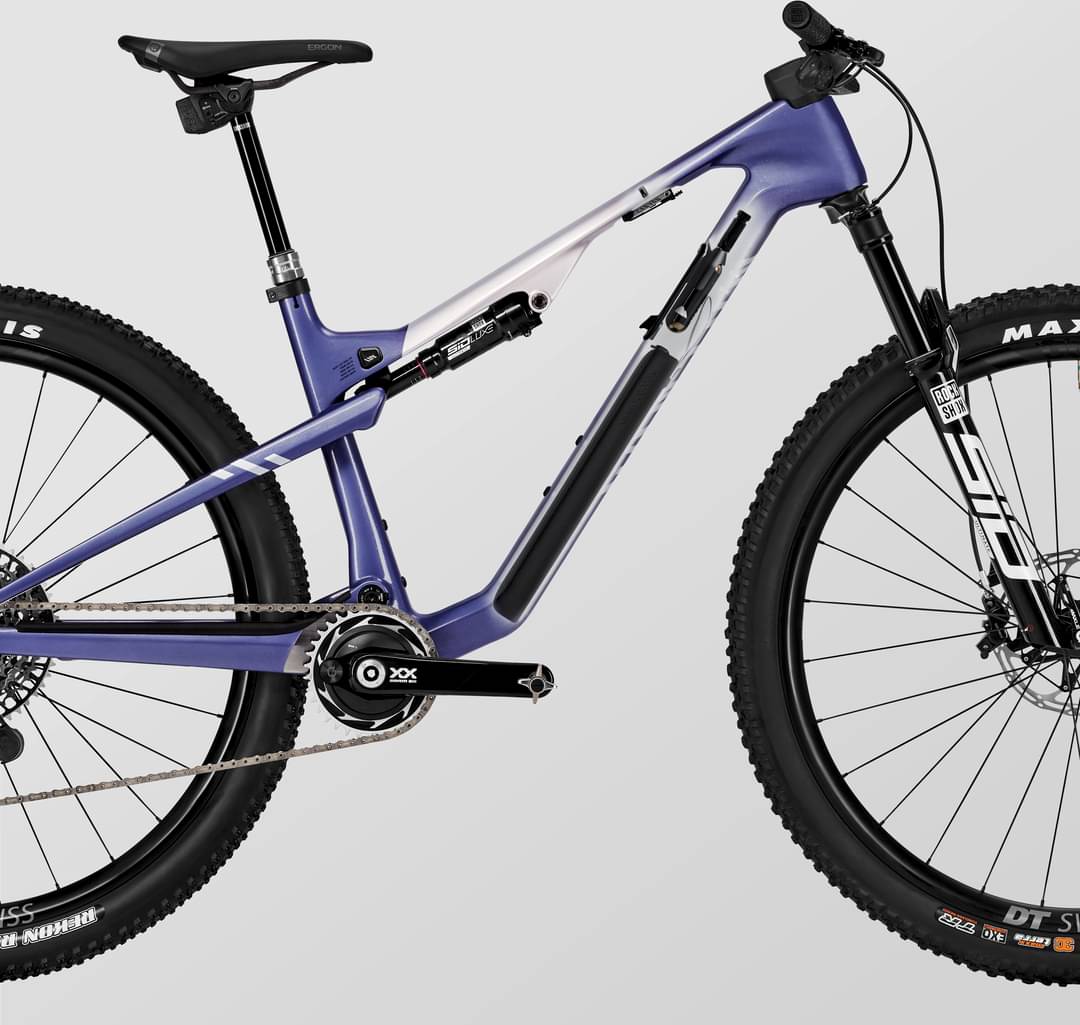

Canyon Lux Trail CFR LTD 2024
2024 Mountain
Estimate price |
9,748$
Weight | 11.66 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 115mm -
Fork RockShox SID Ultimate
-
Groupset XX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Battery SRAM Powerpack -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 176cm
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Lux CFR Trail, Axle dimension: 12x148 mm, Material: Carbon (CFR)
Suspension Fork
Rock Shox SID Ultimate 3-Position Remote, Axle dimension: 15x110 mm, Travel: 120 mm, Fork steer tube diameter: 1 1/8" - 1,5"
Rear Shock
Rock Shox SIDLuxe Ultimate Remote

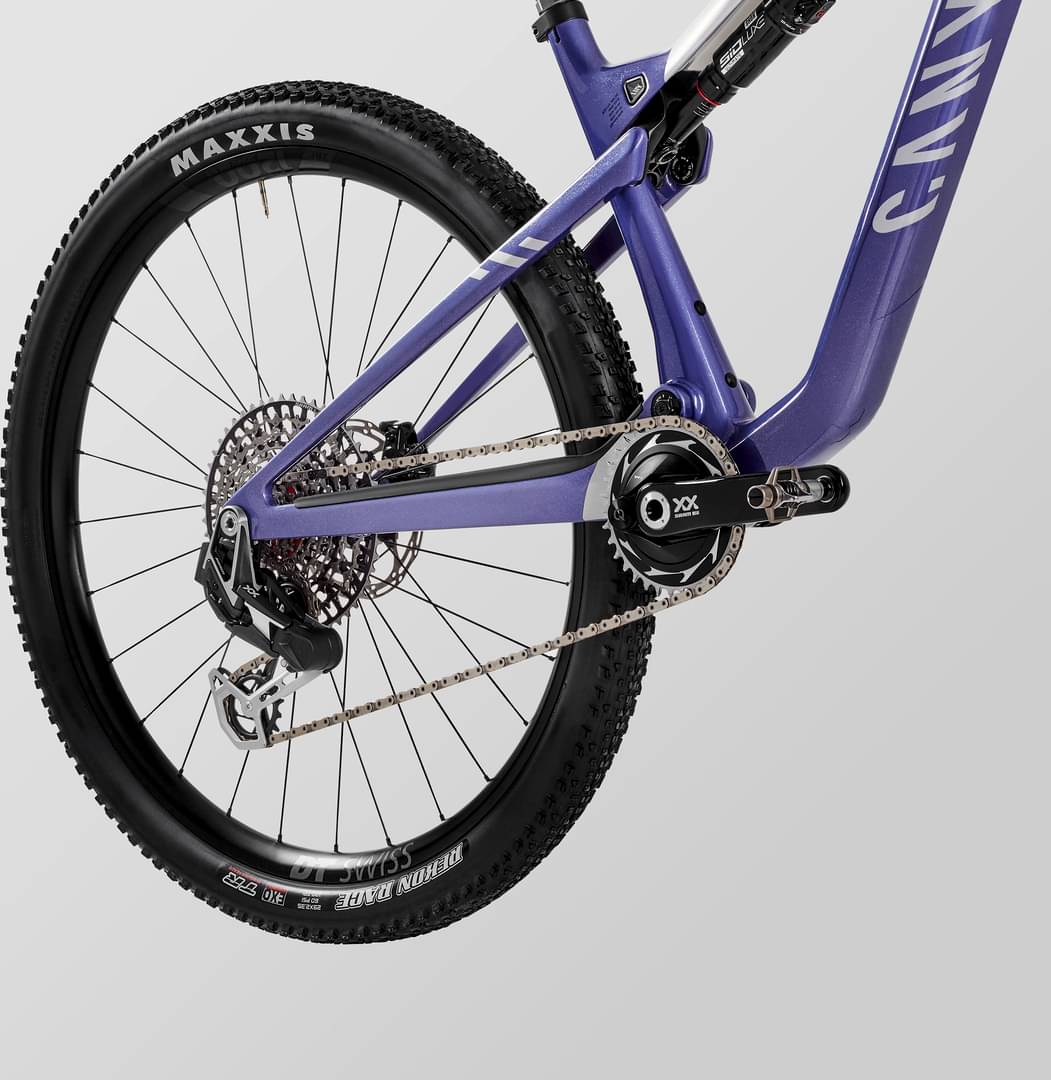

Drivetrain
Rear Derailleur
SRAM XX Eagle AXS Transmission
Shift Levers
SRAM AXS Pod Ultimate
Cassette
SRAM XX Eagle Transmission 10-52, Number of sprockets: 12 | SRAM XS-1297 T-Type XX 12-speed Cassette
Crank
SRAM XX SL Eagle DUB, Number of chainrings: 1
Bottom Bracket
SRAM DUB BSA, Bottom bracket standard: BSA 73, Weight: 87 g
Chain
SRAM PowerLock | SRAM Eagle Transmission PowerLock | SRAM XX T-Type 12-speed Chain 126L
Pedals
None included
Wheels
Rims
DT Swiss XRC1200, Axle dimension: 15x110 mm, Rotor mount: Center Lock, Rim material: Carbon, Weight: 684 g | DT Swiss XRC1200, Axle dimension: 12x148 mm, Rotor mount: Center Lock, Rim material: Carbon, Weight: 791 g
Tires
Maxxis Rekon 3C Exo 2.4, Width: 2.4" | Maxxis Rekon Race Dual Exo 2.35, Width: 2.35"
Brakes
Brakes
SRAM Level Ultimate Stealth, Number of pistons: 2 | SRAM Level Ultimate Stealth 4-Piston, Number of pistons: 4
Cockpit

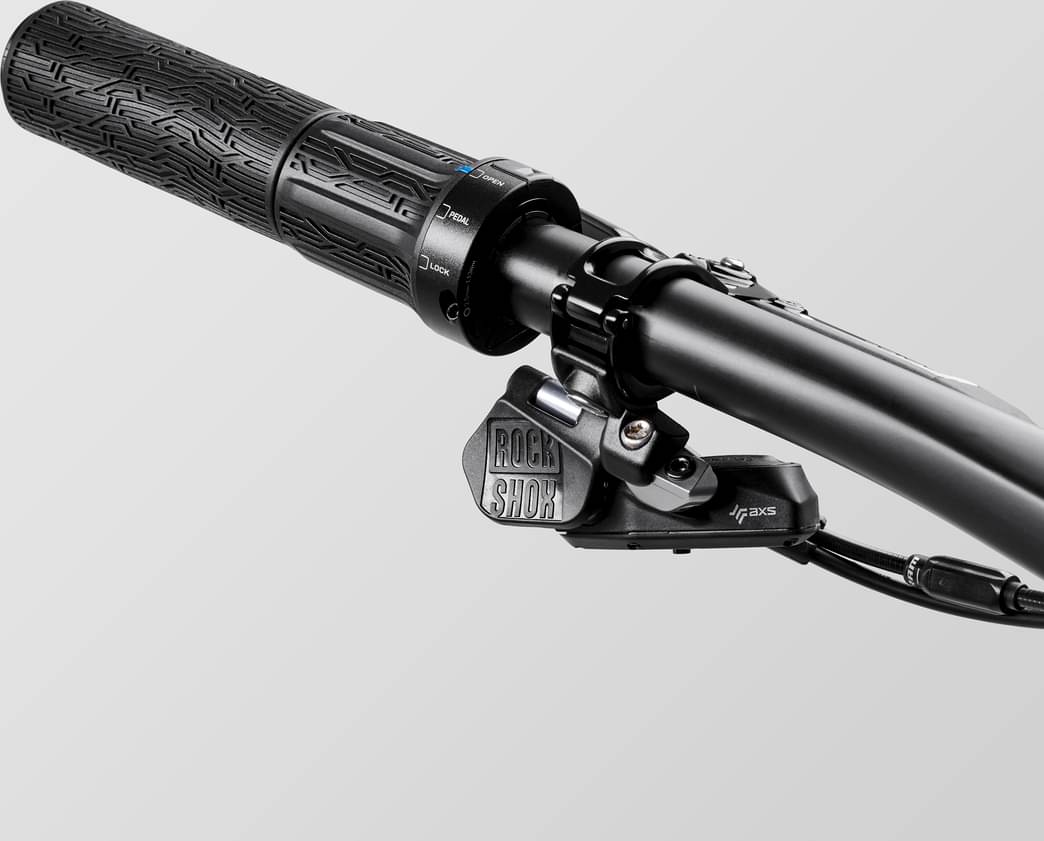

Grips
Twistloc Ultimate
Seat
Saddle
Ergon SM10 Pro, Gender: Male, Weight: 235 g
Seatpost
Rock Shox Reverb AXS, Clamp diameter: 31,6 mm, Material: Aluminium (AL), Weight: 710 g
Motor & Battery
Battery
SRAM Powerpack
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.345 mm | 1.3 mm | 1.275 mm | 1.252 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 697 mm | 723 mm | 748 mm | 774 mm | 800 mm |
| Rake | 46 mm | 46 mm | 45 mm | 45 mm | 45 mm |
| Trail | 109 mm | 109 mm | 110 mm | 110 mm | 110 mm |
| Stack | 589 mm | 589 mm | 598 mm | 612 mm | 626 mm |
| Reach | 412 mm | 438 mm | 460 mm | 480 mm | 500 mm |
| Top Tube Length | 559 mm | 585 mm | 609 mm | 633 mm | 656 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 415 mm | 420 mm | 420 mm | 450 mm | 480 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1129 mm | 1155 mm | 1180 mm | 1206 mm | 1232 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 768 mm | 768 mm | 772 mm | 777 mm | 783 mm |
| Front Travel | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Rear Travel | 115 mm | 115 mm | 115 mm | 115 mm | 115 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Max Height | 167 cm | 176 cm | 184 cm | 193 cm | cm |
About this model
Lux Trail CFR LTD belongs to the Canyon Lux model. Canyon launched 64 bikes of this model so far. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Canyon Lux Trail CF 6 2024 is the most affordable bike of this model and has a price of 3493$. On the other hand, Canyon Lux Trail CFR LTD 2024, is the most expensive and costs 9000$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2024 for 9000$. In conclusion, this bike price is 372.44% higher than the price of the average Crosscountry bike.
Average weight for Crosscountry bikes
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Canyon Lux Trail CFR LTD it’s weighing 11.66 kg (25.71 lbs). At this weight, is a bit lighter than average. In conclusion, the average Crosscountry bike weighs 6.35% more than Lux Trail CFR LTD.
Overview of components

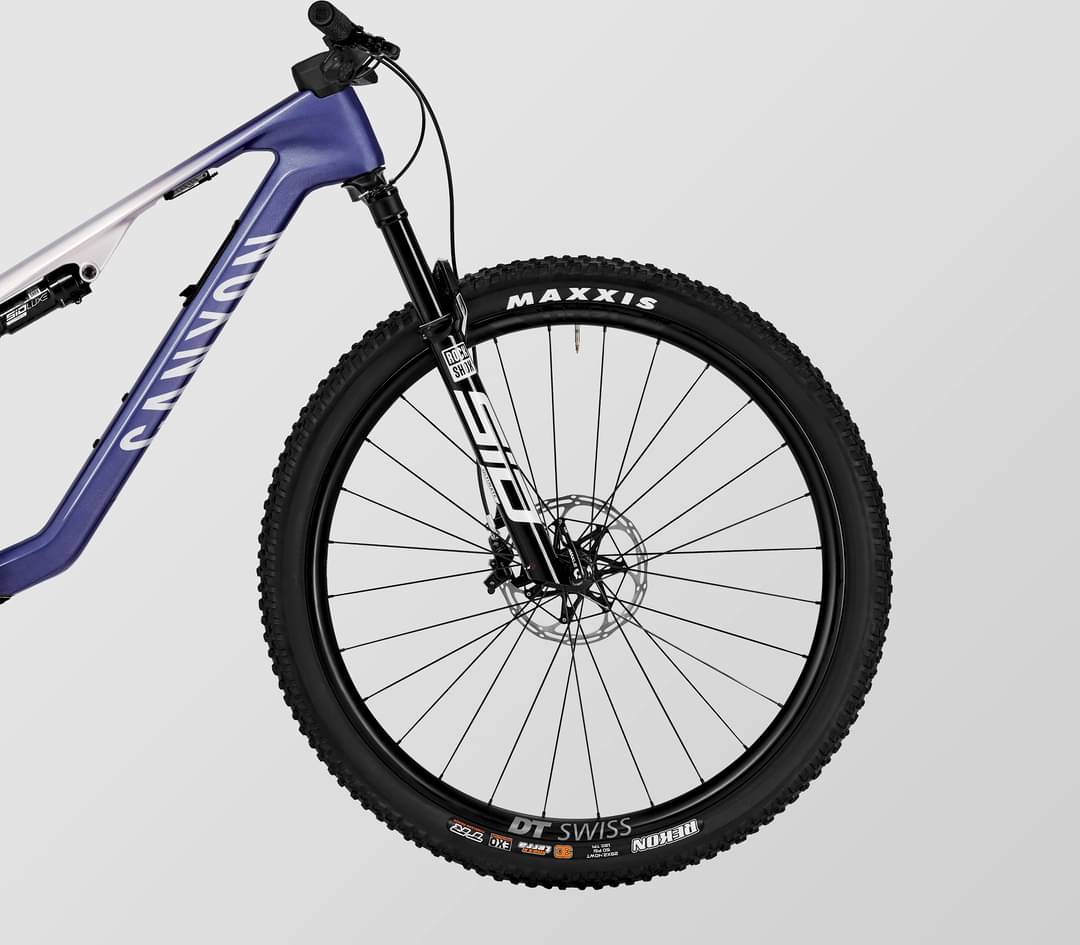

Fork
Canyon Lux Trail CFR LTD 2024 bike is equipped with the RockShox SID Ultimate fork, and has 120mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.

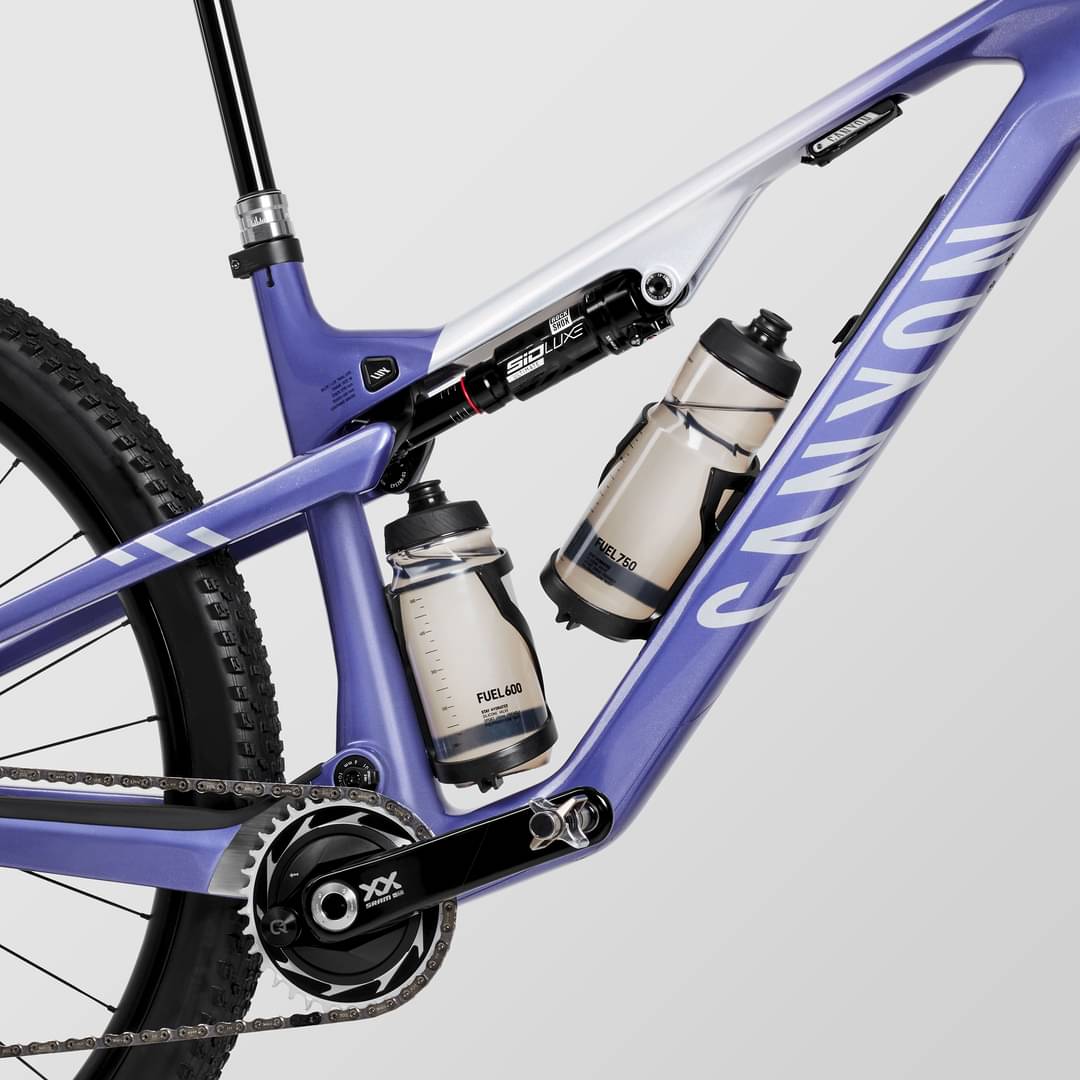

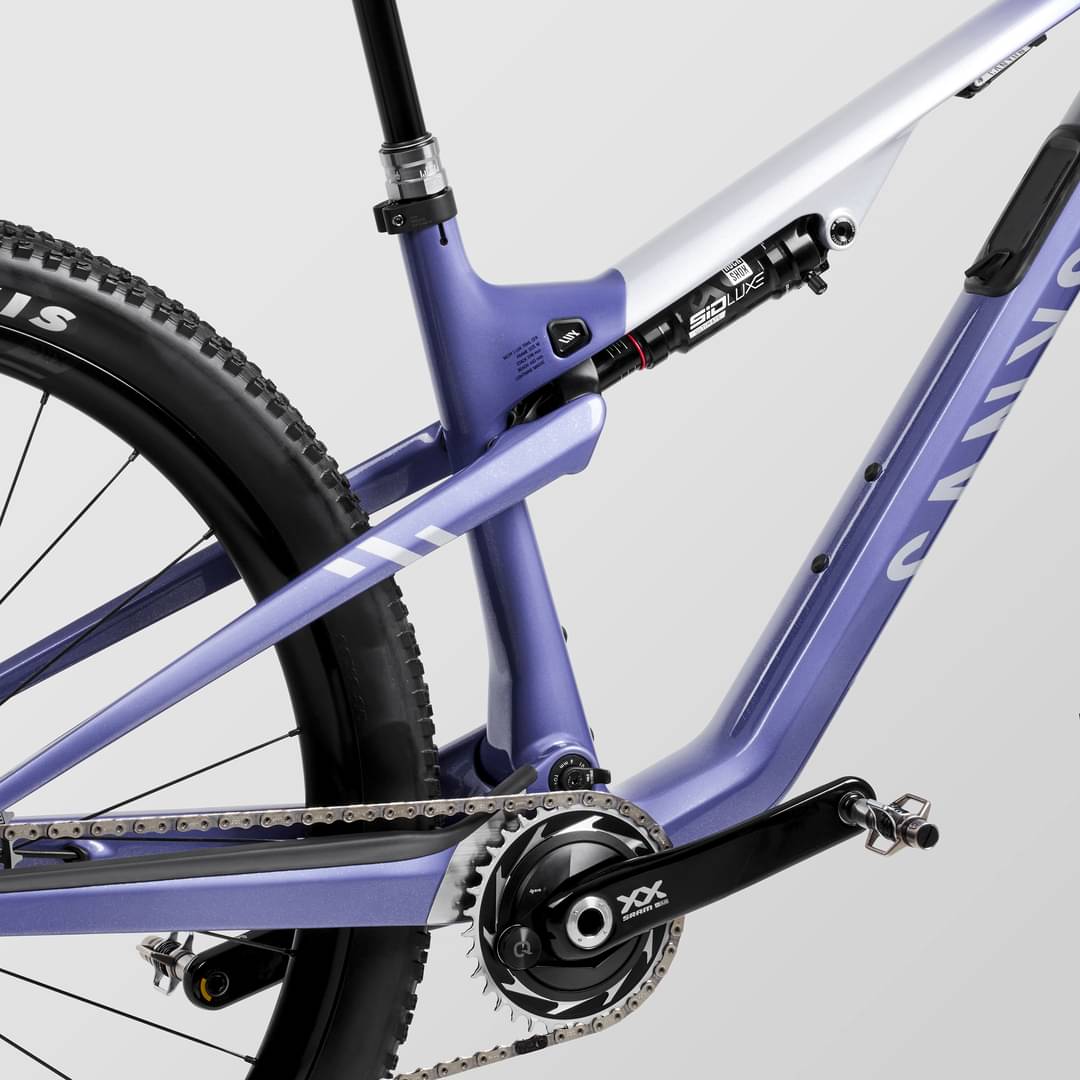

Rear Shock
As for the rear shock, this bike has the Rock Shox SIDLuxe Ultimate Remote model, with a travel of 115mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the Lux Trail CFR LTD model has 29″ carbon wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Lux Trail CFR LTD is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Dropper post
Canyon Lux Trail CFR LTD includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
