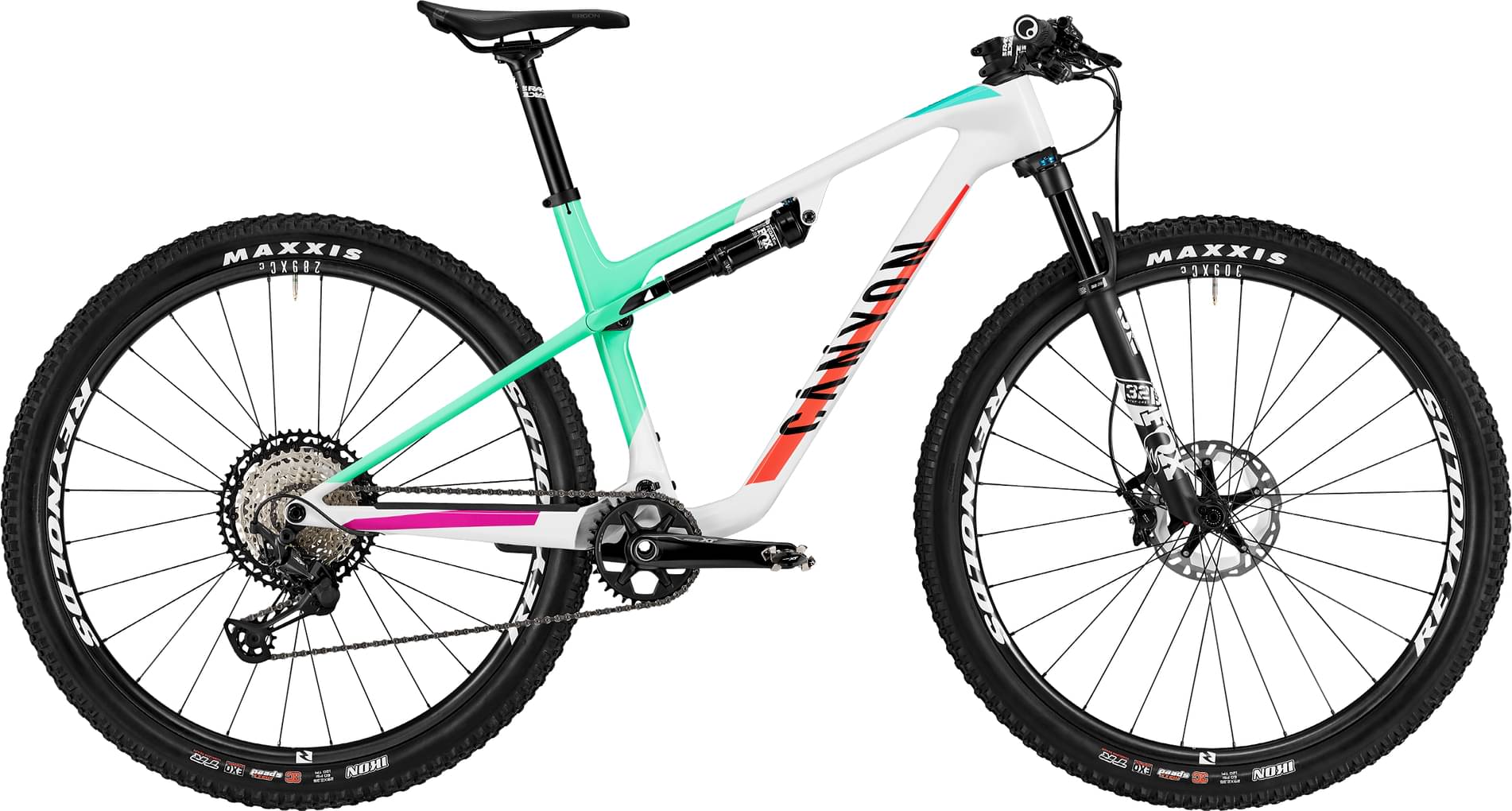

Canyon Lux World Cup 7 2023
2023 Mountain
Estimate price |
4,587$
Weight | 11.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Performance Elite Float 32
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 176cm
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Lux WC CF, Axle dimension: 12x148 mm, Material: Carbon (CF)
Suspension Fork
FOX 32 Step-Cast Performance Elite Remote, Axle dimension: 15x110 mm, Stanchion Diameter: 32 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8" - 1,5"
Rear Shock
FOX Float DPS Performance Elite Remote
Drivetrain
Rear Derailleur
Shimano DEORE XT M8100, Cage length: long
Shift Levers
Shimano DEORE XT M8100
Cassette
Shimano DEORE XT M8100, Number of sprockets: 12 | Shimano XT CS-M8100 12-speed Cassette
Crank
Shimano DEORE XT M8120, Number of chainrings: 1
Bottom Bracket
Shimano Pressfit BB71, Bottom bracket standard: PF 89,5/92 | Ceramicspeed BB92 Shimano PressFit Bottom Bracket | Shimano MTB BB-MT800-PA 89.5/92 Press-Fit Bottom Bracket
Chain
Shimano CN-M8100 12s | Shimano SM-CN910 12-speed Quick-Link Chain Connector | Shimano CN-M8100 12-speed Chain 138 Links
Pedals
None included
Wheels
Rims
Reynolds TR309c XC, Axle dimension: 15x110 mm, Rotor mount: Center Lock, Inner width: 30 mm, Wheelsize: 29", Rim material: Carbon | Reynolds TR289c XC, S12, Axle dimension: 12x148 mm, Rotor mount: Center Lock, Wheelsize: 29", Rim material: Carbon
Tires
Maxxis Ikon Exo 2.35", Width: 2.35" | Maxxis IKON EXO 3C 29" x 2.35" MTB Tyre
Brakes
Brakes
Shimano Deore XT M8100 | Shimano XT M8110
Cockpit
Stem
Race Face Ride, Fork steer tube diameter: 1 1/8" - 1 1/4"
Handlebar
Race Face Ride Rise, Clamping diameter: 31,8 mm, Width: 740 mm
Grips
Ergon GA20
Seat
Saddle
Ergon SR10 Pro Sport
Seatpost
Race Face Ride, Clamp diameter: 30,9 mm, Material: Aluminium (AL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.35 mm | 1.3 mm | 1.27 mm | 1.25 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 671 mm | 691 mm | 713 mm | 738 mm | 764 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Stack | 569 mm | 569 mm | 574 mm | 588 mm | 602 mm |
| Reach | 402 mm | 422 mm | 442 mm | 462 mm | 482 mm |
| Top Tube Length | 556 mm | 573 mm | 594 mm | 617 mm | 640 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 375 mm | 415 mm | 455 mm | 495 mm | 535 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 90 mm | 90 mm | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1092 mm | 1112 mm | 1134 mm | 1159 mm | 1185 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 769 mm | 769 mm | 772 mm | 776 mm | 785 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Rear Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Max Height | 167 cm | 176 cm | 184 cm | 193 cm | cm |
Model Overview
Lux World Cup 7 is a Canyon Lux model. Canyon released 57 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Canyon Lux Trail CF 6 2023 is the cheapest bike model and costs 3399$. Canyon Lux World Cup CFR LTD 2023 is the most expensive one and costs 9024$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4246$. Doing a quick comparison, we notice that Lux World Cup 7 price is 122.89% more expensive than the average cost of a Crosscountry bike.
Average weight for Crosscountry bikes
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Canyon Lux World Cup 7 it’s weighing 11.6 kg (25.57 lbs). At this weight, is a bit lighter than average. To sum up, it’s 6.9% lighter than the average weight of Crosscountry bikes.
Lux World Cup 7 components
Fork
The fork installed on this bike is the Fox Performance Elite Float 32 model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this bike is FOX Float DPS Performance Elite Remote, with a travel distance of 100mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the Lux World Cup 7 model has 29″ carbon wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
