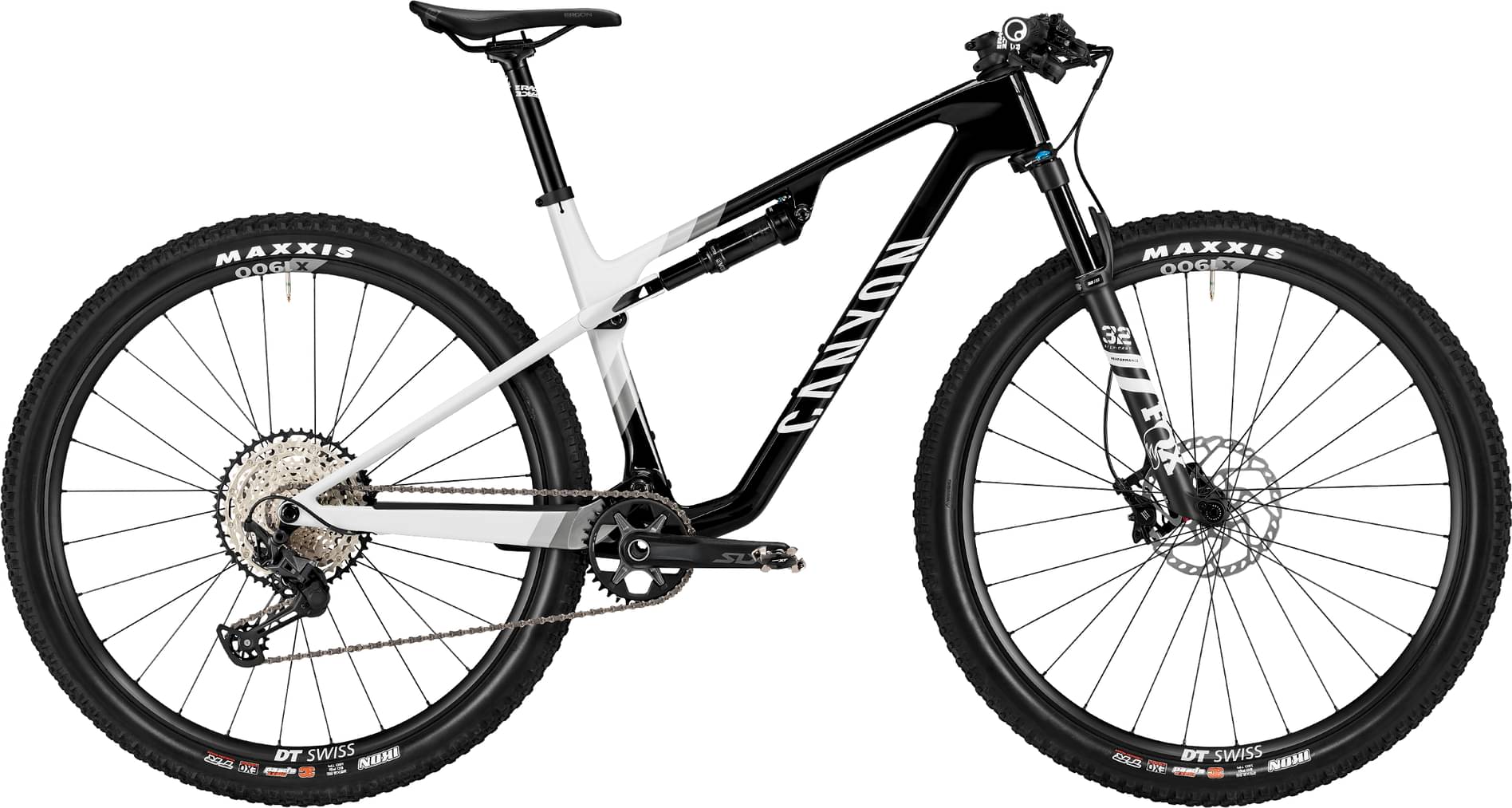

Canyon Lux World Cup CF 6 2023
2023 Mountain
Estimate price |
3,499$
Weight | 12.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Performance Float 32
-
Groupset SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 176cm
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Lux WC CF, Lightweight full-suspension carbon XC frame, featuring the World Championship-winning design DNA of the flagship Lux World Cup CFR., Axle dimension: 12x148 mm, Material: Carbon (CF)
Suspension Fork
FOX 32 Step-Cast Performance Remote, Axle dimension: 15x110 mm, Stanchion Diameter: 32 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8" - 1,5", Weight: 10 g
Rear Shock
FOX Float DPS Performance Elite Remote
Drivetrain
Rear Derailleur
Shimano SLX M7100, Cage length: long, Weight: 286 g
Shift Levers
Shimano SLX M7100
Cassette
Shimano SLX M7100, Number of sprockets: 12
Crank
Shimano SLX M7120, Number of chainrings: 1
Bottom Bracket
Shimano Pressfit BB71, Bottom bracket standard: PF 89,5/92, Weight: 10 g
Chain
Shimano CN-M7100 12s
Pedals
None included
Wheels
Rims
DT Swiss X 1900 Spline, Axle dimension: 15x110 mm, Rotor mount: IS 6-bolt, Weight: 881 g | DT Swiss X 1900 Spline, Axle dimension: 12x148 mm, Rotor mount: IS 6-bolt, Weight: 1.00 kg
Tires
Maxxis Ikon Exo 2.35", Width: 2.35", Weight: 740 g
Brakes
Brakes
Shimano SLX M7100 | Shimano SLX M7110
Cockpit
Stem
Race Face Ride, Fork steer tube diameter: 1 1/8" - 1 1/4"
Handlebar
Race Face Ride Rise, Clamping diameter: 31,8 mm, Width: 740 mm
Grips
Ergon GA20
Seat
Saddle
Ergon SR10 Pro Sport
Seatpost
Race Face Ride, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 10 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.35 mm | 1.3 mm | 1.27 mm | 1.25 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 671 mm | 691 mm | 713 mm | 738 mm | 764 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Stack | 569 mm | 569 mm | 574 mm | 588 mm | 602 mm |
| Reach | 402 mm | 422 mm | 442 mm | 462 mm | 482 mm |
| Top Tube Length | 556 mm | 573 mm | 594 mm | 617 mm | 640 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 375 mm | 415 mm | 455 mm | 495 mm | 535 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 90 mm | 90 mm | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1092 mm | 1112 mm | 1134 mm | 1159 mm | 1185 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 769 mm | 769 mm | 772 mm | 776 mm | 785 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Rear Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Max Height | 167 cm | 176 cm | 184 cm | 193 cm | cm |
About this model
Lux World Cup CF 6 belongs to the Canyon Lux model. Canyon launched 57 bikes of this model so far. You can easily view all of the Canyon Lux bikes models from 2023, here.
Model range prices
The most economical model, the Canyon Lux Trail CF 6 2023 has a starting price of 3399$. Canyon Lux World Cup CFR LTD 2023 on the other hand is the most expensive at 9024$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2023 for 3499$. Comparing this to the average Crosscountry bike price, we see that the price is 83.67% more expensive.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Canyon Lux World Cup CF 6 it’s weighing 12.1 kg (26.68 lbs). At this weight, is slightly lighter than average. In conclusion, the average Crosscountry bike weighs 2.48% more than Lux World Cup CF 6.
Lux World Cup CF 6 components
Fork
The fork installed on this bike is the Fox Performance Float 32 model. The travel on this model is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the FOX Float DPS Performance Elite Remote rear shock model, which has a travel of 100mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The Lux World Cup CF 6 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The Lux World Cup CF 6 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
