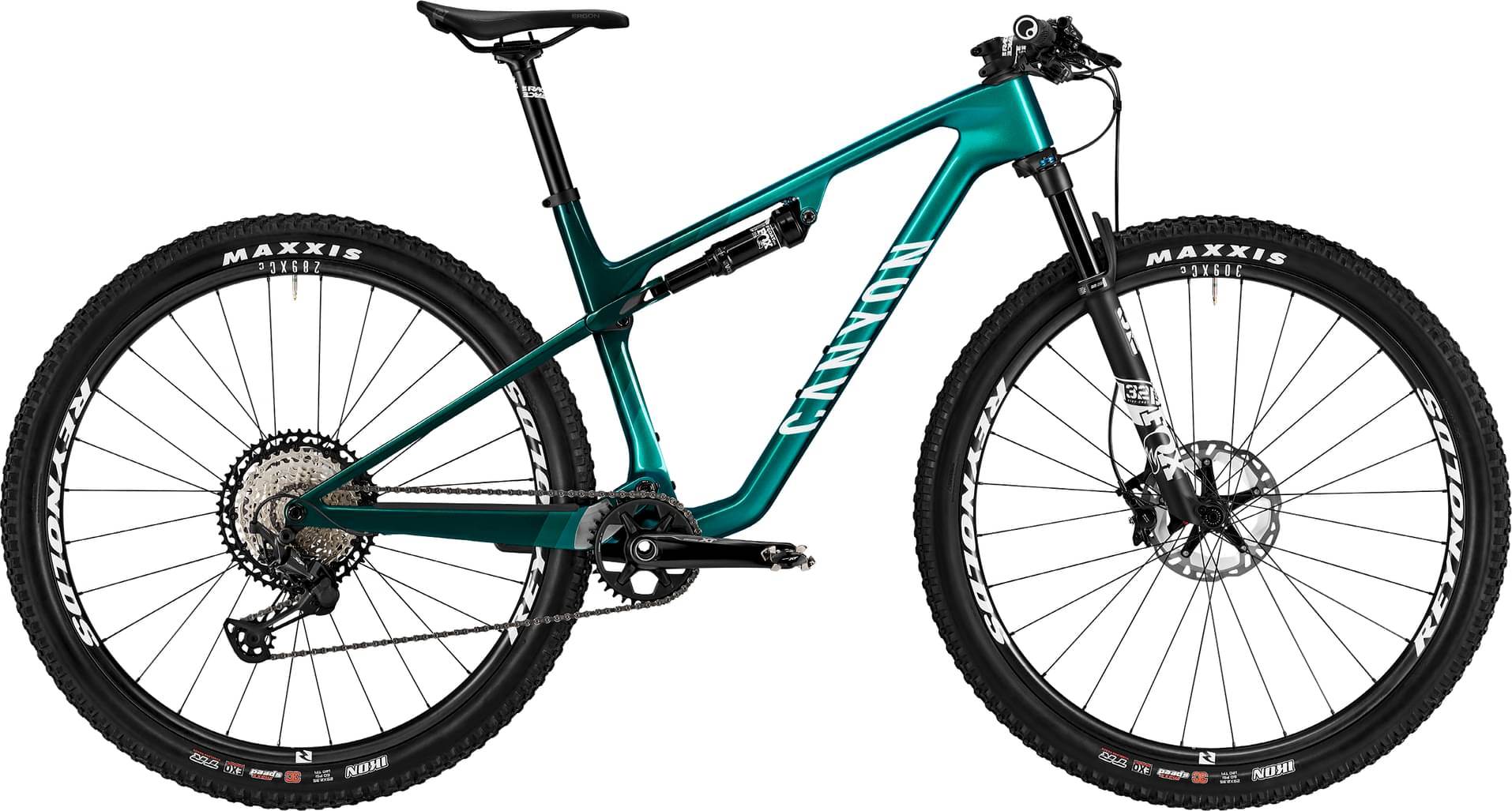

Canyon Lux World Cup CF 7 2023
2023 Mountain
Estimate price |
4,587$
Weight | 11.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Performance Elite Float 32
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 176cm
MD
174cm - 184cm
LG
182cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Lux WC CF, Axle dimension: 12x148 mm, Material: Carbon (CF)
Suspension Fork
FOX 32 Step-Cast Performance Elite Remote, Axle dimension: 15x110 mm, Stanchion Diameter: 32 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8" - 1,5"
Rear Shock
FOX Float DPS Performance Elite Remote
Drivetrain
Rear Derailleur
Shimano DEORE XT M8100, Cage length: long, Weight: 286 g
Shift Levers
Shimano DEORE XT M8100
Cassette
Shimano DEORE XT M8100, Number of sprockets: 12 | Shimano XT CS-M8100 12-speed Cassette
Crank
Shimano DEORE XT M8120, Number of chainrings: 1
Bottom Bracket
Shimano Pressfit BB71, Bottom bracket standard: PF 89,5/92, Weight: 10 g | Ceramicspeed BB92 Shimano PressFit Bottom Bracket | Shimano MTB BB-MT800-PA 89.5/92 Press-Fit Bottom Bracket
Chain
Shimano CN-M8100 12s | Shimano SM-CN910 12-speed Quick-Link Chain Connector | Shimano CN-M8100 12-speed Chain 138 Links
Pedals
None included
Wheels
Rims
Reynolds TR309c XC, Axle dimension: 15x110 mm, Rotor mount: Center Lock, Inner width: 30 mm, Rim material: Carbon, Weight: 2.00 kg | Reynolds TR289c XC, S12, Axle dimension: 12x148 mm, Rotor mount: Center Lock, Rim material: Carbon
Tires
Maxxis Ikon Exo 2.35", Width: 2.35", Weight: 740 g | Maxxis IKON EXO 3C 29" x 2.35" MTB Tyre
Brakes
Brakes
Shimano Deore XT M8100 | Shimano XT M8110
Cockpit
Stem
Race Face Ride, Fork steer tube diameter: 1 1/8" - 1 1/4"
Handlebar
Race Face Ride Rise, Clamping diameter: 31,8 mm, Width: 740 mm
Grips
Ergon GA20
Seat
Saddle
Ergon SR10 Pro Sport
Seatpost
Race Face Ride, Clamp diameter: 30,9 mm, Material: Aluminium (AL), Weight: 10 g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.35 mm | 1.3 mm | 1.27 mm | 1.25 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 671 mm | 691 mm | 713 mm | 738 mm | 764 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Stack | 569 mm | 569 mm | 574 mm | 588 mm | 602 mm |
| Reach | 402 mm | 422 mm | 442 mm | 462 mm | 482 mm |
| Top Tube Length | 556 mm | 573 mm | 594 mm | 617 mm | 640 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 375 mm | 415 mm | 455 mm | 495 mm | 535 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 90 mm | 90 mm | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1092 mm | 1112 mm | 1134 mm | 1159 mm | 1185 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 769 mm | 769 mm | 772 mm | 776 mm | 785 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Rear Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Max Height | 167 cm | 176 cm | 184 cm | 193 cm | cm |
Model Overview
Lux World Cup CF 7 belongs to the Canyon Lux model. 57 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Canyon Lux Trail CF 6 2023 has a starting price of 3399$. Canyon Lux World Cup CFR LTD 2023 on the other hand is the most expensive at 9024$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4246$. Doing a quick comparison, we notice that Lux World Cup CF 7 price is 122.89% more expensive than the average cost of a Crosscountry bike.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit lighter than average, Lux World Cup CF 7 has a weight of 11.6 kg (25.57 lbs). In other words, this model is 6.9% lighter than the average Crosscountry bike.
Overview of components
Fork
The fork installed on this bike is the Fox Performance Elite Float 32 model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this bike has the FOX Float DPS Performance Elite Remote model, with a travel of 100mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The Lux World Cup CF 7 2023 bike is equipped with 29″ carbon wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Lux World Cup CF 7 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
