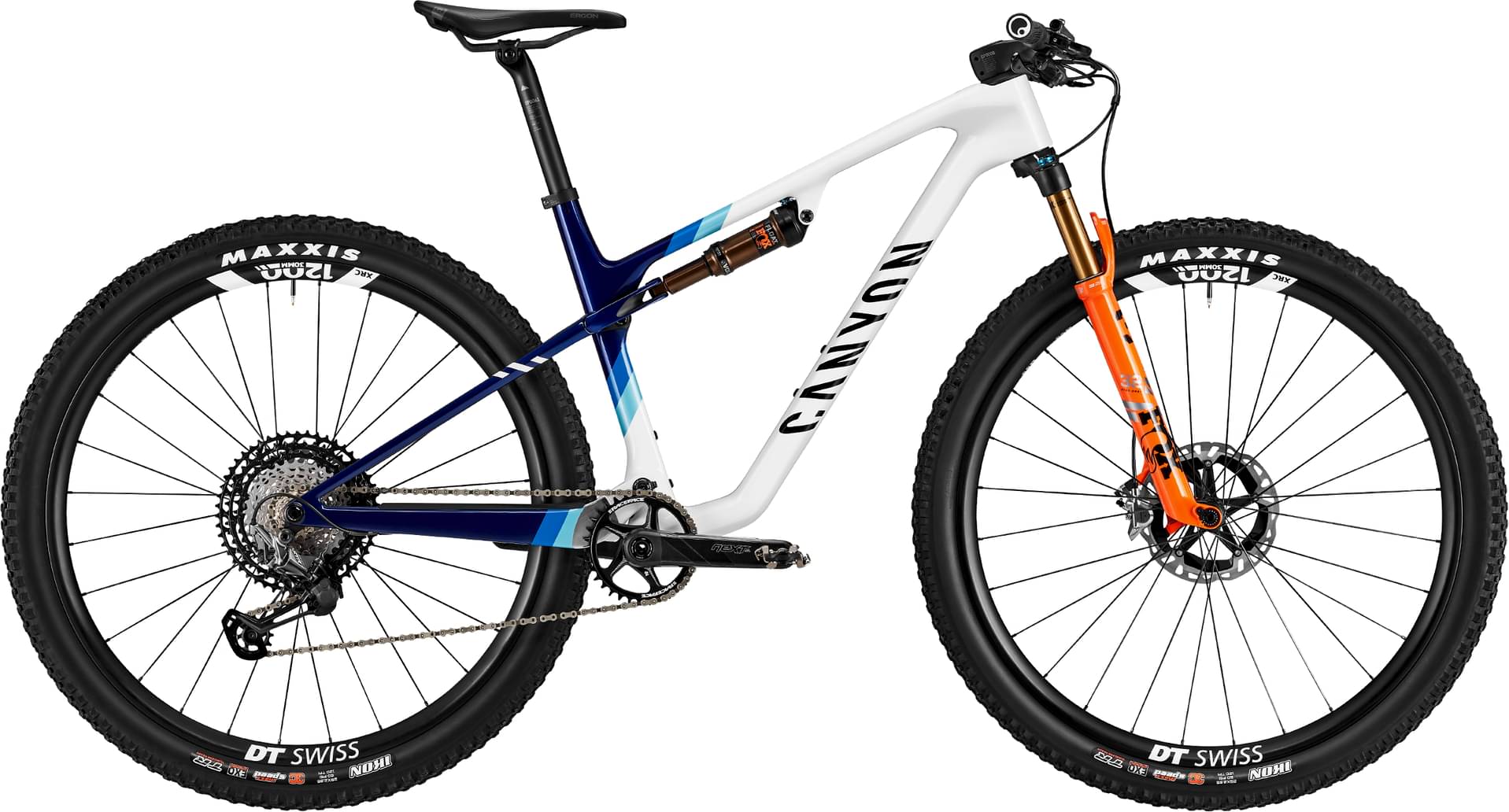

Canyon Lux World Cup CFR Team 2023
2023 Mountain
Estimate price |
6,999$
Weight | 10 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Factory Float 32
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
166cm - 176cm
MD
174cm - 184cm
LG
182cm - 192cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Canyon Lux WC CFR, One of the lightest full-suspension frames in the world. As raced by Canyon's pro riders, including Mathieu van der Poel., Axle dimension: 12x148 mm, Material: Carbon (CFR)
Suspension Fork
FOX 32 Step-Cast Factory Remote, Axle dimension: 15x110 mm, Stanchion Diameter: 32 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8" - 1,5", Weight: 1.41 kg

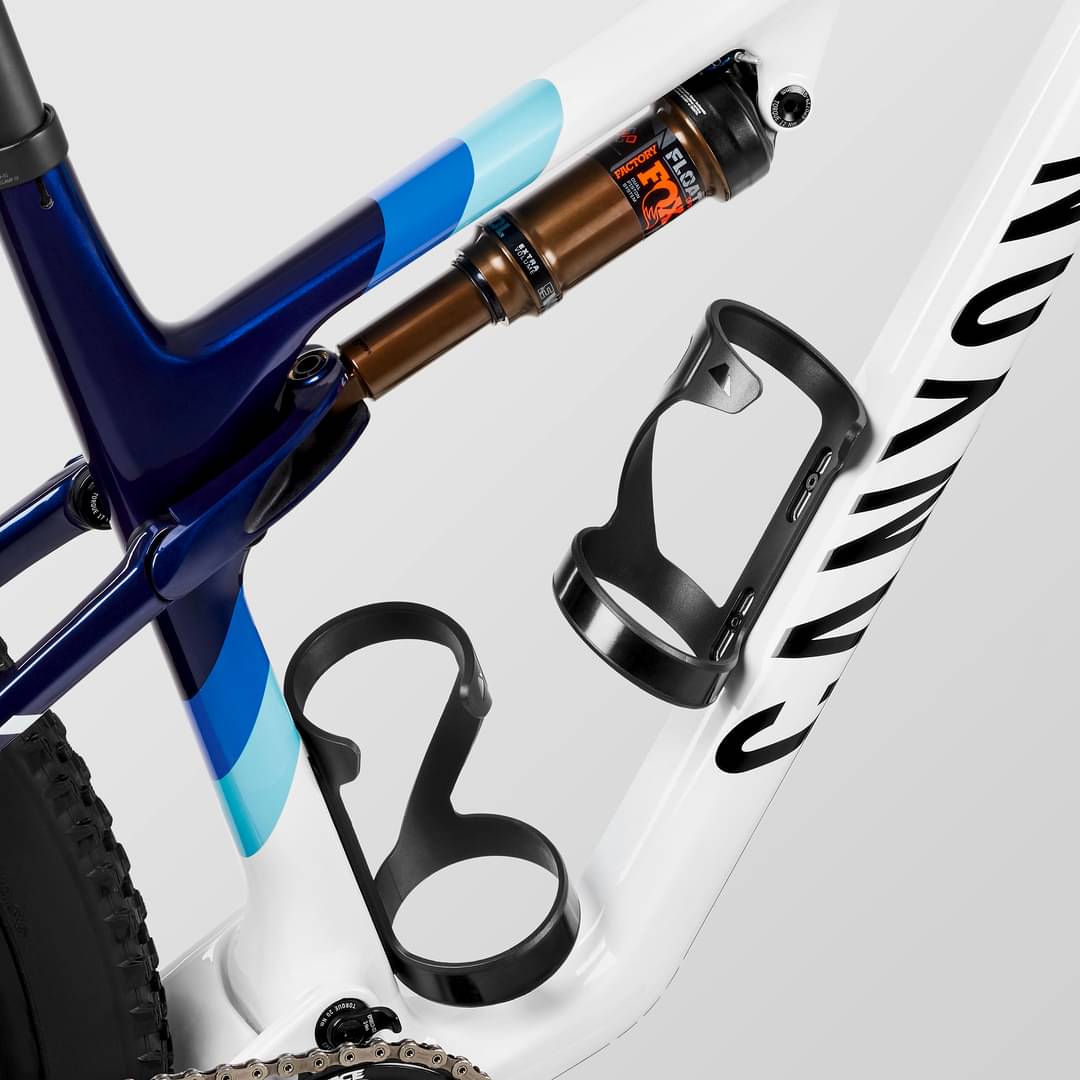

Rear Shock
FOX Float DPS Factory Remote
Drivetrain
Rear Derailleur
Shimano XTR, 12-speed, Cage length: long, Weight: 230 g
Shift Levers
Shimano XTR, 12-speed
Cassette
Shimano XTR CS-M9101 12s 10-51, Number of sprockets: 12

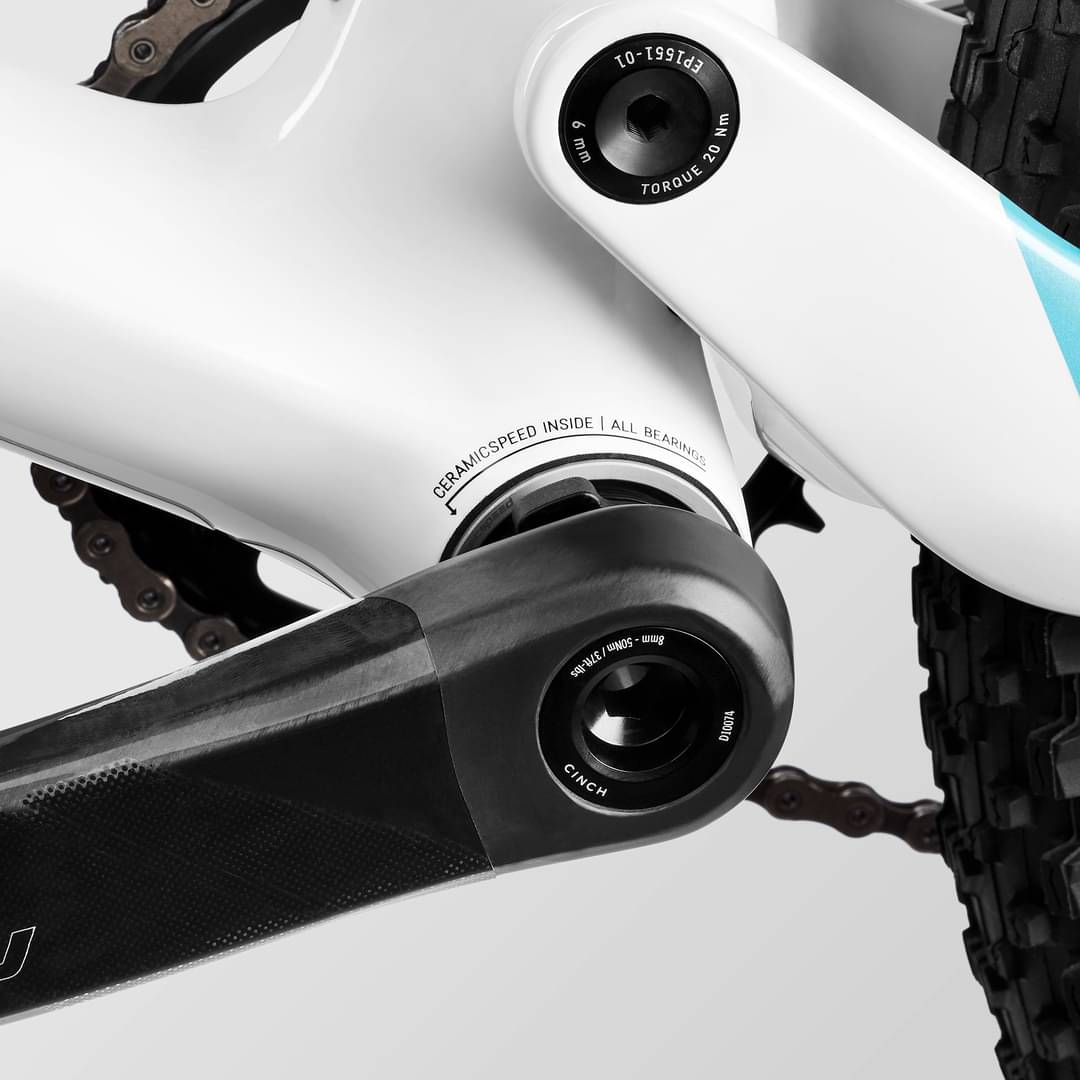

Crank
Race Face Next SL, Number of chainrings: 1
Bottom Bracket
Ceramic Speed BB92 30 mm
Chain
Shimano CN-M9100 12s
Pedals
None included
Wheels
Rims
DT Swiss XRC 1200 Spline, Axle dimension: 12x148 mm, Rotor mount: Center Lock, Inner width: 30 mm, Weight: 799 g | DT Swiss XRC 1200 Spline, Axle dimension: 15x110 mm, Rotor mount: Center Lock, Inner width: 30 mm, Weight: 679 g
Tires
Maxxis Ikon Exo 2.35", Width: 2.35", Weight: 740 g
Brakes
Brakes
Shimano XTR M9100 | Shimano XTR M9110
Cockpit
Grips
Ergon GA20
Seat
Saddle
Ergon SR10 Pro Carbon
Seatpost
Canyon SP0061 Carbon Seatpost, Clamp diameter: 30,9 mm, Material: Carbon (CF)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.29 mm | 1.27 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm |
| Front Center | 691 mm | 713 mm | 738 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 100 mm | 100 mm | 100 mm |
| Stack | 575 mm | 580 mm | 594 mm |
| Reach | 428 mm | 448 mm | 468 mm |
| Top Tube Length | 579 mm | 600 mm | 623 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 415 mm | 455 mm | 495 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 90 mm | 95 mm | 110 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1118 mm | 1140 mm | 1165 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm |
| Standover Height | 775 mm | 778 mm | 782 mm |
| Front Travel | 100 mm | 100 mm | 100 mm |
| Rear Travel | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 166 cm | 174 cm | 182 cm |
| Rider Max Height | 176 cm | 184 cm | 192 cm |
About this model
Lux World Cup CFR Team completes the Canyon Lux model. There are 57 bikes that carry this model name. Take a sneak peek at all Canyon Lux bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Canyon Lux Trail CF 6 2023 has a starting price of 3399$. Canyon Lux World Cup CFR LTD 2023 on the other hand is the most expensive at 9024$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6999$. If we compare this with the average Crosscountry bike cost we notice that the price is 267.4% higher.
Average weight for Crosscountry bikes
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 10 kg (22.05 lbs), Canyon bike is much lighter than average. To sum up, it’s 24% lighter than the average weight of Crosscountry bikes.
Lux World Cup CFR Team components
Fork
This bike has the Fox Factory Float 32 fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the FOX Float DPS Factory Remote rear shock model, which has a travel of 100mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The wheels on Lux World Cup CFR Team are the 29″ carbon type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Canyon Lux World Cup CFR Team is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Canyon Lux World Cup CFR Team bike has 3 sizes, in the range of 166 cm – 192 cm (5.45 ft – 6.3 ft). In short, you can easily find one that suits you.
